43860-5025: DescriptionModular Connector/Ethernet Connector Modjack RA LoPro 50AU Inv w/shield8/8; CategoryThe connector The connector; File Size29KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

43860-5025 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43860-5025	-	-	View	Buy Now

43860-5025 Overview

Modular Connector/Ethernet Connector Modjack RA LoPro 50AU Inv w/shield8/8

43860-5025 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Board mount options	HOLE .125-.137
body width	0.533 inch
subject depth	0.62 inch
body length	0.645 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	43860
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	BRASS
Terminal length	0.11 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

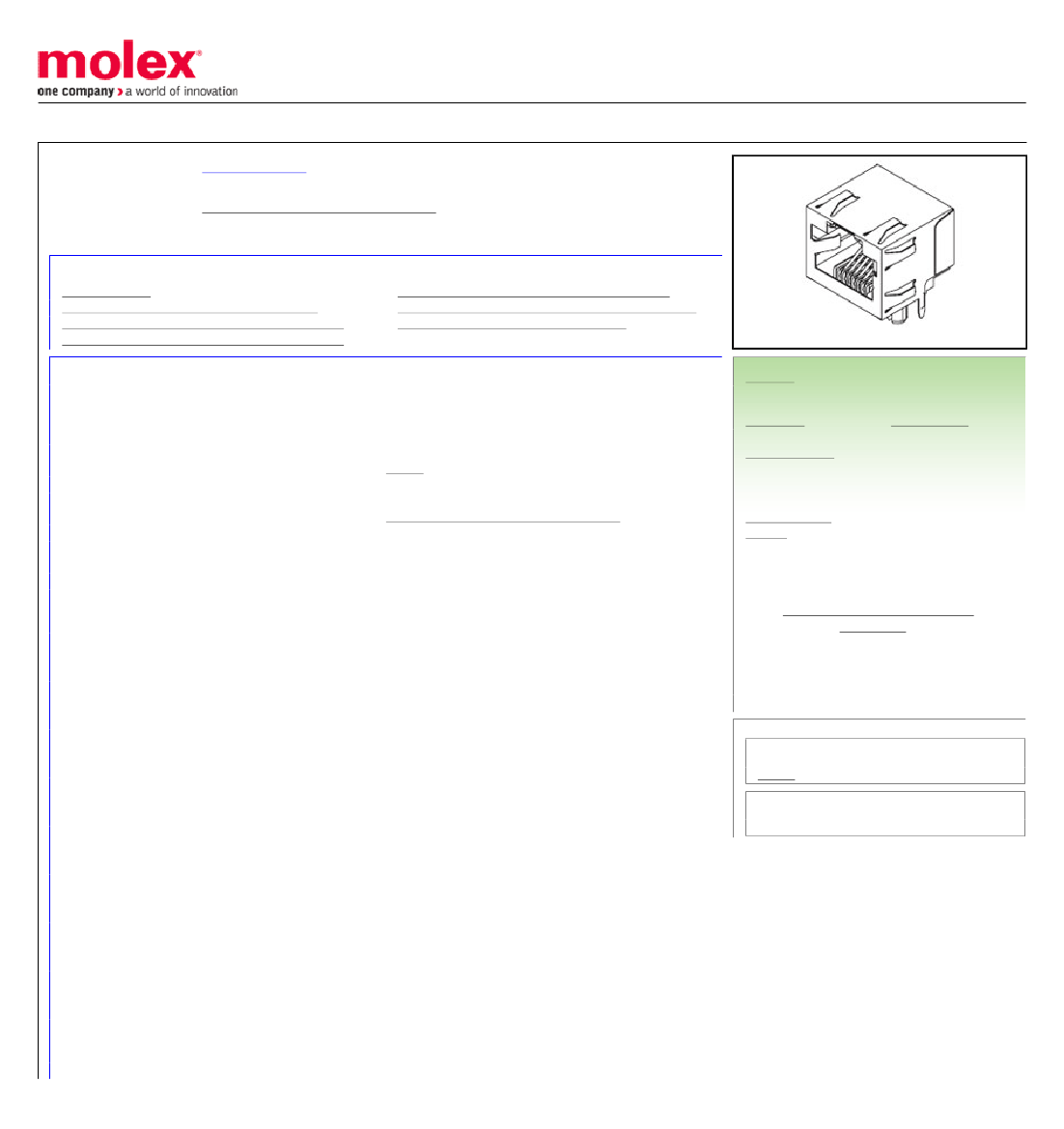

This document was generated on 06/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0438605025

Active

Magnetic and Modular Jacks and Plugs

Modular Jack, Right Angle, Low Profile, Inverted, Shielded, No Panel Grounding Tabs,

8/8, Tape and Reel

Documents:

Drawing (PDF)

Product Specification PS-43860-003 (PDF)

Product Specification TS-43860-001-001 (PDF)

Product Specification TS-43860-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Component Type

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Name

UPC

Physical

Color - Resin

Durability (mating cycles max)

Flammability

Inverted / Top Latch

Jack Height

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Ports

Positions / Loaded Contacts

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Packaging Specification PK-70873-700 (PDF)

Packaging Specification PK-70873-700-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E107635

Modular Jacks/Plugs

43860

PCB Jack

Magnetic and Modular Jacks and Plugs

3, 4

N/A

Modular Jack 8/8, RJ45

883906126704

Black

500

94V-0

Yes

13.53mm

None

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

3.780/g

Right Angle (Side Entry)

Yes

1.57mm

Embossed Tape on Reel

Yes

1.02mm

1.270µm

2.540µm

8/8

-40°C to +85°C

Through Hole

N/A

1.5A

Search Parts in this Series

43860 Series

Mates With

FCC 68 Plugs
