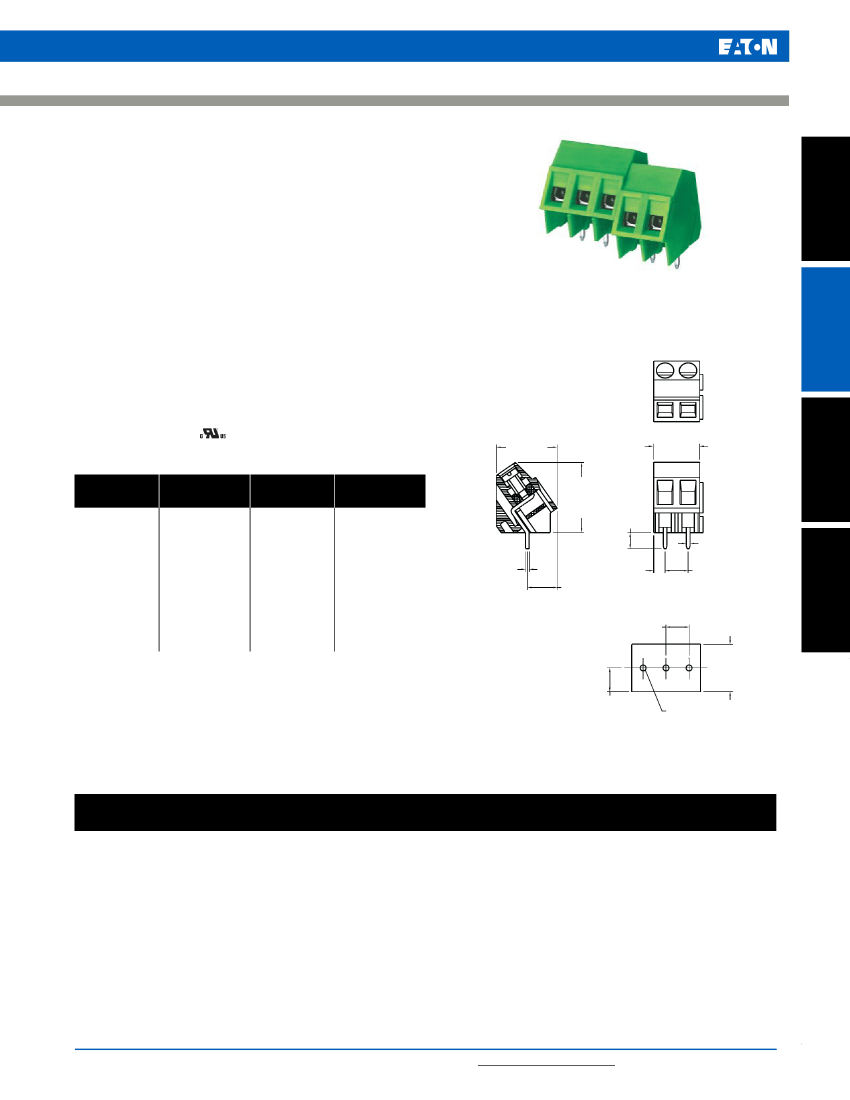

EuroMag Series PCB Mount Terminal Blocks
EM3225 Series
EuroMag Terminal Blocks
35° Angle; 5.00 Centers; Modular
SPECIFICATIONS
Rating:
16A, 300V
Center Spacing:
0.197” (5.00mm)
Wire Range:
#12-26 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass Tin-Plated
Cage Material:
Brass, Nickel-Plated
Screw Size:
M2.6
Zinc-Plated
Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
5 lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Modular design features dovetails for interlocking
to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single Row
EM322505
EuroMag Series
Cage
& Screw
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
13.3+0.3
_
(0.524")
15.3+0.3
_
(0.602")
3.5+0.3
_
(0.138")
L+0.5
_
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
0.8+0.1
_
(0.031")
7+0.3
_
(0.276")
2.5+0.3
_
(0.098")
5+0.1
_
(0.197")
5+0.1
_
(0.197")
0.9+0.1
_
(0.035")
Compliance
References
To convert to inches, divide by 25.4
PCB Hole Layout
7+0.3
_
(0.276")
ø1.4~1.5
(ø0.055"~0.059")
Part Numbering System
EM3225
nnnnnn nn
Series
02
to
24
# of Poles
13.3+0.3
_
(0.524")
For additional product information, visit
www.eaton.com/connectors
