Single 10/100 Ethernet, dual 10/100 Ethernet w/1588, 802.11a/b/g/n Wi-Fi with Bluetooth 4.0,
1-Wire, LCD connector, CAN bus
MECHANICAL
DIMENSIONS (L X W X H) W/O JTAG/LCD CONNECTOR
MATING CONNECTOR FOR MODULE
RETAINING CLIP FOR MODULE (OPTIONAL)
JTAG/LCD CONNECTOR ON MODULE (OPTIONAL)
ENVIRONMENTAL
51 mm x 35 mm x 2.6 mm
Molex, P/N 67910-5700; Tyco, P/N 2041119-x
Molex, P/N 480995701; Tyco, P/N 1717832
FCI, P/N SFV31R-1STE1LF; Tyco, P/N 3-1734839-1
51 mm x 35 mm x 3 mm
OPERATING TEMPERATURE
STORAGE TEMPERATURE
RELATIVE HUMIDITY
ALTITUDE
APPROVALS AND CERTIFICATIONS
-40° C up to +85° C (-40° F to +185° F) Upper temperature ceilings may require active and/or passive thermal
management such as lower clock speed, thermal pads, airflow, etc.
-40° C up to +85° C (-40° F to +185° F)
5% to 90% (non-condensing)
12,000 feet (3,658 meters)
EMISSIONS
FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3,
ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247,
IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17
EN 55024, EN 301 489-3
UL/UR, or equivalent
US, Canada, EU, Japan, Australia/New Zealand
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27
HALT
IMMUNITY
SAFETY
RADIO
TEMPERATURE
VIBRATION/SHOCK
DESIGN TEST
1
2
All options available on development module. Production modules may require custom variants. Contact your local distributor or Digi sales office for details.
Transmit power and channel availability depending on regulatory requirements and corresponding module variants.
WWW.DIGI.COM

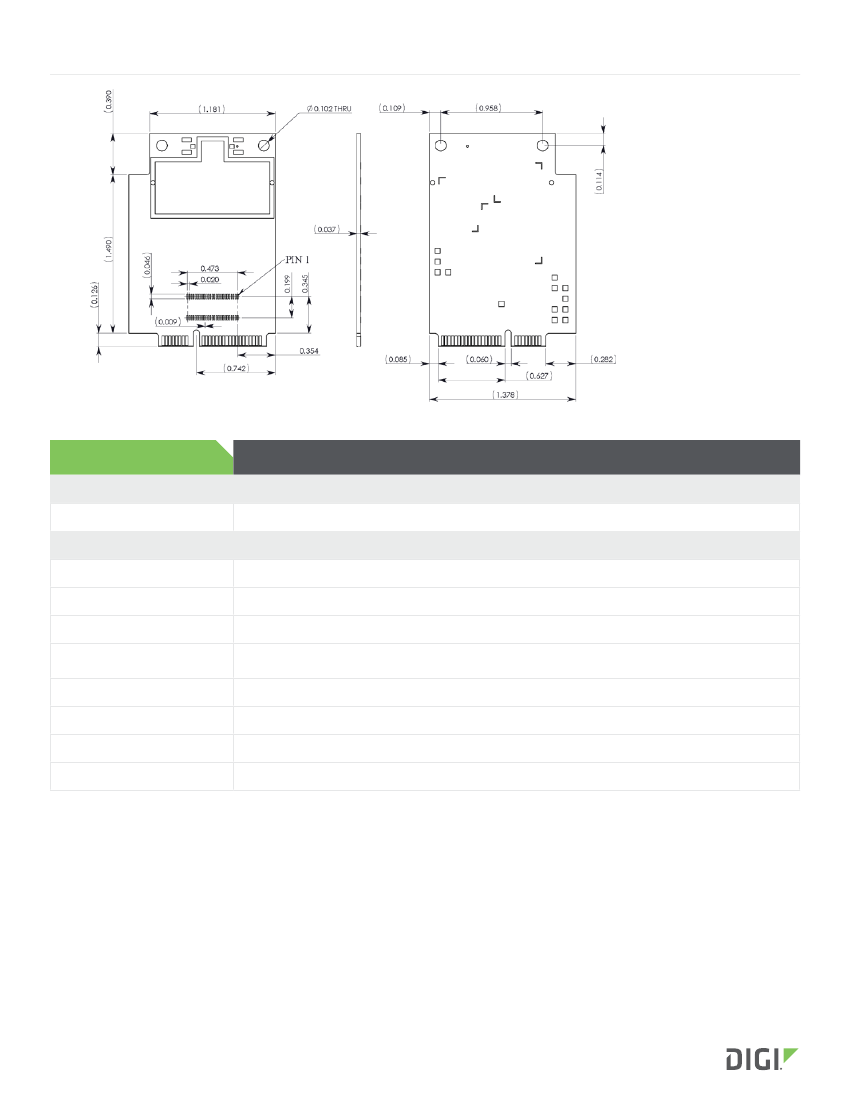

PRODUCT DIMENSIONS
PART NUMBERS
KITS
CC-ACC-LCDW-70
MODULES
CC-WMX-PF47-TK
CC-WMX-PF47-VM
CC-WMX-PF58-JT
CC-WMX-PF58-QK
CC-MX-PF47-ZK
CC-MX-PF58-ZK
CC-WMX-PE47-JT
CC-WMX-PE47-TM
DESCRIPTION
7” WVGA LCD application kit w/resistive touch screen for ConnectCore for i.MX51/i.MX53 and ConnectCard for i.MX28 family
ConnectCard for i.MX28 module, i.MX287, 454 MHz, up to 85°C, 128 MB flash, 128 MB DDR2, 802.11a/b/g/n, Bluetooth 4.0, dual Ethernet, LCD
ConnectCard for i.MX28 module, i.MX287, 454 MHz, up to 85°C, 128 MB flash, 128 MB DDR2, 802.11abgn, Ethernet, LCD
ConnectCard for i.MX28 module, i.MX287, 454 MHz, up to 85°C, 256 MB flash, 256 MB DDR2, 802.11a/b/g/n, Bluetooth 4.0, dual Ethernet, LCD
ConnectCard for i.MX28 module, i.MX287, 454 MHz, up to 85°C, 256 MB flash, 256 MB DDR2, 802.11a/b/g/n, Bluetooth 4.0, dual Ethernet,
LCD (International)
ConnectCore for i.MX28 module, i.MX287, 454 MHz, up to 85°C, 128 MB flash, 128 MB DDR2, dual Ethernet, LCD
ConnectCore for i.MX28 module, i.MX287, 454 MHz, up to 85°C, 256 MB flash, 256 MB DDR2, dual Ethernet, LCD
ConnectCard for i.MX28 module, i.MX280, 454 MHz, up to 85°C, 128 MB flash, 128 MB DDR2, 802.11abgn, Ethernet
ConnectCard for i.MX28 module, i.MX280, 454 MHz, up to 85°C, 128 MB flash, 128 MB DDR2, 802.11a/b/g/n, Bluetooth 4.0, Ethernet
DIGI SERVICE AND SUPPORT /
You can purchase with confidence knowing that Digi
is always available to serve you with expert technical support and our industry
leading warranty. For detailed information visit www.digi.com/support.
