RD
※D
SERIES RIGHT-ANGLE TYPE CONNECTORS

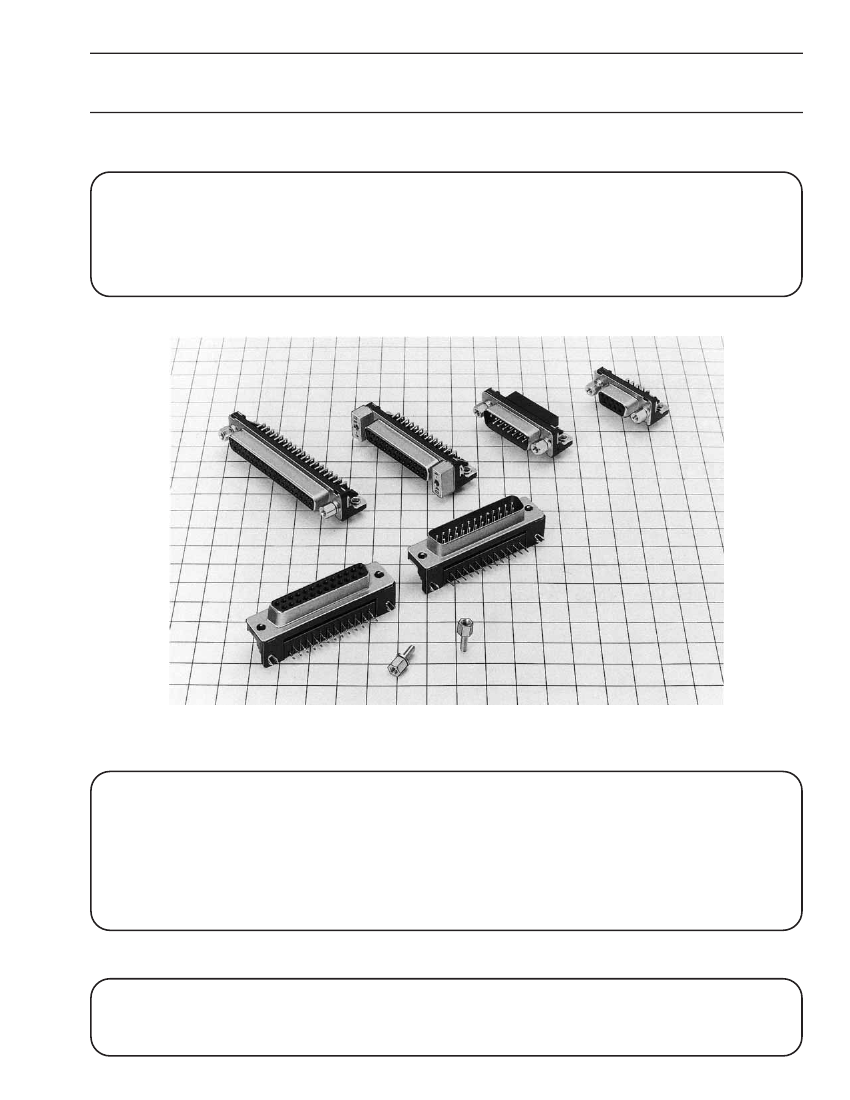

General
The RD※D Series use a molded one-piece design for
parallel mounting on a PCB. Designed to be directly
connected to the circuits in PCBs, the RD*D Series is
suitable for labor-saving in connection work and en-
hancing the reliability of wiring.
9, 15, 25, and 37-contact models available. (37-
contact) : Female connector only
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Features
(1) Compact and sturdy due to a metal shell.
(2) Simple construction of RD type single mold.
(3) Offers direct parallel mounting on PCBs in high
density and easily connectable to a cable plug.
(4) Gold plated for contact area and mounting area.
(5) A wide variety of combinations available, such as
dip soldering (HD), crimping (CD), and ribbon IDC
termination (FD).
(6) Uses insulation of highly heat-resistant and che-
mical-resistant UL synthetic resin.
(7) Meets your application requirements with a variety
of accessories.
Application
Most suitable for modems in communications equip-
ment such as computers, peripherals and terminals,
control equipment, measuring instruments, and export
equipment.
04/2009
23
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Electrical and Environmental
Electrical and Environmental Characteristics
Current capacity
Rated voltage
Insulation
resistance
Contact
resistance
Withstand
voltage
3A
350V AC
5000MΩmin.
at 500V DC
25mΩmax.
at 100mA AC
1250Vrms Ac for 1 minute
Shell
Steel
Nickel plating
Material and finish
Insulator
Contacts
PBT※
Phosphor bronze
Black
Nickel plating＋Gold plating
※UL94V-0
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

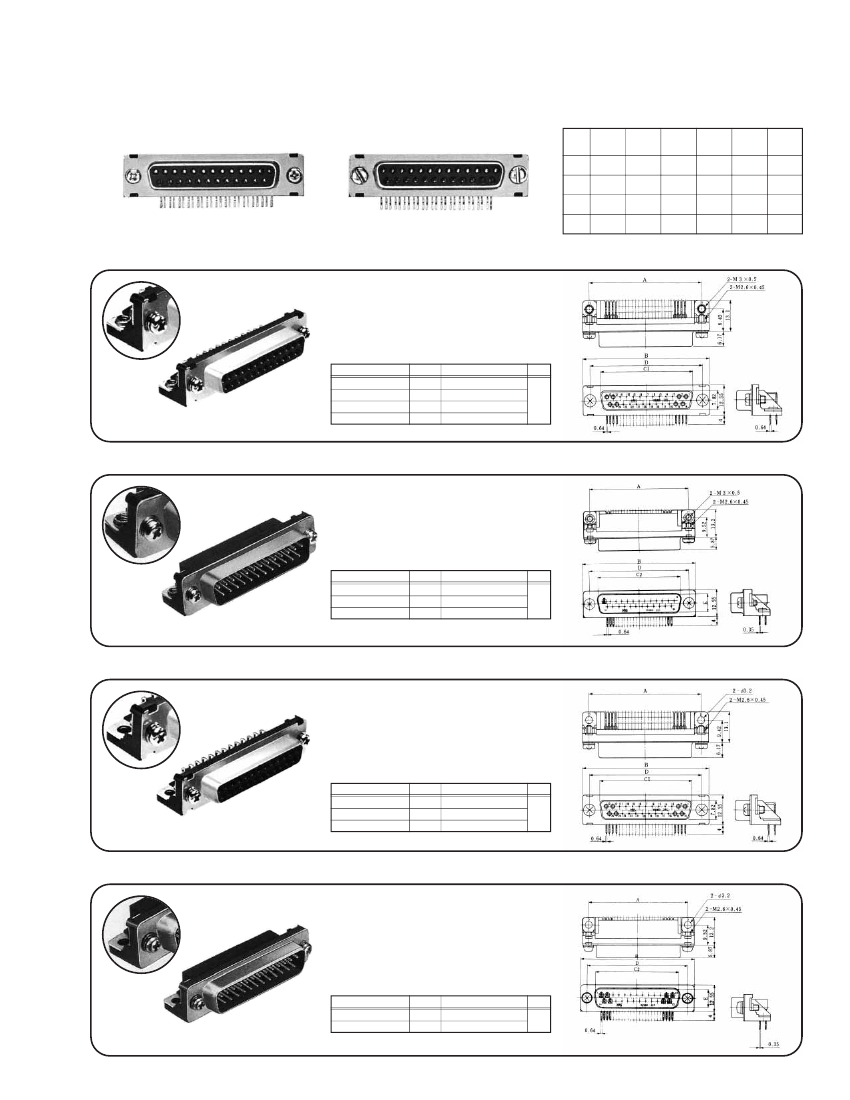

Standard/No Insert
Dimensions
No. of
Pin
9
15
25
37
A
24.99
33.32
47.04
63.5
B
30.81
39.14
53.04
69.32
C
1
16.4
24.59
38.3
54.76
C
2
16.9
25.24
39.01
――
D
24.99
33.32
47.04
63.5
E
8.34
8.34
8.4
――
Metric thread
#4-40 thread
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): M3×0.5
HRS No
CL211-0312-3-55
CL211-0315-1-55
CL211-0294-3-55
CL211-0318-0-55
No. of Pin
9
15
25
37
Part No.
RDED-9S
（55）
RDAD-15S
（55）
RDBD-25S
（55）
RDCD-37S
（55）
RoHS
YES
RDBD-25S
（55）
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): M3×0.5
HRS No
CL211-0475-8-55
CL211-0496-8-55
CL211-0367-5-55
No. of Pin
9
15
25
Part No.
RDED-9P
（55）
RDAD-15P
（55）
RDBD-25P
（55）
YES
RoHS
RDBD-25P
（55）
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): Through-holes
HRS No
CL211-0412-8-55
CL211-0413-0-55
CL211-0297-1-55
No. of Pin
9
15
25
Part No.
RDED-9SA
（55）
RDAD-15SA
（55）
RDBD-25SA
（55）
YES
RoHS
RDBD-25SA
（55）
Panel-mounting threaded holes: M2.6×0.45 (metric)
Ground terminal (PCB-mounting): Through-holes
HRS No
CL211-0502-9-55
CL211-0373-8-55
No. of Pin
15
25
Part No.
RDAD-15PA
（55）
RDBD-25PA
（55）
RoHS
YES
RDBD-25PA
（55）
04/2009
25
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

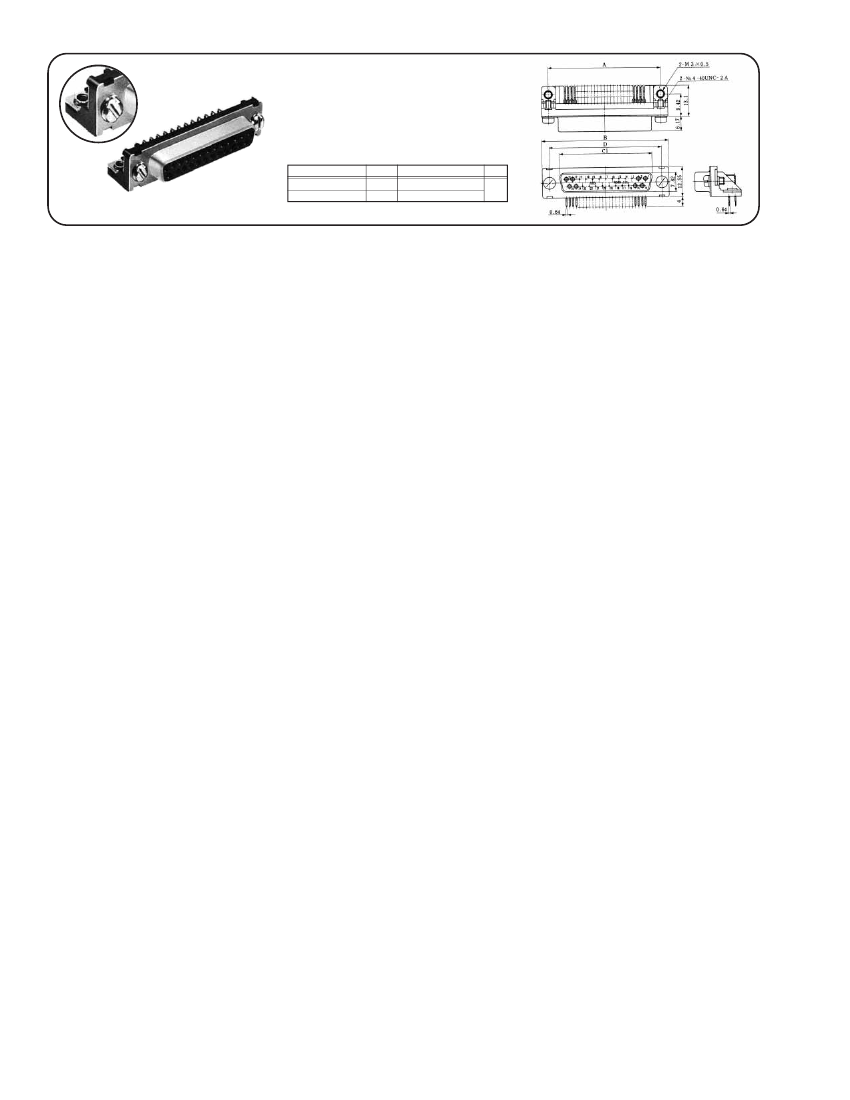

Panel-mounting threaded holes: No.4-40 UNC (inch)
Ground terminal (PCB-mounting): M3×0.5
HRS No
CL211-0399-1-55
CL211-0300-4-55
No. of Pin
15
25
Part No.
RDAD-15S
（4-40）55）
（
RDBD-25S
（4-40）55）
（
RoHS
YES
RDBD-25S 4-40）
（
（55）
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
26
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

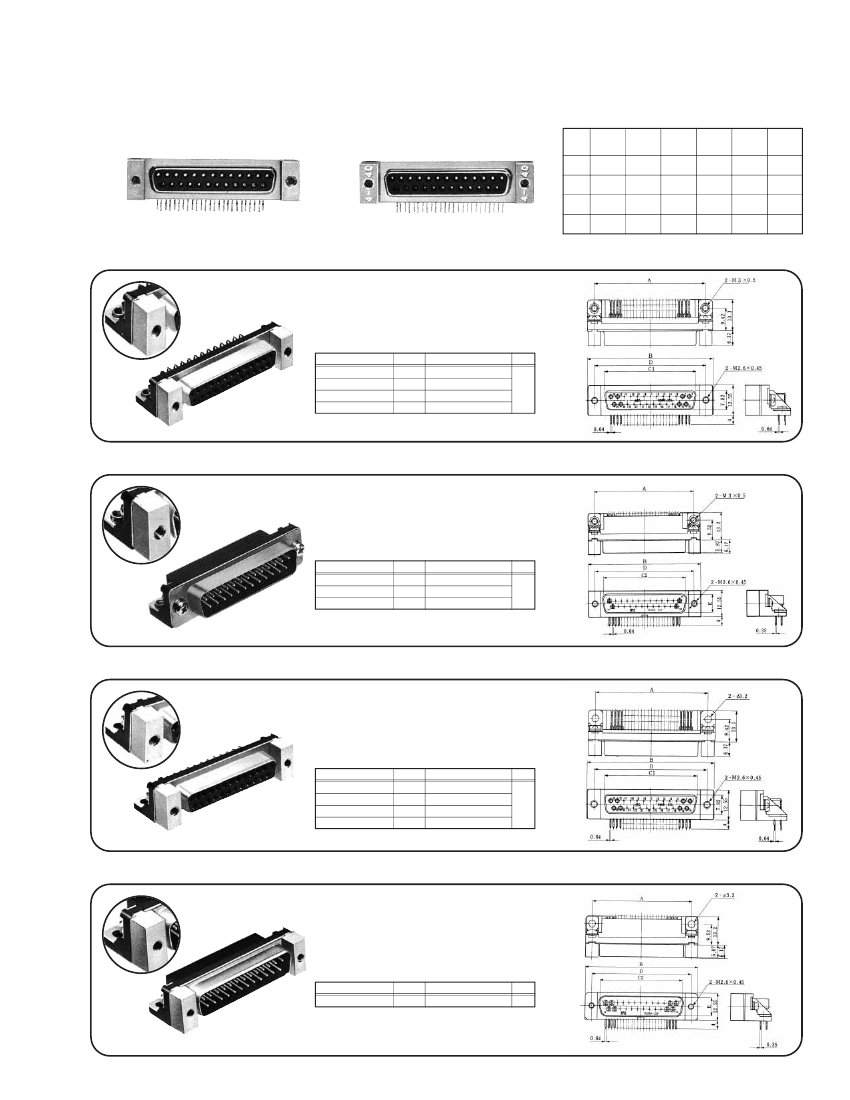

Locking Device with Rectangular Mating Locking Base (LN Type)
Dimensions
No. of
Pin
9
15
25
37
A
24.99
33.32
47.04
63.5
B
30.81
39.14
53.04
69.32
C
1
16.4
24.59
38.3
54.76
C
2
16.9
25.24
39.01
――
D
24.99
33.32
47.04
63.5
E
8.34
8.34
8.4
――
Metric thread
#4-40 thread
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
