EM290819 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> connection terminal > Fixed terminal> EM290819

EM290819: DescriptionFixed terminal block 19P EM2908 Series; CategoryThe connector connection terminal Fixed terminal; File Size898KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

EM290819 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM290819	-	-	View	Buy Now

EM290819 Overview

Fixed terminal block 19P EM2908 Series

EM290819 Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Fixed terminal block
Shipping restrictions	Mouser does not currently sell this product.
Number of locations	19 Position
Pitch	5.08 mm
connection method	Spring Cage
Current rating	25 A
Voltage rating	300 V
Wire gauge range	24 AWG to 10 AWG
series	EM2908
Encapsulation	Bulk
Contact plating	Tin
product	Fixed Terminal Blocks
Termination type	SMD/SMT
Contact material	Brass
Flammability rating	UL 94 V-0
Factory packaging quantity	100

Preview

Download Datasheet

View All

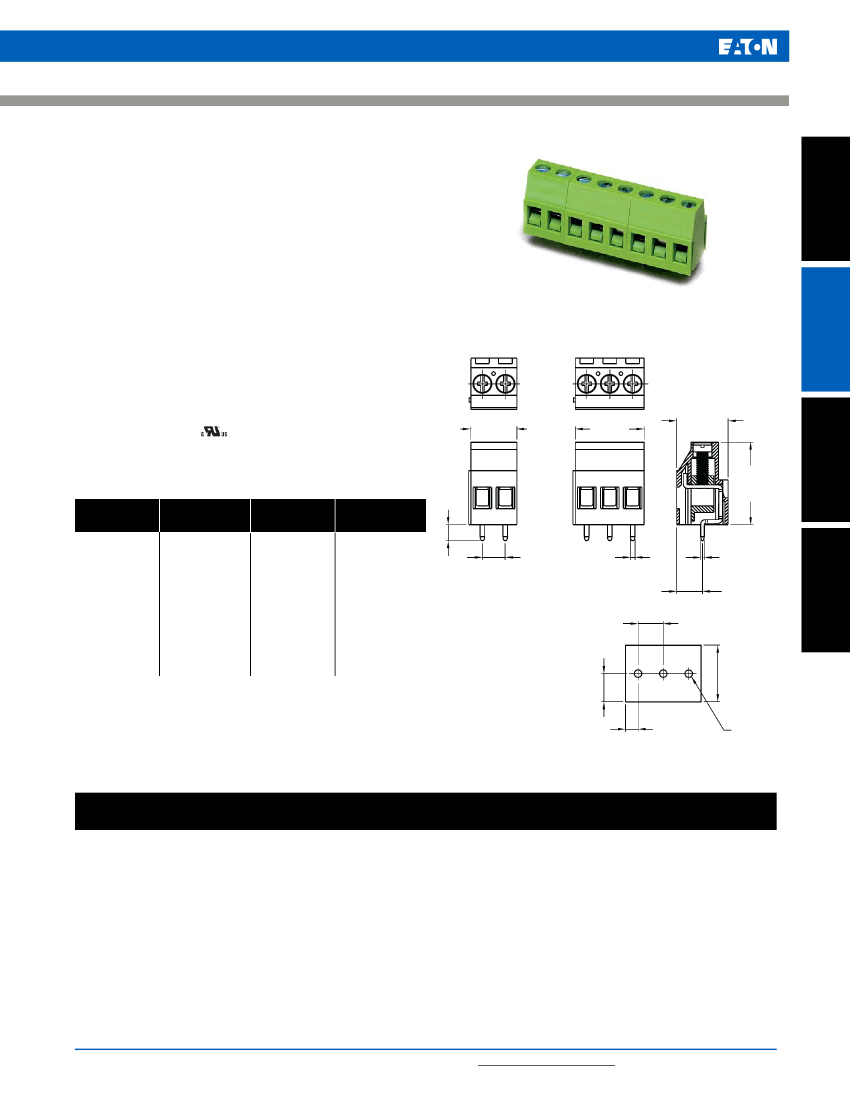

EuroMag Series PCB Mount Terminal Blocks

EM2908 Series

EuroMag Terminal Blocks

High Current; 5.08 Centers; Modular

SPECIFICATIONS

Rating:

25A,

300V

Center Spacing:

0.20” (5.08mm)

Wire Range:

#10-24 AWG

Housing Material:

UL rated 94V0 Thermoplastic

Contact Material:

Brass Tin-Plated

Cage Material:

Brass, Nickel-Plated

Screw Size:

M2.6

Zinc-Plated

Steel

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Torque Rating:

6.0

lb-in.

Recommended PCB Hole Diameters:

0.055" (1.40mm)

Construction:

Modular design features dovetails for

interlocking to achieve longer lengths

Agency Information:

File E62622; CE Certified

Terminal Blocks:

Single Row

EM290808

EuroMag Series

High Current

Dimensions - mm (in)

L+0.5

11.2+0.3

(0.441")

Edge Connectors,

One-Sided Boards

Poles

L (mm)

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

Poles

L (mm)

71.12

76.20

81.28

86.36

91.44

96.52

101.60

106.68

111.76

116.84

121.92

5.08+0.1 1.0+0.1

(0.200") (0.039")

0.8+0.1

(0.031")

5.6+0.3

(0.220")

5.08+0.1

(0.200")

11.2±0.3

(0.441")

3.5+0.3

(0.138")

18+0.3

(0.709")

Compliance

References

PCB Hole Layout

To convert to inches, divide by 25.4

5.6+0.3

(0.220")

2.54+0.3

(0.100")

ø1.5

(0.059")

Part Numbering System

Series

EM2 908

nnnnnn nn

# of Poles

For additional product information, visit

www.eaton.com/connectors
