XF2H-2615-1

Description
26 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT
Categorysemiconductor    Other integrated circuit (IC)
File Size321KB,7 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet View All

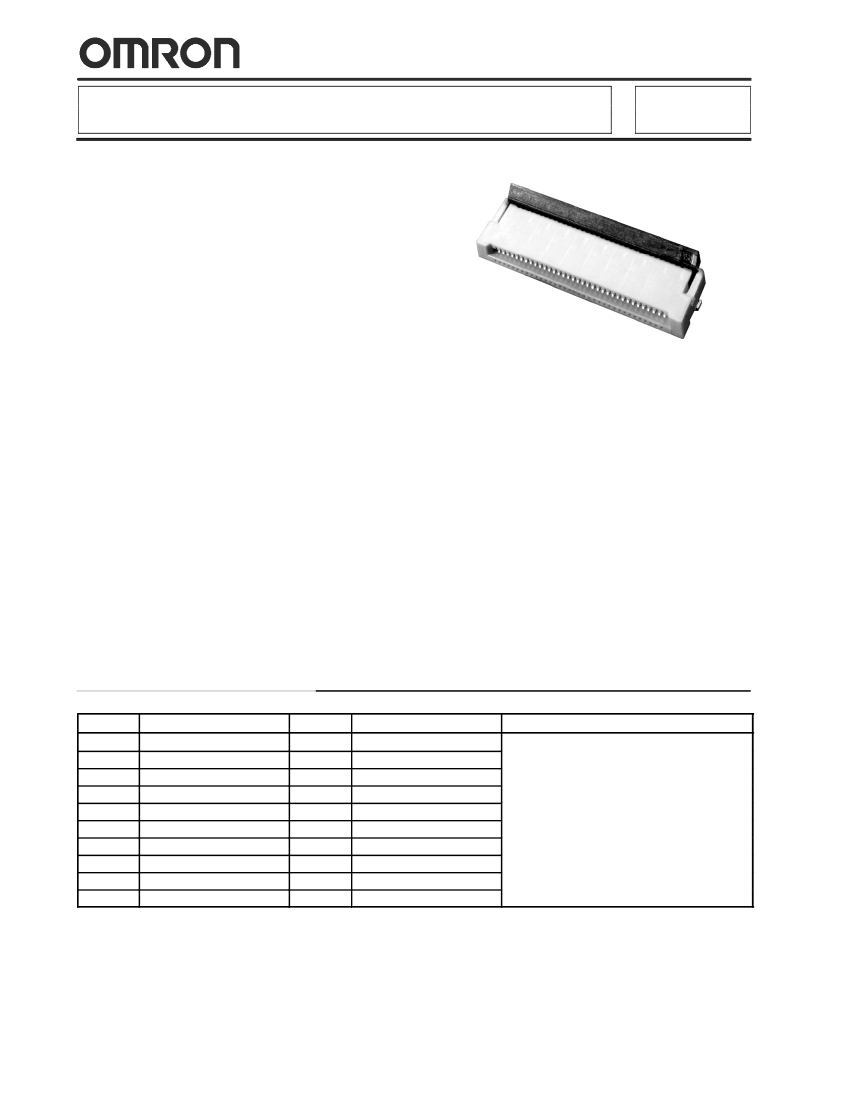

XF2H-2615-1 Overview

26 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT

R
0.5 mm-Pitch Rotary-Lock FPC Connector
SMT ZIF (Zero Insertion Force)
Connector with Rotary-Lock
Improves Assembly Reliability,
Manufacturing Efficiency
H
Rotary-lock at rear instead of front
simplifies assembly, provides secure
connection even if cable flexes upward
XF2H
H
FPC housing design ensures reliable
alignment of the circuits during
assembly, unaffected by rotary-lock
H
Double-sided contacts can be used
wherever top or bottom connection is
needed, reducing part numbers on the
bill of materials
H
Connector is supplied with rotary-lock in
the open position, eliminating one step
during assembly, improving productivity
H
Low profile, measures only 2 mm max.
above the circuit board
H
Connectors supplied on tape reels for
automatic insertion
Ordering Information
Circuits
10
12
13
14
18
20
21
22
24
26
Part number
XF2H-1015-1
XF2H-1215-1
XF2H-1315-1
XF2H-1415-1
XF2H-1815-1
XF2H-2015-1
XF2H-2115-1
XF2H-2215-1
XF2H-2415-1
XF2H-2615-1
Circuits
30
32
33
34
35
36
38
40
45
50
Part number
XF2H-3015-1
XF2H-3215-1
XF2H-3315-1
XF2H-3415-1
XF2H-3515-1
XF2H-3615-1
XF2H-3815-1
XF2H-4015-1
XF2H-4515-1
XF2H-5015-1

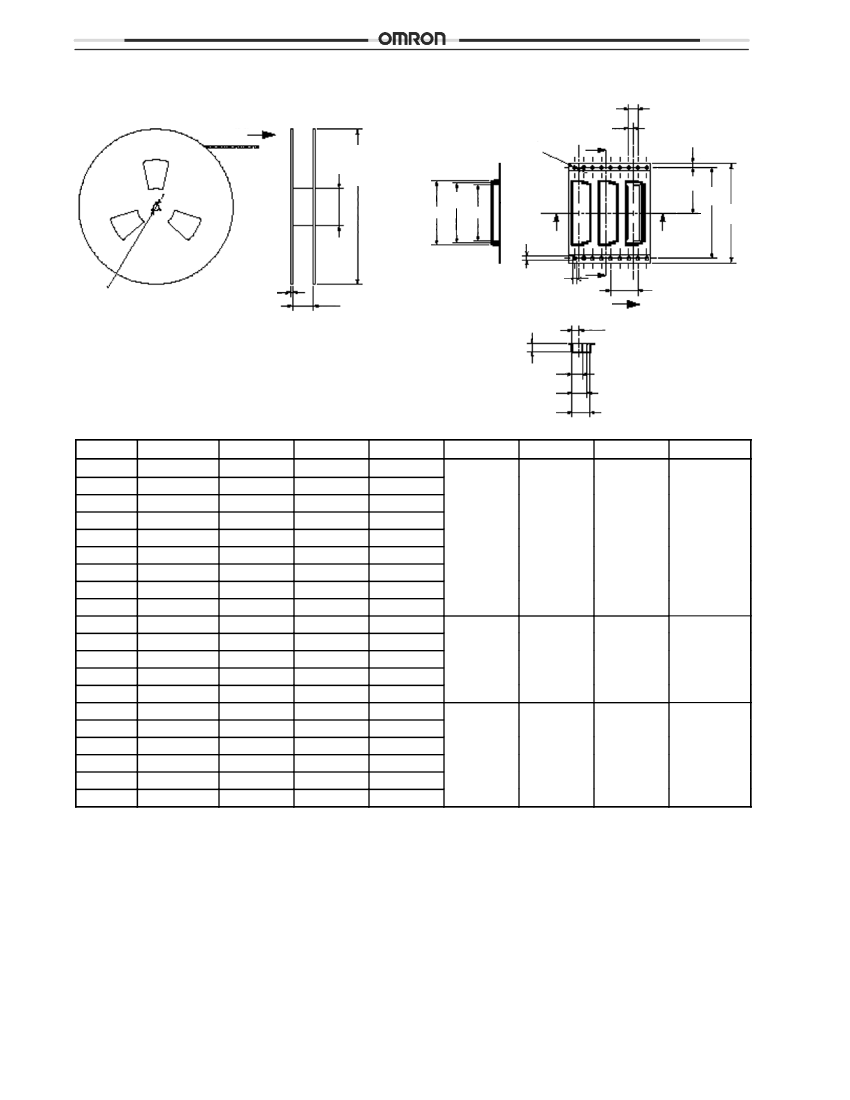

Order in multiples of the quantity per reel.
Quantity per reel
1,500 per reel
,
p
Note: Connectors with different circuit counts and contact locations are available on special order. Contact your Omron representative.
