HPMC-115-03-L-D-02 datasheet, PDF

Datasheet> All Categories > The connector> The connector> HPMC-115-03-L-D-02

HPMC-115-03-L-D-02: DescriptionPower to Board.100" Signal/Power Combo Terminal Strip; CategoryThe connector The connector; File Size347KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HPMC-115-03-L-D-02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HPMC-115-03-L-D-02	-	-	View	Buy Now

HPMC-115-03-L-D-02 Overview

Power to Board.100" Signal/Power Combo Terminal Strip

HPMC-115-03-L-D-02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HPMC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

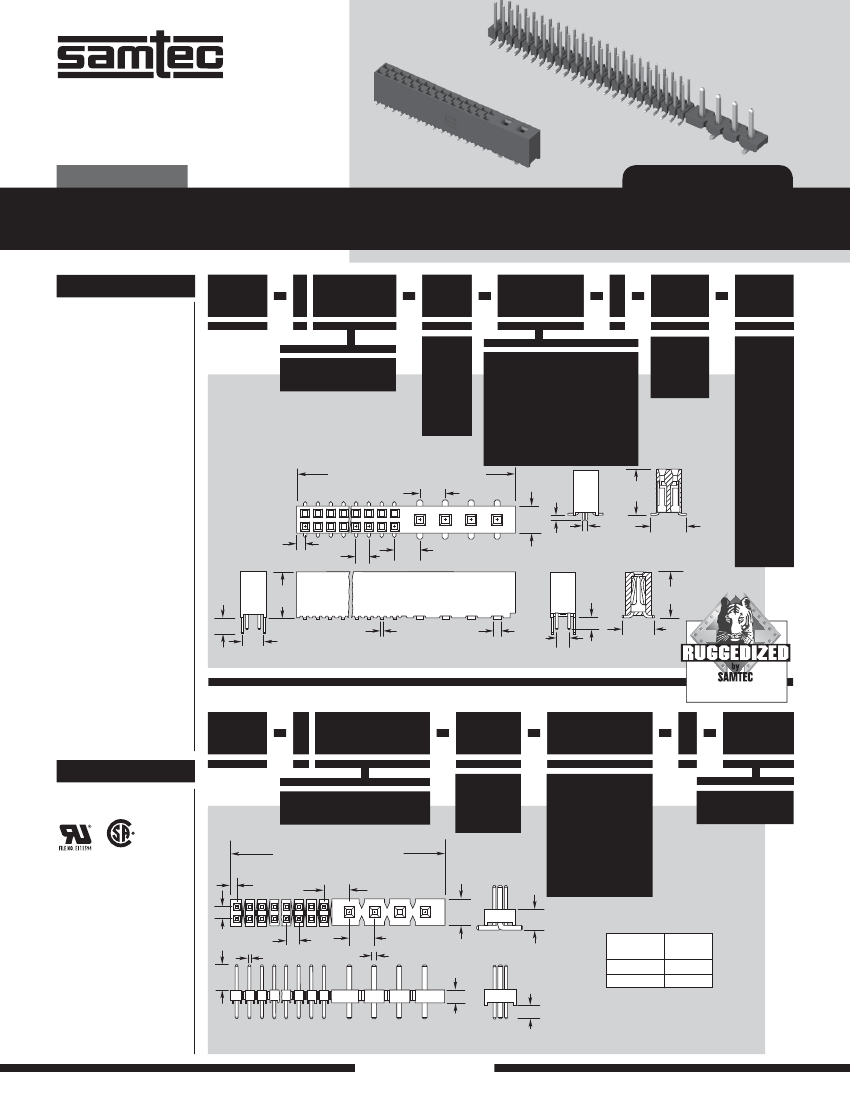

F-215 SUPPLEMENT

HPMC–124–04–L–D–04

HPFC–114–02–L–D–02

(2,54 mm) .100"

HPFC, HPMC SERIES

SIGNAL POWER COMBO SYSTEM

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?HPFC

or www.samtec.com?HPMC

Insulator Material:

Black Liquid Crystal Polymer

Signal Contact (HPFC):

Phosphor Bronze

Power Contact (HPFC):

BeCu

Terminal (HPMC):

Phosphor Bronze

(Signal & Power)

Plating:

Sn or Au over 50µ" (1,27 µm)

Ni on signal pins; Sn over 50µ"

(1,27 µm) Ni on power pins

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Contact Resistance:

10 mΩ

Insertion Depth:

(3,68 mm) .145" to

(8,26 mm) .325"

Wiping Distance:

(0,381 mm) .015"

Insertion Force:

(Single contact only)

5 oz (1,39 N) avg. (signal pins)

56 oz (15,57 N) avg. (power pins)

Withdrawal Force:

(Single contact only)

3 oz (0,83 N) avg. (signal pins)

52 oz (14,46 N) avg. (power pins)

Voltage Rating:

850 VAC/1201 VDC

RoHS Compliant:

Yes

HPFC

Mates with:

HPMC

SIGNAL PIN

PER ROW

LEAD

STYLE

SIGNAL PIN

PLATING

POWER

PINS

OPTION

–01

02 thru 24

= Through

-Hole

–L

= 10µ" (0,25 µm)

Gold on contact area,

Matte Tin on tail

(Power Pins = All Matte Tin)

thru

–LC

= Locking

Clip

(Manual

placement

required)

(Not

available

with –01

lead style)

–02

= Surface

Mount

–T

= Matte Tin

No. Signal positions x (2,54) .100 +

(No. Power positions x (5,08) .200 + (2,54) .100)

(5,08) .200

(5,08)

.200

(1,27)

.050

(2,54)

.100

(5,08)

.200

(2,26)

.089

(0,51) (0,25)

.020 x .010

(1,14) (0,46)

.045 x .018

(6,86)

.270

(1,12)

.044

(9,02)

.355

(1,42)

.056

(7,11)

.280

–K

= (6,50 mm)

.256" DIA

Polyimide

ﬁlm Pick &

Place Pad

(5 positions

minimum)

Style –02

(Signal End)

(3,12)

.123

(8,89)

.350

(9,02)

.355

Style –01

(Signal End)

(4,14)

.163

(2,46)

.097

Style –01

(Power End)

Style –02

(Power End)

Processing:

• Locking clip option

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max (02-20)

(0,20 mm) .008" max (21-24)

HPMC

Mates with:

HPFC

SIGNAL PIN

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from chart

SIGNAL PIN

PLATING

POWER

PINS

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

–L

= 10µ" (0,25 µm)

Gold on contact

area, Matte Tin on tail

(Power Pins =

All Matte Tin)

02 thru 24

No. Signal positions x (2,54) .100 +

(No. of Power positions x

(5,08) .200 + (1,27) .050)

(Add (0,76) .030 for –04 Power Pins)

(1,27) .050

(5,08) .200

02 thru 04

FILE NO: 090871_0_000

–T

= Matte Tin

(5,08)

.200

(3,81)

.150

(2,54)

.100

(2,54)

.100

(0,64) .025 SQ

(5,08)

.200

(1,14) .045 SQ

Style

–02 & –04

(2,54)

.100

LEAD

STYLE

–01, –02

–03, –04

(5,84) .230

(8,13) .320

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(2,54)

.100

Style

–01 & –03

WWW.SAMTEC.COM

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

HPMC-108-03-L-D-03 HPMC-106-03-L-D-03 HPMC-109-01-T-D-02 HPMC-110-04-L-D-02 HPMC-115-03-L-D-02

HPMC-110-01-L-D-02 HPMC-102-04-T-D-04 HPMC-106-01-L-D-04 HPMC-124-01-L-D-04 HPMC-102-03-T-D-04

HPMC-103-03-L-D-04 HPMC-124-03-L-D-04 HPMC-116-01-L-D-04 HPMC-124-02-L-D-04 HPMC-109-03-L-D-04

HPMC-102-03-L-D-04 HPMC-124-04-L-D-04 HPMC-102-03-T-D-02 HPMC-102-02-T-D-02 HPMC-105-02-L-D-02

HPMC-110-01-L-D-04 HPMC-110-03-L-D-03 HPMC-124-03-T-D-04 HPMC-105-01-L-D-04 HPMC-105-04-L-D-02

HPMC-106-03-L-D-04 HPMC-108-01-T-D-04 HPMC-124-04-T-D-04 HPMC-102-02-L-D-02 HPMC-109-03-T-D-04

HPMC-124-02-T-D-04 HPMC-105-01-L-D-03 HPMC-120-01-L-D-04 HPMC-124-01-T-D-04 HPMC-110-02-L-D-04

HPMC-120-03-L-D-04 HPMC-103-03-T-D-02 HPMC-116-03-L-D-04 HPMC-104-01-L-D-04 HPMC-105-04-L-D-04

HPMC-106-01-T-D-04 HPMC-102-01-L-D-03 HPMC-102-03-L-D-02 HPMC-102-03-L-D-03 HPMC-110-03-T-D-04

HPMC-112-03-L-D-04 HPMC-114-02-T-D-04 HPMC-104-02-T-D-04 HPMC-120-04-L-D-04 HPMC-104-03-L-D-04

HPMC-108-01-L-D-04 HPMC-108-03-L-D-04 HPMC-120-04-T-D-04 HPMC-103-02-T-D-02 HPMC-103-04-L-D-02

HPMC-106-04-T-D-04 HPMC-108-03-T-D-04 HPMC-111-01-L-D-04 HPMC-116-04-T-D-03 HPMC-106-02-L-D-04

HPMC-110-01-T-D-04 HPMC-116-03-LM-D-04 HPMC-102-01-LM-D-04 HPMC-103-04-T-D-02 HPMC-105-02-L-D-03

HPMC-106-04-L-D-04 HPMC-111-02-L-D-02 HPMC-102-02-L-D-04 HPMC-120-02-TM-D-02 HPMC-106-01-T-D-02

HPMC-112-01-L-D-04 HPMC-116-01-T-D-04 HPMC-102-04-L-D-04 HPMC-102-04-T-D-02 HPMC-103-01-L-D-04

HPMC-105-04-T-D-04 HPMC-112-03-T-D-04 HPMC-115-01-L-D-04 HPMC-103-01-L-D-02 HPMC-105-03-L-D-04

HPMC-105-03-T-D-04 HPMC-105-04-L-D-03 HPMC-104-01-T-D-02 HPMC-104-01-T-D-04 HPMC-107-02-LM-D-03

HPMC-108-02-L-D-04 HPMC-102-01-L-D-04 HPMC-102-04-L-D-02 HPMC-104-04-L-D-03 HPMC-105-03-L-D-03

HPMC-106-03-T-D-02 HPMC-102-02-T-D-04 HPMC-103-03-L-D-03 HPMC-104-03-T-D-04 HPMC-120-01-L-D-03

HPMC-107-04-L-D-04 HPMC-103-02-L-D-03 HPMC-103-03-L-D-02 HPMC-103-03-LM-D-02 HPMC-108-04-L-D-02
