YTE-125-03-G-Q-340-001 datasheet, PDF

Datasheet> All Categories > YTE-125-03-G-Q-340-001

YTE-125-03-G-Q-340-001: DescriptionBoard Stacking Connector, 100 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Socket,; File Size977KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

YTE-125-03-G-Q-340-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	YTE-125-03-G-Q-340-001	-	-	View	Buy Now

YTE-125-03-G-Q-340-001 Overview

Board Stacking Connector, 100 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Socket,

YTE-125-03-G-Q-340-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1039540429
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
YTEOL	8.55
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	100

Preview

Download Datasheet

View All

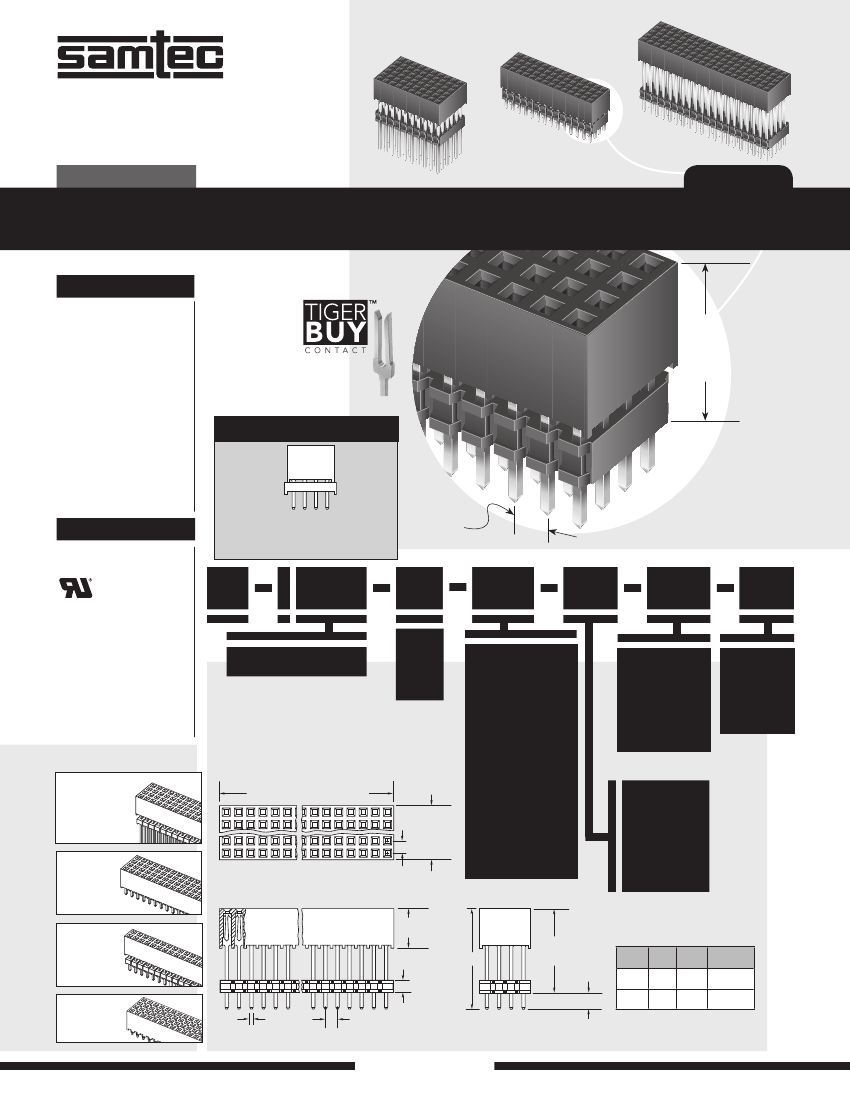

F-219 SUPPLEMENT

YTE–110–02–G–6–500

YTE–120–03–G–5–700

YTE–114–03–M–Q–368

(2.00 mm) .0787"

YTE SERIES

HIGH-DENSITY ELEVATED SOCKET STRIP

SPECIFICATIONS

For complete specifications

see www.samtec.com?YTE

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Operating Temp Range:

-55 °C to +105 °C

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Insertion Depth:

(2.62 mm) .103" to

(5.03 mm) .198" with

(0.38 mm) .015" wipe

Max Cycles:

100 with 10 µ" (0.25 µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave only

Mates with:

YTT, YTW, YTE

Body Height

from (8.64 mm)

.340" to

(20.32 mm)

.800"

Other Solutions

PC/104-Plus

™

Sockets

See ESQT-368

Series.

300

= 20 µ" (0.51 µm)

Gold on contact,

Tin on tail

–M

–L

–F

= Body Height

(in inches)

(8.64 mm) .340"

min. for –Q

(9.53 mm) .375"

min. for –5 & –6

–“XXX”

=Polarized

Position

(Indicate

position

number)

No. of positions x

(2.00) .0787 + (0.30) .012

Low

Profile

See YTS

& YTQ Series.

No. of

rows x

(2.00)

.0787

295

= 10 µ" (0.25 µm)

Gold on contact,

Tin on tail

= Quad Row

–Q

–5

–6

(2.00)

.0787

(6.35)

.250

= Gold flash

on contact,

Tin on tail

= Five Row

= Six Row

1, 2, & 3

Row

See ESQT

Series.

BODY TAIL

HEIGHT (1.27)

.050

MIN

LEAD

STYLE

– 02

(21.59)

.850

–03

(11.63)

.458

Press-fit

See PTHF

Series.

(0.50)

.020 SQ

(2.00)

.0787

(2.00)

.0787

MAX MAX BODY

TAIL

HEIGHT

(13.72) (20.32)

.540

.800

(3.76)

(10.36)

.148

.408

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
