T2SD-05-24-L-24.00-D-NDX datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> T2SD-05-24-L-24.00-D-NDX

T2SD-05-24-L-24.00-D-NDX: DescriptionFlat data cable/IDC data cable 2.00 mm Tiger Eye Double Row Discrete Wire Cable Assembly, Terminal; CategoryThe connector Connector bracket; File Size574KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

T2SD-05-24-L-24.00-D-NDX Overview

Flat data cable/IDC data cable 2.00 mm Tiger Eye Double Row Discrete Wire Cable Assembly, Terminal

T2SD-05-24-L-24.00-D-NDX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

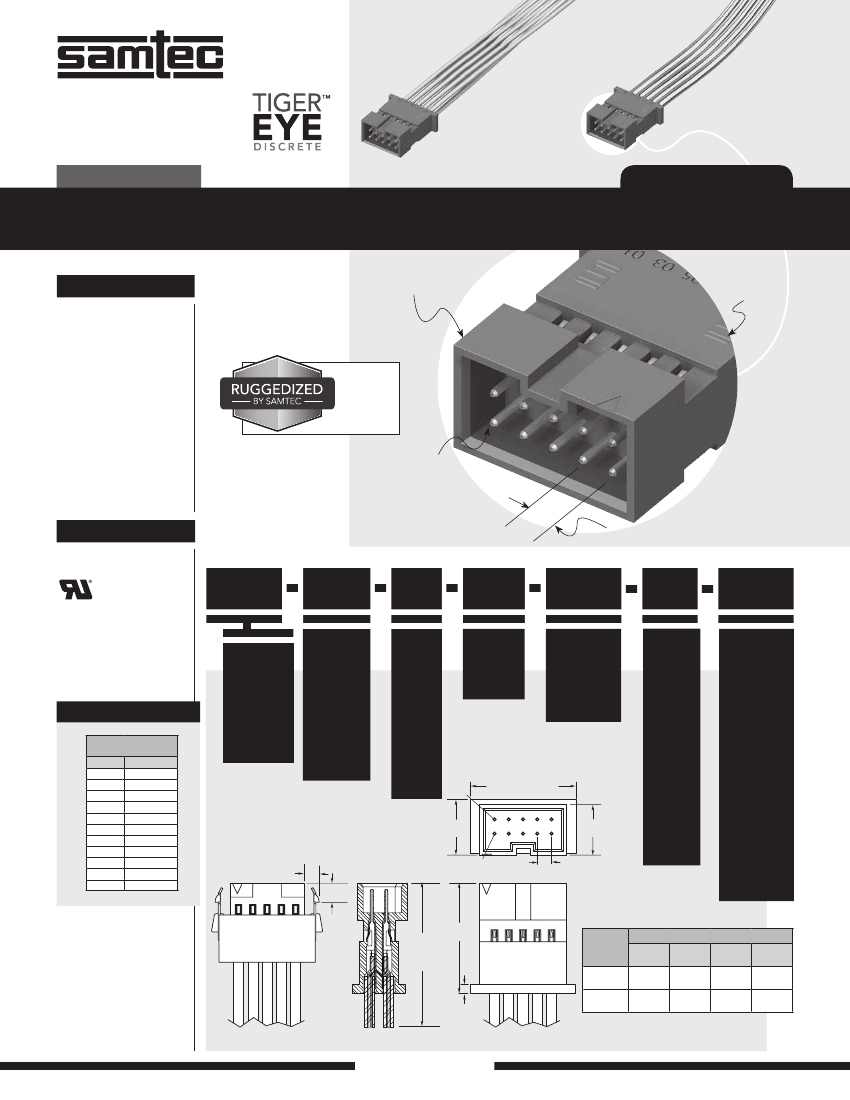

F-219 SUPPLEMENT

T2SD–05–28–L–03.25–S

(2.00 mm) .0787"

T2SDT–05–24–L–03.00–TR–NUX

T2SD, T2SDT SERIES

TIGER EYE CABLE ASSEMBLY

™

SPECIFICATIONS

For complete specifications

see www.samtec.com?T2SD or

www.samtec.com?T2SDT

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Wire:

24, 26, 28 or 30 AWG

Current Rating (T2SD/S2M):

2.6 A per pin

(2 pins powered)

Operating Temp Range:

-10 °C to +105 °C (PVC)

-40 °C to +125 °C (*Teflon

)

Voltage Rating:

350 VAC

RoHS Compliant:

Yes

Mates with:

T2M (Requires –T or –TR),

S2M

Single or

Double ended

Transfer option

available

• Transfer

end

• Retention

latches

Up to 30 positions

per row

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(2.00 mm) .0787" Pitch

TYPE

FILE NO. E111594

PINS PER

ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

END

OPTION

END 2

OPTION

(Only available

with –D, –T

& –TR)

(See Chart

for pin

configuration)

= Double Row

PVC Cable

T2SD

APPLICATION

–24C CABLE

COLOR CODING

COLOR

ETC

BROWN

RED

ORANGE

YELLOW

GREEN

VIOLET

GRAY

WHITE

BLACK

BLUE

REPEAT

= Double Row

*Teflon

Cable

(24, 28, 30 Wire

Gauge only)

T2SDT

(Standard

sizes)

–05,

–07,

–10,

–15,

–20,

–25,

–30

–24

–24C

= Color

Coded

Cable

(T2SD

only)

= 10 µ"

(0.25 µm)

Gold on

contact

–L

–“XX.XX”

= Wire Length

in Inches

–S = (76.3 mm)

03.00" min.

–D = (82.55 mm)

03.25" min.

= Single

End

= Double

End

= Transfer

End

(Socket on

end 2)

–S

–D

–T

–26

–28

–30

= Notch up,

straight

–NUS

–NDS

–NUX

–NDX

No. of positions x

(2.00) .0787 + (4.75) .187

(7.50)

.295

(7.00)

.276

(2.00) .0787

= Transfer

End with

Retention

Latch

on Socket

–TR

= Notch down,

straight

= Notch up,

crossed

(2.11) .083

(2.64)

.104

(15.40)

.606

= Notch down,

crossed

*DuPont Teflon is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

™

Assembly

Length

± (3.18)

.125

Notes:

For wiring option information

refer to drawing on web.

Some lengths, styles and

options are non-standard,

non-returnable.

–TR

–D–NUS

(1.30)

.051

PIN CONFIGURATION

END 2 END 2 END 2 END 2

–NUS

–NDS

–NUX

–NDX

Pin 1 to Pin 1 to Pin 1 to Pin 1 to

–D

Pin N-1 Pin 2

Pin N

Pin 1

Pin 1 to Pin 1 to Pin 1 to Pin 1 to

–T &–TR

Pin 1

Pin N

Pin 2 Pin N-1

END1

OPTION

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

T2SD-20-24-L-07.87-TR-NUS T2SD-15-24-L-03.00-S T2SD-20-28-L-10.00-D-NUS T2SD-20-28-L-10.00-T-NUS

T2SD-30-24-L-12.00-D-NDX T2SD-05-28-L-03.25-T-NUS T2SD-05-30-L-03.00-S T2SD-30-24C-L-14.00-S T2SD-02-

24-L-10.00-S T2SD-04-24-L-12.00-T-NDX T2SD-08-26-L-12.00-T-NUX T2SD-25-28-L-24.00-D-NDX T2SD-05-28-L-

03.25-D-NUS T2SD-10-26-L-12.00-T-NUX T2SD-05-24-L-05.00-S T2SD-07-24C-L-06.00-TR-NDX T2SD-10-24C-L-

12.00-S T2SD-20-24-L-18.00-T-NUS T2SD-05-26-L-16.00-S T2SD-10-24-L-15.75-TR-NUS T2SD-30-28-L-04.00-T-

NDS T2SD-15-26-L-03.50-T-NUS T2SD-20-24-L-03.00-S T2SD-05-24C-L-19.69-T-NUS T2SD-07-28-L-03.00-S

T2SD-15-24C-L-10.00-S T2SD-30-24C-L-24.00-S T2SD-05-24C-L-30.00-S T2SD-05-24-L-08.00-S T2SD-10-26-L-

04.00-T-NDS T2SD-20-24-L-15.75-TR-NUS T2SD-05-24C-L-03.25-TR-NUS T2SD-05-24-L-30.00-D-NUS T2SD-10-

24-L-06.00-D-NUS T2SD-10-24-L-06.00-S T2SD-10-24-L-04.00-D-NUS T2SD-05-30-L-04.25-T-NDS T2SD-05-30-L-

20.00-S T2SD-07-26-L-03.25-T-NDS T2SD-05-24-L-03.25-D-NUS T2SD-05-24-L-03.25-S T2SD-05-24-L-05.00-D-

NUS T2SD-07-24C-L-10.00-S T2SD-07-24C-L-30.00-D-NDX T2SD-07-24-L-06.00-T-NUS T2SD-15-28-L-04.00-S

T2SD-05-24-L-03.00-S T2SD-05-24-L-12.00-D-NUS T2SD-05-30-L-08.25-T-NDS T2SD-10-26-L-03.25-T-NDS T2SD-

05-24-L-03.25-TR-NUS T2SD-07-24C-L-20.00-S T2SD-07-24-L-24.00-D-NUS T2SD-20-24-L-04.00-D-NDX T2SD-05-

24C-L-08.00-S T2SD-05-24-L-12.00-S T2SD-07-28-L-06.00-S T2SD-15-24-L-12.00-S T2SD-20-28-L-06.00-D-NUS

T2SD-30-24-L-06.00-T-NUS T2SD-30-24-L-09.00-D-NUS T2SD-20-24-L-12.00-S T2SD-30-24C-L-12.00-D-NUS

T2SD-05-24C-L-27.00-D-NDX T2SD-05-24C-L-72.00-S T2SD-05-24-L-96.00-S T2SD-05-26-L-06.00-S T2SD-07-24C-

L-04.00-TR-NUS T2SD-07-26-L-11.00-S T2SD-07-28-F-06.00-D-NUS T2SD-08-24-L-08.00-D-NDS T2SD-08-24-L-

10.00-S T2SD-10-24-L-36.00-S T2SD-10-24-L-72.00-S T2SD-10-28-S-04.00-S T2SD-20-24C-L-30.00-S T2SD-20-

24-L-10.00-D-NDX T2SD-25-24-L-18.00-S T2SD-25-26-L-06.00-D-NUS T2SD-05-24C-L-12.00-S T2SD-05-24-L-

05.00-TR-NUS T2SD-05-24-L-06.00-S T2SD-05-24-L-15.00-S T2SD-05-28-L-19.68-T-NDX T2SD-07-24-L-03.25-S

T2SD-07-24-L-07.87-D-NUS T2SD-07-24-L-07.87-S T2SD-07-28-L-11.00-D-NDX T2SD-10-24C-L-16.00-T-NUS

T2SD-10-24C-L-18.00-D-NDX T2SD-10-24C-L-18.00-D-NUS T2SD-10-24-F-04.00-D-NUS T2SD-10-26-L-10.00-T-

NDX T2SD-15-24C-L-18.00-S T2SD-05-24C-L-32.00-S T2SD-07-24C-L-03.00-S T2SD-07-24C-L-03.00-T-NUS

T2SD-07-26-L-03.00-S T2SD-07-30-L-20.00-T-NDS T2SD-10-24-L-36.00-D-NUS
