MMTS-05-24-F-48.00-D-TUS: DescriptionFlat data cable/IDC data cable.100" Mini Mate Single Row Discrete Wire Cable Assembly, Terminal; CategoryWire/cable Cable package Flat cable/IDC data line; File Size569KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MMTS-05-24-F-48.00-D-TUS Overview

Flat data cable/IDC data cable.100" Mini Mate Single Row Discrete Wire Cable Assembly, Terminal

MMTS-05-24-F-48.00-D-TUS Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
product	Discrete Wire Cable Assemblies
Encapsulation	Bulk
series	MMTS
Factory packaging quantity	1

Preview

Download Datasheet

View All

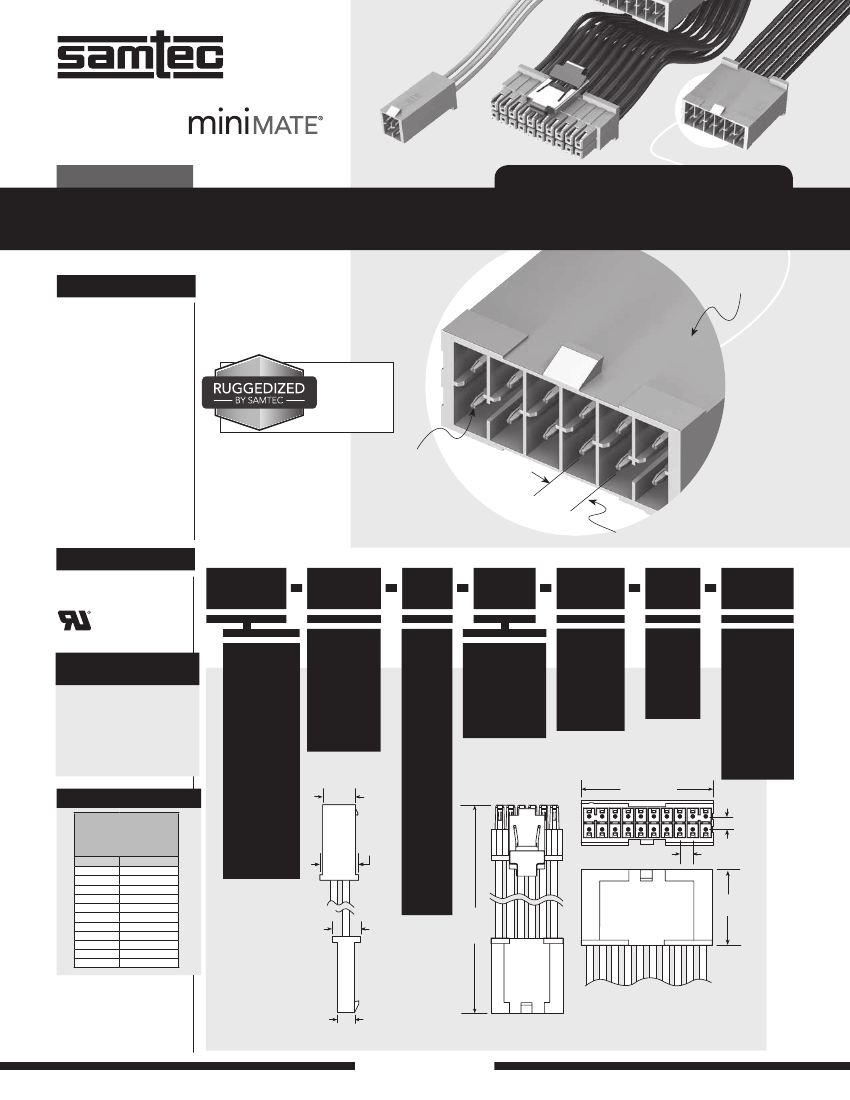

F-219 SUPPLEMENT

MMTDT–02–24–F–03.00–S

MMTD–16–20–L–03.25–D–TUS

MMTD–06–20–F–03.25–D–TUS

(2.54 mm) .100"

MMTD, MMTDT, MMTS, MMTST SERIES

MINI MATE CABLE ASSEMBLY

SPECIFICATIONS

For complete specifications

see www.samtec.com?MMTD,

www.samtec.com?MMTDT,

www.samtec.com?MMTS or

www.samtec.com?MMTST

Insulator Material:

Nylon, White

Contact Material:

Phosphor Bronze

Wire:

20 to 30 AWG

Plating:

Au over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-10 °C to +105 °C (20-26 AWG)

-10 °C to +80 °C (28-30 AWG)

-40 °C to +125 °C (*Teflon

)

Voltage Rating:

600 VAC

RoHS Compliant:

Yes

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

Mates with:

MMSD(T), MMSS(T)

–TXS Mates with:

IPL1

Single or

Double ended

• Individually

shrouded

contacts

• Metal latches

Single or Double

row available

(2.54 mm)

.100" pitch

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

TYPE

PINS PER

ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLY

LENGTH

–“XX.XX”

END

OPTION

FILE NO. E111594

ALSO AVAILABLE

(MOQ Required)

• Different pin counts and

wiring configurations

• Other color coded cables

• Other Gold platings

• Panel Mount options

• Guide Post options

= Double Row

PVC Cable

MMTD

= Double Row

*Teflon

Cable

(20. 24, 28 & 30 (Standard sizes)

Wire Gauge only)

MMTDT

–02, –03,

–04, –05,

–06, –08,

–10, –12,

–15, –16,

–20, –25

MMTD(T)

(7.62)

.300

–20

–20C

= Color

Coded

Cable

= Gold flash

on contact

–F

–L

–22

–24

–24C

= Color

Coded

Cable

= 10 µ" (0.25 µm)

Gold on contact

= Assembly

Length in

Inches

–S= (76.2 mm)

03.00" min.

–D= (82.6 mm)

03.25" min.

= Single

End

= Double

End

–S

(Only available

with –D)

–D

–TUS

= Socket

on End 2,

latch up

APPLICATION

–20C, –24C, –28C

CABLE

COLOR CODING

(PVC CABLE ONLY)

COLOR

ETC

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

REPEAT

= Single Row

PVC Cable

MMTS

= Socket

on End 2,

latch down

–TDS

No. of positions x (2.54) .100

+ (1.78) .070

= Single Row

*Teflon

Cable

(20, 24, 28 & 30

Wire Gauge only)

MMTST

(8.89)

.350

–26

–28

–28C

= Color

Coded

Cable

(2.54)

.100

(2.54)

–30

(7.62)

.300

Assembly

Length

± (3.18)

.125

(17.53)

.690

Notes:

Teflon

cable is intended for

crimp only. Contact Samtec for

solderable cable applications.

Some lengths, styles and

options are non-standard,

non-returnable.

(5.08)

.200

MMTS(T)

–TUS OPTION

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
