TCMD-12-T-11.00-01-N-R datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> TCMD-12-T-11.00-01-N-R

TCMD-12-T-11.00-01-N-R: DescriptionInterconnection Device, LEAD FREE; CategoryThe connector Connector bracket; File Size730KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TCMD-12-T-11.00-01-N-R Overview

Interconnection Device, LEAD FREE

TCMD-12-T-11.00-01-N-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1212458479
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

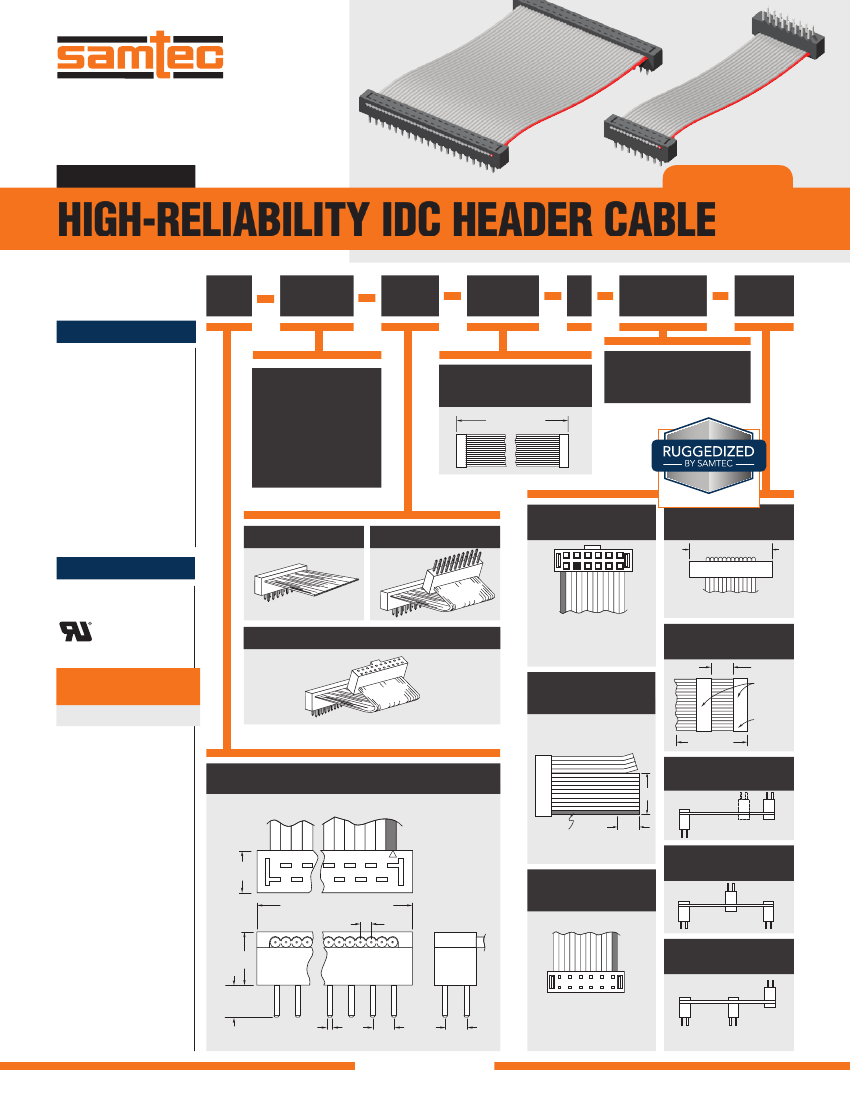

F-219

(2.00 mm) .0787"

EYE

TYPE

STRIP

IDC

TIGER

™

TCMD–08–D–02.50–01–R

TCMD–20–D–02.50–01

TCMD SERIES

HIGH-RELIABILITY IDC HEADER CABLE

Mates with:

SMM*, MMS*, ESQT,

PTF, SQT, SQW, TLE

NO. PINS

PER ROW

END

OPTION

OVERALL

LENGTH

TRANSFER

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?TCMD

Insulator Material:

Black Glass Filled Polyester

Terminal:

Phosphor Bronze

Plating:

Au or Sn over

50 μ" (1.27 μm) Ni

Wire:

28 AWG 7/36 Stranded,

Tinned, Copper with

Gray PVC Insulator

Current Rating:

2.6 A per pin

(2 pins powered)

Operating Temp Range:

-40 °C to +105 °C

RoHS Compliant:

Yes

–04, –05,

–06, –07,

–08, –10, –12,

–13, –15, –17,

–20, –22, –25

(Standard sizes)

= Assembled Length

Assembled Length

in INCHES (±1/8")

2 inches minimum

–“XX.XX”

Leave blank for –S and –D

End Options. For –T End

Option Specify “–N”

(Socket has notch polarization)

–S

= Single End

–D

= Double End

= Position Polarization

–P “XX”

• Strain relief option

= Strain Relief

No. of positions x

(2.00) .0787 + (7.874) .3100

–SR

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

Not available with –O, –M,

–R, –DXX or –BXX

FILE NO. E111594

–T

=Transfer End

Specify “XX” as position

number. Requires

Transfer End. Only

Socket is polarized.

–D “XX”

= Daisy Chain

min.

“XX”

ALSO AVAILABLE

(MOQ Required)

• Other sizes

± 1/8"

Double

Row

Connectors

Outer

Most

(End of

assembly)

–B “XX”

= Breakout

Specify “XX” as number of

conductors to be broken out.

4" minimum

TCMD

=Terminal Strip

“XX”

5"max.

2"min.

= Reversed

–R

(4.00)

.158

Breakout starts with Number 1

lead indicated by brown wire or

red stripe. Shown on top side.

No. of positions x (2.00) .0787

+ (4.00) .158

= Reverse Wiring

Requires –DXX

–RW

= Middle Reverse

–M

*Note:

Standard TCMD callout

will not mate with SMM, MMS.

Must use gold plated callouts.

(See drawing on web.)

When mated with a socket,

Wire 1 mates with Pin 2;

Wire 2 mates with Pin 1, etc.

Note:

TCMD Series assemblies are

non-standard, non-returnable.

(1.00)

.03937

(5.08)

.200

= Outside Reverse

–O

(3.05)

.120

(0.50)

.020

(2.00)

.0787

(2.00)

.0787

Blue or black wire

opposite position #1.

Requires –DXX

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

TCMD-08-01 TCMD-05-01 TCMD-12-01 TCMD-10-01 TCMD-22-01 TCMD-20-01 TCMD-15-01 TCMD-10-T-

08.00-01-N TCMD-10-T-08.00-01 TCMD-17-T-12.00-01-N TCMD-20-D-06.00-01 TCMD-12-T-06.00-01-N TCMD-08-

T-02.00-01-N TCMD-05-T-02.00-01-N TCMD-10-T-06.00-01-N TCMD-10-S-06.00-01 TCMD-10-T-02.00-01-N TCMD-

15-T-06.00-01-N TCMD-12-T-12.00-01-N TCMD-05-T-12.00-01-N TCMD-25-T-08.00-01-N TCMD-20-T-12.00-01-N

TCMD-05-T-03.00-01-R TCMD-20-T-02.00-01-N TCMD-10-T-12.00-01-N TCMD-17-T-06.00-01-N TCMD-13-01

TCMD-05-T-05.00-01-N TCMD-15-T-02.00-01-N TCMD-22-T-02.00-01-N TCMD-15-D-12.00-01 TCMD-10-D-06.00-01

TCMD-08-T-02.00-01 TCMD-12-T-02.00-01-N TCMD-05-S-12.00-01 TCMD-05-D-02.00-01 TCMD-25-01 TCMD-17-

01 TCMD-08-T-05.00-01-N-R TCMD-07-D-10.00-01 TCMD-17-T-03.20-01-N TCMD-25-D-09.00-01 TCMD-05-T-

20.50-01-N TCMD-04-T-10.00-01-SR TCMD-22-T-02.70-01-N-R TCMD-04-D-18.00-01 TCMD-05-T-10.00-01-N-RW-

SR TCMD-12-T-07.00-01-N-SR TCMD-15-D-14.00-01 TCMD-15-T-02.50-01-F TCMD-17-S-36.00-01-SR TCMD-06-

D-04.00-01-R TCMD-20-T-03.00-01-R TCMD-17-D-12.00-01 TCMD-17-D-18.00-01 TCMD-17-T-02.00-01-N-R

TCMD-20-D-02.00-01-RW TCMD-20-D-05.00-01 TCMD-20-T-02.00-01-N-R TCMD-20-T-07.00-01 TCMD-22-D-30.00-

01 TCMD-22-T-07.00-01 TCMD-22-T-12.00-01-R TCMD-25-D-11.00-01 TCMD-25-S-18.00-01 TCMD-25-T-02.00-01-

N-R TCMD-25-T-20.00-01 TCMD-20-D-03.00-01 TCMD-20-D-04.00-01 TCMD-20-D-60.00-01 TCMD-20-S-02.20-01

TCMD-20-T-07.00-01-N TCMD-20-T-08.00-01 TCMD-22-S-02.00-01 TCMD-22-T-15.00-01-F-N TCMD-25-D-10.00-01

TCMD-25-S-16.00-01 TCMD-25-S-24.00-01 TCMD-25-S-30.00-01 TCMD-25-T-08.00-01 TCMD-25-T-12.00-01

TCMD-04-T-02.00-01-N TCMD-04-T-05.00-01-N TCMD-05-D-09.00-01 TCMD-05-S-03.00-01 TCMD-05-S-06.00-01

TCMD-20-S-10.00-01 TCMD-20-S-18.00-01 TCMD-20-T-06.00-01 TCMD-20-T-20.00-01 TCMD-22-D-08.00-01

TCMD-22-T-05.00-01-N-R TCMD-25-D-07.00-01 TCMD-25-S-14.00-01 TCMD-25-T-05.00-01-N TCMD-25-T-12.00-

01-N TCMD-05-T-06.00-01-N TCMD-05-T-11.81-01-R TCMD-08-D-04.00-01 TCMD-08-D-04.00-01-R
