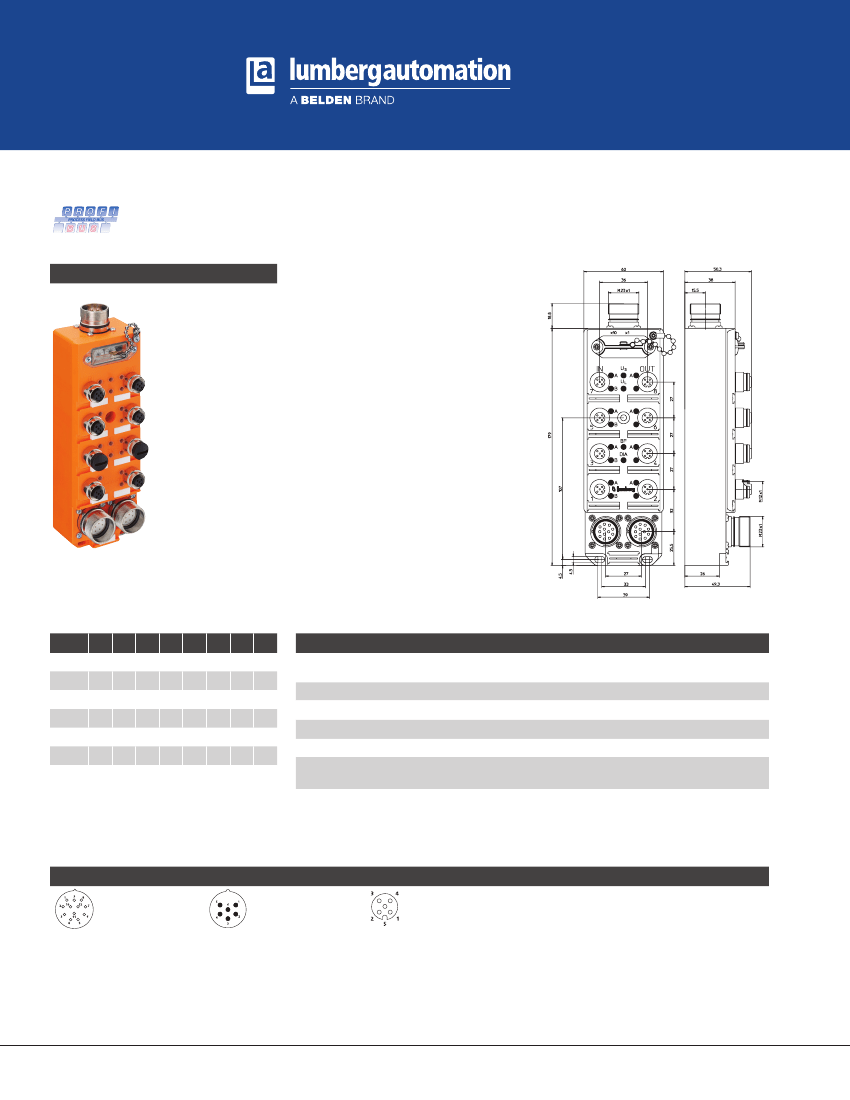

Profibus I/O Modules with 8-Digital Inputs and 4-Digital Outputs
0970 PSL 211
8 IN / 4 OUT
Profibus-DP device with 8 digital inputs to
connect standard sensors and 4 digital outputs
to connect standard actuators, combined M12
socket, rotary switches for addressing, M23 bus
connection, M23 actuator supply.
Bit Assignment
Bit
7
6
5
4
3
2
1
0
Diagnostic Indication
LED
1, 3, 5, 7 A/B
2, 4, 6, 8 A
2, 4, 6, 8
U
S
U
L
BF
DIA
Indication
yellow
red
green
green
red
red
Condition
channel status
actuator short-circuit
actuator supply active
module electronic supply active
bus error
module diagnostics (sensor short-circuit /
sensor overload)
M12 Input
Byte 0
7B
5B
3B
1B
7A
5A
3A
1A
M12 Output
Byte 0
-
-
-
-
8
6
4
2
Diagnostic
DIA-Byte
-
UVA ASC OVL
-
-
-
-
UVA: Undervoltage actuator
ASC: Actuator short-circuit
OVL: Overload status
Pin Assignment
Bus connection M23
1 = GNDI
1
2 = Line A
3 = n.c.
4 = Line B
5 = n.c.
6 = VCCI
1
7 = +24 V
8 = GND (0 V)
9 = Erde / earth
10 = n.c.
11 = n.c.
12 = RTS
1
housing = earth
Actuator supply M23
1 = Earth
2 = +24 V
3 = GND (0 V)
4 = n.c.
5 = n.c.
6 = n.c.
Input/Output M12
1 = +24 V
2 = IN B
3 = GND (0 V)
4 = IN A
5 = Earth
1 = n.c.
2 = n.c.
3 = GND (0 V)
4 = OUT
5 = Earth
1 = internal signals
44
1.800.Belden1 |
www.lumberg-automationusa.com
1-717-217-2299
www.lumberg-automationusa.com
AS-Interface
PROFIBUS
®
Be Certain with Belden
Profibus I/O Modules with 8-Digital Inputs and 4-Digital Outputs
0970 PSL 211
Technical Data
Environmental
Degree of protection
Operating temperature range
Mechanical
Weight
Housing material
Bus system
ID number
GSD file
Transmission rate
Address range
Rotary address switches
Default address
Electronics power supply
Rated voltage
Voltage range
Power consumption
Reverse polarity protection
Indication
Input power supply
Voltage range
Total current of all sensors
Short circuit-proof
Inputs
Rated input voltage
Signal state “1”
Signal state “0”
Input current at 24V
Channel type N.O.
Number of digital channels
Channel status indicator
IP 67
-0°C (+32°F) to +60°C (+140°F)
545 g
PUR
Profibus
0450 hex
Lum_0450.gsd
max. 12 MBaud
1–126 dec
1–99 dec
99 dec
U
L
24 V DC
19–30 V DC
typ. 60 mA
yes
LED green
min. (U
L
- 1.5 V)
max. 800 mA
yes
Type 3 acc. to IEC 61131-2
24 V DC
11–30 V
-3–5 V
typ. 6 mA
p-switching
8
LED yellow per channel
Output power supply
Rated voltage
Voltage range
Potential separation
Reverse polarity protection
Indication
Outputs
Rated output current
Short circuit-proof
Max. output current
Overload-proof
Number of digital channels
Channel type N.O.
Channel status indicator
Diagnostic indication
Included in delivery/accessories
Dust covers M12
Attachable labels
U
S
24 V DC
19–30 V DC
present
yes/antiparallel diode
LED green
Type 2 A acc. to IEC 61131-2
2 A per channel
yes
8 A per module
yes
4
p-switching
LED yellow per channel
LED red per channel
2 pieces
10 pieces
Part Number
0970 PSL 211
The application of these products in harsh environments should always be checked before use.
Specifications subject to alteration.
