Thermal-Magnetic Circuit Breakers 3300/3400
Description
Single pole thermal-magnetic circuit breakers with tease-free, trip-free,
press-to-reset, snap action mechanism (R-type TM CBE to EN 60934;
M-type with manual release (-H). Available with fast acting and standard
magnetic tripping characteristics - types 3300 and 3400 - both with
threadneck panel mounting. Options include auxiliary contacts, a
separate shunt tap terminal (-A3), and pull-to-trip manual release (-H).
Approved to CBE standard EN 60934 (IEC 60934).
Typical applications
Control systems, instrumentation, medical equipment, machine tools,
robotics.
fast acting
3300
standard delay
3400
1
Ordering information 3300
Type No.
3300
fast acting
Mounting
iG2
moulded threadneck M12x1, > 5 pcs: hex nut and knurled nut
bulk shipped
Terminal design
P10
blade terminals tin-plated DIN 46244-A6.3-0.8
Current ratings
0.05...16 A
3300 - iG2 - P10 - 10 A
Technical data
For further details please see chapter: Technical Information
Voltage rating
AC 240 V, 50/60 Hz; DC 65 V
(UL: AC 250 V; DC 80 V)
Current ratings
0.05...16 A
Auxiliary circuit
1 A, AC 240 V / DC 65 V
Typical life
with -H:
5,000 operations at 1 x I
N
, inductive
5,000 operations at 2 x I
N
, resistive
without -H: 0.05...8 A 5,000 operations at 2 x I
N
, inductive
>8A
1,500 operations at 2 x I
N
, inductive
Ambient temperature
-30...+60 °C (-22...+140 °F)
Insulation co-ordination
rated impulse
pollution
(IEC 60664 and 60664 A) withstand voltage
degree
operating area
2.5 kV
2
reinforced insulation in operating area
Dielectric strength
(IEC 60664 and 60664A) test voltage
operating area
AC 3,000 V double insulation
main circuit/aux. circuit AC 1,500 V
aux. circuit 4-5/6-7
AC 840 V
> 100 MΩ (DC 500 V)
Insulation resistance
Interrupting capacity I
cn
0.05...0.8 A
self-limiting
1...2 A
200 A
2.5...16 A
400 A
Interrupting capacity
I
N
U
N
(UL 1077)
0.05...16 A
AC 250 V 1,000 A
0.05...16 A
DC 80 V
1,000 A
Degree of protection
operating area IP40
(IEC 60529/DIN 40050)
terminal area IP00
Vibration
5 g (57-500 Hz), ± 0.38 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
Shock
25 g (11 ms) to IEC 60068-2-27, test Ea
Corrosion
96 hours at 5 % salt mist
to IEC 60068-2-11, test Ka
240 hours at 95 % RH,
Humidity
to IEC 60068-2-78, test Cab
Mass
3300: approx. 55 g
3400: approx. 50 g
Ordering information 3400
Type No.
3400
standard delay
Mounting
iG2
moulded threadneck M12x1 (bulk-shipped), not with -H;
...
leave blank for metal threadneck, required for -H
Terminal design
P10
blade terminals 6.3-0.8 (QC .250)
K20
screw terminals M3.5x5.5 with clamp (not for -Si and -A3)
Shunt terminal (optional)
A3
same as main terminals, up to I
N
=7 A max. load 5 A
Manual release (optional)
H
manual release facility (pull), without
reinforced insulation in operating area,
for M12x1 metal threadneck only.
Metal threadneck version for -H is not approved.
Auxiliary contacts (optional)
Si
with silver-plated solder terminals
(N/O and N/C)
Current ratings
0.05...16 A
3400 - iG2 - P10 - .. - .. - Si - 10 A
3400 - ... - P10 - .. - H - Si - 10 A
ordering example, without manual
release and with moulded
threadneck
ordering example, with manual
release and metal threadneck
The exact part number required can be built up from the table of choices shown
above. Ordering references for optional features should be omitted if not required.
Approvals
Authority
VDE
UL
CSA
Standard
IEC/EN 60934
UL 1077
C22.2 No 235
C22.2 No 235
Rated voltage
AC 240 V
DC 65 V
AC 250 V
DC 80 V
AC 250 V
DC 80 V
Current ratings
0.05...16 A
0.05...16 A
0.05...16 A
0.05...16 A
0.05...16 A
0.05...16 A
1629
www.e-t-a.de
1

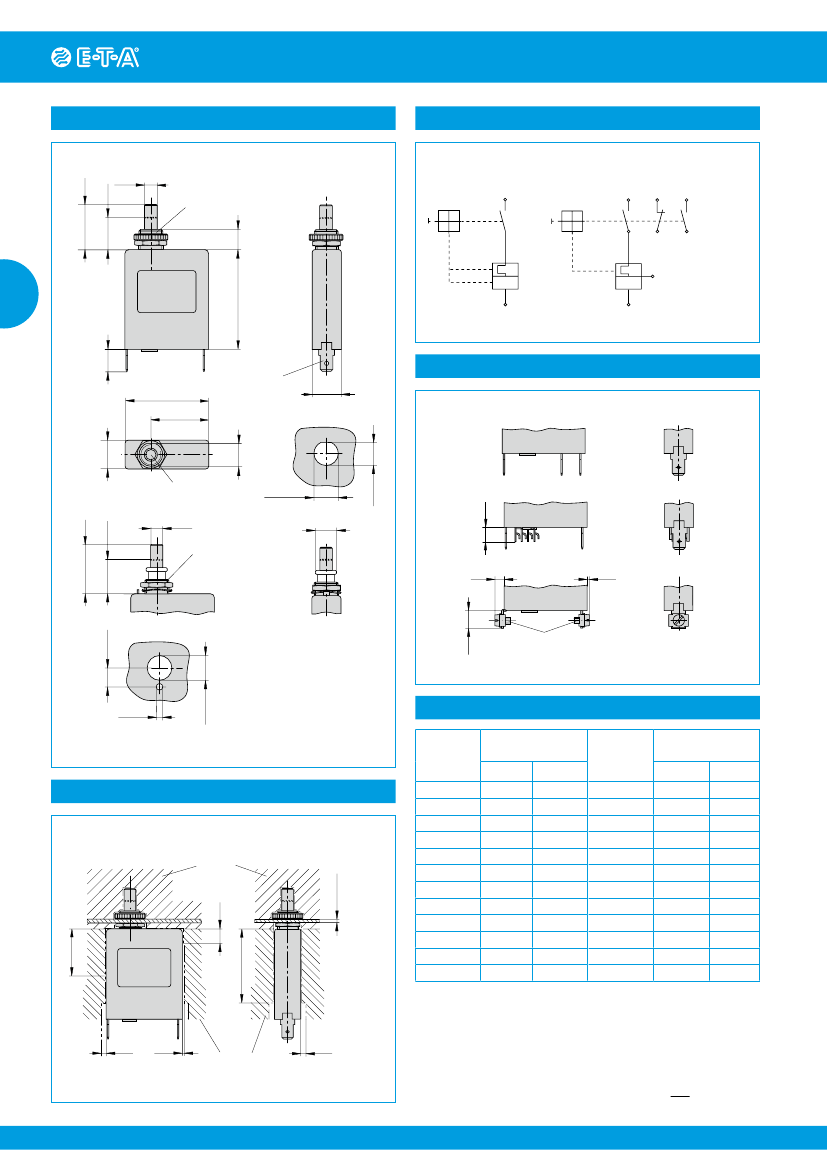

Thermal-Magnetic Circuit Breakers 3300/3400

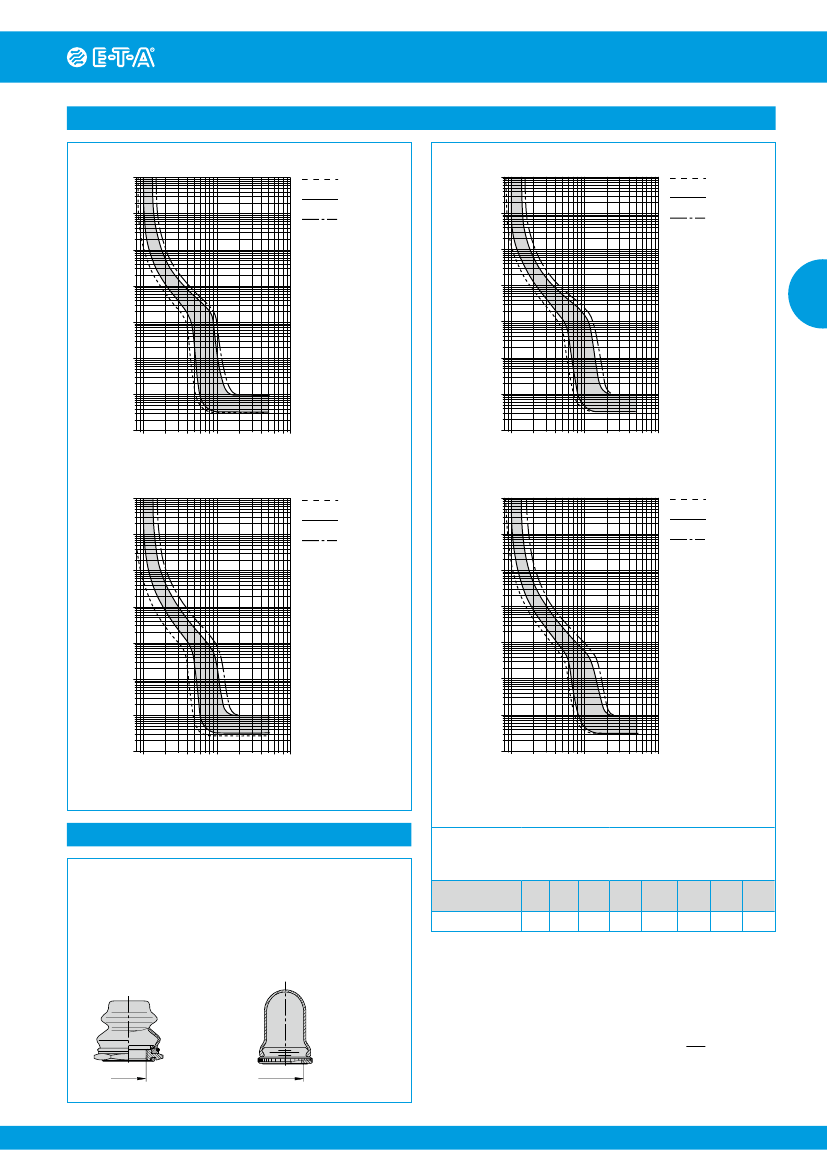

Typical time/current characteristics
Type 3300 0.05…7 A
10000
AC/DC
1)
+60 °C
+140 °F
+23 °C
+73.4 °F
-30 °C
-22 °F
Type 3400 0.05…7 A
10000
AC/DC
1)
+60 °C
+140 °F
+23 °C
+73.4 °F
-30 °C
-22 °F
1000
1000
Trip time in second
s
Trip time in second
s
100
100
10
10
1
1
1
0.1
0.1
0.01
0.01
0.001
1
2
4 6 8 10
20
40 60 80 100
… times rated current
0.001
1
2
4 6 8 10
20
40 60 80 100
… times rated current
Type 3300 8…16 A
10000
AC/DC
1)
+60 °C
+140 °F
+23 °C
+73.4 °F
-30 °C
-22 °F
Type 3400 8…16 A
10000
AC/DC
1)
+60 °C
+140 °F
+23 °C
+73.4 °F
-30 °C
-22 °F
1000
1000
Trip time in seconds
Trip time in seconds
100
100
10
10
1
1
0.1
0.1
0.01
0.01
0.001
1
1)
0.001
2
4 6 8 10
20
40 60 80 100
… times rated current
1)
1
2
4 6 8 10
20
40 60 80 100
… times rated current
Magnetic tripping currents are increased by 20 % on DC supplies.
Magnetic tripping currents are increased by 20 % on DC supplies.
Accessories
For push buttons with M12 moulded threadneck
(-iG2)
(not with manual release -H)
Hex nut with splash cover,
Water splash cover,
black
transparent with knurled nut
X 200 801 03 with O ring
X 210 663 01
(IP64)
(IP66 and IP67)
Hex nut with splash cover,
transparent
X 200 801 08 with O ring
(IP66 and IP67)
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the
circuit breaker current ratings by the derating factor shown below. See also
section Technical information.
Ambient temp. °F
°C
Derating factor
-22
-30
-4
-20
+14
-10
0.83
+32
0
0.88
+73.4
+23
1
+104
+40
1.08
+122
+50
1.16
+140
+60
1.24
0.76 0.79
This is a metric design and millimeter dimensions take precedence ( mm )
inch
M12x1
M12x1
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
1629
www.e-t-a.de
3
