• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnector.com for compliance information
(RIA E1 & C1 apply)
Date Modified: March 15, 2010
TS-0068-E
Sheet 1 of 2
Physical
Insulation:
Material: Thermoplastic Elastomer (TPE)
Color: Gray
Marking:
Standard: None
Canadian Option:
C
AWM 20297 105C 150V HB 3M NU
AWM IA 105C 150V FT2 EU <50V
Conductors:
30 AWG [ Ø 0.254 ] Tinned Solid Copper
Electrical
Voltage Rating:
USA: 150V
Canada: 150V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
Unbalanced
Characteristic Impedance:
90
Ω
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
16.5 pF/ft [ 54.1 pF/m ]
0.13 μH/ft [ 0.43 μH/m ]
1.48 ns/ft [ 4.86 ns/m ]
69%
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-40°C to +105°C
Flammability Rating:
USA: UL Horizontal Canada: FT2
UL File No.: E42769, Style No: 20297
3
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

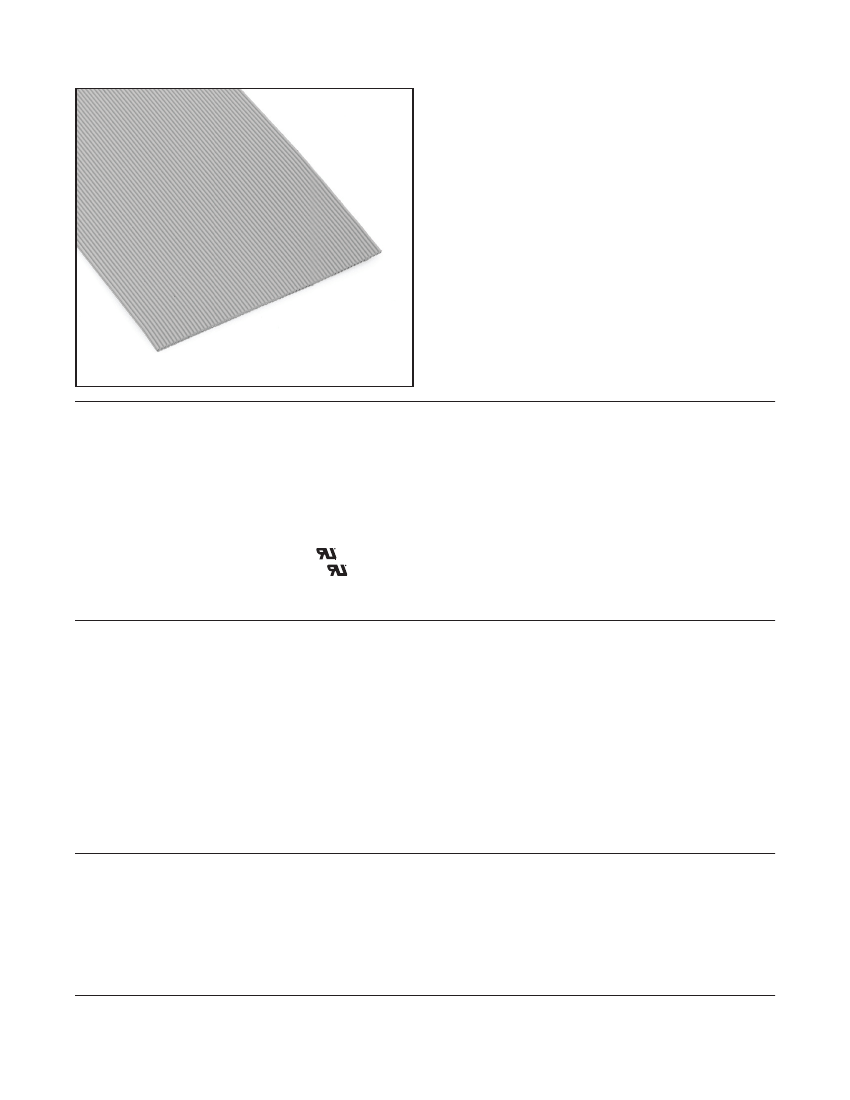

Round Conductor Flat Cable
.025" 30 AWG Solid, TPE
Number of
Conductors
10
16
20
C
24
26
30
34
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
36
40
50
60
68
80
100
3M Part
Number
3749/10
3749/16
3749/20
3749/24
3749/26
3749/30
3749/34
3749/36
3749/40
3749/50
3749/60
3749/68
3749/80
3749/100
Dimension A
0.250 +/- .006 [6.35]
0.400 +/- .006 [10.16]
0.500 ± .006 [ 12.70 ]
0.600 +/- .006 [15.24]
0.650 ± .006 [ 16.51 ]
0.750 +/- .009 [19.05]
0.850 ± .009 [ 21.59 ]
0.900 ± .009 [ 22.86 ]
1.000 ± .009 [ 25.40 ]
1.250 ± .009 [ 31.75 ]
1.500 ± .012 [ 38.10 ]
1.700 ± .012 [ 43.18 ]
2.000 ± .015 [ 50.80 ]
2.500 ± .015 [ 63.50 ]
3749 Series
Dimension B
0.225 +/- .004 [5.72]
0.375 +/- .004 [9.53]
0.475 ± .004 [ 12.07 ]
0.575 +/- .004 [14.61]
0.625 ± .004 [ 15.88 ]
0.725 +/- .006 [18.42]
0.825 ± .006 [ 20.96 ]
0.875 ± .006 [ 22.23 ]
0.975 ± .006 [ 24.77 ]
1.225 ± .006 [ 31.12 ]
1.475 ± .009 [ 37.47 ]
1.675 ± .009 [ 42.55 ]
1.975 ± .011 [ 50.17 ]
2.475 ± .012 [ 62.87 ]
[ ] Dimensions for Reference Only
A
B
.013
±
.005
[ 0.33 ]
.025
±
.002 Typ
[ 0.64 ]
.025
±
.003
[ 0.64 ]
30 AWG [0.254] Tinned
Solid Copper Conductors
TPE Insulation
Note: Blue marking on one edge of cable designates wire #1.
Ordering Information
3749 / XX XX
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0068-E
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
