CB-03AFFM-RL7A01

Description
SENSOR CABLE/ACTUATOR CABLE MID CABLE RBL 03 F CONN F PIN
CategoryWire/cable    Cable package    Sensor/actuator cable
File Size474KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

CB-03AFFM-RL7A01 Online Shopping

Suppliers Part Number Price MOQ In stock
CB-03AFFM-RL7A01 - - View Buy Now

CB-03AFFM-RL7A01 Overview

SENSOR CABLE/ACTUATOR CABLE MID CABLE RBL 03 F CONN F PIN

CB-03AFFM-RL7A01 Parametric

Parameter NameAttribute value
MakerAmphenol
Product CategorySensor cable/actuator cable
Shipping restrictionsMouser does not currently sell this product.
seriesRBL
length79.4 mm
Current rating10 A
Factory packaging quantity10
1
2
3
4
REV.
B
5
ECN NO.
LEN1580276~78
LEN1680343
LEN1680348~49
6
DATE
2015/08/12
2016/08/06
2017/03/27
SIGN
Lu Di
Mafei
Mafei
7
DESCRIPTION
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
Change To Common Drawing
Updated The Pin Out Color.
Updated The Connector.
F
C
D
LE31740031~33
QC

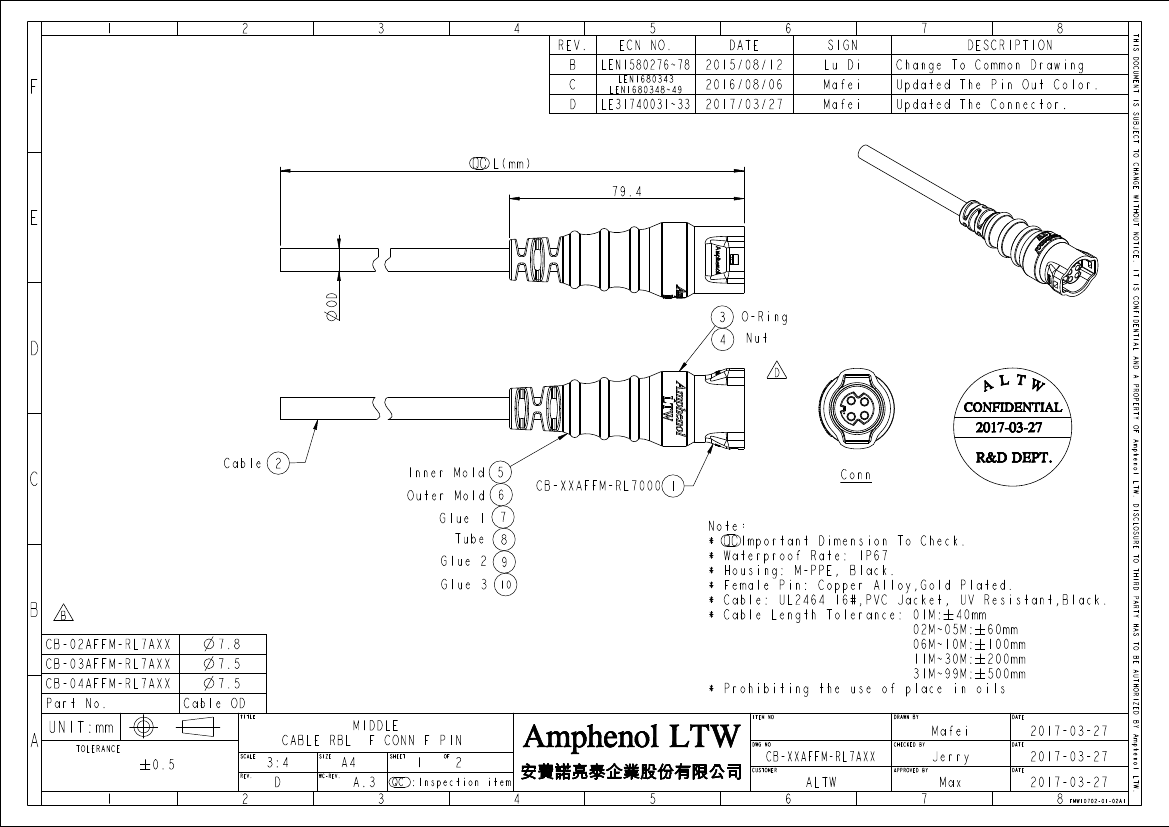

L(mm)
79.4
E
OD
3
O-Ring
Nut
D
D
4
T
A
L
W
CONFIDENTIAL
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
2017-03-27
C
Cable
2
Inner Mold
Outer Mold
Glue 1
Tube
Glue 2
Glue 3
5
6
7
8
9
10
R&D DEPT.
CB-XXAFFM-RL7000 1
Conn
B
B
CB-02AFFM-RL7AXX
CB-03AFFM-RL7AXX
CB-04AFFM-RL7AXX
Part No.
Cable OD
TITLE
Note:
* Important Dimension To Check.
QC
* Waterproof Rate: IP67
* Housing: M-PPE, Black.
* Female Pin: Copper Alloy,Gold Plated.
* Cable: UL2464 16#,PVC Jacket, UV Resistant,Black.
* Cable Length Tolerance: 01M: # 40mm
02M~05M: # 60mm
06M~10M: # 100mm
11M~30M: # 200mm
31M~99M: # 500mm
* Prohibiting the use of place in oils
A
UNIT:mm
TOLERANCE
MIDDLE
CABLE RBL F CONN F PIN
3:4
D
SIZE
SCALE
A4
A.3
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
DRAWN BY
DATE
Mafei
DWG NO
CHECKED BY
DATE
2017-03-27
2017-03-27
DATE
Amphenol LTW.
2
CB-XXAFFM-RL7AXX
CUSTOMER
APPROVED BY
Jerry
Max
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2017-03-27
8
FMW10702-01-02A1

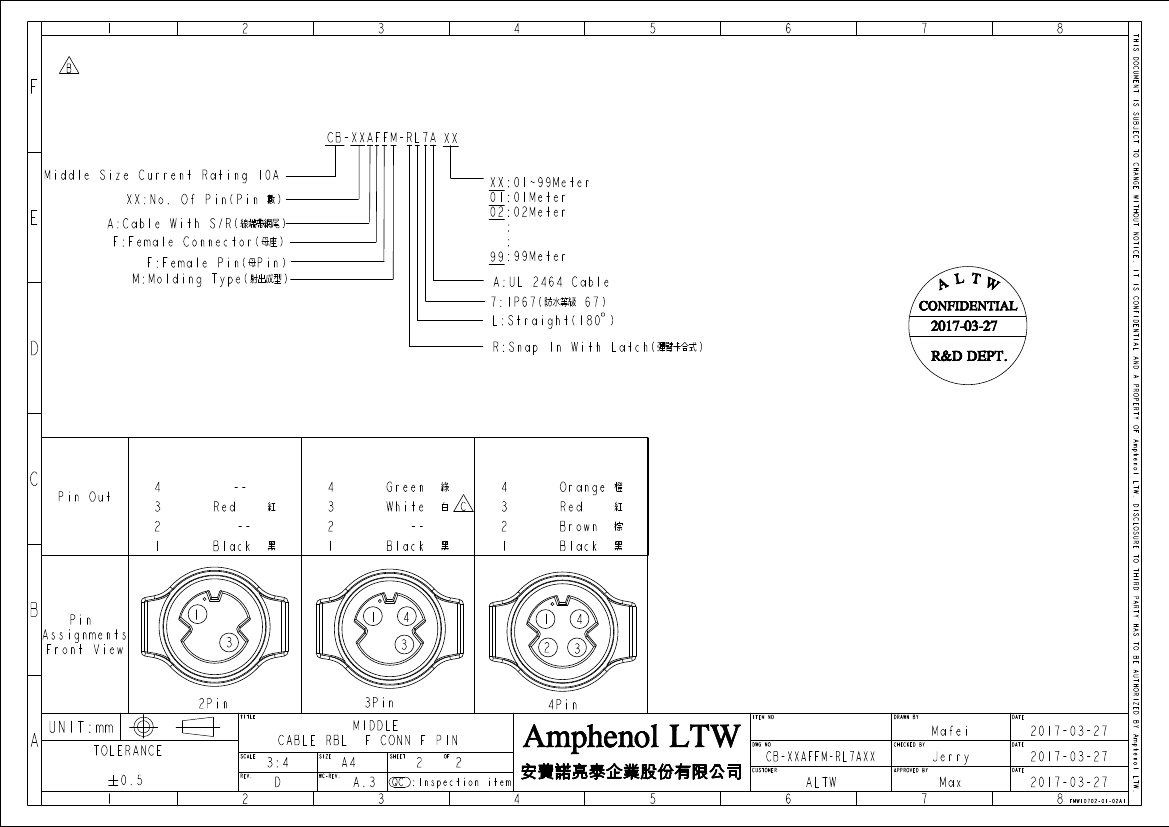

CB-03AFFM-RL7A01 Related Products

CB-03AFFM-RL7A01 CB-04AFFM-RL7A01 CB-02AFFM-RL7A01
Description SENSOR CABLE/ACTUATOR CABLE MID CABLE RBL 03 F CONN F PIN SENSOR CABLE/ACTUATOR CABLE MID CABLE RBL 04 F CONN F PIN SENSOR CABLE/ACTUATOR CABLE MID CABLE RBL 02 F CONN F PIN
Maker Amphenol Amphenol Amphenol
Product Category Sensor cable/actuator cable Sensor cable/actuator cable Sensor cable/actuator cable
Shipping restrictions Mouser does not currently sell this product. Mouser does not currently sell this product. Mouser does not currently sell this product.
series RBL RBL RBL
length 79.4 mm 79.4 mm 1 m
Current rating 10 A 10 A 10 A
Factory packaging quantity 10 10 10
