CameraLink is a trademark of the Automated Imaging Association.
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

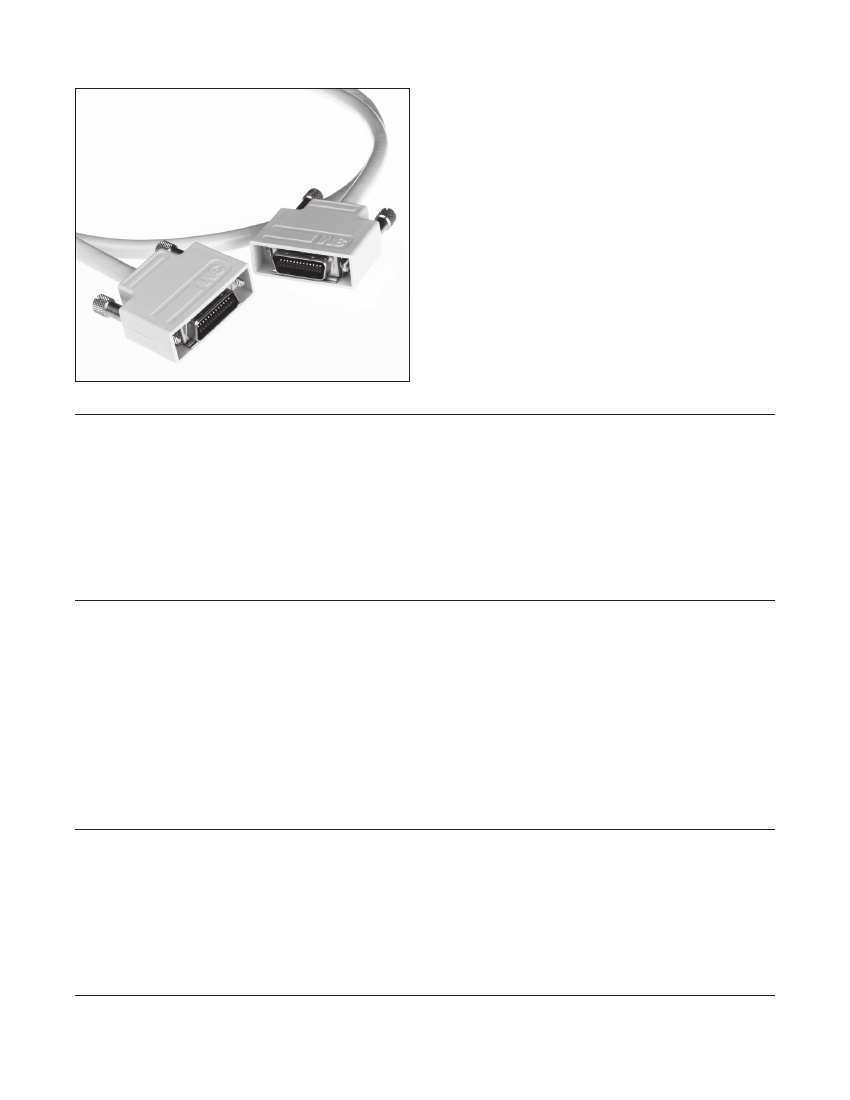

Mini D Ribbon (MDR) Cable Assembly
.050” High Speed Digital Data Transmission System - 26 Position
Discrete #4 - 40 Thumbscrew Shell Kit
26 Position High Density
Mini D Ribbon (MDR)
Male Plug
26 Position High Density
Mini D Ribbon (MDR)
Male Plug
14X26-SZLB-XXX-0LC
Cable
(See pinout for cable construction)
B
Version
2X
Thumbscrews
32.5
[1.28]
2X
Thumbscrews
32.5
[1.28]
LENGTH
(See ordering information)
Overmold #4 - 40 Thumbscrew Shell
26 Position High Density
Mini D Ribbon (MDR)
Male Plug
26 Position
High Density
Mini D Ribbon
(MDR) Male Plug
Cable
(See pinout for cable construction)
T
Version
2X
Thumbscrew
45.7
[1.8]
LENGTH
(See ordering information)
2X
Thumbscrew
45.7
[1.8]
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.01
Assembly Length Tolerance
Cable Length
0.5 to 1.5 meters
2 to 10 meters
Tolerance
-0 + .05 meters
-0 +3% of length
TS-1001-C
Sheet 2 of 4
[ ] Dimensions for
Reference only
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050” High Speed Digital Data Transmission System - 26 Position
14X26-SZLB-XXX-0LC
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.01
[ ] Dimensions for
Reference only
B
1
2
3
4
5
6
7
8
9
10
11
12
13
C
14
15
16
17
18
19
20
21
22
23
24
25
26
Generic End Detail
MDR 26 Position Plug
(Both Ends)
Dimensions
Shell Option
(see ordering information)
T = Overmold #4-40
Thumbscrew Shell
B = Discrete #4-40
Thumbscrew Shell Kit
B
40.2
[ 1.58 ]
39.4
[ 1.55 ]
C
14.0
[ .55 ]
12.8
[ .51 ]
Ordering Information
14X26-SZLB-XXX-0LC
Length:
Shell Retention Options:
B = Discrete #4-40 Thumbscrew shell kit
T = Overmold #4-40 Thumbscrew shell
050 = 0.5 meters
100 = 1 meters
150 = 1.5 meters
200 = 2 meters
250 = 2.5 meters
300 = 3 meters
350 = 3.5 meters
400 = 4 meters
TS-1001-C
Sheet 3 of 4
450 = 4.5 meters
500 = 5 meters
600 = 6 meters
700 = 7 meters
800 = 8 meters
900 = 9 meters
A00 = 10 meters
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Cable Assembly
.050” High Speed Digital Data Transmission System - 26 Position
14X26-SZLB-XXX-0LC
Cable Assembly and Camera Link Pinouts
Medium and Full Configurations
Two Channel Link Chips
Camera
Connector
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
26
Base Configuration
One Channel Link Chip + Camera Control +
Serial Communication
Cable Name
(Reference
only)
inner shield
inner shield
Pair 1-
Pair 1+
Pair 2-
Pair 2+
Pair 3-
Pair 3+
Pair 4-
Pair 4+
Pair 5-
Pair 5+
Pair 6+
Pair 6-
Pair 7-
Pair 7+
Pair 8-
Pair 8+
Pair 9+
Pair 9-
Pair 10-
Pair 10+
Pair 11+
Pair 11-
inner shield
inner shield
Frame Grabber
Connector
1
14
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
13
26
Channel Link
Signal
inner shield
inner shield
Y0-
Y0+
Y1-
Y1+
Y2-
Y2+
Yclk-
Yclk+
Y3-
Y3+
100 ohm
terminated
Z0-
Z0+
Z1-
Z1+
Z2-
Z2+
Zclk-
Zclk+
Z3-
Z3+
inner shield
inner shield
Camera
Connector
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
26
Frame Grabber
Connector
1
14
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
13
26
Channel Link
Signal
inner shield
inner shield
X0-
X0+
X1-
X1+
X2-
X2+
Xclk-
Xclk+
X3-
X3+
SerTC+
SerTC-
SerTFG-
SerTFG+
CC1-
CC1+
CC2+
CC2-
CC3-
CC3+
CC4+
CC4-
inner shield
inner shield
Notes:
1. All pairs are individually shielded with aluminum foil.
2. Pair shields are wrapped aluminum out and are in contact with four internal drains (logic ground).
3. Outer braid and foil (chassis ground) are isolated from inner drains (logic ground).
4. Cable assembly compatible with Camera Link Base, Medium and Full configurations.
TS-1001-C
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
