MICRO SWITCH™
Medium-Duty Limit Switches
E7 and V7 Series
Datasheet

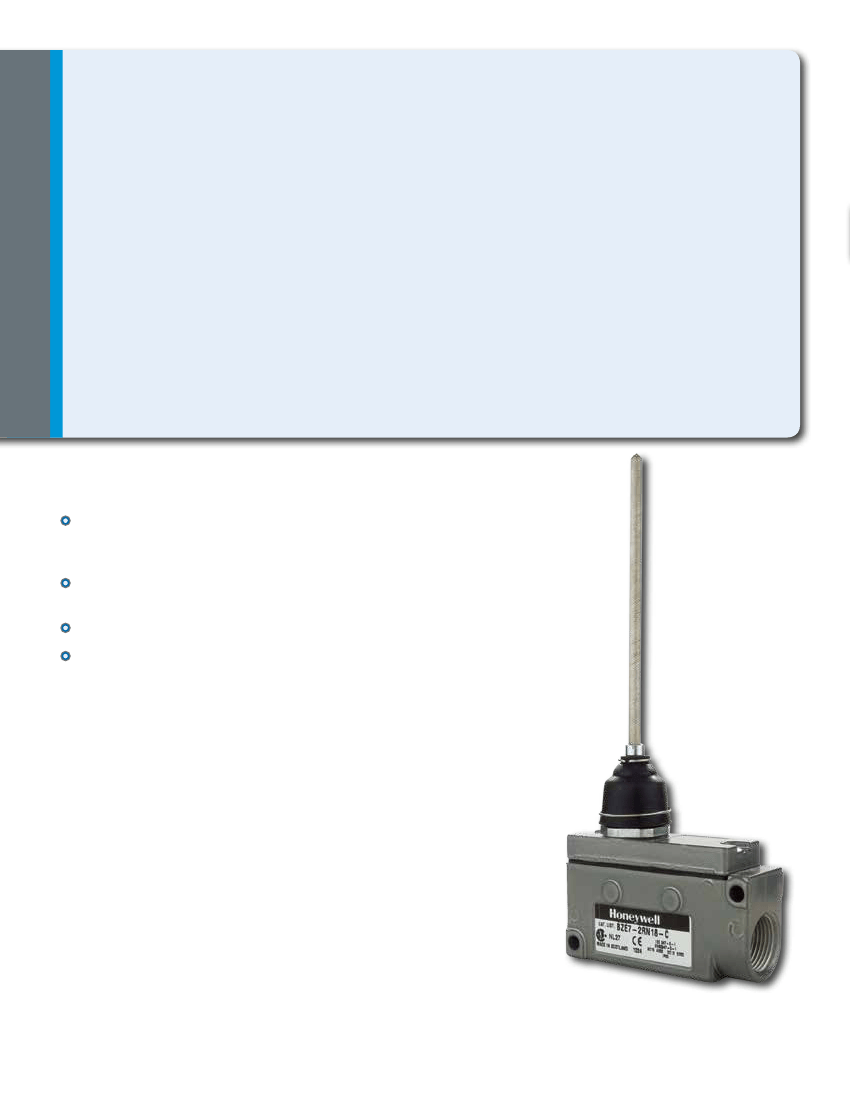

MICRO SWITCH™ E7 and V7 Series
Medium-Duty Limit Switches
Honeywell MICRO SWITCH™ E7/V7 Series medium duty limit switches are designed for a wide variety of indoor and
outdoor applications. Typical applications include equipment for commercial, industrial, and transportation industries.
The electrostatic applied epoxy coating to the aluminum housings enhances the durability of the product in most ap-
plications. The E7/V7 family of switches incorporates the Honeywell MICRO SWITCH™ BZ switch element which has
the reliable snap-spring mechanism with more than 60 years of proven service.
The sealed (plungers with boots) E7/V7 Series are preferred for applications where there could be exposure to liquid
and/or particulate environments. The unsealed E7/V7 Series are ideal for applications where there will not be exposure
to liquid or dust environments. The compact size of the limit switch permits installation where there is limited space
available on equipment.
The SPDT (Single Pole Double Throw) E7/E7S/V7/E9 Series of catalog listings are certified to CE and CSA for world-
wide applications. While the DPDT (Double Pole Double Throw) E7/E7S/V7/E9 Series of catalog listings are certified to
CE for many applications.
What makes our switches better?
Designed with MICRO SWITCH™ BZ or DT basic switches to
deliver precise switching of electrical and mechanical operating
characteristics
Rugged, epoxy-coated aluminum housing for indoor and outdoor
applications
Small footprint with easy access to wiring terminals
Available in a configuration suited to the application with variety of
actuators, circuitries, conduits, and mounting options
HIGH PERFORMANCE • DURABILITY
CUSTOMIZATION • EASY TO INSTALL
2
sensing.honeywell.com
Features
and Benefits
DESIGNED FOR DEMANDING ENVIRONMENTS AND
APPLICATIONS
MICRO SWITCH™ E7/V7 Series switches include a wide variety of actuators and
feature an electrostatic epoxy coated aluminum housing for durability in a wide
range of applications. The products are engineered with MICRO SWITCH™ BZ or
DT internal basic switches that have years of proven service.
Side and flange mounting options
RELIABLY HANDLES ELECTRICAL LOADS
The E7/V7 Series are available with SPDT contacts or DPDT contacts with
momentary action to meet circuit requirements. The BZE/BZV Series with
SPDT contacts is rated for AC15, A300 and DC13, Q300 for typical ac and
dc applications. The DTE Series with DPDT contacts is rated for AC15, B300
and DC13, R300 for typical ac and dc applications. An internal ground screw is
provided to meet electrical codes as required.
DESIGN FLEXIBILITY
These limit switches are offered with multiple connectivity options: two different
conduit offerings, with single or double conduits.
GLOBAL APPROVALS
The BZE7, BZE7S, BZV7, and BZE9 Series with SPDT (single-pole double throw)
contacts are certified to CE and CSA for worldwide applications. The DTE7 and
DTE7S Series with DPDT (double-pole double throw) contacts are certified to CE
for many uses.
INDOOR AND OUTDOOR OPTIONS
The Series’ temperature range of -30 °C to 70 °C [-22 °F to 158 °F] makes the
switch well suited for a wide range of indoor and outdoor applications.
sensing.honeywell.com
3
Potential Applications
INDUSTRIAL
• Escalator obstruction detection – Roller actuator mounted behind skirt on
escalators, if activated, power to the escalator is cut to avoid injury
• Air curtain – A component in a circuit for control of air stream
• Door or gate position – Can provide a signal when a door or gate is opened or
closed
• Commercial food processing – For large scale food preparation, to ensure all
features are in the desired operating position
TRANSPORTATION
• Traffic barrier signaling – If traffic barrier lowers, signal lights can be activated

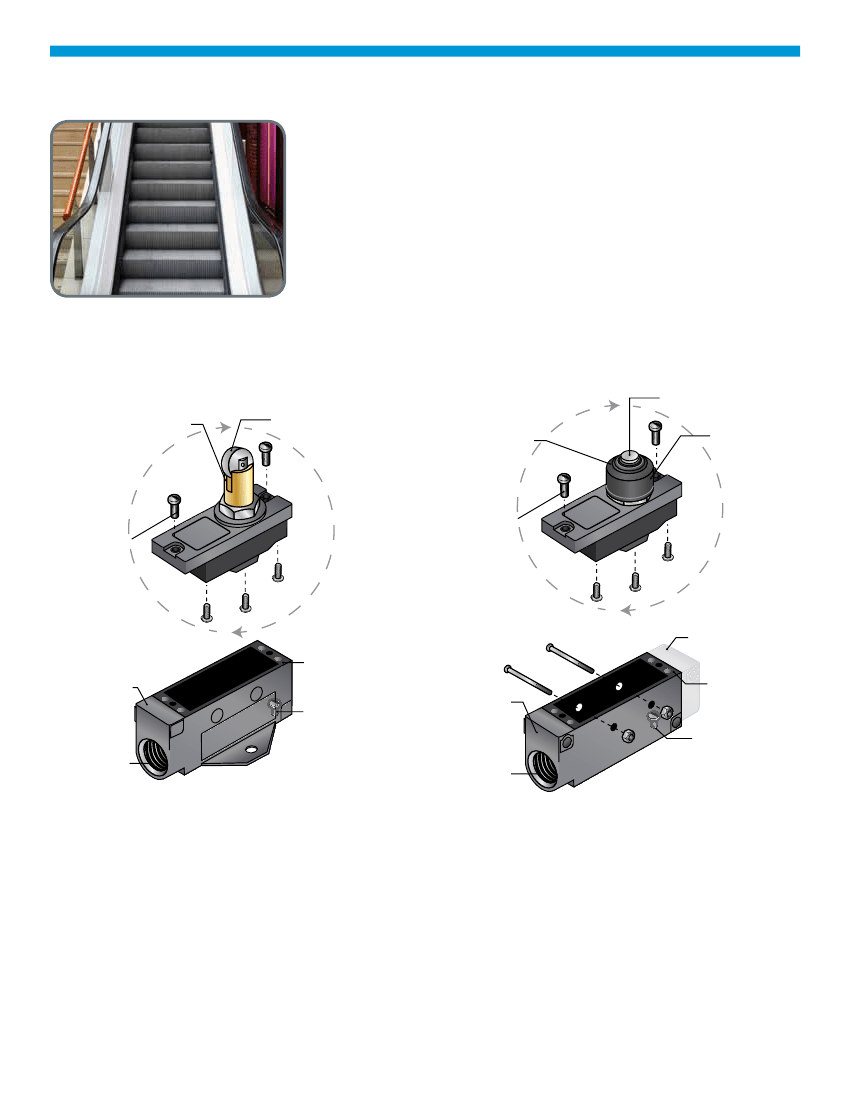

Figure 1. MICRO SWITCH™ E7/V7 Features and Options
Hardened steel plunger
for long life
Wide variety of
actuators and
operating
characteristics
Diaphragm plunger
seal for long life
Wide variety of
actuators and
operating
characteristics
Stainless steel roller
Captive screws (2)
Captive screws (2)
Switch assembly
can be rotated
180˚ on bottom enclosure
Switch assembly can be
rotated 180˚ on bottom
enclosure
Terminal screws of switch easily
accessed with housing removed
Terminal screws of switch
easily accessed with
enclosure removal
Double conduit option for
through wiring
One piece molded rubber
insulator seal
Rugged aluminum
enclosure
epoxy coated for
environmental
durability
Threaded conduit
Rugged aluminum
enclosure
epoxy coated for
environmental
durability
Threaded conduit
One piece molded
rubber insulator seal
Internal ground screw
provided in
bottom enclosure
Internal ground screw
provided in enclosure
Typical switch assembly, flange mount,
without boot sealed actuator
Typical switch assembly, side mount,
with boot sealed plunger
Four mounting options
Diagonal side mount (E7
Series)
Side mount on 25,4 mm centers (E7S
Series)
Side mount on 76 mm centers with double conduit (E9
Series)
Flange mount (V7
Series)
4
sensing.honeywell.com
MICRO SWITCH™ Medium-Duty Limit Switches
Table 1. Specifications
Characteristic
Parameter
top pin plunger (boot sealed or standard type);
inline roller plunger (boot sealed or standard type);
cross roller plunger (boot sealed or standard type);
roller lever adjustable (boot sealed or standard type);
one-way roller lever adjustable (boot sealed);
coil spring wobble (boot sealed)
diagonal side mount with single conduit (E7 type);
diagonal side mount or side mount with single conduit (E7S type),
side mount with double conduit (E9 type)
flange mount with single conduit (V7 type)
electrostatic epoxy coated aluminum
threaded conduit, 20 mm or PG 13,5
actuator with boot seal: IP65
actuator (QN8 style) with internal plunger seal: IP65
actuator without boot seal or internal plunger seal: IP50
SPDT (snap-action contacts) 1NC/1NO, same polarity
DPDT (snap-action contacts) 2NC/2NO, each pole same polarity
-30 °C to 70 °C [-22 °F to 158 °F]
see tables 2 and 3
1.5 kV
1 (DTE Series); 2 (BZE and BZV Series)
EN/IEC 60947-5-1 (all Series); CSA file 15775 (BZ prefix only)
Actuators
Enclosure type
Housing material
Termination
Sealing
Switching options
Operating temperature
Electrical rating
Rated impulse voltage Ui
Pollution degree (with enclosure)
Agency certifications
Table 2. BZE and BZV Series Electrical Ratings: EN60947-5-1, IEC 60947-5-1
Designation &
Category
AC15, A300
AC15, A300
DC13, Q300
DC13, Q300
Thermal Current,
It (Amps)
10
10
10
10
Rated Operational
Voltage, Ue
120
240
125
250
Rated Operational
Amps, Ie
6
3
0.55
0.27
VA Rating Make
7200
7200
69
69
VA Rating Break
720
720
69
69
Table 3. DTE Electrical Ratings: EN60947-5-1, IEC 60947-5-1
Designation &
Category
AC15, B300
AC15, B300
DC13, R300
DC13, R300
Table 4. Switching
SPDT (BZE and BZV Series)
DPDT (DTE Series)
Thermal Current,
It (Amps)
5
5
5
5
Rated Operational
Voltage, Ue
120
240
125
250
Rated Operational
Amps, Ie
3
1.5
0.22
0.1
VA Rating Make
3600
3600
28
28
VA Rating Break
360
360
28
28
C
NC
NO
C
C
NC
NO
NC
NO
