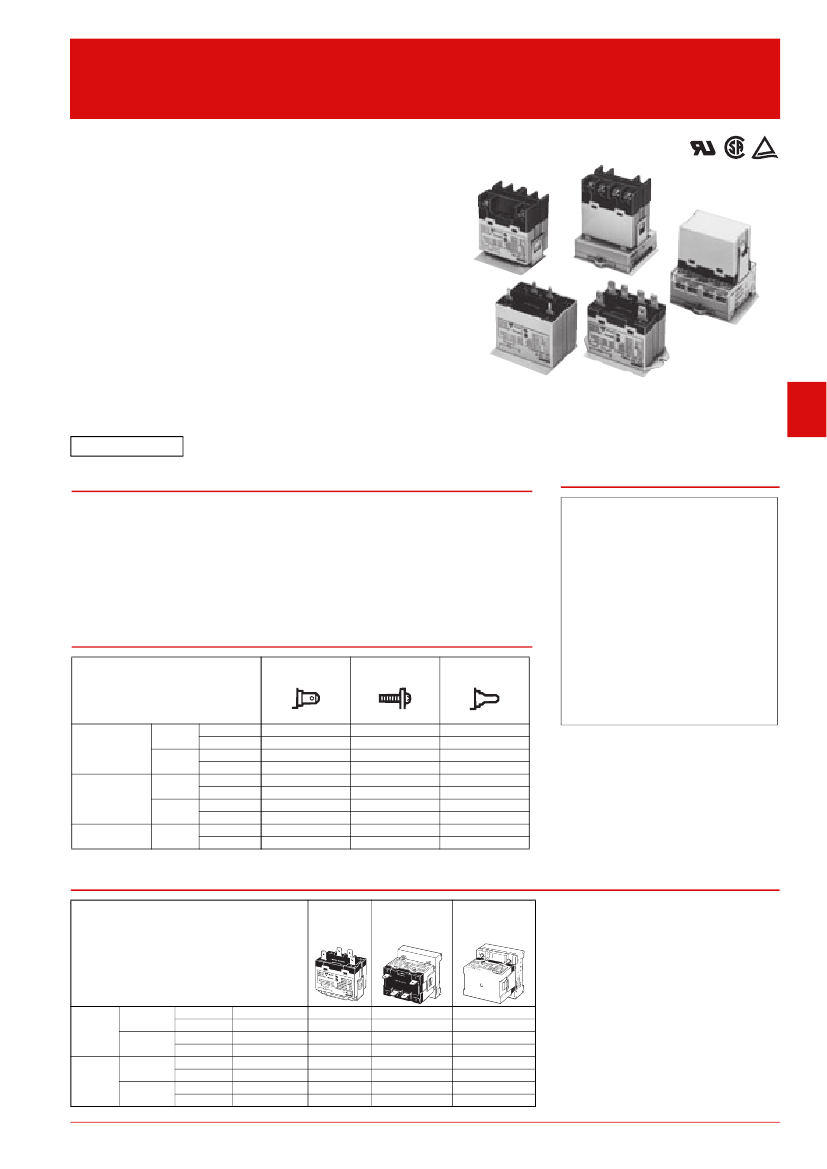

G7L
Power Relay
A High-capacity,
High-dielectric-strength Relay
Compatible with Momentary
Voltage Drops
• No contact chattering for momentary voltage drops up to 50% of
rated voltage.
• Wide-range AC-activated coil that handles 100 to 120 or 200 to
240 VAC at either 50 or 60 Hz.
• Miniature size for maximum switching power, particularly for
inductive loads.
• Flame-resistance materials (UL94V-0-qualifying) used for all
insulation material.
• Quick-connect, screw, and PCB terminals, and DIN track
mounting available.
• Conforms to UL, CSA, TUV and meets IEC950.
• Safety design with contact gap of 3 mm.
RoHS Compliant
Note. Accessories: E-bracket, Adapter, Front-connecting socket
and Cover sold separately.
■Model
Number Legend
G 7 L -@
@
-@
@ @
—— ———
1 2
3 4 5
1. Number of Poles
1: 1 pole
2: 2 poles
2. Contact Form
A:
@PST-NO
3. Terminal Shape
T: Quick connect
terminals (#250)
B: Screw terminals
P: PCB terminals
4. Mounting Construction
Blank: E-bracket
UB : Upper bracket
5. Special Functions
J : With test button
■Application
Examples
Compressors for air conditioners
and heater switching controllers.
Switching controllers for power tools
or motors.
Power controllers for water heaters.
Power controllers for dryers.
Lamp controls, motor drivers, and
power supply switching in copy
machines, facsimile machines, and
other office equipment.
Lighting controllers.
Power controllers for packers or
food processing equipment.
Magnetron control in microwaves.
Power controllers for Uninterruptible
Power Supply (UPS)
G
7
L
■Model
Configuration
Terminal
Quick-connect
terminals
Screw terminals
PCB terminals
Classification
E-bracket
mounting
(E-bracket is
sold separately)
Upper bracket
mounting
PCB mounting
−
With test
button
−
With test
button
−
Contact form
SPST-NO
DPST-NO
SPST-NO
DPST-NO
SPST-NO
DPST-NO
SPST-NO
DPST-NO
SPST-NO
DPST-NO
G7L-1A-T
G7L-2A-T
G7L-1A-TJ
G7L-2A-TJ
G7L-1A-TUB
G7L-2A-TUB
G7L-1A-TUBJ
G7L-2A-TUBJ
−
−
G7L-1A-B
G7L-2A-B
G7L-1A-BJ
G7L-2A-BJ
G7L-1A-BUB
G7L-2A-BUB
G7L-1A-BUBJ
G7L-2A-BUBJ
−
−
−
−
−
−
−
−
−
−
G7L-1A-P
G7L-2A-P
■List
of E-bracket Mounting Models
Mounting E-brackets
DIN Track
Mounting
Adapter
Front-connecting
Socket
Terminal
Quick-
connect
terminals
Screw
terminals
Contact
form
SPST-NO
DPST-NO
SPST-NO
DPST-NO
Model
G7L-1A-T
G7L-1A-TJ
G7L-2A-T
G7L-2A-TJ
G7L-1A-B
G7L-1A-BJ
G7L-2A-B
G7L-2A-BJ
Test button
−
With test button
−
With test button
−
With test button
−
With test button
−
−
−
−
Note. Accessories: E-bracket (R99-07), Adapter (P7LF-D),
Front-connecting socket (P7LF-06) and Cover
(P7LF-C) sold separately.
1
G7L
■Ordering
Information
E-bracket/Adapter/Socket Mounting
Quick-connect Terminal
Number
of poles
1 pole
2 poles
Model
G7L-1A-T
G7L-2A-T
Rated coil voltage
AC: 12, 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
AC: 12, 24, 50, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
2 poles
G7L-2A-TJ
Minimum
packing unit
Power Relay
E-bracket/Adapter/Socket Mounting (with test button)
Quick-connect Terminal
Number
of poles
1 pole
Model
G7L-1A-TJ
Rated coil voltage
AC: 24, 100/120, 200/240
DC: 12, 24, 48, 100
AC: 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
Upper Bracket Mounting
Quick-connect Terminal
Number
of poles
1 pole
2 poles
Model
G7L-1A-TUB
G7L-2A-TUB
Rated coil voltage
AC: 12, 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
AC: 12, 24, 50, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
Upper Bracket Mounting (with test button)
Quick-connect Terminal
Number
of poles
1 pole
2 poles
Model
G7L-1A-TUBJ
G7L-2A-TUBJ
Rated coil voltage
AC: 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
AC: 12, 24, 50, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
E-bracket/Adapter Mounting
Screw Terminal
Number
of poles
1 pole
Model
G7L-1A-B
G7L-2A-B
Rated coil voltage
AC: 12, 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
AC: 12, 24, 100/120, 200/240
DC: 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
E-bracket/Adapter Mounting (with test button)
Screw Terminal
Number
of poles
1 pole
2 poles
Model
G7L-1A-BJ
G7L-2A-BJ
Rated coil voltage
AC: 12, 24, 100/120, 200/240
DC: 12, 24
AC: 24, 100/120, 200/240
DC: 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
G
7
L
2 poles
Upper Bracket Mounting
Screw Terminal
Number
of poles
1 pole
2 poles
Model
G7L-1A-BUB
G7L-2A-BUB
Rated coil voltage
AC: 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
AC: 12, 24, 50, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
Upper Bracket Mounting (with test button)
Screw Terminal
Number
of poles
1 pole
2 poles
Model
G7L-1A-BUBJ
G7L-2A-BUBJ
Rated coil voltage
AC: 24, 100/120, 200/240
DC: 6, 12, 24, 48
AC: 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
PCB Mounting
Number
of poles
1 pole
2 poles
Model
G7L-1A-P
G7L-2A-P
Rated coil voltage
AC: 100/120, 200/240
DC: 12, 24, 48, 100
AC: 24, 100/120, 200/240
DC: 6, 12, 24, 48, 100
20 pcs./tray
Minimum
packing unit
Note 1. When ordering, add the rated coil voltage to the model number.
Example: G7L-1A-T AC12
Rated coil voltage
However, the notation of the coil voltage on the product case as well as
on the packing will be marked as
@@
VDC.
Note 2. Refer to the precautions on
PCB Relays provided in General
Information of the Relay Product Data Book,
and "w -@-3" for coil
characteristics of AC operation.
DIN Track Mounting Accessories
Applicable products
Name
DIN Track
End plate
Spacer
Model
PFP-100N
Adaptor Surface
Connection Socket
PFP-50N
PFP-100N2
PFP-M
PFP-S
10 pcs.
Minimum
packing unit
E-bracket/Adaptor/Socket/Cover
Applicable Relay
models
G7L-1A-T
G7L-1A-TJ
G7L-1A-B
G7L-1A-BJ
G7L-2A-T
G7L-2A-TJ
G7L-2A-B
G7L-2A-BJ
G7L-1A-T
G7L-1A-TJ
G7L-2A-T
G7L-2A-TJ
G7L-1A-B
G7L-1A-BJ
G7L-1A-BUB
G7L-1A-BUBJ
G7L-2A-B
G7L-2A-BJ
G7L-2A-BUB
G7L-2A-BUBJ
Name
Model
Minimum
packing unit
10 pcs.
E-bracket
R99-07
Adapter
P7LF-D
1 pcs.
Note. Order the models above in increments of the minimum quantity packaged.
Front-connecting
Socket
P7LF-06
1 pcs.
Cover
P7LF-C
1 pcs.
Note. Order the models above in increments of the minimum quantity packaged.
2
G7L
■Ratings
Coil
Item
Rated
current
(mA)
142
71
34
17.0 to 20.4
8.5 to 10.2
317
158
79
40
19
Coil
resistance
(Ω)
Coil inductance (H)
Armature
ON
Armature
OFF
Max.
Must operate Must release
permissible
Power
voltage
voltage
voltage consumption
(VA-W)
On the basis of rated voltage
75% max.
75 V max.
150 V max.
18.9
75
303
1220
5260
0.09
0.37
1.42
6.1
21.3
0.21
0.88
3.54
15.3
60.0
15% min.
18 V min.
36 V min.
110%
132 V
264 V
Contact resistance *1
Operate time *2
Release time *3
Max.
Mechanical
operating
frequency Rated load
Insulation resistance *3
Between coil and
contacts
Between contacts
Dielectric
of same polarity
strength
Between contacts
of different polarity
(DPST-NO model)
Impulse withstand voltage
Destruction
Malfunction
Destruction
Malfunction
Mechanical
G7L-1A-T@
G7L-1A-B@
Resistive
load
Inductive load
(cosφ = 0.4)
G7L-2A-T@
G7L-2A-B@
Resistive
load
Inductive
load
(cosφ = 0.4)
G7L-1A-P
G7L-2A-P
Resistive
load
Inductive
load
(cosφ = 0.4)
Endurance
Electrical *5
Power Relay
■Characteristics
50 mΩ max.
30 ms max.
30 ms max.
1,800 operations/hr
1,800 operations/hr
1,000 MΩ min
4,000 VAC min., 50/60 Hz
for 1 min
2,000 VAC, 50/60 Hz for
1 min
10,000 V between coil and
contact *4
10 to 55 to 10 Hz, 0.75 mm
single amplitude
(1.5 mm double amplitude)
10 to 55 to 10 Hz, 0.75 mm
single amplitude
(1.5 mm double amplitude)
1,000 m/s
2
100 m/s
2
1,000,000 operations min.
(at 1,800 operations/hr)
100,000 operations min.
(at 1,800 operations/hr
under rated load)
100 mA at 5 VDC
Approx. 90 g:
Quick-connect terminal
models
Approx. 100 g:
PCB terminal models
Approx. 120 g:
Screw terminal models
Rated voltage
12 VAC
24 VAC
50 VAC
100 to 120 VAC
200 to 240 VAC
6 VDC
12 VDC
24 VDC
48 VDC
100 VDC
Approx. 1.7
to 2.5
75% max.
15% min.
110%
Approx. 1.9
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of
+15%/-20% for AC rated current and ±15% for DC coil resistance.
2. The inductances shown above are reference values.
3. Performance characteristic data are measured at a coil temperature of 23°C.
4. The maximum allowable coil voltage refers to the maximum value in a varying range of operating power
voltage, measured at ambient temperature 23°C.
5. The "to" (for example "100 to 120") represents the range of rated voltages.
Vibration
resistance
Shock
resistance
Contacts
Contact Form
load
Item
Contact type
Contact material
Rated load
Rated carry current
Max. switching
voltage
Max. switching
current
Failure rate (P level)
(reference value *6)
30 A at 220 VAC 25 A at 220 VAC
30 A
Double break
Ag alloy
25 A at 220 VAC
25 A
250 VAC
20 A at 220 VAC
20 A
Weight
G
7
L
30 A
25 A
20 A
Note. When using B-series (screw) products, since the screw diameter of the contact terminal is M4, be careful
that the contact current should be 20 A or less according to JET standard (electrical appliance and material
control law of Japan).
Note. The values given above are initial values.
*1.
Measurement conditions: 5 VDC, 1 A, voltage drop
method.
*2.
Measurement conditions: Rated operating voltage applied,
not including contact bounce.
Ambient temperature: 23°C
*3.
Measurement conditions: The insulation resistance was
measured with a 500-VDC megohmmeter at the same
locations as the dielectric strength was measured.
*4.
JEC-212 (1981) Standard Impulse Wave Type (1.2×50μs).
*5.
Ambient temperature: 23°C
*6.
This value was measured at a switching frequency of 60
operations/min.
Ambient operating temperature
Ambient operating humidity
-25°C to 60°C
(with no icing or
condensation)
5% to 85%
■Engineering
Data
G7L-1A-T (TJ) (TUB) (TUBJ)
G7L-1A-B (BJ) (BUB) (BUBJ)
Maximum Switching Power
Switching current (A)
100
50
30
20
AC inductive load
(cosφ = 0.4)
AC resistive load
G7L-2A-T (TJ) (TUB) (TUBJ)
G7L-2A-B (BJ) (BUB) (BUBJ)
Maximum Switching Power
Switching current (A)
100
50
30
20
AC resistive load
AC inductive load
(cosφ = 0.4)
G7L-1A-P
G7L-2A-P
Maximum Switching Power
Switching current (A)
50
30
20
AC resistive load
AC inductive load
(cosφ = 0.4)

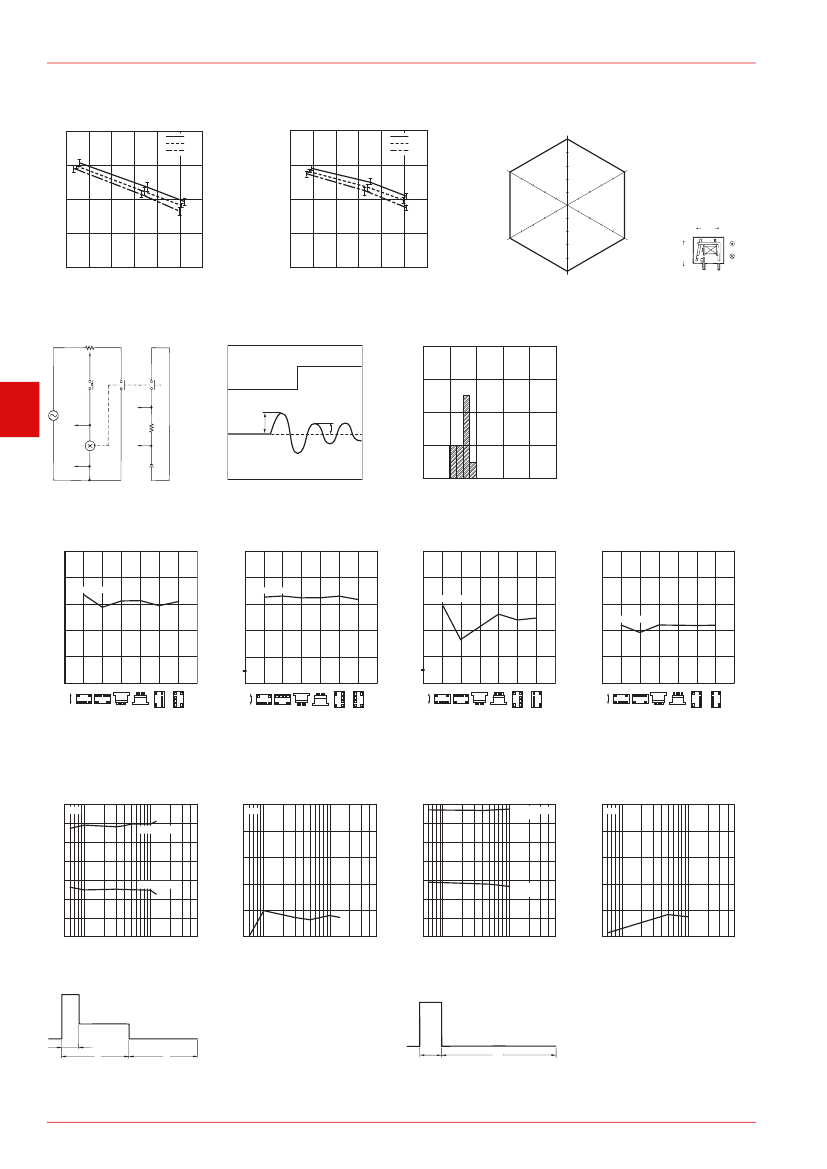

Ambient Temperature vs. Operate
and Release Voltage
G7L-1A
VAC (60 Hz)
Operate and Release voltages (%)
100
Operate voltage
Release voltage
80
10
10
7
5
3
3
7
5
60
10
7
5
3
40
20
1
10
30
50 70 100
300 500 1,000
Switching voltage (V)
1
10
30
50 70 100
300 500 1,000
Ambient temperature (°C)
1
10
30
50 70 100
300 500
Switching voltage (V)
0
-40
-20
0
20
40
60
80
Ambient temperature (°C)
Endurance
Endurance (x 10
4
operations)
500
300
Endurance
Endurance (x 10
4
operations)
500
300
Endurance
Endurance (x 10
4
operations)
500
300
G7L-1A
VDC
Operate and Release voltages (%)
100
Operate voltage
Release voltage
80
100
70
50
30
220 VAC resistive load
100
70
50
30
220 VAC resistive load
100
70
50
30
220 VAC resistive load
60
40
10
7
5
0
220 VAC
inductive load
(cosφ = 0.4)
10
7
5
220 VAC
inductive load
(cosφ = 0.4)
10
7
5
220 VAC
inductive load
(cosφ = 0.4)
0
5
10
15
20
25
30
20
5
10
15
20
25
30
0
5
10
15
20
25
30
0
-40
-20
0
20
40
60
80
Switching current (A)
Switching current (A)
Switching current (A)
Ambient temperature (°C)
3
G7L
Ambient Temperature vs.
Coil Temperature Rise
G7L-1A
120 VAC (50 Hz)
Coil Temperature Rise (°C)
80
N=5
30 A
15 A
0A
Power Relay
Shock Malfunction
G7L-2A-T (TUB)
100 to 120 VAC
G7L-1A
VDC
Coil Temperature Rise (°C)
80
N=5
30 A
15 A
0A
50
0
40
0
30
0
20
Y
500
400
300
200
0
N=5
60
60
X
0
10
10
0
40
40
2
00
0
100
10
0
0
20
30
0
40
Test method: The value at which
malfunction occurred
was measured after
applying shock to the
test piece 3 times
Z'
each in 6 directions
0
50
along 3 axes.
Standard:
100m/s
2
20
20
40
50
Z
0
0
30
0
100
200
300
400
100
200
300
400
500
X'
Y
Z
Z'
X
X'
0
-40
-20
0
20
40
60
80
0
-40
-20
0
20
40
60
80
500
Unit:
Y'
(m/s
2
)
Y'
Shock direction
Ambient temperature (°C)
Ambient temperature (°C)
Momentary Voltage Drop Test
G7L-2A-T (TUB)
100 to 120 VAC
Test Circuit
Wave resulted from test
ON
Ch1
(contact)
Without chattering
OFF
Voltage distribution of wave e which
chattering does not occur.
Number of Relays
8
n=10
6
4
Ch1
Rated
Ch2 voltage
(coil)
e
2
G
7
L
Ch2
0
20
40
60
80
100
On the basis of rated voltage (%)
Characteristic variation resulted from different mounting directions
G7L-2A-T (TUB)
100 to 120 VAC
Operate time
Release time
Operate voltage
Time (ms)
Time (ms)
Release voltage
On the basis of rated voltage (%)
50
N=5
25
On the basis of rated voltage (%)
N=5
35
N=5
80
N=5
20
Operate time
15
30
Release time
25
70
40
Operate voltage
60
30
Release voltage
20
10
20
50
5
15
40
10
0
Top
A
A'
B
B'
C
C'
0
Top
A
A'
B
B'
C
C'
0
Top
A
A'
B
B'
C
C'
0
Top
A
A'
B
B'
C
C'
Bottom (Standard)
(Note)
Mounting direction
Bottom(Standard)
(Note)
Mounting direction
Bottom(Standard)
(Note)
Mounting direction
Bottom(Standard)
(Note)
Mounting direction
(Note.)The mounting direction A’ deteriorates switching performance.
Actual Load Endurance Test
G7L-2A
100 to 200 VAC
Operate and Release voltages
N=5
On the basis of rated voltage (%)
70
60
Operate voltage
50
40
N=5
Contact resistance
Contact resistance (m
Ω
)
100
N=5
Operate and Release voltages
N=5
On the basis of rated voltage (%)
70
60
Operate
voltage
N=5
Contact resistance
Contact resistance (m
Ω
)
50
N=5
80
40
50
40
60
30
30
20
Release voltage
40
30
Release
voltage
20
20
20
10
0
0.5 0.7 1
0
0.5 0.7 1
10
0
0.05 0.07 0.1
10
3
5
7
10
(×10
4
30
50
3
5
7
10
(×10
4
30
50
0.3
0.5
1
(×10
4
3
5
0
0.05 0.07 0.1
0.3
0.5
1
3
5
Switching operations
operations)
Switching operations
operations)
Switching operations
operations)
Switching operations (×10
4
operations)
Load conditions
• 1
φ
220 VAC
70 A cosφ = 0.4
Load conditions
• 1
φ
220 VAC
54 A cosφ = 0.79
(Compressor Lock Test)
20 A cosφ = 0.4
0.2s
1s
1s
• Applied coil voltage: 100% of rated
voltage
0.5s
10s
• Applied coil voltage: 100% of rated
voltage
4
G7L
G7L-2A
100 to 200 VAC
Operate and Release voltages
N=5
On the basis of rated voltage (%)
70
60
N=5
Operate voltage
Power Relay
Operate and Release voltages
N=5
On the basis of rated voltage (%)
Contact resistance
Contact resistance (m
Ω
)
Contact resistance
Contact resistance (m
Ω
)
50
N=5
70
60
N=5
Operate voltage
50
N=5
40
40
50
40
Release voltage
50
40
Release voltage
30
30
30
20
20
30
20
20
10
10
0
0.5 0.7 1
0
0.5 0.7 1
10
0
0.5 0.7 1
10
3
5
10
30
50
3
5
10
30
50
3
5
10
30
50
0
0.5 0.7 1
3
5
10
30
50
Switching operations (×10
2
operations)
Switching operations (×10
2
operations)
Switching operations (×10
2
operations)
Switching operations (×10
2
operations)
Load conditions
• 1
φ
220 VAC
Load conditions
• 1
φ
220 VAC
70 A cosφ = 0.4
25 A cosφ = 1
20 A cosφ = 0.4
2s
8s
• Applied coil voltage: 75% of rated
voltage
0.2s
2s
8s
• Applied coil voltage: 75% of rated
voltage

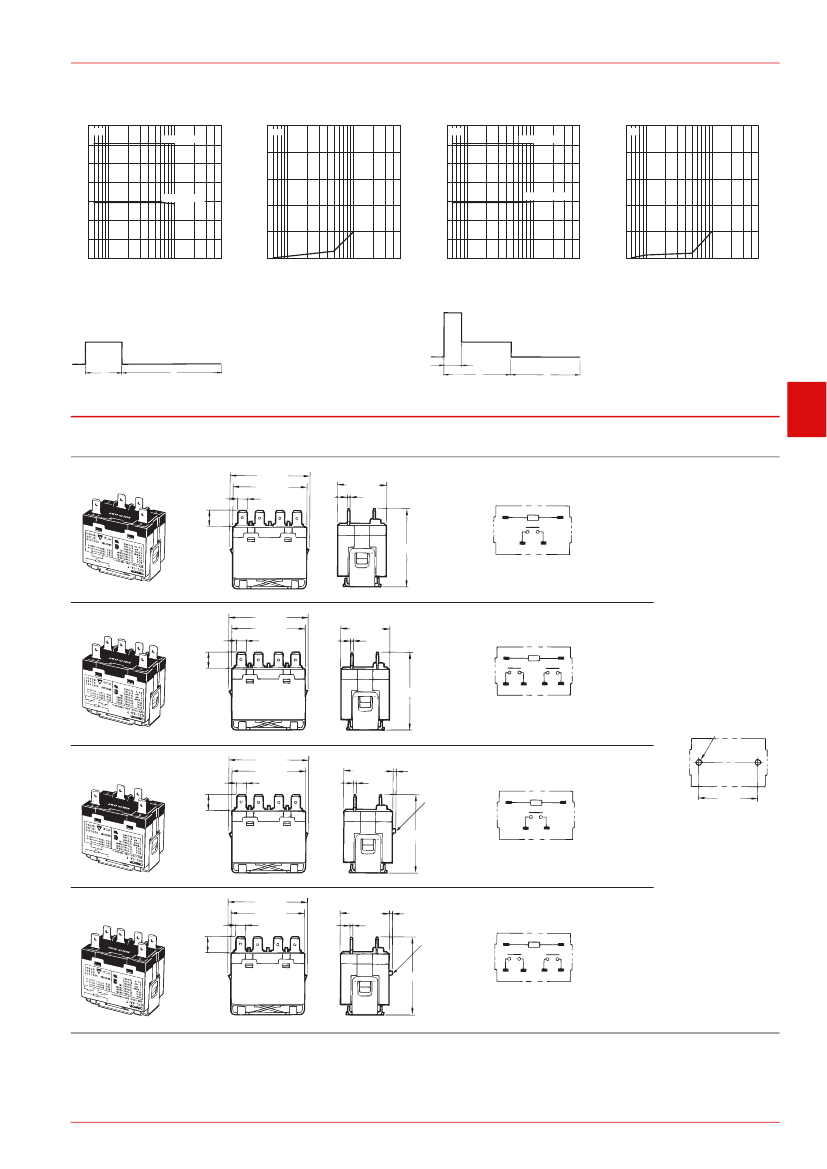

■Dimensions
●
E-bracket Mounting
Quick-connect Terminals
G7L-1A-T
6.35
Note. E-brackets are sold separately.
52.5 max.
50.5 max.
33.5 max.
0.8
Terminal Arrangement/
Internal Connections
(Top View)
0
1
G
7
L
11
53 max.
4
6
(No coil polarity)
Note. Refer to page 12 for the coil internal
connection diagram
G7L-2A-T
6.35
52.5 max.
50.5 max.
33.5 max.
0.8
0
1
11
53 max.
2
4
6
8
Mounting Holes
Two, 4.5-dia. hole or
M4 tapped holes
(No coil polarity)
Note. Refer to page 12 for the coil internal
connection diagram
G7L-1A-TJ
(with Test Button)
11
6.35
52.5 max.
50.5 max.
33.5 max.
0.8
2
Test
button
53 max.
40±
0.1
0
1
4
6
(No coil polarity)
Note. Refer to page 12 for the coil internal
connection diagram
G7L-2A-TJ
(with Test Button)
11
6.35
52.5 max.
50.5 max.
33.5 max.
0.8
2
Test
button
53 max.
0
1
2
4
6
8
(No coil polarity)
Note. Refer to page 12 for the coil internal
connection diagram
5
MCU
京公网安备 11010802033920号
EEWORLD
