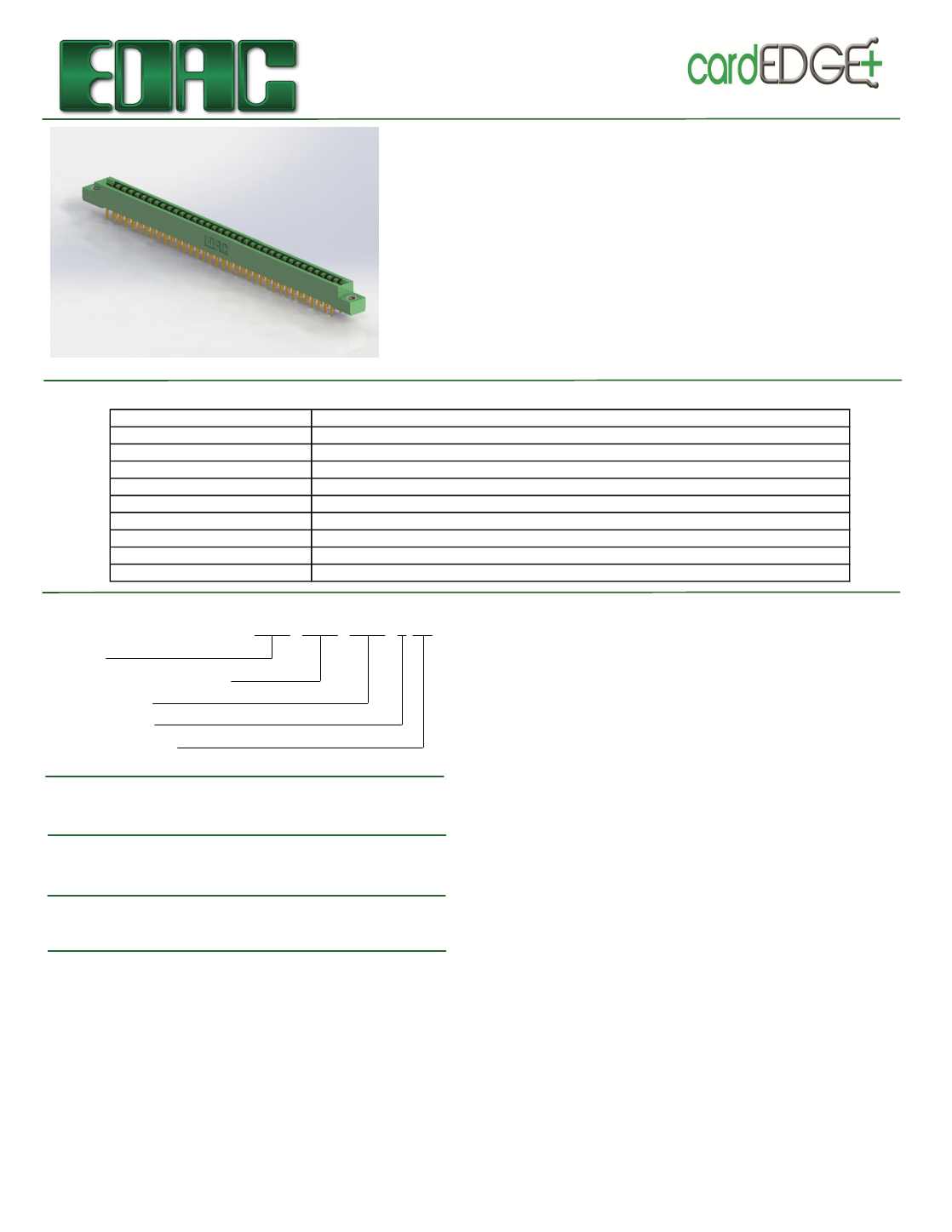

307/357 SERIES

Card Edge Connector 0.156" (3.96mm) Pitch

FEATURES

•

0.156" (3.96mm) Contact Spacing by 0.200" (5.08mm) Row

Spacing

•

Accepts .062" (1.57mm) Nominal Thickness P.C. Board

•

Low Profile Insulator Body, 0.460" (11.68mm)

•

Contact Termination Options include P.C. Tail, Wire Hole, Wire

Wrap, 90° and Extender Board Bends

•

Single or Dual Row Configurations

•

Large Variety of Mounting Options

•

Accepts between Contact and In-Contact Polarizing Keys

•

Pre-assembled Card Guides are available

•

RoHS Compliant UL Recognized

Specifications:

Insulator Material

Contact Material

Contact Plating

Current Rating

Contact Resistance

Withstand Voltage

Insulation Resistance

Operating Temperature

Insertion Force

Withdrawal Force

UL 94V-0 Thermoplastic Polyester

Copper Alloy

Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over

5A Continuous

10 milliohms maximum

1800VAC rms at sea level between adjacent contacts

5000 Megohms minimum

Operating Temperature: -40°C to +105°C

16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge

1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge

Contact Code

Description & Tail Size

Tail Length "G"

Example Part Number

Series

Total Number of Contacts

Contact Code

Contact Rows

Mounting Options

307-044-520-202

505

525

527

531

545

547

558

559

501

521

541

553

554

557

500

520

522

524

540

542

555

556

558

559

560

Series:

307

357

Insulator Color

Thermoplastic Polyester, Green

Thermoplastic Polyester, Black

Total Number of Contacts:

006, 007, . . . . 044

012, 014, . . . . 088

Contact Rows

Single Row

Dual Row

Contact Rows:

Single Row (Single Readout Flush Mounting Lugs)

Dual Row (Dual Readout Flush Mounting Lugs)

Description

Mounting Options:

No Mounting Lug

Ø.128" (Ø3.25mm) Mounting Holes

Ø.116" (Ø2.95mm) I.D. Floating Eyelets

Ø.156" (Ø3.96mm) Mounting Holes

M3-0.5 Metric Threaded Inserts

#4-40 Unified Threaded Inserts

Ø.128" (Ø3.25mm) Side Mounting Holes

.468" (11.89mm) Offset Card Guides

.344" (8.74mm) Offset Card Guides

In-Line Card Guides

Description

Single Row Contacts - Read One Side of Daughter Board

Wire Hole

.087 x .013 (2.21 x 0.33)

.282 (7.16)

P.C. Tail

.046 x .013 (1.17 x 0.33)

.213 (5.41)

P.C. Tail

.046 x .013 (1.17 x 0.33)

.358 (9.09)

P.C. Tail

.023 x .013 (0.58 x 0.33)

.213 (5.41)

Wire Wrap

.046 x .013 (1.17 x 0.33)

.708 (17.98)

Wire Wrap

.046 x .013 (1.17 x 0.33)

.520 (13.21)

90 DEGREE BEND (CODE 545 CONTACTS)

90 DEGREE BEND (CODE 527 CONTACTS)

Single Row Contacts - Read Both Sides of Daughter Board

Wire Hole

.089 x .014 (2.29 x 0.36)

.213 (5.41)

P.C. Tail

.046 x .014 (1.17 x 0.36)

.213 (5.41)

Wire Wrap

.046 x .014 (1.17 x 0.36)

.495 (12.57)

90 DEGREE BEND (CODE 521 CONTACTS)

90 DEGREE BEND (CODE 501 CONTACTS)

90 DEGREE BEND (CODE 541 CONTACTS)

Dual Row Contacts - Read Both Sides of Daughter Board

Wire Hole

.087 x .013 (2.21 x 0.33)

.282 (7.16)

P.C. Tail

.046 x .013 (1.17 x 0.33)

.213 (5.41)

P.C. Tail

.046 x .013 (1.17 x 0.33)

.358 (9.09)

P.C. Tail

.023 x .013 (0.58 x 0.33)

.213 (5.41)

Wire Wrap

.046 x .013 (1.17 x 0.33)

.708 (17.98)

Wire Wrap

.046 x .013 (1.17 x 0.33)

.520 (13.21)

.062 EXTENDER BOARD BEND (CODE 500 CONTACTS)

.062 EXTENDER BOARD BEND (CODE 520 CONTACTS)

90 DEGREE BEND (CODE 522 AND 540 CONTACTS)

.062 EXTENDER BOARD BEND (CODE 522 CONTACTS)

Ordering Code Notes:

1) All connector sizes up to 44 contacts single row / 88 contacts dual

row are available upon request.

2) For contacts with overall tin plating, change the first digit of the

contact code from 5 to 4

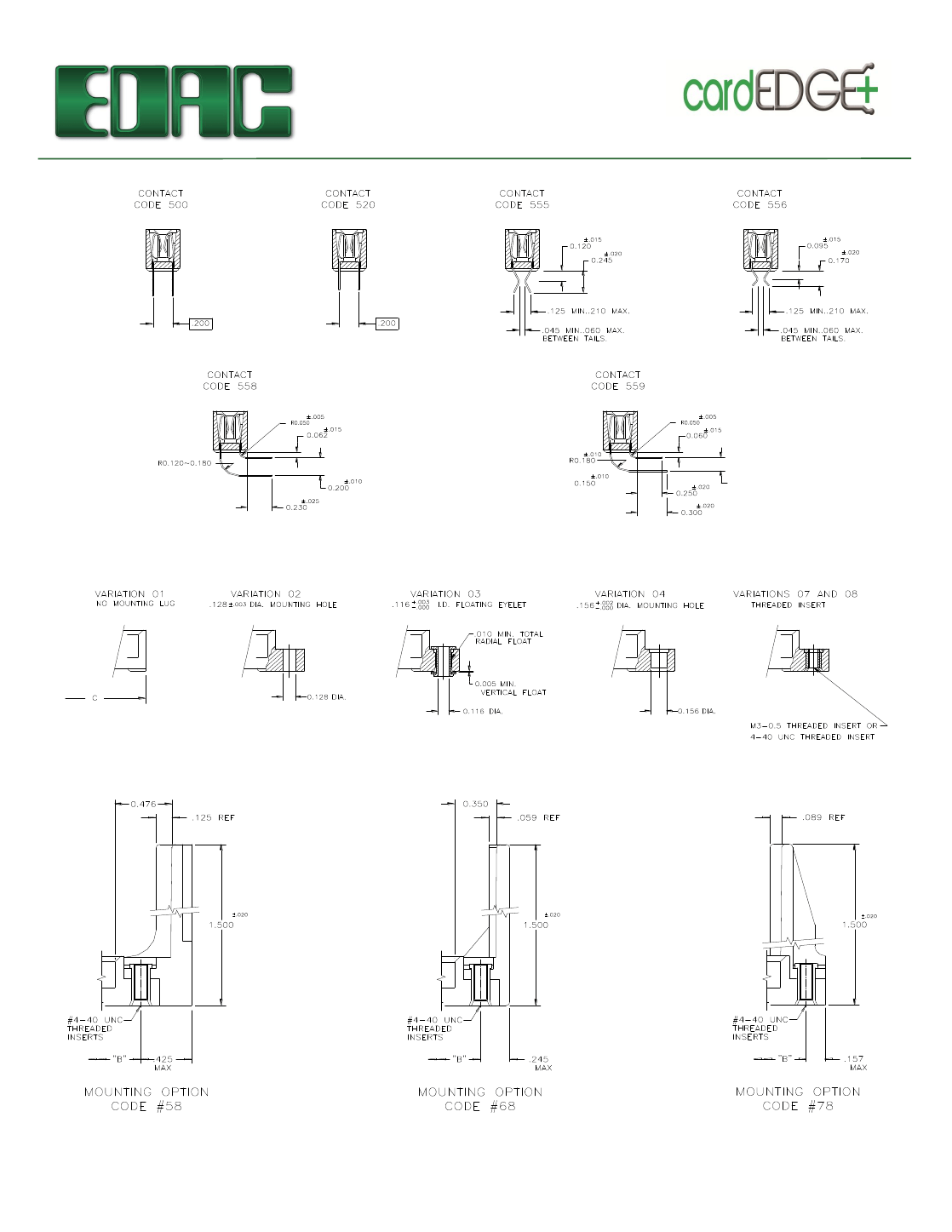

3) For details of the extender board and 90 degree bends refer to

next pages.

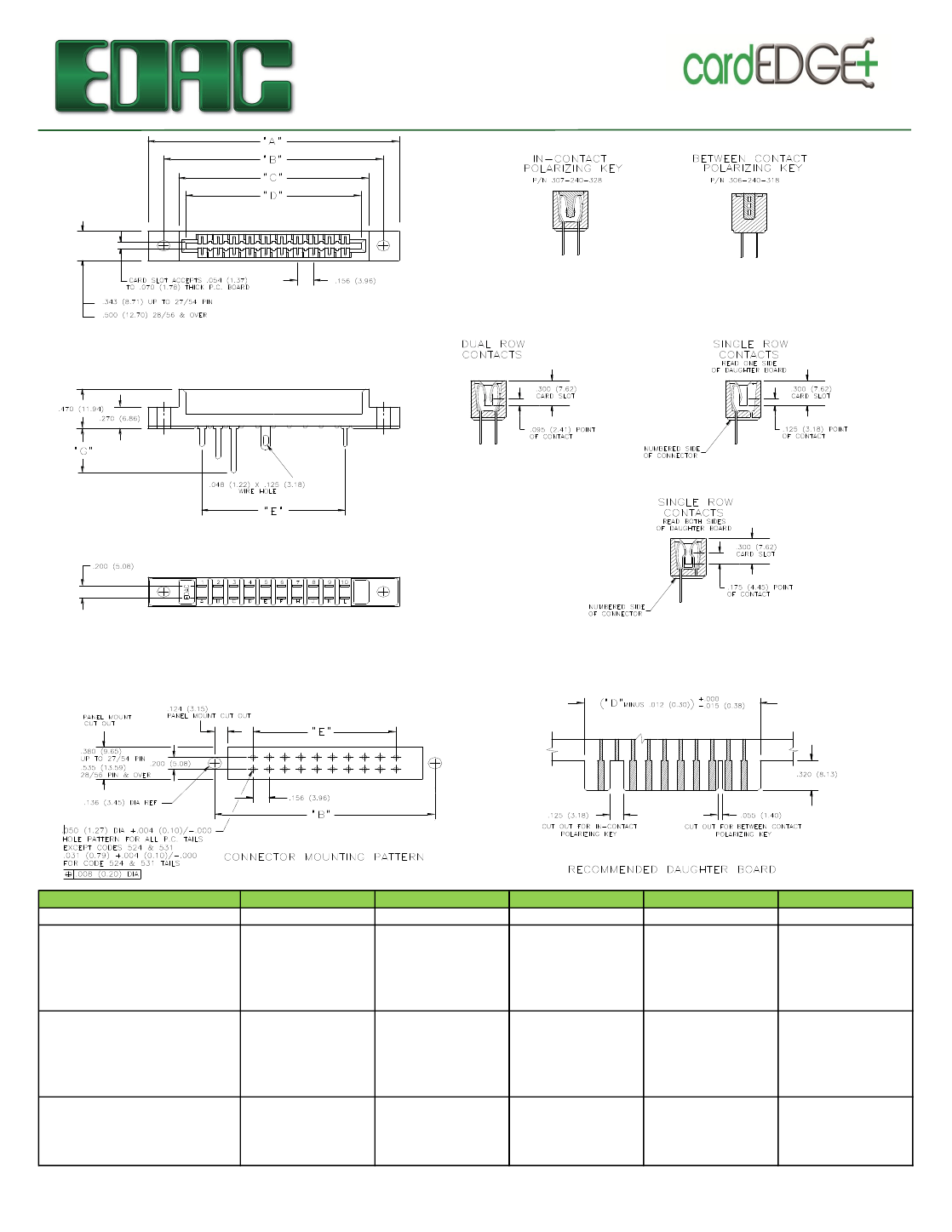

4) For details of the mounting options refer to next pages.

www.edac.net
