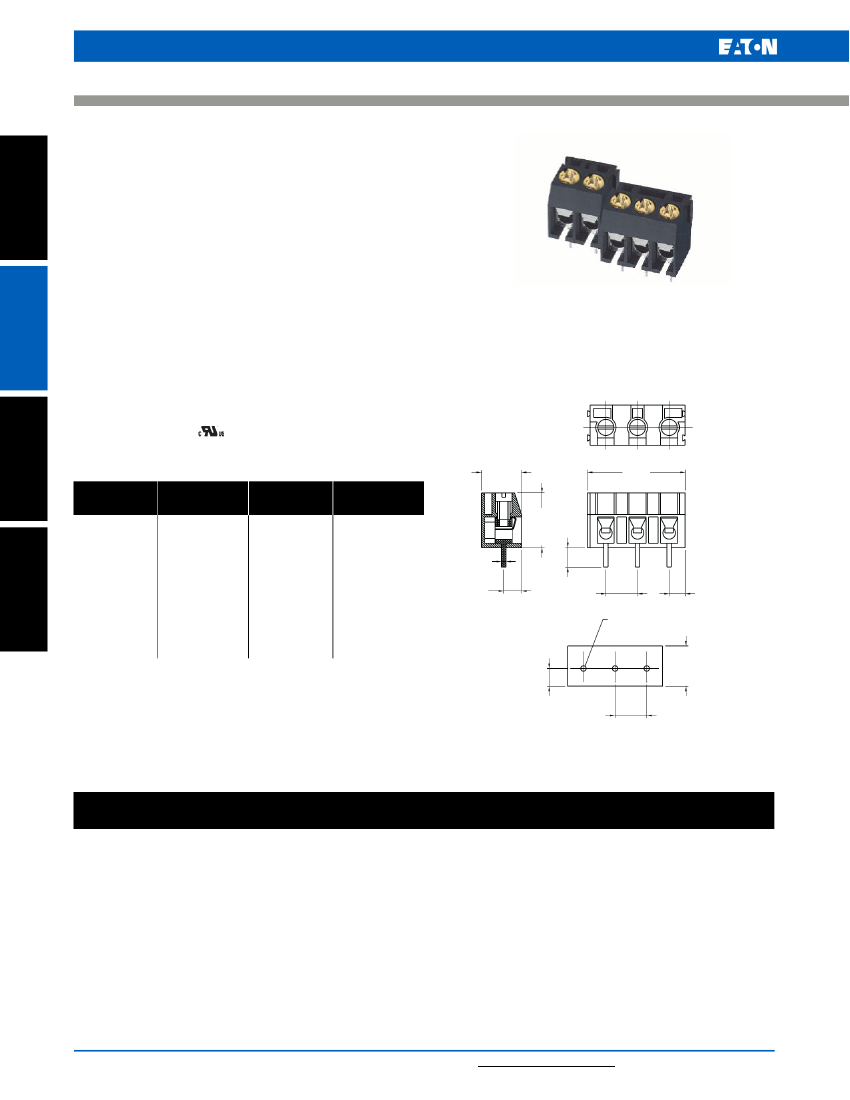

EuroMag Series PCB Mount Terminal Blocks
Terminal Blocks:
Single Row
EM3127 Series
EuroMag Terminal Blocks
7.50 Centers; Modular
SPECIFICATIONS
Rating:
10A, 300V
Center Spacing:
0.295” (7.50mm)
Wire Range:
#14-22 AWG
Housing Material:
Black Polyamide Type 6/6, 94V0
Contact Material:
Tin-Plated Brass
Wire Protector:
Stainless Steel
Screw Size:
M3.0
Zinc-Plated
Steel
Operating Temperature:
105°C (221°F) max., -33°C
(-27°F) min.
Torque Rating:
7.08
lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EuroMag Series
Spring & Screw
EM312705
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
9.5+0.3
_
(0.374")
L+0.5
_
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
15.0
22.5
33.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
105.0
112.5
120.0
127.5
133.0
142.5
150.0
157.5
165.0
172.5
180.0
13+0.3
_
(0.512")
ø1+0.1
_
(ø0.039")
4.2+0.3
_
(0.165")
7.5+0.1
_
(0.295")
ø1.4
(ø0.055")
9.5+0.3
_
(0.374")
4.6+0.3
_
(0.181")
7.5+0.1
_
(0.295")
3.8+0.3
_
(0.150")
PCB Hole Layout
Compliance
References
To convert to inches, divide by 25.4
Part Numbering System
EM31 27
nnnnnn nn
Series
02
to
24
# of Poles
4.5+0.3
_
(0.177")
For additional product information, visit
www.eaton.com/connectors
