3M
TM

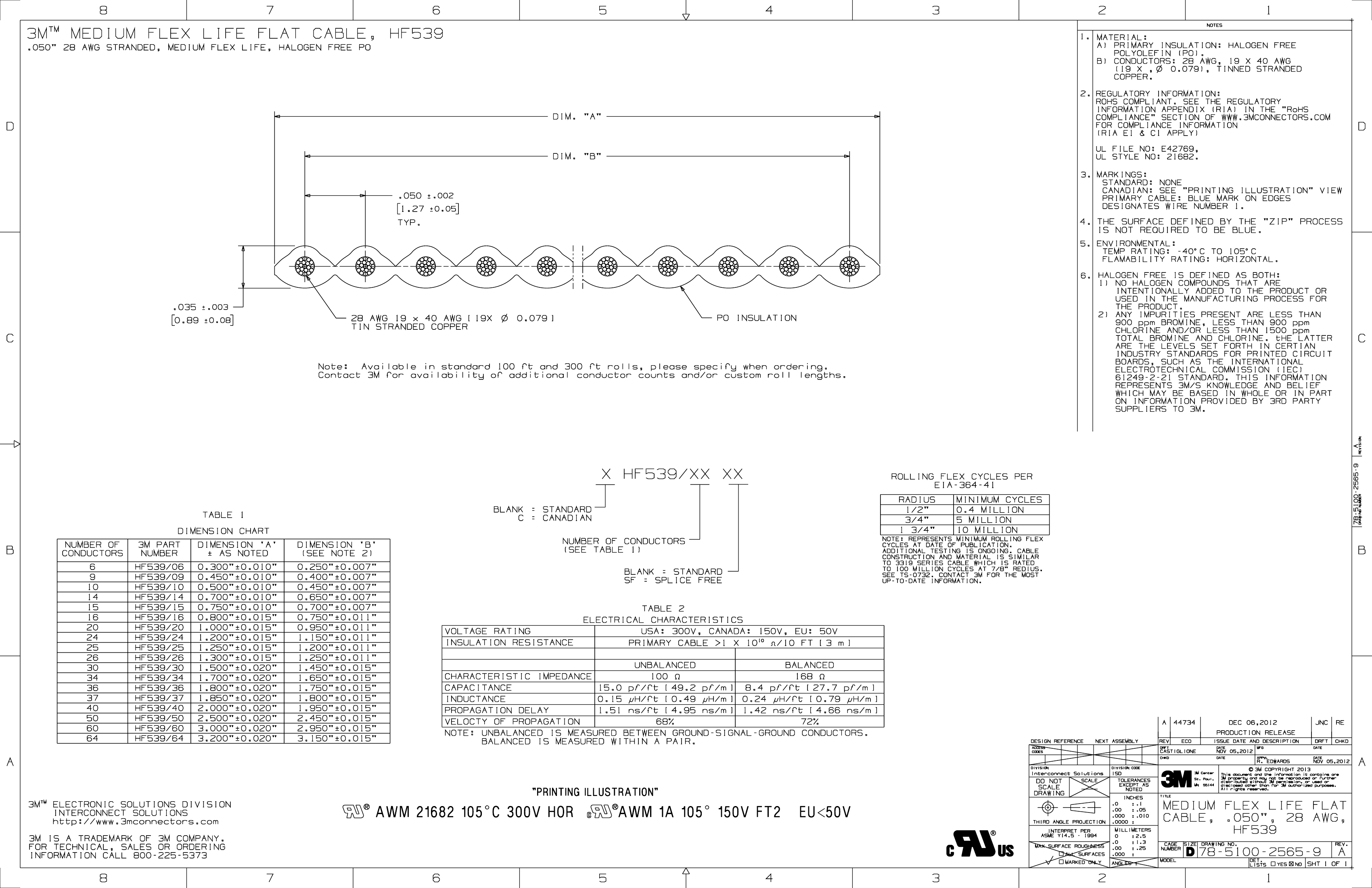

MEDIUM FLEX LIFE FLAT CABLE, HF539
.050" 28 AWG STRANDED, MEDIUM FLEX LIFE, HALOGEN FREE PO
1. MATERIAL:
A) PRIMARY INSULATION: HALOGEN FREE
POLYOLEFIN (PO).
B) CONDUCTORS: 28 AWG, 19 X 40 AWG
(19 X ,
0.079), TINNED STRANDED
COPPER.
2. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE REGULATORY
INFORMATION APPENDIX (RIA) IN THE "RoHS
COMPLIANCE" SECTION OF WWW.3MCONNECTORS.COM
FOR COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY)
UL FILE NO: E42769,
UL STYLE NO: 21682.
3. MARKINGS:
STANDARD: NONE
CANADIAN: SEE "PRINTING ILLUSTRATION" VIEW
PRIMARY CABLE: BLUE MARK ON EDGES
DESIGNATES WIRE NUMBER 1.
DIM. "A"
D
DIM. "B"
D
.050
1.27
TYP.
.002
0.05
4. THE SURFACE DEFINED BY THE "ZIP" PROCESS
IS NOT REQUIRED TO BE BLUE.
5. ENVIRONMENTAL:
TEMP RATING: -40 C TO 105 C
FLAMABILITY RATING: HORIZONTAL.
6. HALOGEN FREE IS DEFINED AS BOTH:
1) NO HALOGEN COMPOUNDS THAT ARE
INTENTIONALLY ADDED TO THE PRODUCT OR
USED IN THE MANUFACTURING PROCESS FOR
THE PRODUCT.
2) ANY IMPURITIES PRESENT ARE LESS THAN
900 ppm BROMINE, LESS THAN 900 ppm
CHLORINE AND/OR LESS THAN 1500 ppm
TOTAL BROMINE AND CHLORINE. tHE LATTER
ARE THE LEVELS SET FORTH IN CERTIAN
INDUSTRY STANDARDS FOR PRINTED CIRCUIT
BOARDS, SUCH AS THE INTERNATIONAL
ELECTROTECHNICAL COMMISSION (IEC)
61249-2-21 STANDARD. THIS INFORMATION
REPRESENTS 3M/S KNOWLEDGE AND BELIEF
WHICH MAY BE BASED IN WHOLE OR IN PART
ON INFORMATION PROVIDED BY 3RD PARTY
SUPPLIERS TO 3M.
.035
0.89
.003
0.08
28 AWG 19 x 40 AWG [19X
TIN STRANDED COPPER
0.079]
PO INSULATION
C
Note: Available in standard 100 ft and 300 ft rolls, please specify when ordering.
Contact 3M for availability of additional conductor counts and/or custom roll lengths.
C
X HF539/XX XX
TABLE 1
DIMENSION CHART
BLANK = STANDARD
C = CANADIAN
DIMENSION 'B'
(SEE NOTE 2)
0.250"
0.400"
0.450"
0.650"
0.700"
0.750"
0.950"
1.150"
1.200"
1.250"
1.450"
1.650"
1.750"
1.800"
1.950"
2.450"
2.950"
3.150"
0.007"
0.007"
0.007"
0.007"
0.007"
0.011"
0.011"
0.011"
0.011"
0.011"
0.015"
0.015"
0.015"
0.015"
0.015"
0.015"
0.015"
0.015"
NUMBER OF CONDUCTORS
(SEE TABLE 1)
BLANK = STANDARD
SF = SPLICE FREE
ROLLING FLEX CYCLES PER
EIA-364-41
RADIUS
1/2"
3/4"
1 3/4"
MINIMUM CYCLES
0.4 MILLION
5 MILLION
10 MILLION
78-5100-2565-9
A
44734
ECO
B
NUMBER OF
CONDUCTORS
6
9
10
14
15
16
20
24
25
26
30
34
36
37
40
50
60
64
3M PART
NUMBER
HF539/06
HF539/09
HF539/10
HF539/14
HF539/15
HF539/16
HF539/20
HF539/24
HF539/25
HF539/26
HF539/30
HF539/34
HF539/36
HF539/37
HF539/40
HF539/50
HF539/60
HF539/64
DIMENSION 'A'
AS NOTED
0.300"
0.450"
0.500"
0.700"
0.750"
0.800"
1.000"
1.200"
1.250"
1.300"
1.500"
1.700"
1.800"
1.850"
2.000"
2.500"
3.000"
3.200"
0.010"
0.010"
0.010"
0.010"
0.010"
0.015"
0.015"
0.015"
0.015"
0.015"
0.020"
0.020"
0.020"
0.020"
0.020"
0.020"
0.020"
0.020"
NOTE: REPRESENTS MINIMUM ROLLING FLEX
CYCLES AT DATE OF PUBLICATION.
ADDITIONAL TESTING IS ONGOING. CABLE
CONSTRUCTION AND MATERIAL IS SIMILAR
TO 3319 SERIES CABLE WHICH IS RATED
TO 100 MILLION CYCLES AT 7/8" REDIUS.
SEE TS-0732. CONTACT 3M FOR THE MOST
UP-TO-DATE INFORMATION.
B
VOLTAGE RATING
INSULATION RESISTANCE
TABLE 2
ELECTRICAL CHARACTERISTICS
USA: 300V, CANADA: 150V, EU: 50V
PRIMARY CABLE >1 X 10
10
/10 FT [3 m]
UNBALANCED
BALANCED
CHARACTERISTIC IMPEDANCE
100
168
CAPACITANCE
15.0 p /ft [49.2 p /m]
8.4 p /ft [27.7 p /m]
INDUCTANCE
0.15
H/ft [0.49
H/m] 0.24
H/ft [0.79
H/m]
PROPAGATION DELAY
1.51 ns/ft [4.95 ns/m] 1.42 ns/ft [4.66 ns/m]
VELOCTY OF PROPAGATION
68%
72%
NOTE: UNBALANCED IS MEASURED BETWEEN GROUND-SIGNAL-GROUND CONDUCTORS.
BALANCED IS MEASURED WITHIN A PAIR.
DEC 06,2012
PRODUCTION RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
RE
CHKD
DESIGN REFERENCE
ACCESS
CODES
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
NOV 05,2012
DATE
APPVL
DATE
A
"PRINTING
ILLUSTRATION"
3M
TM
ELECTRONIC SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
R. EDWARDS
DIVISION
DIVISION CODE
NOV 05,2012
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.05
.000
.010
.0000
MILLIMETERS
0
2.5
.0
1.3
.00
.25
.000
ANGLES
TITLE
DO NOT
SCALE
DRAWING
SCALE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
AWM
21682
105
C
300V
HOR
AWM
1A
105
150V
FT2
E U
<
5 0 V
THIRD ANGLE PROJECTION
R
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MEDIUM FLEX LIFE FLAT
CABLE, .050", 28 AWG,
HF539
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2565-9
DET.
LISTS
YES
NO
A
SHT 1 OF 1
8
7
6
5
4
3
2
1
DRAWING NUMBER
REVISION
A
