.050 inch centers permit termination to our broad line
of IDC connectors
•
Zippable for branching or discrete termination
•
Split-bond lengths can be varied, see Note 2 in
Ordering Information
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 12, 2009
TS-0247-B
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray
Marking:
Standard: None
Canadian Option:
AWM 2651 105C 300V VW1 3M NU C
AWM IA 105C 300V FT1 EU <50V
Conductors:
28 AWG, 7
×
36[ 7
×
0.127 ] Tinned Stranded Copper
Electrical
Voltage Rating:
USA: 300V
Canada: 300V
Insulation Resistance:
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Characteristic Impedance:
Unbalanced: 112
Ω
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
Unbalanced: 12.7 pF/ft [ 41.5 pF/m ]
Unbalanced: 0.16 μH/ft [ 0.52 μH/m ]
Unbalanced: 1.42 ns/ft [ 4.66 ns/m ]
Unbalanced: 72%
EU: <50V
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

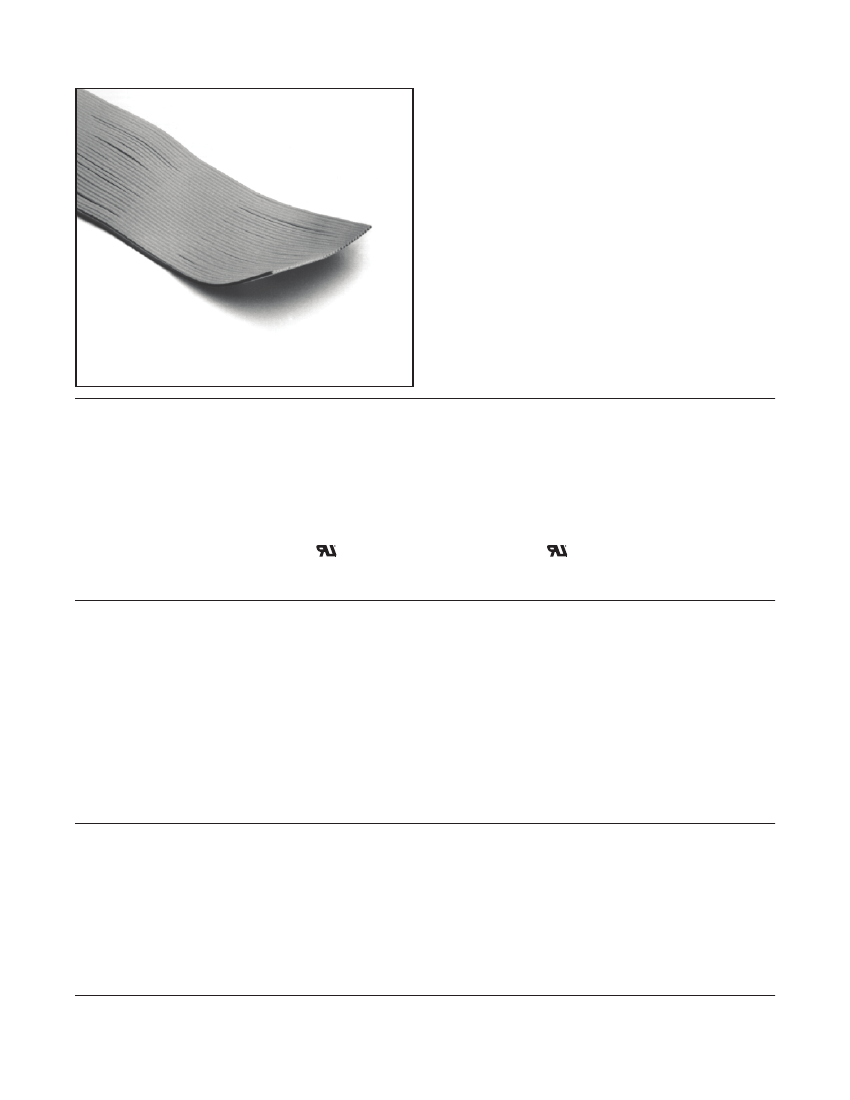

Round Conductor Flat Cable
.050" 28 AWG Stranded, PVC
Number of
Conductors
10
14
16
(OPTIONAL)
3667 Series
3M Part
Number
3667/10
3667/14
3667/16
3667/20
3667/24
3667/25
Dimension A
.500 ± .010 [12.70 ]
.700 ± .010 [ 17.78 ]
.800 ± .015 [ 20.32 ]
Dimension B
.450 ± .007 [ 11.43 ]
.650 ± .007 [ 16.51 ]
.750 ± .011 [ 19.05 ]
C
20
24
25
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for Reference Only
26
30
34
36
37
40
44
50
60
64
3667/26
3667/30
3667/34
3667/36
3667/37
3667/40
3667/44
3667/50
3667/60
3709/64
1.000 ± .015 [ 25.40 ]
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.300 ± .015 [ 33.02 ]
1.500 ± .020 [ 38.10 ]
1.700 ± .020 [ 43.18 ]
1.800 ± .020 [ 45.72 ]
1.850 ± .020 [ 46.99 ]
2.000 ± .020 [ 50.80 ]
2.200 ± .020 [ 55.88 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
3.200 ± .020 [ 81.28 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.150 ± .015 [ 54.61 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
A
B
.025
±
.007
[ 0.64 ]
.050
±
.002 Typ
[ 1.27 ]
.035
±
.003
[ 0.89 ]
28 AWG 7 X 36 [ 7 X 0.127 ] Tinned
Stranded Copper Conductors
Variable Length Suffix Table
Example of variable bond and flat repeats
Suffix
MO
SV
BU
Repeat
6.50
9.50
13.00
Bond
1.50
1.00
1.00
+ .25
1.0 - .13
[ 25 ]
Split-bond lengths can be varied, see
Note 2 in Ordering Information below.
Bonded
PVC Insulation
Split
Note:
1. Red marking on one edge of cable designates wire #1.
2. A & B dimensions pertain to bonded areas only.
2.4
±
.25
[61]
Ordering Information
3667 / XX XX XX
Blank = Standard
C = Canadian Certified Version
Note:
1. Available in standard lengths of 100 feet or 300 feet per roll, please
specify when ordering.
2. Standard product has a split-bond repeat length of 2.4 inches (6.1
cm) with a 1.0 inch (2.5 cm) bonded section. The split-bond repeat
length can be specified up to 24 inches (61.0 cm). The minimum
split or bonded length is 1/2 inch (1.3 cm).
3. For special requirements, contact your 3M sales representative.
Blank = Standard
SF = Splice Free
Variable Length
(See variable length suffix table)
Number of Conductors
(See Table)
TS-0247-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
