135101-04-M1.00 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> Cable package> Radio frequency cable components> 135101-04-M1.00

Preview

135101-04-M1.00: DescriptionRF cable assembly SMA STR/SMA STR PLG RG-58 CBL 1.00 MET; CategoryWire/cable Cable package Radio frequency cable components; File Size132KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

135101-04-M1.00 Overview

RF cable assembly SMA STR/SMA STR PLG RG-58 CBL 1.00 MET

135101-04-M1.00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	RF cable assemblies
Shipping restrictions	Mouser does not currently sell this product.
Connector A series	SMA
Connector A Gender	Plug (Male)
Connector A body type	Straight
Connector B series	SMA
Connector B sex	Plug (Male)
Connector B body type	Straight
length	1 m
impedance	50 Ohms
Frequency Range	DC to 1 GHz
Cable type	RG-58
Encapsulation	Bulk
Connector A polarity	Normal
Connector B polarity	Normal
Factory packaging quantity	1

Preview

Download Datasheet

View All

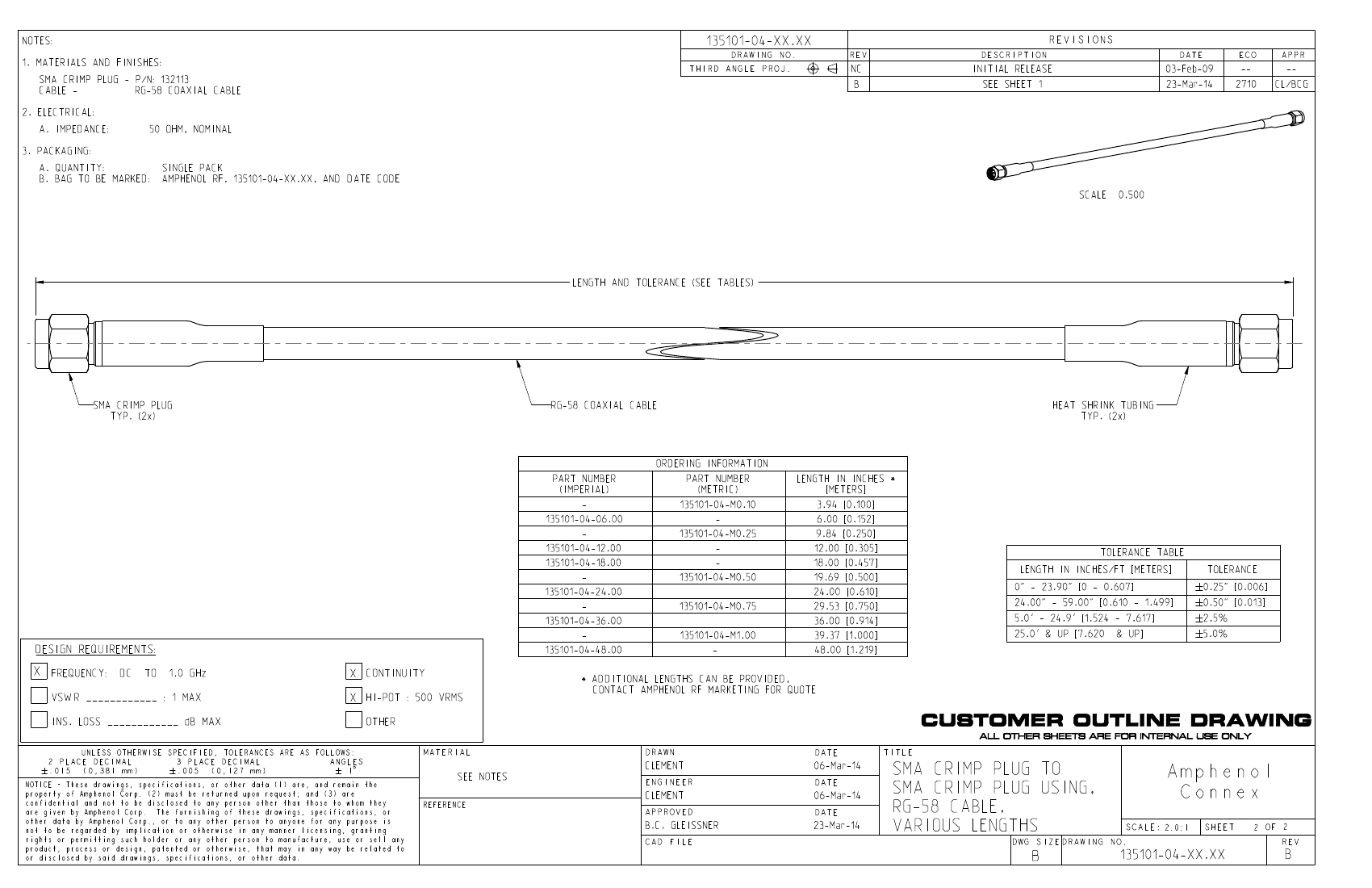

NOTES:

1. MATERIALS AND FINISHES:

SMA CRIMP PLUG - P/N: 132113

CABLE -

RG-58 COAXIAL CABLE

2. ELECTRICAL:

A. IMPEDANCE:

3. PACKAGING:

A. QUANTITY:

B. BAG TO BE MARKED:

SINGLE PACK

AMPHENOL RF, 135101-04-XX.XX, AND DATE CODE

50 OHM, NOMINAL

135101-04-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

NC

B

INITIAL RELEASE

SEE SHEET 1

DESCRIPTION

03-Feb-09

DATE

ECO

23-Mar-14

2710

--

APPR

CL/BCG

--

SCALE

0.500

LENGTH AND TOLERANCE (SEE TABLES)

SMA CRIMP PLUG

TYP. (2x)

RG-58 COAXIAL CABLE

HEAT SHRINK TUBING

TYP. (2x)

PART NUMBER

(IMPERIAL)

135101-04-06.00

135101-04-12.00

135101-04-18.00

135101-04-24.00

135101-04-36.00

-

ORDERING INFORMATION

PART NUMBER

(METRIC)

-

135101-04-M0.10

135101-04-M0.25

LENGTH IN INCHES *

[METERS]

3.94 [0.100]

6.00 [0.152]

12.00 [0.305]

18.00 [0.457]

19.69 [0.500]

24.00 [0.610]

29.53 [0.750]

36.00 [0.914]

39.37 [1.000]

48.00 [1.219]

9.84 [0.250]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

#

0.25" [0.006]

#

0.50" [0.013]

#

5.0%

#

2.5%

135101-04-M0.50

135101-04-M0.75

135101-04-M1.00

-

DESIGN REQUIREMENTS:

135101-04-48.00

X

FREQUENCY:

DC

TO

1.0 GHz

X

CONTINUITY

X

HI-POT : 500 VRMS

OTHER

MATERIAL

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

e

hom they

tions, or

urpose is

granting

or sell any

e related to

DRAWN

SEE NOTES

REFERENCE

CLEMENT

06-Mar-14

23-Mar-14

DATE

TITLE

ENGINEER

APPROVED

CAD FILE

B.C. GLEISSNER

SMA CRIMP PLUG TO

SMA CRIMP PLUG USING,

RG-58 CABLE,

VARIOUS LENGTHS

B

Amphenol

Connex

SCALE: 2.0:1

SHEET

2 OF 2

REV

DWG SIZE DRAWING NO.

135101-04-XX.XX

B

135101-04-M1.00 Related Products

	135101-04-M1.00	135101-04-48.00	135101-04-M0.75	135101-04-M0.50	135101-04-M0.25	135101-04-18.00	135101-04-24.00
Description	RF cable assembly SMA STR/SMA STR PLG RG-58 CBL 1.00 MET	RF Cable Assembly SMA St Plug to St Plug RG-58/U 48in	RF cable assembly SMA STR/SMA STR PLG RG-58 CBL 0.75 MET	RF cable assembly SMA STR/SMA STR PLG RG-58 CBL 0.50 MET	RF cable assembly SMA STR/SMA STR PLG RG-58 CBL 0.25 MET	RF Cable Assembly SMA Strg PLG to SMA Strg PLG 18 inches	RF Cable Assembly SMA St Plug to St Plug RG-58/U 24in
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF cable assemblies	-	RF cable assemblies	RF cable assemblies	RF cable assemblies	RF cable assemblies	-
Shipping restrictions	Mouser does not currently sell this product.	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-
Connector A series	SMA	-	SMA	SMA	SMA	-	-
Connector A Gender	Plug (Male)	-	Plug (Male)	Plug (Male)	Plug (Male)	-	-
Connector A body type	Straight	-	Straight	Straight	Straight	-	-
Connector B series	SMA	-	SMA	SMA	SMA	-	-
Connector B sex	Plug (Male)	-	Plug (Male)	Plug (Male)	Plug (Male)	-	-
Connector B body type	Straight	-	Straight	Straight	Straight	-	-
length	1 m	-	0.75 m	0.5 m	0.25 m	-	-
impedance	50 Ohms	-	50 Ohms	50 Ohms	50 Ohms	50 Ohms	-
Frequency Range	DC to 1 GHz	-	DC to 1 GHz	DC to 1 GHz	DC to 1 GHz	-	-
Cable type	RG-58	-	RG-58	RG-58	RG-58	RG-58	-
Encapsulation	Bulk	-	Bulk	Bulk	Bulk	Bulk	-
Connector A polarity	Normal	-	Normal	Normal	Normal	-	-
Connector B polarity	Normal	-	Normal	Normal	Normal	-	-
Factory packaging quantity	1	-	1	1	1	1	-
