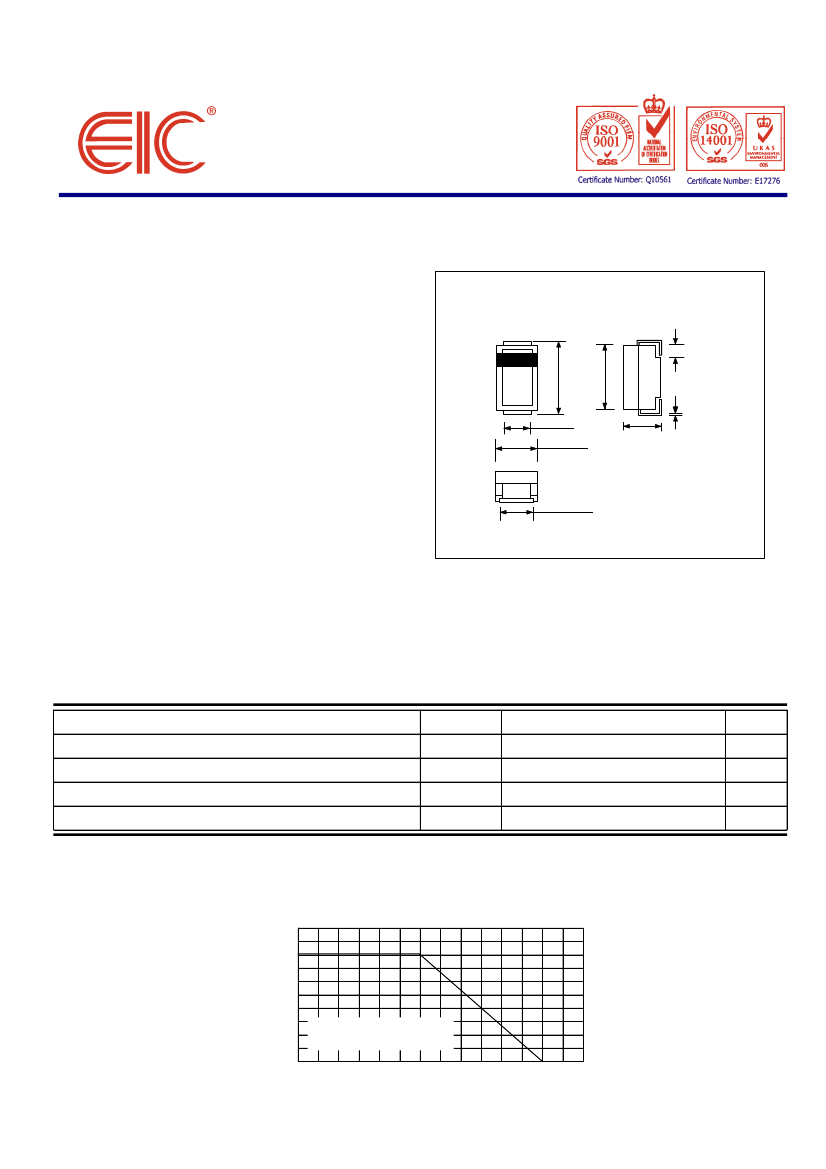

SZ403G - SZ40D0
V
Z
: 3.6 - 200 Volts
P
D
: 2 Watts
FEATURES :
* Complete Voltage Range 3.6 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free
SURFACE MOUNT SILICON
ZENER DIODES
SMA (DO-214AC)
1.1
±
0.3
5.0
±
0.15
4.5
±
0.15
1.2
±
0.2
2.6
±
0.15
2.1
±
0.2
0.2
±
0.07
MECHANICAL DATA
* Case : SMA (DO-214AC) Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead formed for Surface mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.064 grams
2.0
±
0.2
Dimensions in millimeter
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75
°C
(Note1)
Maximum Forward Voltage at I
F
= 200 mA
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
T
J
Ts
Value
2.0
1.2
- 55 to + 150
- 55 to + 150
Unit
W
V
°C
°C
Note :
(1) T
L
= Lead temperature at 5.0 mm
2
( 0.013 mm thick ) copper land areas.
Fig. 1 POWER TEMPERATURE DERATING CURVE
P
D
, MAXIMUM DISSIPATION
(WATTS)
2.5
2.0
1.5
1.0
0.5
0
5.0 mm
2
( 0.013 mm thick )
copper land areas.
25
50
75
100
125
150
175
T
L,
LEAD TEMPERATURE (
°
C)
Page 1 of 2
Rev. 02 : March 25, 2005
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
TYPE
Nominal Zener
Voltage
V
Z
@ I
ZT
I
ZT
(V)
(mA)
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
140
150
160
170
180
190
200
139
128
116
106
98.0
89.5
80.5
73.5
66.5
61.0
55.0
50.0
45.5
41.5
38.5
35.7
33.4
31.2
29.4
27.8
26.3
25.0
22.8
20.8
18.5
16.6
15.1
13.9
12.8
11.6
10.6
9.8
9.0
8.1
7.4
6.7
6.1
5.5
5.0
4.5
4.2
3.8
3.6
3.3
3.1
2.9
2.8
2.6
2.5
Z
ZT
@ I
ZT
(Ω)
5.0
5.0
4.5
4.5
3.5
2.5
1.5
2.0
2.0
2.3
2.5
3.5
4.0
4.5
5.0
5.5
7.0
8.0
9.0
10
11
11
12
13
18
20
23
25
30
35
40
48
55
60
75
90
100
125
175
250
325
400
500
575
650
675
725
825
900
Maximum Zener
Impedance
Z
ZK
@ I
ZK
(Ω)
400
400
400
550
600
500
700
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
5500
6000
6500
7000
7000
8000
8000
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Maximum Reverse
Leakage Current
I
R
@ V
R
(V)
(
µ
A)
80
50
50
50
50
50
50
50
50
50
50
50
50
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
1.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
7.6
8.4
9.1
9.9
10.6
11.4
12.2
13.0
13.7
14.4
15.2
16.7
18.2
20.6
22.5
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
106.4
114.0
121.6
130.4
136.8
144.8
152.0
Maximum DC
Zener Current
I
ZM
(mA)
504
468
434
386
356
324
292
266
242
220
200
182
166
152
138
130
122
114
107
100
95
90
82
76
68
60
55
50
47
43
39
36
32
29
27
24
22
20
18
17
15
14
13
12
11
11
10
10
9.0
SZ403G
SZ403J
SZ404D
SZ404H
SZ405B
SZ405G
SZ406C
SZ406I
SZ407F
SZ408C
SZ409B
SZ4010
SZ4011
SZ4012
SZ4013
SZ4014
SZ4015
SZ4016
SZ4017
SZ4018
SZ4019
SZ4020
SZ4022
SZ4024
SZ4027
SZ4030
SZ4033
SZ4036
SZ4039
SZ4043
SZ4047
SZ4051
SZ4056
SZ4062
SZ4068
SZ4075
SZ4082
SZ4091
SZ40B0
SZ40B1
SZ40B2
SZ40B3
SZ40B4
SZ40B5
SZ40B6
SZ40B7
SZ40B8
SZ40B9
SZ40D0
Note :
( 1 ) The type number listed have a standard tolerance on the nominal zener voltage of
±
10%,
altered the fourth number of type from " 0 " for
±
10% tolerance to be " 5 " for
±
5% tolerance.
( 2 ) " SZ " will be omitted in marking on the diode.
Page 2 of 2
Rev. 02 : March 25, 2005
