CERAMIC SMD CRYSTAL
ABM3C
RoHS /RoHS II Compliant
5.0 x 3.2 x 1.3mm
ABM3C Series products with the Date Code/Traceability Code marking ending in “X” are Glass-Sealed and the following RoHS Exemption applies:
Pb in Glass, exemption 7C-I per RoHS II Directive 2011/65/EU Annex
ABM3C Series products with the Date Code/Traceability Code marking ending in “C” and “F” are Seam-Sealed and are Pb-Free.
Moisture Sensitivity Level – MSL – N/A (The ABM3C Series is a Hermetically Sealed device and not moisture sensitive)
FEATURES:
• Low height; suitable for thin equipment.
• New seam sealed package available (code “C”)
• Tight tolerance and stability available.
• Suitable for RoHS compliant reflow profile
APPLICATIONS:
• High density applications.
• Modems, communication and test equipment.
• PMCIA, Wireless applications
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Equivalent series resistance (R1)
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Aging
Insulation Resistance
-5
500
18
10
100
+5
Minimum
10.000
Fundamental
-10
-40
-50
-50
+70
+90
+50
+50
60
50
7
ºC
ºC
ppm
ppm
Ω
pF
pF
µW
ppm
MΩ
@25°C±3°C
First year
@ 100Vdc ± 15V
See options
See options
See options
10.000 – 15.999MHz
16.000 – 50.000MHz
Standard
(See options if
other than STD)
Typical
Maximum
50.000
Units
MHz
Notes
Fundamental
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABM3C -
Frequency in MHz
Please specify the frequency
in MHz.
e.g. 14.31818MHz
Load Capacitance (pF)
Please specify CL in pF
or S for series
Custom ESR if other
than standard
R□
□: Specify
a value in
Ω
(e.g.: R40)
MHz -
-
-
-
Packaging
Blank: Bulk
T: Tape & Reel
Freq. Stability
Y: ± 30 ppm
H: ± 35 ppm
A: ± 80 ppm
Operating Temp.
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
Freq. Tolerance
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
Revised: 07.31.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
CERAMIC SMD CRYSTAL
ABM3C
RoHS /RoHS II Compliant
5.0 x 3.2 x 1.3mm

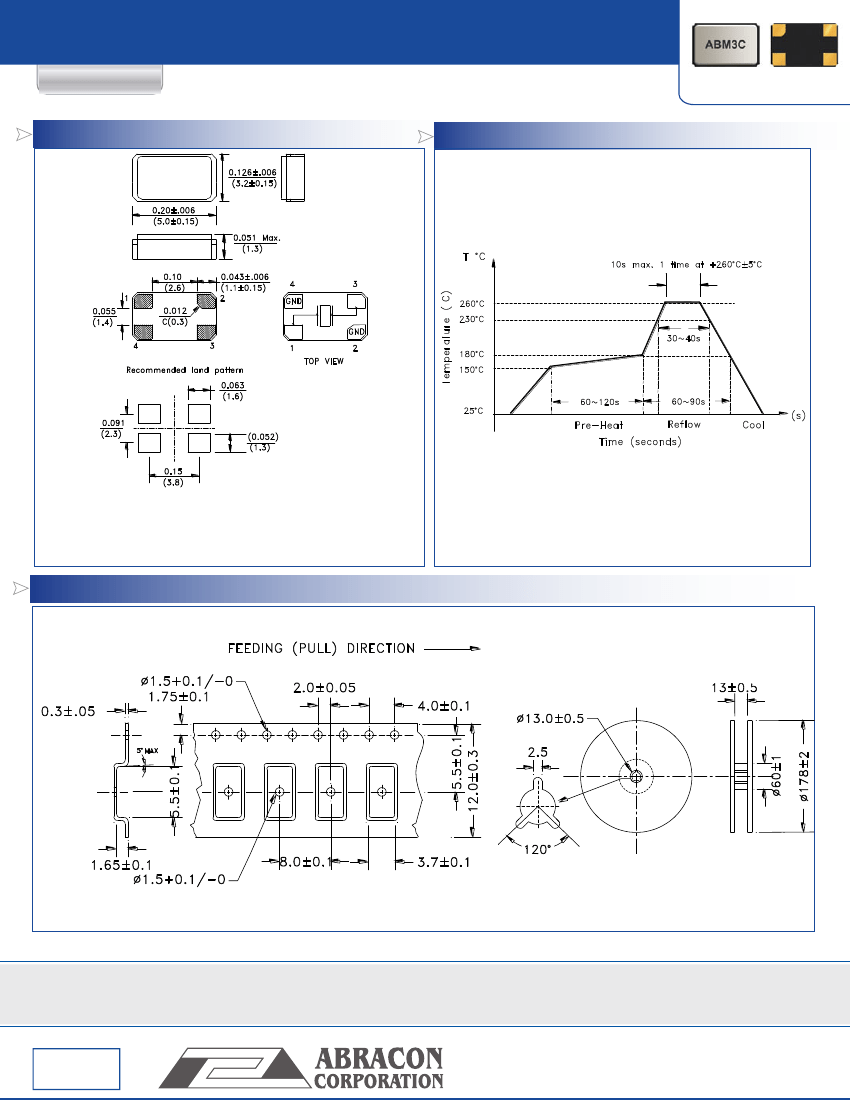

OUTLINE DRAWING:
REFLOW PROFILE:
Sealing Method :
Glass Sealing for parts with Traceability Code ending in “X”
Seam Sealing for parts with Traceability Code ending in “C” and “F”
Dimensions: inches (mm)
TAPE & REEL:
1000pcs/reel
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
07.31.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
