HDB-301R USB 3.0 Capture Box
Plug & Play! Never Missing a Moment!
1080P60 High Resolution & Ultra-Low Latency
Every precious moment is captured by high definition 1080p resolution in 60 frames per second for
you to enjoy high-speed and ultra-low latency video streaming.
The uncompressed video transferred from different HDMI devices (as consoles, camera…) could be
real-time edited while maintaining the best possible quality and primitive color saturation. Get rid of
unnatural, delay, cumbersome!
Ultra-Low Latency
Compatible Software Tool
IEI HDB-301R is compatible with various live streaming software with DirectShow architecture, such as OBS, XSplit, PotPlayer, Wirecast, VLC
media player, Skype, etc. You can use the software tools you are familiar with to play video games, watch HDMI while editing, recording, and
streaming.
OBS
XSplit
Continuous Video Streaming
Continuously Work
IEI HDB-301R housing is made by ruggedized aluminum with excellent hot dissipation! One of the youtubers has done an 8-hour
continuous steaming and enjoyed ultra-low latency without stop!
HDB-301R-2018-V10
Video Capture Solutions
w w w.ieiworld.com
Best Applications
Game Streaming
Signage Streaming
Auction Streaming
Enterprise Training
Streaming
Perfect for Popular HDMI Video Devices
PC
Desktop PC or notebook,
HDMI video output.
Game Consoles
PS4, XBox One,
Nintendo Switch.
Set-top Box
Apple TV, MOD, paid TV
channels STB, satellite TV.
Player
Photo Equipment
DVD player, Blu-ray player SLR Camera or Camera,
or audio and video player,
as SONY.
as Miracast wireless
* Please be noted: It can be set as
HDMI 1080P output on the device.
transmitter.

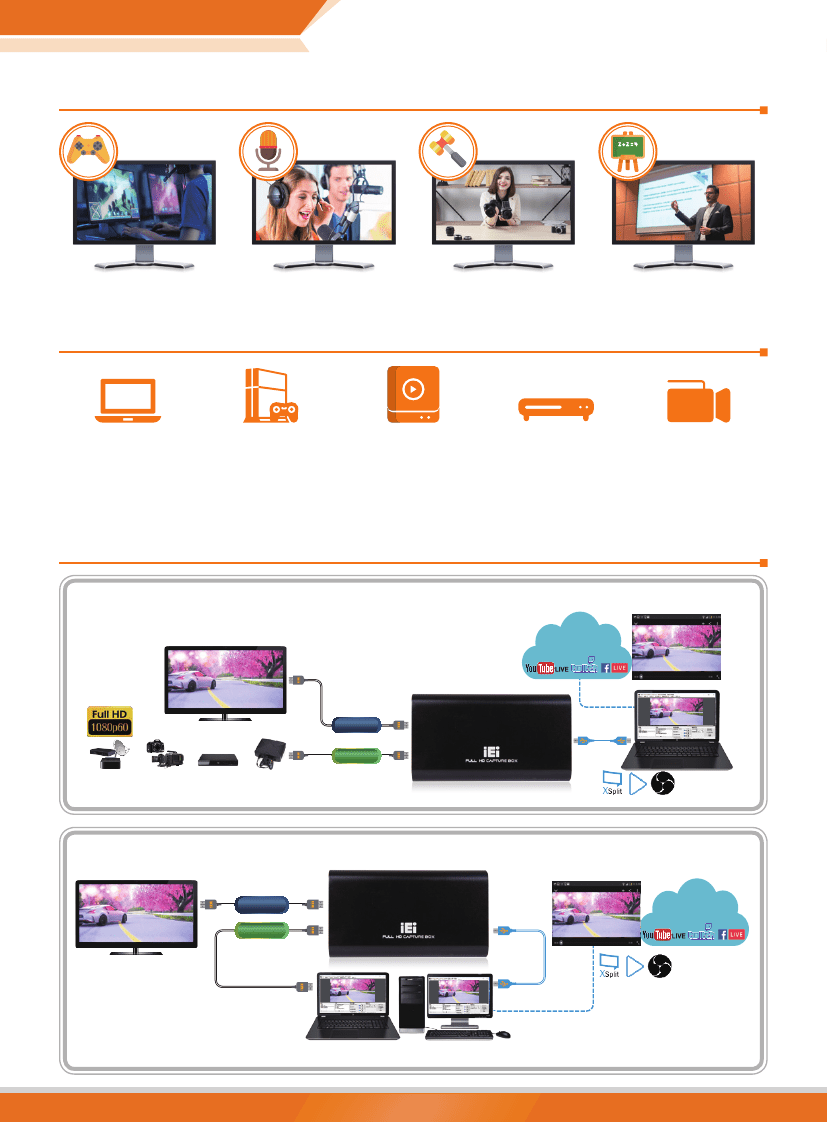

HDB-301R Installation
Installation 1:
Capture Various HDMI Video Sources
Cloud live
streaming
HDMI OUT
HDMI IN
Set-top Box
Camera
DVD
Game
consoles
Open Broadcaster
Software
Installation 2:
Capture Screen from HDMI Extended Desktop
HDMI OUT
HDMI IN
Cloud live
streaming
Open Broadcaster
Software
Requirement:
1. Notebook with HDMI output
2. PC with dual display supported and at
least one HDMI output
Notebook or PC
HDB-301R-2018-V10
Video Capture Solutions
w w w.ieiworld.com

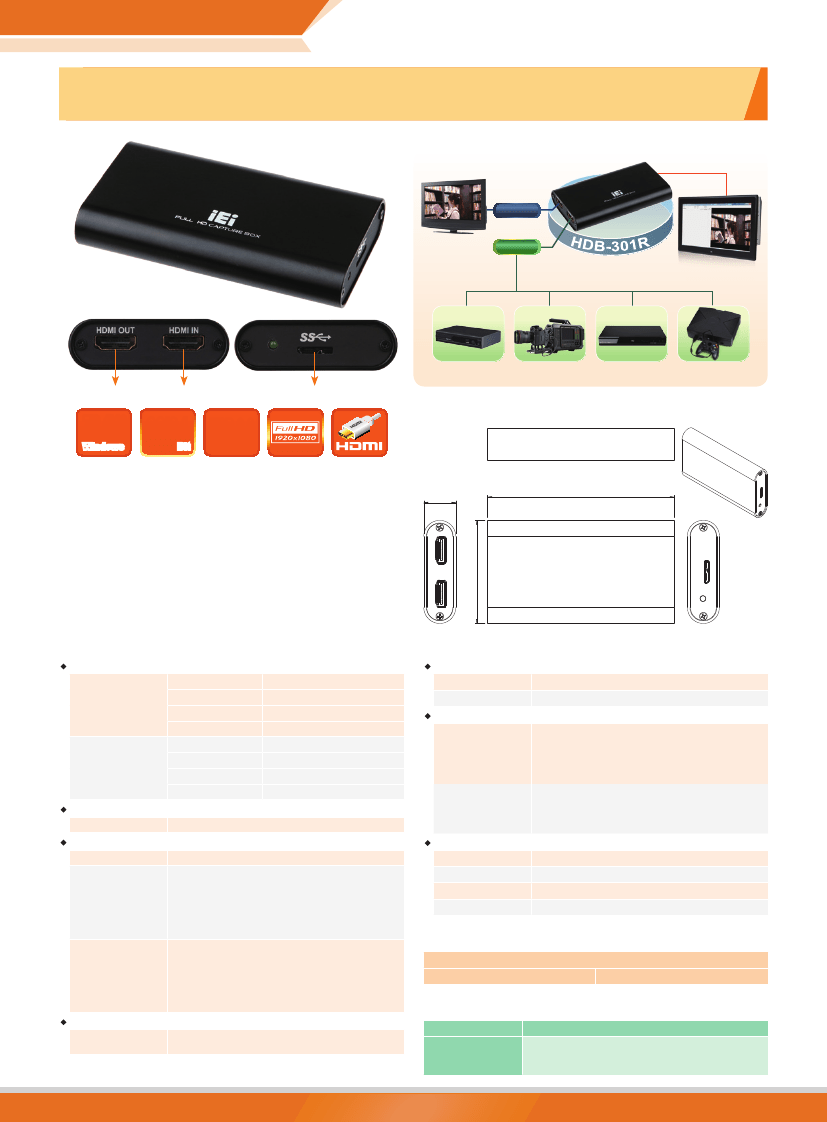

HDB-301R
USB 3.0 Uncompressed Video/Audio Capture Box with One Channel
HDMI Input and One Channel HDMI Bypass Output, 1920x1080@60p
Machine Vision/Broadcast & Post Production
USB 3.0
HDMI OUT
(bypass)
HDMI IN
STB
HDMI Out
HDMI In
USB 3.0
HD camcorder
Blue-ray player
Game player
Xbox360/PS4
7/8.1/10
32/64
USB 3.0
Windows
Bit
Dimensions
(Unit: mm)
Features
●
1-channel HDMI input and 1-channel HDMI bypass output
●
Capture High-Definition HDMI video to your PC
●
Capture with USB 3.0 bandwidth, enabling you to capture 1080p video
at 60fps
●
Deliver uncompressed video to your PC with ultra-low latency
●
Preview the video with its original color and high video quality
●
For audio mastering 48kHz audio, provides the power you need to
integrate into any audio environment
●
Compatible with OBS, XSplit, PotPlayer
●
Support Windows/Linux (Ubuntu)/MAC OS
18
105
Specifications
Interface
Video input channel
Input
Video input type
Audio input channel
Audio input type
Video output channel
No Delay Pass
Through
Video output type
Audio output channel
Audio output type
1 channel
HDMI
1 channel
HDMI (stereo)
1 channel
HDMI
1 channel
HDMI (stereo)
SDK
USB 3.0
OS Support
Preview System Requirement
System
Memory
Intel® Core™ i5-3400 or above
4GB or more
Software Support
Microsoft windows 7/ 8.1/10 (32-bit & 64-bit)
Linux: Ubntu 14.04.2 (64-bit) (Kernel version:
3.16.0-30-generic)
macOS High Sierra (version 10.13)
Operating System that support UVC
Windows: Provides SDK and demo program with sample
source code
Linux: Provides SDK and demo program with sample source
code
PC Interface
Type
Video Processing
Color Space
YUV 4:2:2
1920 x 1080 24p/25p/30p/50p/59.54p/60p
1680 x 1050 30p/60p
1280 x 720 30p/50p/59.94p/60p
1440 x 900 30p/60p
1024 x 768 30p/60p
1360 x 768 30p/60p
800 x 600 60p
1280 x 1024 30p/60p
720 x 576 50p
1280 x 800 30p/60p
720 x 480 59.94p/60p
1280 x 768 30p/60p
640 x 480 60p
1920 x 1080 24p/25p/30p/50p/59.54p/60p
1680 x 1050 30p/60p
1280 x 720 30p/50p/59.94p/60p
1440 x 900 30p/60p
1024 x 768 30p/60p
1360 x 768 30p/60p
800 x 600 60p
1280 x 1024 30p/60p
720 x 576 50p
1280 x 800 30p/60p
720 x 480 59.94p/60p
1280 x 768 30p/60p
640 x 480 60p
Others
Dimensions
Operating Temperature
Power Consumption
Weight
105 mm x 58 mm x 18 mm
0°C ~ 60°C (32° ~ 140°F), non-condensing
4W
112g
Video Input Resolution
Packing List
1 x HDB-301R
1 x USB 3.0 cable
1 x QIG
Video Preview
Audio Processing
Audio Sampling
Frequencies
44.1k, 48k Hz
Ordering Information
Part No.
HDB-301R-R10
Description
USB 3.0 Uncompressed video/audio capture box with
one channel HDMI input and one channel HDMI bypass
output,1920x1080@60p
HDB-301R-2018-V11
58
