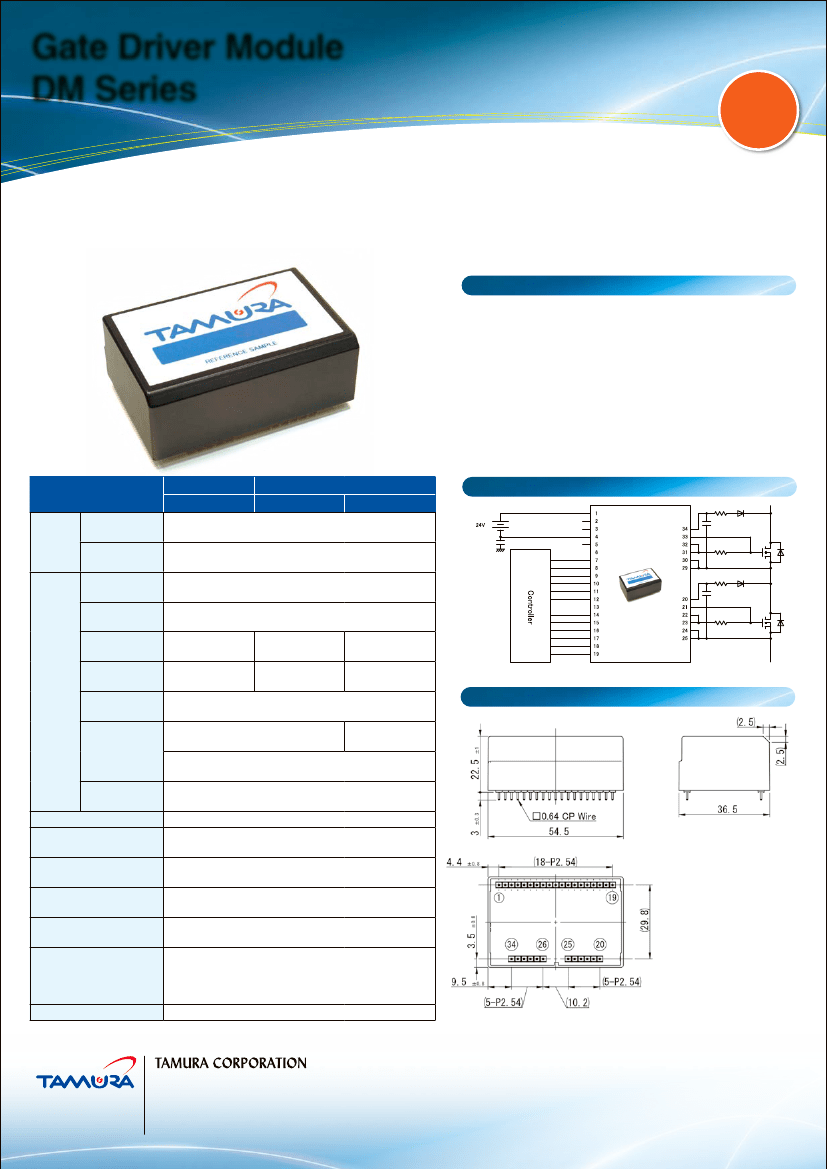

Gate Driver Module
DM Series
Gate Driver Module integrates the functions required for
the SiC MOSFET and IGBT gate drivers.
New
Product
This product is a next-generation drive module that emphasizes common mode noise prev entive
measures in particular.
Features
●
Low common mode noise
(parasitic capacitance: 15pF TYP)
Fast response (100ns TYP)
All-in-one (built-in DC-DC converter/Gate driver)
It corresponds to a module of 2in1 type.
2 drive circuits are separate respectively.
Dielectric withstand voltage: AC2500Vrms
Electrolytic capacitor
●
●
●
●
●
Model
Supply voltage
range
Input signal
voltage
Number of drive
circuits
Maximum
output power
Output terminal
voltage (H)
Output
Output terminal
voltage (L)
Switching
frequency
Gate drive
capability
Maximum
output current
Delay time
Mirror clamp detection
Desaturation protection
function
Signal transmission
method (isolation circuit)
Dielectric withstand
voltage
Operating temperature
range
Operating humidity range
SiC Driver
IGBT Driver
2DM180506CM 2DM150806CM 2DM150606CM
DC13V to DC28V/DC24V
5V
2
3W (per circuit)
+17V to +19V
−4V to −6V
+14V to +16V
−7V to −9V
200kHz max
2600nC/50kHz
650nC/200kHz
2700nC/50kHz
700nC/200kHz
+14V to +16V
−5V to −7V
Circuit diagram
Input
Outline Drawing
Unit : mm
(When the output power per circuit is equivalent to
3W)
18A peak (guaranteed by design)
100nsec. (typ.)
Operation with Output terminal voltage +2Vtyp.;
−3A peak (guaranteed by design)
Fault signal output function; Recovery by turning on
the reset input again.
Magnetic
AC2500V/ 1min.
Note: Between input and output; Between drive circuits
−30℃ to +85℃; Maximum output power at 85℃:
Approximately 1W (per circuit)
Note: Temperature derating may occur depending on
the drive conditions.
20% to 95% RH (No condensing)
Contact Tamura Corporation for further information. E-mail: soudan@tamura-ss.co.jp
Sakado Factory :
5-5-30, Chiyoda, Sakado-shi, Saitama 350-0214, Japan
TEL. +81-49-284-2323 FAX. +81-49-284-9183
Osaka Sales Office : No.2 Esaka-Sansho Bldg., 3-27-27, Tarumicho, Suita-shi, Osaka 564-0062, Japan TEL. +81-6-6380-2300 FAX. +81-6-6385-8371
Nagoya Sales Office : 3-1803, Kamiyashiro, Meito-ku, Nagoya-shi, Aichi 465-0025, Japan
TEL. +81-52-701-1210 FAX. +81-52-701-1295
Apr. 2016
