MCP37D20T-200I/TE: DescriptionAnalog-to-Digital Converter - ADC 14-bit, 200 Msps, single channel Pipelined ADC with Digital Downconverter; CategoryAnalog mixed-signal IC converter; File Size3MB，117 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MCP37D20T-200I/TE Overview

Analog-to-Digital Converter - ADC 14-bit, 200 Msps, single channel Pipelined ADC with Digital Downconverter

MCP37D20T-200I/TE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	TFBGA, BGA121,11X11,25
Reach Compliance Code	compliant
Maximum analog input voltage	2.7 V
Minimum analog input voltage	-2.7 V
Maximum conversion time	0.005 µs
Converter type	ADC, PROPRIETARY METHOD
JESD-30 code	S-PBGA-B121
length	8 mm
Number of analog input channels	1
Number of digits	14
Number of functions	1
Number of terminals	121
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	TFBGA
Encapsulate equivalent code	BGA121,11X11,25
Package shape	SQUARE
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Sampling rate	200 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	1.02 mm
Maximum slew rate	159 mA
Nominal supply voltage	1.2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.65 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm

Preview

Download Datasheet

View All

MCP37220-200

MCP37D20-200

200 Msps, 14-Bit Low-Power Single-Channel ADC

Features

• Sample Rates: 200 Msps

• Signal-to-Noise Ratio (SNR) with f

= 15 MHz

and -1 dBFS:

- 67.8 dBFS (typical) at 200 Msps

• Spurious-Free Dynamic Range (SFDR) with

= 15 MHz and -1 dBFS:

- 96 dBc (typical) at 200 Msps

• Power Dissipation with LVDS Digital I/O:

- 346 mW at 200 Msps

• Power Dissipation with CMOS Digital I/O:

- 304 mW at 200 Msps, output clock = 100 MHz

• Power Dissipation Excluding Digital I/O:

- 256 mW at 200 Msps

• Power-Saving Modes:

- 89 mW during Standby

- 24 mW during Shutdown

• Supply Voltage:

- Digital Section: 1.2V, 1.8V

- Analog Section: 1.2V, 1.8V

• Selectable Full-Scale Input Range: up to 1.8 V

P-P

• Analog Input Bandwidth: 650 MHz

• Output Interface:

- Parallel CMOS, DDR LVDS

• Output Data Format:

- Two's complement or offset binary

• Optional Output Data Randomizer

• Digital Signal Post-Processing (DSPP) Options:

- Decimation filters for improved SNR

- Offset and Gain adjustment

- Digital Down-Conversion (DDC) with I/Q or

/8 output (MCP37D20-200)

• Built-In ADC Linearity Calibration Algorithms:

- Harmonic Distortion Correction (HDC)

- DAC Noise Cancellation (DNC)

- Dynamic Element Matching (DEM)

- Flash Error Calibration

• Serial Peripheral Interface (SPI)

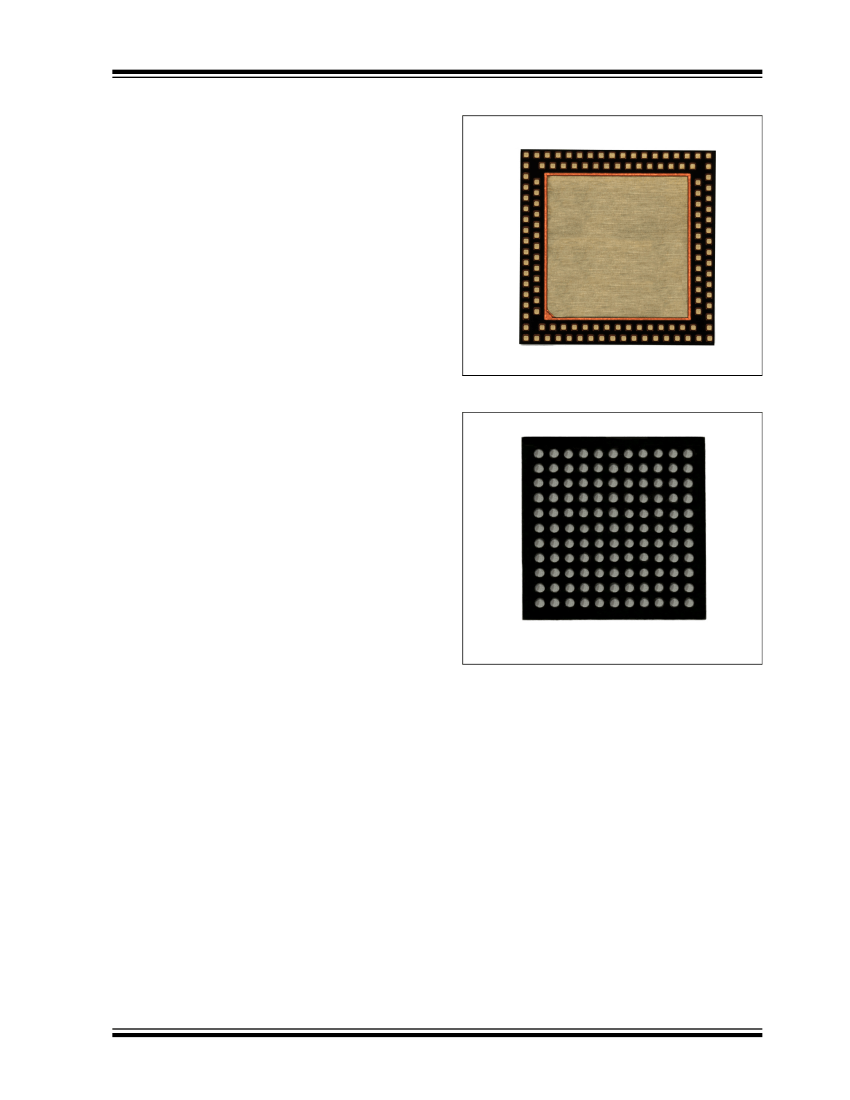

• Package Options:

- VTLA-124 (9 mm x 9 mm x 0.9 mm)

- TFBGA-121 (8 mm x 8 mm)

• No external reference decoupling capacitor

required for TFBGA Package

• Industrial Temperature Range: -40°C to +85°C

Typical Applications

•

Communication Instruments

Microwave Digital Radio

Cellular Base Stations

Radar

Scanners and Low-Power Portable Instruments

Industrial and Consumer Data Acquisition System

Device Offering

(1)

Part Number

MCP37220-200

MCP37D20-200

MCP37210-200

MCP37D10-200

Sample Rate

200 Msps

Resolution

Digital Decimation

(FIR Filters)

Yes

Digital

Down-Conversion

Yes

Noise-Shaping

Requantizer

Yes

Devices in the same package type are pin-compatible.



2015-2016 Microchip Technology Inc.

DS20005396B-page 1

MCP37D20T-200I/TE Related Products

	MCP37D20T-200I/TE	MCP37D20T-200I/TL	MCP37D20-200I/TL	MCP37220-200I/TL
Description	Analog-to-Digital Converter - ADC 14-bit, 200 Msps, single channel Pipelined ADC with Digital Downconverter	Analog to Digital Converters - ADC 14-BIT Pipelined ADC 200 Msps Single Chan	Analog to Digital Converters - ADC 14-BIT Pipelined ADC 200 Msps Single Chan	Analog to Digital Converters - ADC 14-BIT Pipelined ADC 200 Msps Single Chan
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Microchip	Microchip	Microchip	Microchip
package instruction	TFBGA, BGA121,11X11,25	HVBCC,	HVBCC,	HVBCC,
Reach Compliance Code	compliant	compliant	compliant	compliant
Maximum conversion time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
Converter type	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD	ADC, PROPRIETARY METHOD
JESD-30 code	S-PBGA-B121	S-XBCC-B124	S-XBCC-B124	S-XBCC-B124
length	8 mm	9 mm	9 mm	9 mm
Number of analog input channels	1	1	1	1
Number of digits	14	14	14	14
Number of functions	1	1	1	1
Number of terminals	121	124	124	124
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	TFBGA	HVBCC	HVBCC	HVBCC
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Sampling rate	200 MHz	200 MHz	200 MHz	200 MHz
Sample and hold/Track and hold	SAMPLE	SAMPLE	SAMPLE	SAMPLE
Maximum seat height	1.02 mm	0.95 mm	0.95 mm	0.95 mm
Nominal supply voltage	1.2 V	1.2 V	1.2 V	1.2 V
surface mount	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	BALL	BUTT	BUTT	BUTT
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
width	8 mm	9 mm	9 mm	9 mm
