SL-110-T-32 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Header and line shell> SL-110-T-32

SL-110-T-32: DescriptionHeaders and Wire Housings.100" Low Profile Single Row Screw Machine Socket Strip; CategoryThe connector Header and line shell; File Size204KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SL-110-T-32 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SL-110-T-32	-	-	View	Buy Now

SL-110-T-32 Overview

Headers and Wire Housings.100" Low Profile Single Row Screw Machine Socket Strip

SL-110-T-32 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Headers and wire housings
Shipping restrictions	Mouser does not currently sell this product.
product	Contacts
Number of locations	10 Position
Pitch	2.54 mm
Number of rows	1 Row
Termination type	Through Hole
Installation angle	Straight
Contact type	Socket (Female)
Contact plating	Gold
series	SL
Encapsulation	Bulk
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 55 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

F-219 (Rev 02NOV18)

SL–120–G–10

SDL–125–TT–12

SDL–115–G–19

(2.54 mm) .100"

SL–110–TT–11

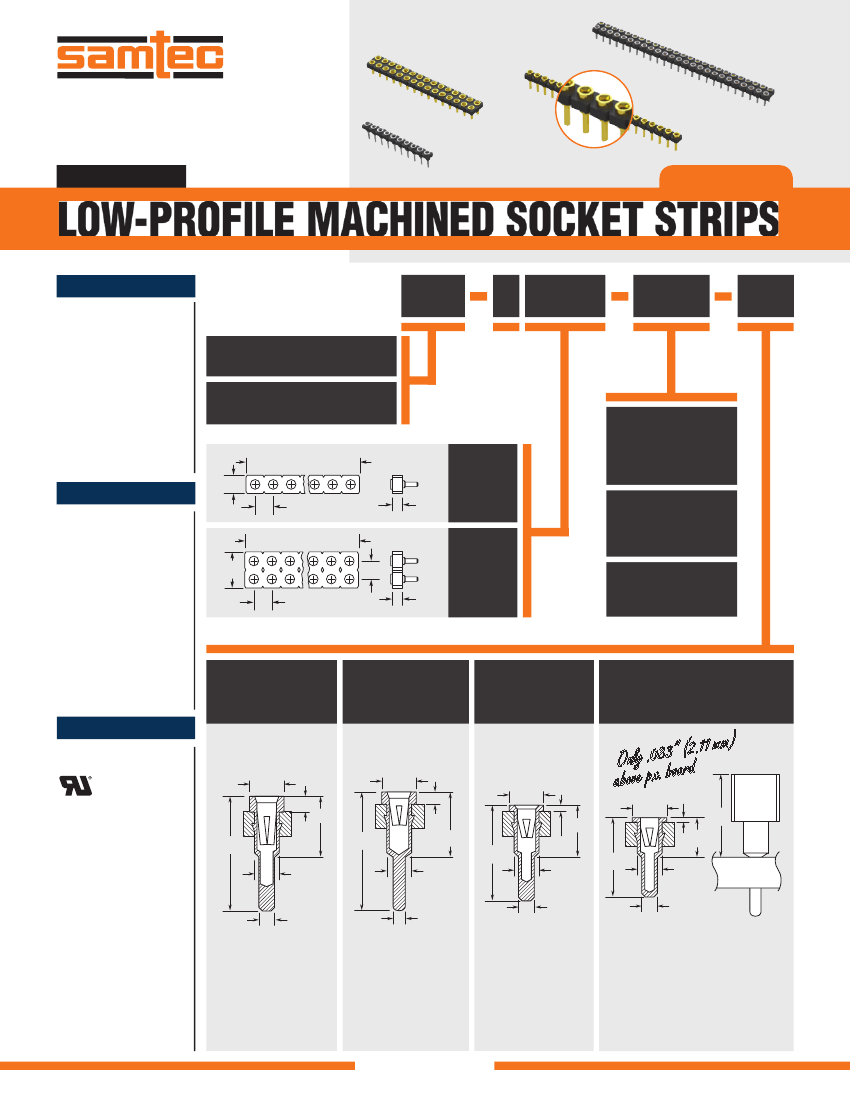

SL, SDL SERIES

LOW-PROFILE MACHINED SOCKET STRIPS

FEATURES

•

Achieve low-proﬁle

without sacriﬁcing

insertion depth!

•

Choice of four precision

screw machined lead

styles.

•

Exceptionally low-proﬁle,

down to (2.11 mm) .083"

off of board.

•

Mates with BBL or BDL

for board stacking

spaces down to

(3.89 mm) .153"

Mates with:

TS, TD, HTS, BBS, BBD,

BBL, BDL, BHS

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

= Single Row Low-Proﬁle Socket Strip

= Double Row Low-Proﬁle Socket Strip

SDL

(2.54) .100 X No. of Positions

+ (0.23) .009

(2.54)

.100

(2.54)

.100

TYP

(2.54) .100 X No. of Positions

+ (0.23) .009

(5.08)

.200

(2.54)

.100

TYP

(2.54)

.100

(1.27)

.050

(1.27)

.050

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SL or

www.samtec.com?SDL

Insulator Material:

Black Glass Filled Polyester

(SDL)

Black Liquid Crystal Polymer

(SL)

Contact/Shell Materials:

BeCu/Brass

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

thru

= 30 µ" (0.76 µm)

Gold contact,

10 µ" (0.25 µm)

Gold shell

–G

thru

= 30 µ"(0.76 µm)

Gold contact,

Tin shell

–T

= Tin contact and shell

(LIF not available)

–TT

Low Insertion Force (LIF) Available

= Low-Proﬁle

(Hollow Leg)

–10

= Low-Proﬁle

(Standard Mount)

For LIF specify –31

–11

= Micro-Socket

(Hollow Leg)

–12

= Micro-Socket

(Hollow Leg)

For LIF specify –39

–19

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(1.83)

.072 DIA

FILE NO. E111594

(1.83)

.072 DIA

(3.10)

.122

(0.76)

.030

(1.83)

.072 DIA

(0.51)

.020

(3.35)

.132

(1.32)

.052

DIA

(0.51)

.020

DIA

(2.41)

.095

(0.51)

.020

(1.32)

.052

DIA

(0.76)

.030

DIA

)

83” (2.11 mm

Only .0 oard

above p.c. b

(1.83)

.072 DIA

(0.25)

.010

(4.45)

.175

(2.11)

.083

(4.19)

.165

(1.32)

.052

DIA

(0.74)

.029

DIA

(5.84)

.230

(6.10)

.240

(4.83)

.190

(1.32)

.052

DIA

(0.76)

.030

DIA

Micro

Socket

Contact Length =

(1.58 mm) .062"

Lead DIA Accepted =

(0.41 mm) .016" to (0.51 mm) .020"

Insertion Depth =

(1.65 mm) .065" to (3.81 mm) .150"

Style 12 Component Part No. =

SC-5P1

Contact Length =

(1.58 mm) .062"

Contact Length =

(2.11 mm) .083"

Lead DIA Accepted =

(0.38 mm) .015" to (0.51 mm) .020"

Insertion Depth =

(2.67 mm) .105" to (4.32 mm) .170"

Style 10 Component Part No. =

SC-3P1

Contact Length =

(1.58 mm) .062"

Lead DIA Accepted =

(0.41 mm) .016" to (0.53 mm) .021"

Insertion Depth =

(2.03 mm) .080" to (2.67 mm) .105"

Style 11 Component Part No. =

SC-4P1

Style 31 Component Part No. =

EZ-4P1

Standard

Socket

(Reference only.

Not available

with SL & SDL)

Lead DIA Accepted =

(0.41 mm) .016" to (0.51 mm) .020"

Insertion Depth =

(1.65 mm) .065" to (3.56 mm) .140"

Style 19 Component Part No. =

SC-8P1

Style 39 Component Part No. =

EZ-8P1

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.

All parts within this catalog are built to Samtec’s speciﬁcations.

Customer speciﬁc requirements must be approved by Samtec and identiﬁed in a Samtec customer-speciﬁc drawing to apply.

WWW.SAMTEC.COM
