ICA-314-WGG-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> ICA-314-WGG-3

Preview

ICA-314-WGG-3: DescriptionIC and device socket.100" Screw Machine DIP Socket; CategoryThe connector socket; File Size612KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ICA-314-WGG-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICA-314-WGG-3	-	-	View	Buy Now

ICA-314-WGG-3 Overview

IC and device socket.100" Screw Machine DIP Socket

ICA-314-WGG-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.395 inch
subject depth	0.1 inch
body length	0.7 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER ALLOY
Contact style	MACHINE SCREW
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP14
Dielectric withstand voltage	1000VAC V
Shell material	POLYESTER
Insulation resistance	5000000000 Ω
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	WIRE WRAP

Preview

Download Datasheet

View All

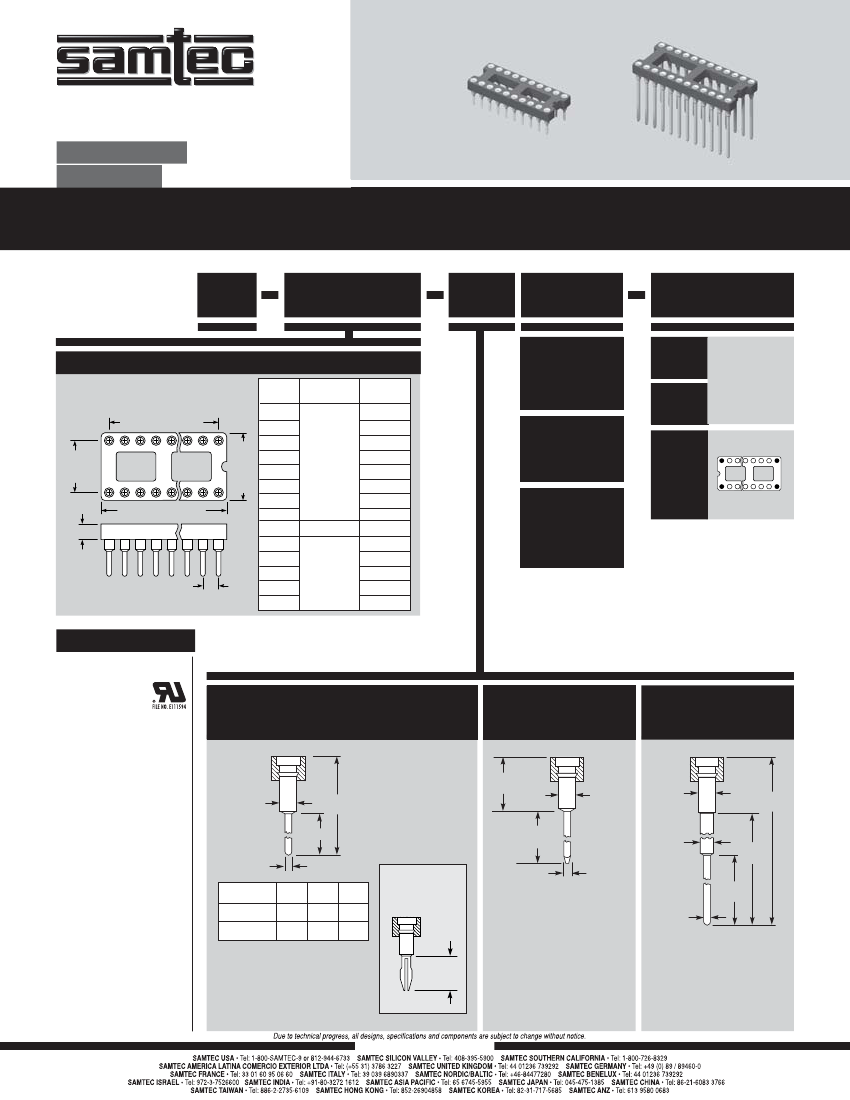

F-211-1 SUPPLEMENT

ICA–320–SGT

(2,54mm) .100"

ICA SERIES

ICA–624–ZEGG

AUTOMATED INSERTION DIP SOCKETS

Mates with:

APA

ICA

ROW SPACING &

NO. OF CONTACTS

STYLE

OPTION

PLATING

OPTION

(Leave Blank for

Standard Version)

OPTION

Specify from chart below

• Side & end stackable

• Great for auto insertion

• Open body design

(2,54) .100 X No. of Spaces

Row

Spacing

+(2,41)

.095

except

–H is

+ (2,54)

.100

(2,54) .100 X No. of Positions

(2,54)

.100

GG

No. of

Contacts

08

14

16

18

20

22

24

28

22

24

28

32

40

48

= 30µ" (0,76µm)

Gold contact,

10µ" (0,25µm)

Gold Shell

Row

Space

(7,64) .300

(10,16) .400

or

(15,24) .600

*–322

has no cross bar on one end.

(2,54)

.100

–308

–314

–316

–318

–320

.300 (7,62)

–322

*

–324

–328

–422

.400 (10,16)

–624

–628

–632

.600 (15,24)

–640

–648

= .360 (9,14)

Option

Tail

Requires Style

–W or –ZW

Specify desired

= .260 (6,60)

sufﬁx for shorter

Wire-Wrap tail.

Tail

–2

Wire-Wrap

–3

GT

= 30µ" (0,76µm)

Gold contact,

Tin Shell

Requires Style

–S or –ZS

–L

= Locking

Socket

Requires GT

Plating Option

ST

= 10µ" (0,25µm)

Gold contact,

Tin shell (Styles –S

& –ZS only)

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?ICA

Insulator Material:

Black Glass Filled

Polyester

except -328 is LCP

Contact:

BeCu

Shell:

Brass

Plating:

Au or Sn over 50µ" Ni

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ min

Temperature Range:

-55°C to +105°C with Tin

-55°C to +125°C with Gold.

Withstanding Voltage:

1000 VRMS

Current Rating:

1A

Contact Resistance:

10mΩ max

Lead Size Range:

.015" (0,38mm) to .022"

(0,56mm) DIA and most IC leads

Insertion Force:

(Single contact only)

Standard = 9 oz avg, 16 oz max;

Low Insertion Force =

2.5 oz avg, 5.5 oz max

Withdrawal Force:

(Single contact only)

Standard = 2.5 oz avg, 1.5 oz

min; Low Insertion Force =

2.0 oz avg, 0.35 oz min

Lead-Free Solderable:

Wave only

RoHS Compliant:

Yes

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

–S, –ZS, –ZA

= Printed Circuit

-ZS & -ZA = Low Insertion Force

–W, –ZW

= Wire-Wrap

ZW = Low Insertion Force

–ZE

= Elevated

Low Insertion Force

(1,32)

.052

DIA

Y

(4,90)

.193

Z

(12,95)

.510

(1,32)

.052

DIA

(1,32)

.052

DIA

(0,89)

.035

DIA

(13,77)

.542

X

LEAD STYLE

X

DIA

(0,51)

.020

(0,51)

.020

Y

TAIL

(3,18)

.125

(4,57)

.180

Z

(7,62)

.300

(8,89)

.350

–S or –ZS

–ZA

Locking lead

available with –S

and –ZS.

See OPTION.

(0,64)

.025

SQ

(8,86)

.349

(4,32)

.170

Shorter wire-wrap tail

lengths available.

See OPTION.

(3,43)

.136

(0,51)

.020

Insertion Depth = .095" (2,41) to .145" (3,68):

Style S Component Part No. = SC-1P1

Style ZS Component Part No. = EZ-1P1

Style ZA Component Part No. = EZ-6P1

Option L Component Part No. = SC-1L1 or EZ-1L1

–L Option

Insertion Depth = .125" (3,18) to .157" (3,99)

Style W Component Part No. = SC-1W1(1)

Style ZW Component Part No. = EZ-1W1(1)

Style W-2 Component Part No. = SC-1W1(2)

Style ZW-2 Component Part No. = EZ-1W1(2)

Style W-3 Component Part No. = SC-1W1(3)

Style ZW-3 Component Part No. = EZ-1W1(3)

Insertion Depth = .125" (3,18) to .170" (4,32)

Style ZE Component Part No. = EZ-2P3

WWW.SAMTEC.COM
