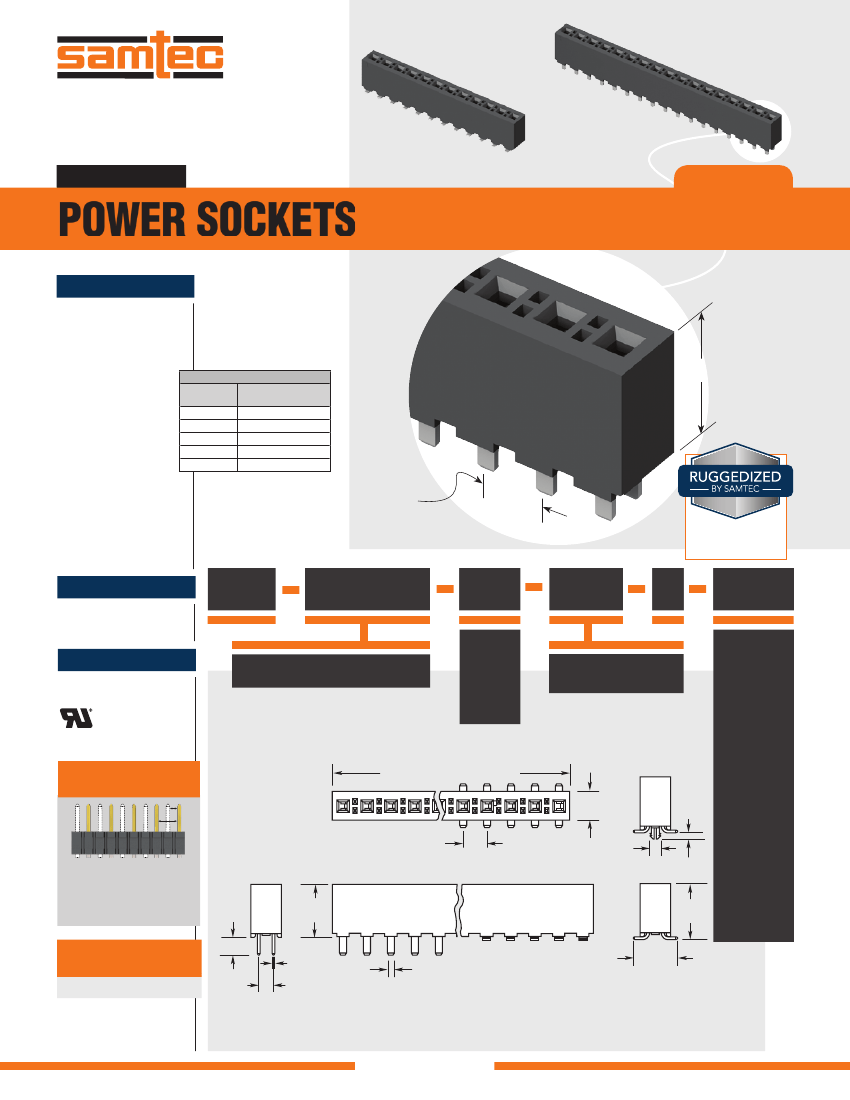

F-219
FHP–17–01–T–S
FHP–12–02–T–S
(3.96 mm) .156"
FHP SERIES
POWER SOCKETS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?FHP
Insulator Material:
Black LCP
Contact Material:
BeCu
Plating:
Sn over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C
Voltage Rating:
600 VAC/845 VDC
Insertion Depth:
(3.57 mm) .140" to
(8.76 mm) .345" or
pass-through from top
Wiping Distance:
(0.38 mm) .015"
Standard Creepage:
(1.74 mm) .069" (without -LC)
(0.89 mm) .035" (with -LC)
Standard Clearance:
(1.39 mm) .055" (without -LC)
(0.59 mm) .023" (with -LC)
RoHS Compliant:
Yes
Mates with:
FWJ, HFWJ, JW
Surface Mount
or
Through-hole
PINS
1
2
3
4
24
FHP/HFWJ
CURRENT RATING
(PER CONTACT)
13.1 A
11.2 A
10.3 A
9.2 A
6.7 A
(8.89 mm)
.350"
(3.96 mm)
.156"
pitch
• Three-finger
Power Eye contact
• Locking clip option
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max
FHP
NO. OF PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
S
OTHER
OPTION
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
02 thru 24
= Through-
hole
–01
–02
= Surface
Mount
= Matte Tin
(1.19)
.047
–T
= Locking Clip
(Manual
placement
required)
(–02 lead
style only)
–LC
(1.01)
.040
CREEPAGE
AND CLEARANCE
No. of Positions x (3.96) .156
(5.08)
.200
(3.96)
.156
(1.42)
.056
(0.94)
.037
= (6.50 mm)
.256" DIA
Polyimide
film Pick &
Place Pad
(2-4 positions
require –TR)
(–02 lead
style only)
–K
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
–LC
(2.59)
.102
(8.89)
.350
(9.35)
.368
= Tape & Reel
Packaging
(Available on
positions 2-18)
–02 lead
style only
–TR
ALSO AVAILABLE
(MOQ Required)
• Alignment pins
(0.46)
.018
(2.46)
.097
–01
(1.14)
.045
(7.11)
.280
–02
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
