Data Sheet
FUJITSU Component Thermal Printer
FTP-638WSL100-R
FUJITSU Component Thermal Printer
FTP-638WSL100 series
(Easy Loading Method)
Fujitsu compact, battery drive, 3” high speed, standalone thermal printer
Overview
The supply voltage of the FTP-638WSL Series is 120/240VAC (via AC adaptor)
or battery. The unit uses 3 inch wide paper.
The semi-rugged printer unit is most suitable for applications such as handheld,
mobile and portable devices, as well as for various other equipment.
Features
■
Light weight and ultra small size
■
Easy paper loading
■
Bluetooth¬, IrDA interfaces
■
7.4 Lithion battery, 120 or 240VAC adaptor
■
Drop-resistant - 1.5 meters
■
Water resistant
■
Prints 2D barcodes and stacked barcodes
■
3 hour charge cycle
■
RoHS compliant
■
IP54 compliant
■
Windows¬XP/Vista//7/8/8.1, Linux¬ printer drivers
■
Apple¬ iOS/Android™ SDK (printer library) support
■
Apple¬ iOS7 drivers support iPhone 6 Plus
FTP-638WSL100
Page 1 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-638WSL100-R
■
Specifications
Item
Part number
Dot structure
Dot pitch (horizontal)
Dot pitch (vertical)
Effective printing area
Paper width/diameter
Paper thickness
Maximum printing speed
Character types
Specifications
FTP-638WSL110 series
576 dots/lines
0.125mm
0.125mm
72 mm
80mm / ID 8mm, OD 50mm maximum
60-80µm*
1
Battery 80mm/sec. at 8.4V, AC adaptor, 80mm/sec. at 12V (640 dotlines/s) at 12%
print ratio
Alphanumeric KANA: 159
International characters: 195
Thai code 18: 128
Download: 224
External: 94
JIS KANJI: approx. 6800
12 x 24 dots (1.5 x 3.0mm), 48 columns
24 x 24 dots (3.0 x 3.0mm), 28 columns
8 x 16 dots (1.0 x 2.0mm), 72 columns
16 x 16 dots (2.0 x 2.0mm), 36 columns
Battery (Lithium Ion)
AC adaptor
Power consumption
Dimensions
Case color
Weight
Expected life
Printer with battery
Battery & paper included
Head
Battery
Paper holder
*
1
: there may be exceptions
7.4VDC lithium, 2,090mAh
12V - 3.75A
100VAC to 240VAC adaptor#10 (AC cable included)
1.6 - 1.7A printing (print ration 12.5%) standby 30-60mA communication 90-170mA
106 x 116 x 58mm (WxDxH)
White
Approximately 340g
Approximately 380g
Pulse durability: 100 million pulse/dot (12.5% print ratio)
Wear resistance: 50km
One charge: 200m, 300 charge cycles
5,000 times open/close
Character dimensions (W x H),
number of characters
Power
Page 2 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-638WSL100-R
■
Interface specification at host side
Item
Bluetooth V2.1 +EDR
Specifications
Profile
Modulation
Data speed
Maximum distance
IrDA (Ver. 1.2)
Data speed
SPP
GFSK,
π
/ 4-DQPSK, 8DPSK (EDR)
1306.9kbps max.
10m
115,200 / 38,400 / 19, 200 / 9,600bps
■
Part numbers
Part Number
FTP-638WSL110#10
Adaptor
120/240 VAC
Included
With AC cable
Item
Bluetooth, IrDA interfaces
■
•
Power supply
Battery
Specifications
Lithium Ion, 2 cell
Fujitsu Limited
KD54004-L301
7.4V, 2,090mAh
300 cycles, 35 hours
110g
Item
Type
Manufacturer
Model
Rated voltage
Life
Weight
•
AC adaptor
Item
Type
Manufacturer
Model
Rated voltage
Weight
Specifications
Switching regulator
SANKEN ELECTRIC CO. LTD.
KD02902-5420
12V
230g
Page 3 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-638WSL100-R
Item
Bar code type
Standard
2-D
Safety standard
Environmental conditions
Noise
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Detection functions
Head temperature
Head detect
Paper out
Cover open
Major functions
Specifications
UPC-A, UPC-E, JAN13, JAN8, CODE39, ITF, CODABAR, CODE 128, GS1 DataBar-14,
GS1 DataBar Limited, GS1 DataBar -14 Truncated
MAXI, PDF417, QR. GSI DataBar-14 Stacked, Omnidirectional, GS1 DataBar expanded
FCC, IC, CE marking
00C to +500C*
4
30 to 85% RH (no condensation)
-200C to +600C
5 to 90% RH (no condensation)
Detected by thermistor
Detected by photo-interruptor
Detected by photo-interruptor
Detected by micro-switch
Page mode
Registration of character and image
Enlarge characters
Auto status reply
High sensitive paper
Standard paper
Medium term paper
FT50KS-E45 (Nippon paper)
TF-60KS-E (Nippon paper)
PD150R (Oji paper)
TF-60KS-F1 (Nippon paper)
PD170R (Oji paper)
P220VBB-1 (Mitsubishi paper)
HA220AA (Mitsubishi paper)
HW54S (Nippon paper)
Recommended thermal sensitive paper
Long term paper
Label paper
*
2
: FTP-638WSL110 (standard)
*
3
: 00 to +400C guarantee of print quality
Page 4 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-638WSL100-R
■
•

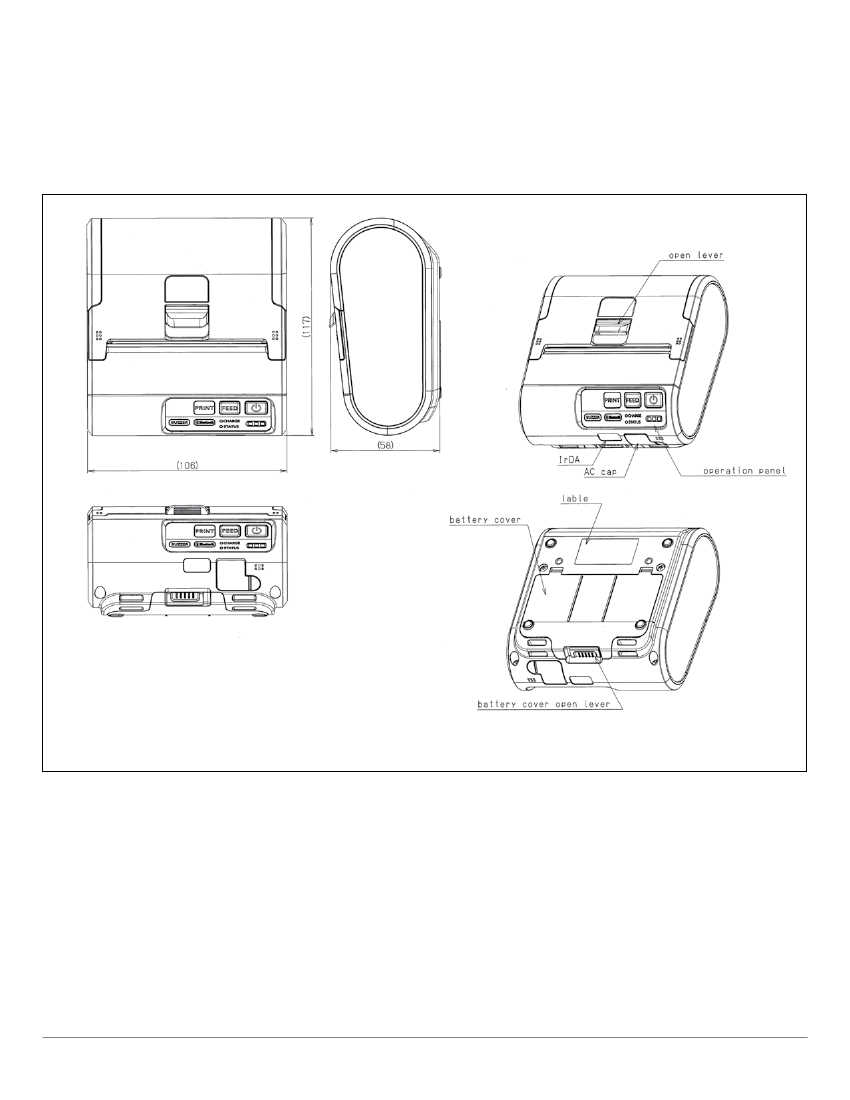

Dimensions
Printer mechanism: 3-inch
Note:
1. Dimensions are nominal value )tolerance ±5mm unless otherwise specified.
2. Dimensions in ( ) is reference value.
Page 5 of 7
http://us.fujitsu.com/thermal-printers
