DP3T
OPTIONAL fEATURES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-22
RAMSES/PLATINUM
RAMSES Series
DP3T and Terminated SPDT up to 40 GHz
SMA - SMA2.9
COAXIAL DP3T
RELAYS

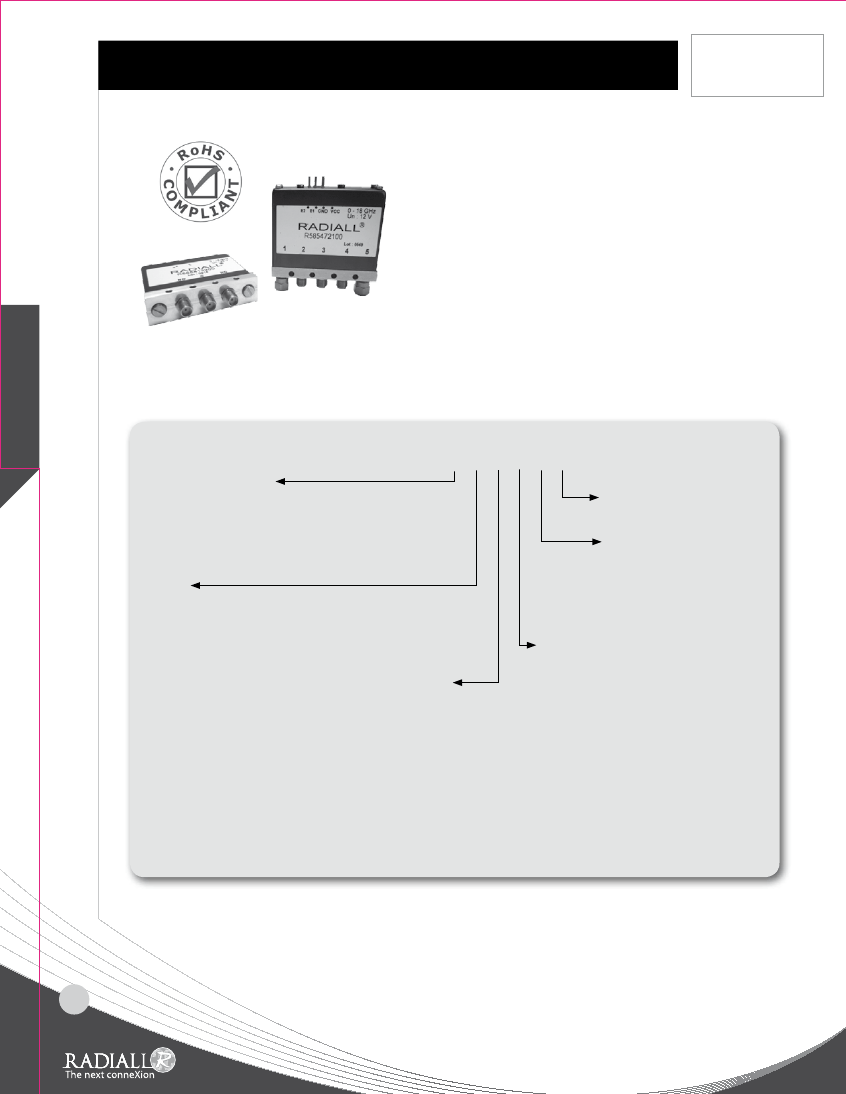

Radiall’s RAMSES DP3T and Terminated SPDT switches offer excellent
reliability, high performance and operating frequencies from DC to
40 GHz. A full range of options are available with RADIALL RAMSES
concept to offer customers complete solutions.
These relays are dedicated to market applications including:
Defense Instrumentation and Telecommunications.
Example of P/N:
R585423300
is a SPDT terminated SMA 18GHz, failsafe, 28Vdc, indicator
contacts, internal terminations without TTL drivers and solder pins.
DP3T
PART NUMBER SELECTiON
Rf Connectors:
3: SMA up to 3 GHz
4: SMA up to 18 GHz
F: SMA up to 26.5 GHz
8: SMA2.9 up to 40 GHz (4) (5)
R 585 . . . . . .
Actuator Terminals:
0: Solder pins
Options:
0: Without option
1: Positive common (2) (3)
3: With suppression diodes (1)
4: With suppression diodes
and positive common (2) (3)
Type:
1: Failsafe
2: Failsafe + I.C.
3: Latching
4: Latching + I.C.
5: Latching + S.C.O. (1)
6: Latching + S.C.O + I.C. (1)
7: Normally open
8: Normally open + I.C.
Switch Model:
Actuator Voltage:
2: 12 Vdc
3: 28 Vdc
0: DP3T without TTL Driver (DP3T)
1: DP3T with TTL Driver (DP3T) (high level) (1) (2)
2: SPDT terminated without TTL Driver /
(internal termination)
3: SPDT terminated without TTL Driver /
(high level) (1) (2) / (internal termination)
4: SPDT terminated without TTL Driver /
(external termination)
5: SPDT terminated with TTL Driver / (high level)
(1) (2) / (external termination)
6: Terminated 4 ports bypass no option
(external terminations)
7: Terminated 4 ports bypass with TTL
(external termination)
I.C.: Indicator contact - S.C.O.: Self Cut-Off
(1): Suppression diodes are already included in Self Cut-OFF
&
TTL option
(2): Polarity is not relevant to application for switches
with TTL driver
(3): Positive common shall be specified only with type 3, 4, 5, 6, 7
&
8
because failsafe switches can be used with both polarities
(4): Not available with switch model “2”
&
“3”
(5): Connector SMA2.9 is equivalent to "K connector®", registered trademark of Anritsu.
3-2
To download technical data sheets, visit www.radiall.com
&
enter the part number in the Search box.
For more detailed technical information please consult Radiall customer support.
www.radiall.com
COAXIAL DP3T
RELAYS
DP3T and Terminated SPDT up to 40 GHz
SMA - SMA2.9
GENERAL SPECiFiCATiONS
Operating mode
Nominal operating voltage
(across operating temperature)
Coil resistance (+/-10%)
Nominal operating current at 23°C
Average power
High level
Low level
Switching time (max)
TTL Input
Life (min)
Connectors
Actuator terminals
Operating temperature range
SMA
SMA2.9
SMA
Storage temperature range
SMA2.9
Vibration (MIL STD 202, Method 204D, cond.D)
Shock (MIL STD 202, Method 213B, cond.C)
Vdc
Ω
mA
Normally open
12
28
12
28
12
28
(10.2 to 13) (24 to 30) (10.2 to 13) (24 to 30) (10.2 to 13) (24 to 32)
24
138
29
175
47.5
275
500
205
420
160
250
102
RF path: see power rating chart
page 1-16
Internal terminations: 1 Watt CW into 50 Ohms
2.5 to 5.5 Volts
800µA max 5.5 Volts
0 to 0.8 Volts
20µA max 0.8 Volts
10
2 million cycles for products with internal terminations and 40 GHz models
10 million cycles for all other products
SMA - SMA2.9
Solder pins
-40°C, +85°C
-55°C, +85°C
10-2000 Hz, 20g
100g / 6ms, ½ sine
Operating
Operating
failsafe
Latching
ms
RAMSES Series
3-3
RF PERFORMANCES
Connectors
frequency Range GHz
DC - 3
DC - 18
DC - 26.5
DC - 3
3-8
8 - 12.4
12.4 - 18
18 - 26.5
DC - 6
6 - 12.4
12.4 - 18
18 - 26.5
26.5 - 40
V.S.W.R.
(max)
1.20
1.30
1.40
1.50
1.80
1.30
1.40
1.50
1.70
1.90
Insertion Loss
(max) dB
0.20
0.30
0.40
0.50
0.70
0.30
0.40
0.50
0.70
0.80
Isolation
(min) dB
80
70
60
60
50
70
60
60
55
50
Impedance
Ohms
50
SMA
SMA2.9
DC - 40
50
See page 3-4 for typical Rf performances
To download technical data sheets, visit www.radiall.com
&
enter the part number in the Search box.
For more detailed technical information please consult Radiall customer support.
www.radiall.com
DP3T
RAMSES Series
DP3T and Terminated SPDT up to 40 GHz
SMA - SMA2.9
COAXIAL DP3T
RELAYS

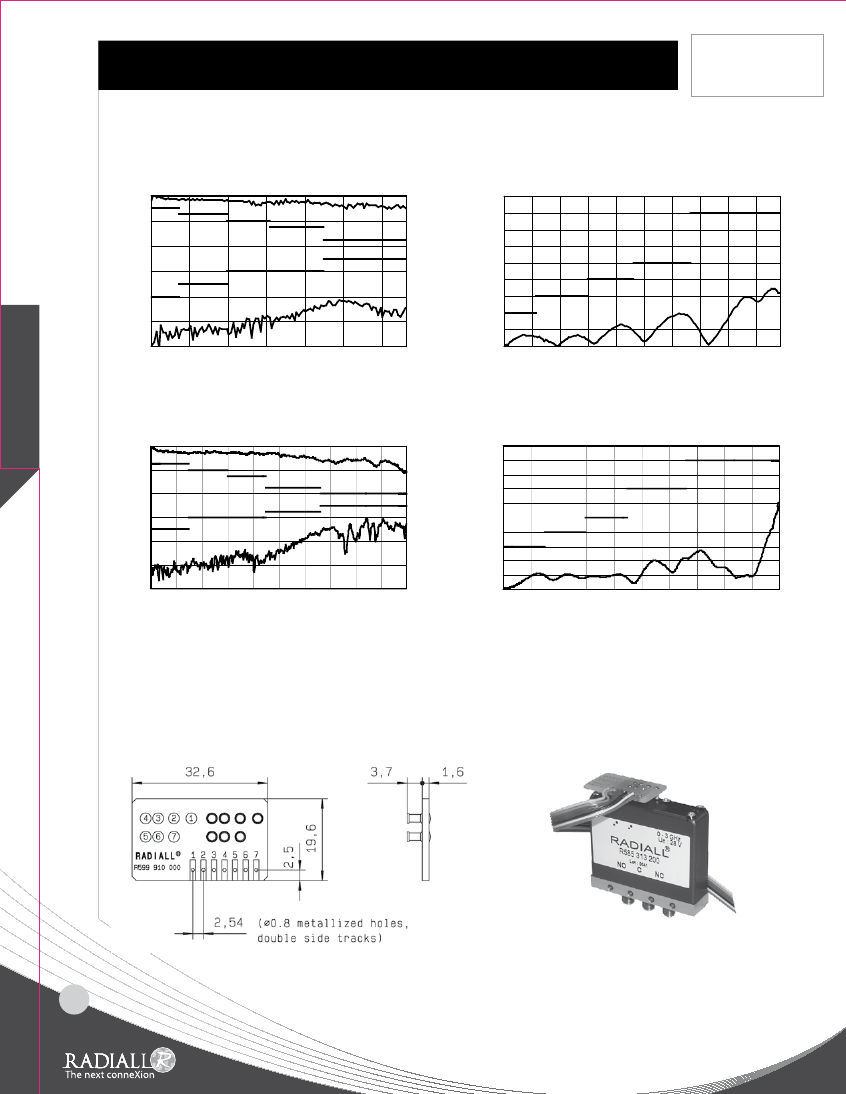

R585 TYPiCAL RF PERFORMANCES
Example: DP3T SMA up to 26.5 GHz
-0,4
0
-0,4
-0,8
-0,4
-0,8
-1,2
-0,8
-1,2
Insertion Loss and Isolation
Isolation
dB
Isolation dB
dB
Isolation
0
0
0
0
-20
0
-20
-40
-20
-40
-60
-40
-60
-80
-60
-80
-100
-80
-100
IL dB
IL dB IL dB
-1,6
-1,2
-1,6
-2
-1,6
-2
-2,4
-2
-2,4
0.10
0.10
GHz
GHz
GHz
-100
26.5
-120
26.5
-120
-120
1,90
1,90
1,80
1,80
1,90
1,70
1,70
1,80
1,60
1,60
1,70
1,50
1,50
1,60
1,40
1,40
1,50
1,30
1,30
1,40
1,20
1,20
1,30
1,10
1,10
1,20
1,00
1,00
0.10
1,10
0.10
1,00
V.S.W.R.
GHz
GHz
GHz
26.5
26.5
26.5
-2,4
0.10
26.5
0.10
DP3T
Example: DP3T SMA2.9 up to 40 GHz
Insertion Loss and Isolation
-0,4
-0,4
0
-0,8
-0,8
-0,4
-1,2
-1,2
-0,8
V.S.W.R.
Isolation
dB
Isolation dB
dB
Isolation
0
0
-20
-20
0
-40
-40
-20
-60
-60
-40
-80
-80
-60
-100
-100
-80
2,00
2,00
1,90
1,90
2,00
1,80
1,80
1,90
1,70
1,70
1,80
1,60
1,60
1,70
1,50
1,50
1,60
1,40
1,40
1,50
1,30
1,30
1,40
1,20
1,20
1,30
1,10
1,10
1,20
1,00
1,00
1,10
1,00
0
0
IL dB
IL dB
IL dB
-1,6
-1,6
-1,2
-2
-2
-1,6
-2,4
-2,4
-2
0.10
0.10
-2,4
GHz
GHz
GHz
-120
-120
40
40
-100
0.10
0.10
0.10
GHz
GHz
GHz
40
40
ACCESSORiES
0.10
40
-120
A printed circuit board interface connector (ordered separately) has been designed for easy mounting on terminals.
For DP3T model R585 series => Radiall part number:
R599910000
3-4
To download technical data sheets, visit www.radiall.com
&
enter the part number in the Search box.
For more detailed technical information please consult Radiall customer support.
www.radiall.com
MICRO DP3T
RELAYS
DP3T and Terminated SPDT up to 40 GHz
SMA - SMA2.9

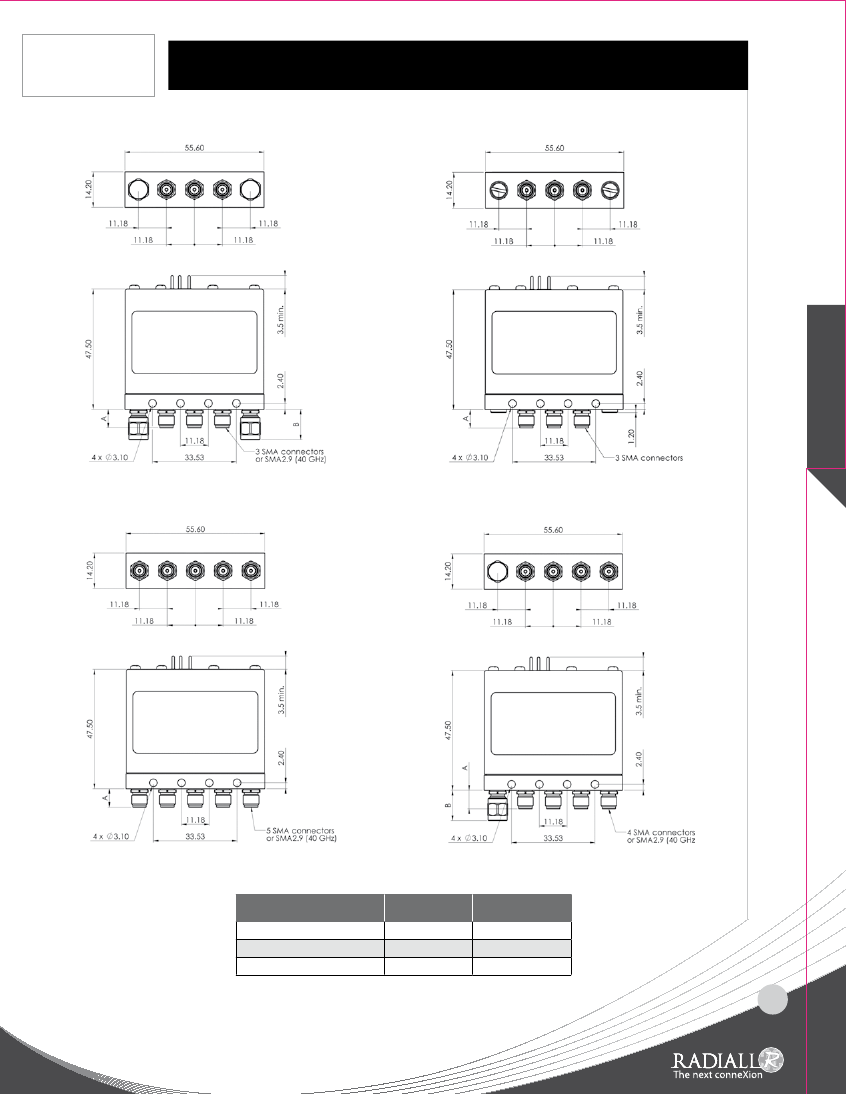

TYPiCAL OUTLiNE DRAWiNG
RAMSES Series
3-5
SPDT
with
external
terminations
R585 --- 4--
R585 --- 5--
See page
3-11
for pin
indentification
SPDT
with
internal
terminations
R585 --- 2--
R585 --- 3--
DP3T
R585---0--
R585---1--
Terminated
4 ports
BYPASS
relay
R585 --- 6--
R585 --- 7--
Connectors
SMA up to 18 GHz
SMA up to 26.5 GHz
SMA 2.9 up to 40 GHz
A (mm)
7.4
7.4
6.3
B max (mm)
If applicable
13.5
21
21
To download technical data sheets, visit www.radiall.com
&
enter the part number in the Search box.
For more detailed technical information please consult Radiall customer support.
www.radiall.com
DP3T
Wireless Connectivity
