Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-40°C to +105°C
Flammability Rating:
USA: UL Horizontal
UL File No.: E42769, Style No: 20297
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

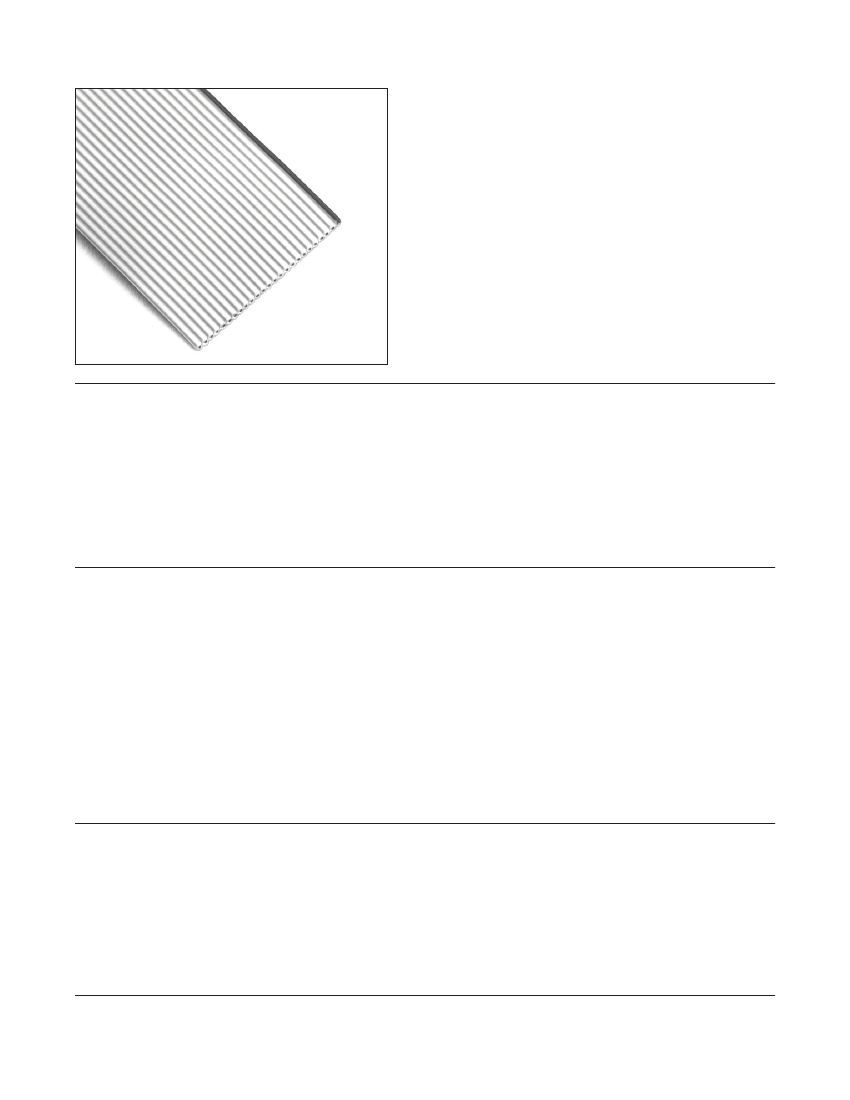

Round Conductor Flat Cable
.050" 26 AWG Stranded, TPE
Number of
Conductors
09
10
14
15
16
20
24
25
26
30
34
36
37
40
50
60
64
3M Part Number
3770/09
3770/10
3770/14
3770/15
3770/16
3770/20
3770/24
3770/25
3770/26
3770/30
3770/34
3770/36
3770/37
3770/40
3770/50
3770/60
3770/64
Dimension A
0.450 ± .010 [ 11.43 ]
0.500 ± .010 [ 12.70 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
0.800 ± .015 [ 20.32 ]
1.000 ± .015 [ 25.40 ]
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.300 ± .015 [ 33.02 ]
1.500 ± .020 [ 38.10 ]
1.700 ± .020 [ 43.18 ]
1.800 ± .020 [ 45.72 ]
1.850 ± .020 [ 46.99 ]
2.000 ± .020 [ 50.80 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
3.200 ± .020 [ 81.28 ]
Dimension B
0.400 ± .007 [ 10.16 ]
0.450 ± .007 [ 11.43 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
3770 Series
A
B
.025
±
.007
[ 0.64 ]
.050
±
.002 Typ
[ 1.27 ]
.039
±
.003
[ 0.99 ]
TPE Insulation
26 AWG 7 X 34 [ 7 X 0.160 ] Tinned
Stranded Copper Conductors
Inch
[mm]
Tolerance Unless Noted
.0
.00
±.05
.000
±.010
Inch
±.1
Note:
1. Blue marking on one edge of cable designates wire #1.
[ ] Dimensions for Reference Only
Ordering Information
3770/XX - XX
Number of Conductors
(See Table)
Note: Contact 3M for availability of additional conductor
counts and/or custom roll lengths.
Blank = standard
SF = splice free
TS-0342-E
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
