3M
™

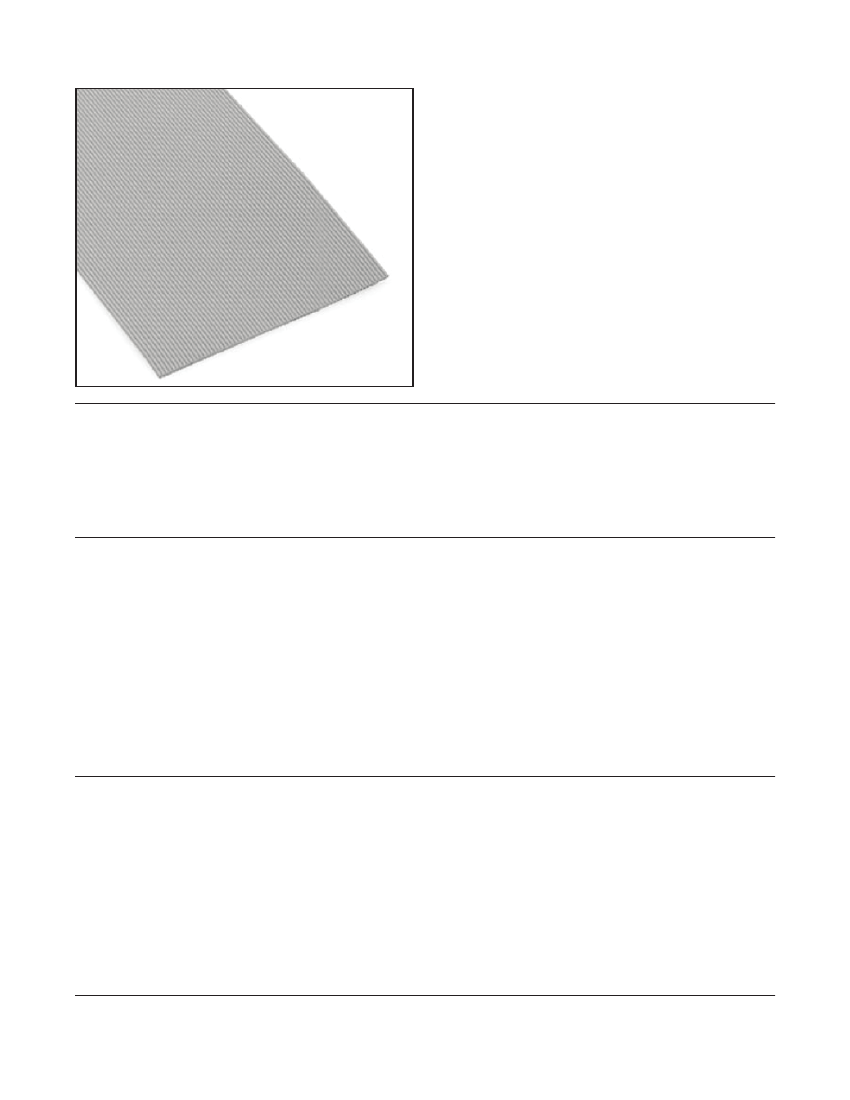

Round Conductor Flat Cable
.025" 30 AWG Solid, PVC
• .025 inch wire spacing increases signal density
• PVC insulation provides excellent flexibility
• 30 AWG solid conductors on .025 inch wire spacing
is designed for mass termination
• Zippable for branching or discrete termination
• Designed for use with Ultra-ATA cable assemblies
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS Compliance” section
of www.3Mconnectors.com for compliance
information (RIA E1 and C1 apply).
3447 Series
Date Modified: November 1, 2013
TS-0830-D
Sheet 1 of 2
Physical
Insulation Material:
Polyvinyl Chloride (PVC)
Marking:
None
Conductors:
30 AWG [ Ø 0.254 ] Tinned Solid Copper
Color: Gray
Electrical
Unbalanced
Characteristic Impedance:
81
Ω
EU: <50V
Voltage Rating:
USA: 30V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
Balanced
136
Ω
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
19.1 pF/ft [ 62.7 pF/m ]
1.55 ns/ft [ 5.09 ns/m ]
66%
0.13 μH/ft [ 0.43 μH/m ]
11.0 pF/ft [ 36.1 pF/m ]
1.49 ns/ft [ 4.89 ns/m ]
68%
0.20 μH/ft [ 0.66 μH/m ]
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between conductors within a pair.
Environmental
Temperature Rating:
-20C to +105C
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No.: 20596
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.025" 30 AWG Solid, PVC
Number of
Conductors
10
12
14
16
20
26
30
34
36
40
50
60
68
80
100
3M Part
Number
3447/10
3447/12
3447/14
3447/16
3447/20
3447/26
3447/30
3447/34
3447/36
3447/40
3447/50
3447/60
3447/68
3447/80
3447/100
Dimension A
0.250 ± .006 [6.35]
0.300 ± .006 [7.62]
0.350 ± .006 [8.89]
0.400 ± .006 [10.16]
.500 ± .006 [ 12.70 ]
.650 ± .006 [ 16.51 ]
0.750 ± .009 [19.05]
.850 ± .009 [ 21.59 ]
.900 ± .009 [ 22.86 ]
1.000 ± .009 [ 24.40 ]
1.250 ± .009 [ 31.75 ]
1.500 ± .012 [ 38.10 ]
1.700 ± .012 [ 43.18 ]
2.000 ± .015 [ 50.80 ]
2.500 ± .015 [ 63.50 ]
3447 Series
Dimension B
0.225 ± .004 [5.72]
0.275 ± .004 [6.99]
0.325 ± .004 [8.26]
0.375 ± .004 [9.53]
.475 ± .004 [ 12.07 ]
.625 ± .004 [ 15.88 ]
0.725 ± .006 [18.42]
. 825 ± .006 [ 20.96 ]
.875 ± .006 [ 22.23 ]
.975 ± .006 [ 24.77 ]
1.225 ± .006 [ 31.12 ]
1.475 ± .009 [ 37.47 ]
1.675 ± .009 [ 42.55 ]
1.975 ± .011 [ 50.17 ]
2.475 ± .012 [ 62.87 ]
A
B
.025
±
.003
[ 0.64 ]
.0125
±
.0030
[ 0.318 ]
.025
±
.002 Typ
[ 0.64 ]
PVC Insulation
30 AWG [ø 0.254] Tinned
Solid Copper Conductors
Inch
[mm]
Tolerance Unless Noted
.0
Inch
Note:
1. Red marking on one edge of cable designates wire #1.
.00
±.01
.000
±.005
±.1
[ ] Dimensions for Reference Only
Ordering Information
3447/XX XX
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please specify when ordering.
Contact 3M for availability of additional conductor counts and/or custom roll lengths.
TS-0830-D
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are
not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect
unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES
NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory
asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S. A.
800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2013. All rights reserved.
RIA-2217B-E
3M is a trademark of 3M Company.
