GRF2014
Broadband Linear Gain Block
0.05 to 3.8 GHz
Product Description
GRF2014 is a broadband, linear gain block designed for
small cell, wireless infrastructure and other high perfor-
mance applications. It exhibits outstanding broadband
linearity and return losses over 500 to 2700 MHz with a
single match.
Features
Reference: 5.0V/150mA/900 MHz
•
•
•
Gain: 15.9 dB
OIP3: 43.5 dBm;
OP1dB: 24.0 dBm
The device is operated from a supply voltage (V
DD
) of 2.7
to 8.0V with adjustable I
DDQ
for optimal efficiency and
linearity.
The device is internally matched to 50
Ω
at the input and
output ports, needing only external DC blocks and a bias
choke on the output.
Consult with the GRF applications engineering team for
custom tuning/evaluation board data and device s-
parameters.
Reference: 8.0V/150mA/900 MHz
•
•
•
•
•
•
Gain: 15.9 dB
OIP3: 41.0 dBm;
OP1dB: 27.5 dBm
Flexible Bias Voltage and Current
Internally Matched to
50 Ω
Process: GaAs pHEMT
Applications
•
•
•
•
•
Linear Driver Amplifier
Small Cells and Cellular Repeaters
Distributed Antenna Systems
IF Amplifier
General Purpose Linear Gain Block
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Released
GRF2014
Broadband Linear Gain Block
0.05 to 3.8 GHz
Absolute Ratings:
Parameter
Supply Voltage
RF Input Power: (Load VSWR < 2:1; V
D
: <= 8.0 volts)
Operating Temperature (Package Heat Sink)
Maximum Channel Temperature
> 10^6 Hours)
Maximum Dissipated Power
Electrostatic Discharge:
Charged Device Model:
Human Body Model:
Storage:
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-65
150
1
°C
--
CDM
HBM
1500
250
V
V
(MTTF
Symbol
V
DD
P
IN MAX
T
AMB
T
MAX
P
DISS MAX
Min.
0
Max.
9.0
21
Unit
V
dBm
°C
°C
W
-40
105
170
1.5
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF2014 landing page: Manufacturing Note—MN-
001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Released
GRF2014
Broadband Linear Gain Block
0.05 to 3.8 GHz

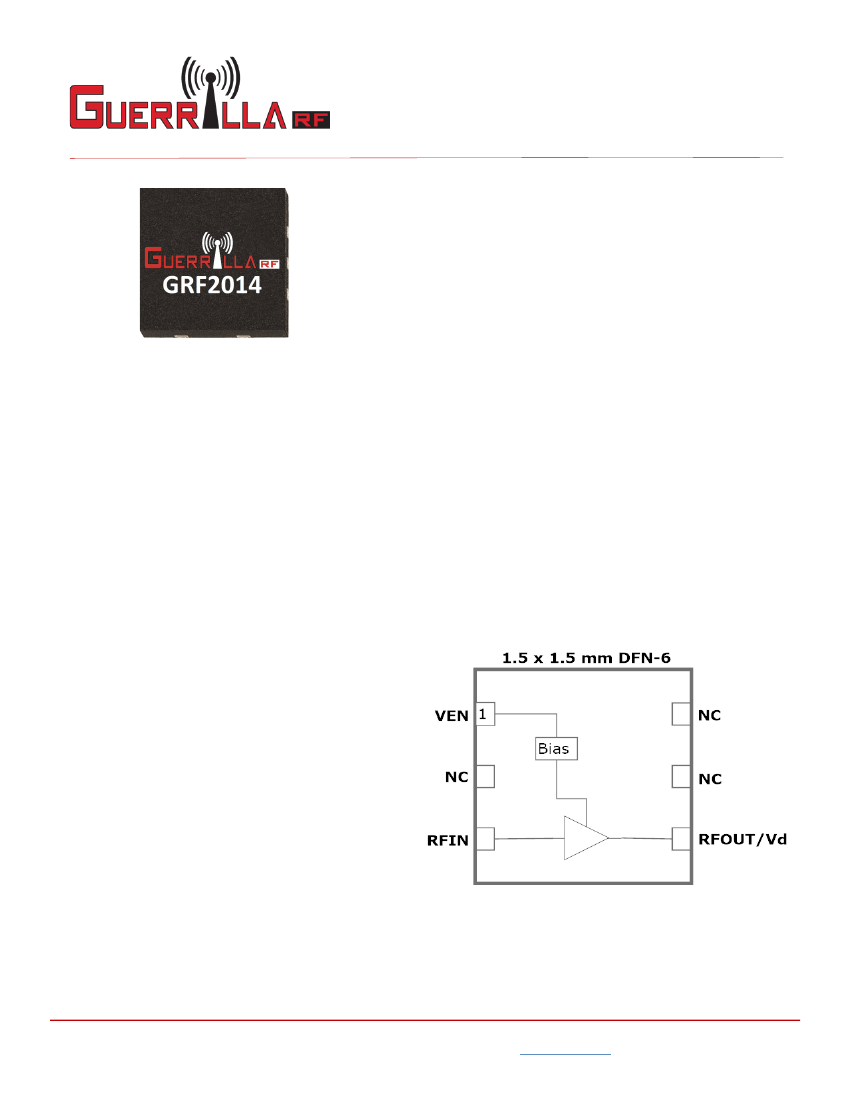

Pin Out (Top View)
Pin Assignments:
Pin
1
2
3
4
5
6
Name
V
ENABLE
NC
RF_In
RF_Out
NC
NC
GND
Description
Enable Voltage Input
No Connect or Ground
LNA RF input
LNA RF output
No Connect or Ground
No Connect or Ground
Ground
No internal connection to die
Note
V
ENABLE
and series resistor set I
DDQ
. V
ENABLE
< 0.2 volts disables device. On-
die pull-down resistor will turn the part off if this node is allowed to float.
Internally matched 50Ω. An external DC blocking cap must be used.
Internally matched 50Ω. V
DD
must be applied through a choke to this pin
No internal connection to die
No internal connection to die
Provides DC and RF ground for LNA, as well as thermal heat sink. Recom-
mend multiple 8 mil vias beneath the package for optimal RF and thermal
performance. Refer to evaluation board top layer graphic on schematic
page.
PKG
BASE
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Released
GRF2014
Broadband Linear Gain Block
0.05 to 3.8 GHz
Nominal Operating Parameters:
Parameter
Test Frequency
Gain
Evaluation Board Noise Figure
Output 3rd Order Intercept
Output 1dB Compression Power
Switching Rise Time
Switching Fall Time
Supply Current
Symbol
F
TEST
S21
NF
OIP3
OP1dB
T
RISE
T
FALL
I
DD
Specification
Min.
14.9
Typ.
900
15.9
3.4
43.5
Max.
Unit
MHz
dB
dB
dBm
dBm
ns
ns
mA
mA
Condition
V
DD
= 5.0 V, T
A
= 25°C
+2.0 dBm P
OUT
per tone at 2 MHz
Spacing (899 and 901 MHz)
22.5
24.0
200
200
150
Enable Current
Disabled Mode
Leakage Current
Thermal Data
Thermal Resistance: (Infra-Red Scan)
Channel Temperature @ +85 C Reference
(Package heat sink)
I
ENABLE
5.5
I
LEAKAGE
800
38
114
uA
ᵒC/W
ᵒC
V
DD
: 5.0V; V
ENABLE
: 0.0V
On standard Evaluation Board
V
DD
: 5.0 V; I
DDQ
: 150 mA; No RF;
P
DISS
: 750 mW
jc
T
CHANNEL
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Released
GRF2014
Broadband Linear Gain Block
0.05 to 3.8 GHz

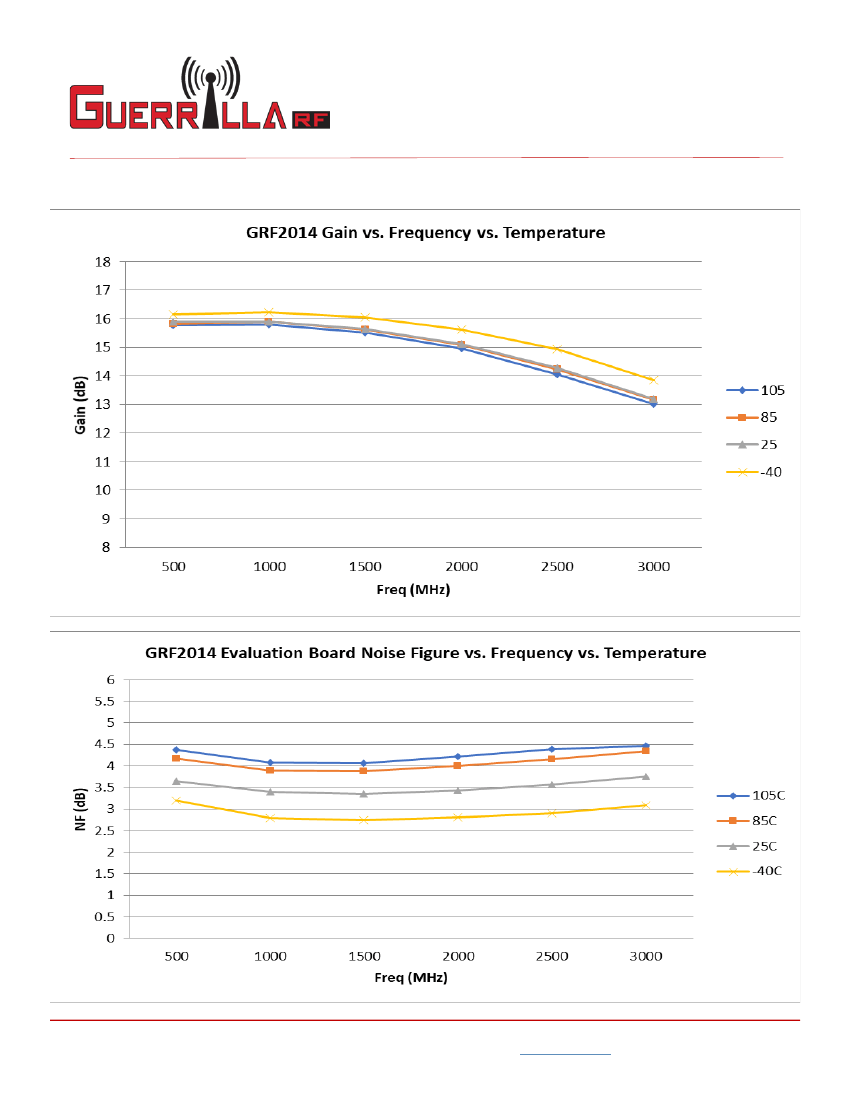

GRF2014 Performance over Temperature (5V/150 mA)
