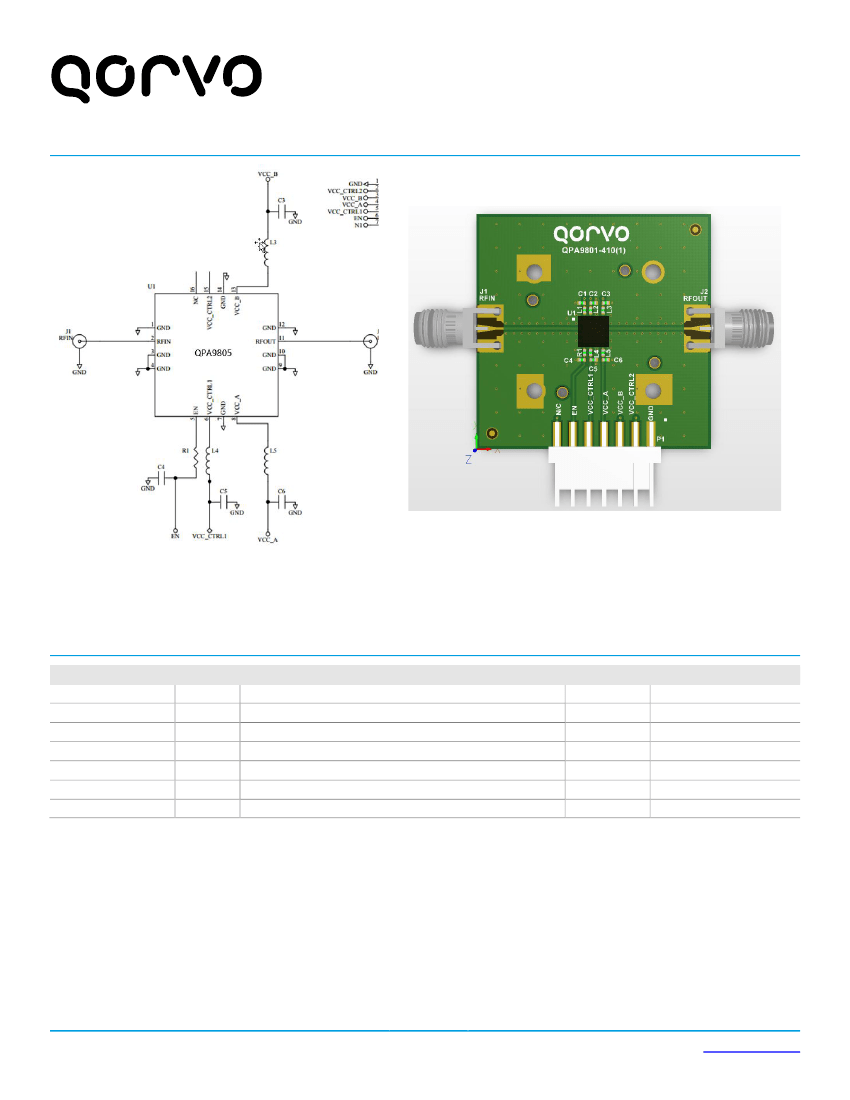

QPA9805EVB-01

Description
RF Development Tools 700-960MHz .5W Eval Board
CategoryEmbedded solution    Engineering tools    Rf/wireless development tools    Rf development tools
File Size920KB,12 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Environmental Compliance
Download Datasheet Parametric View All

QPA9805EVB-01 Online Shopping

Suppliers Part Number Price MOQ In stock
QPA9805EVB-01 - - View Buy Now

QPA9805EVB-01 Overview

RF Development Tools 700-960MHz .5W Eval Board

QPA9805EVB-01 Parametric

Parameter NameAttribute value
MakerQorvo
Product CategoryRF development tools
Shipping restrictionsMouser does not currently sell this product.
productEvaluation Boards
typeRF Amplifiers
Tools for assessmentQPA9805
frequency600 MHz to 1000 MHz
Working power voltage5 V
EncapsulationBulk
Description/FunctionEvaluation board for QPA9805 balanced amplifier
seriesQPA9805
Factory packaging quantity1
QPA9805
®
600
1000 MHz 1/2W Balanced Amplifier
General Description
The QPA9805 is a balanced amplifier module with
embedded hybrid couplers to convert to single ended input
and output ports. The module has an enable pin to allow for
shutting down of the amplifier. The module requires
minimal external components which are VCC choke
inductors and decoupling caps.

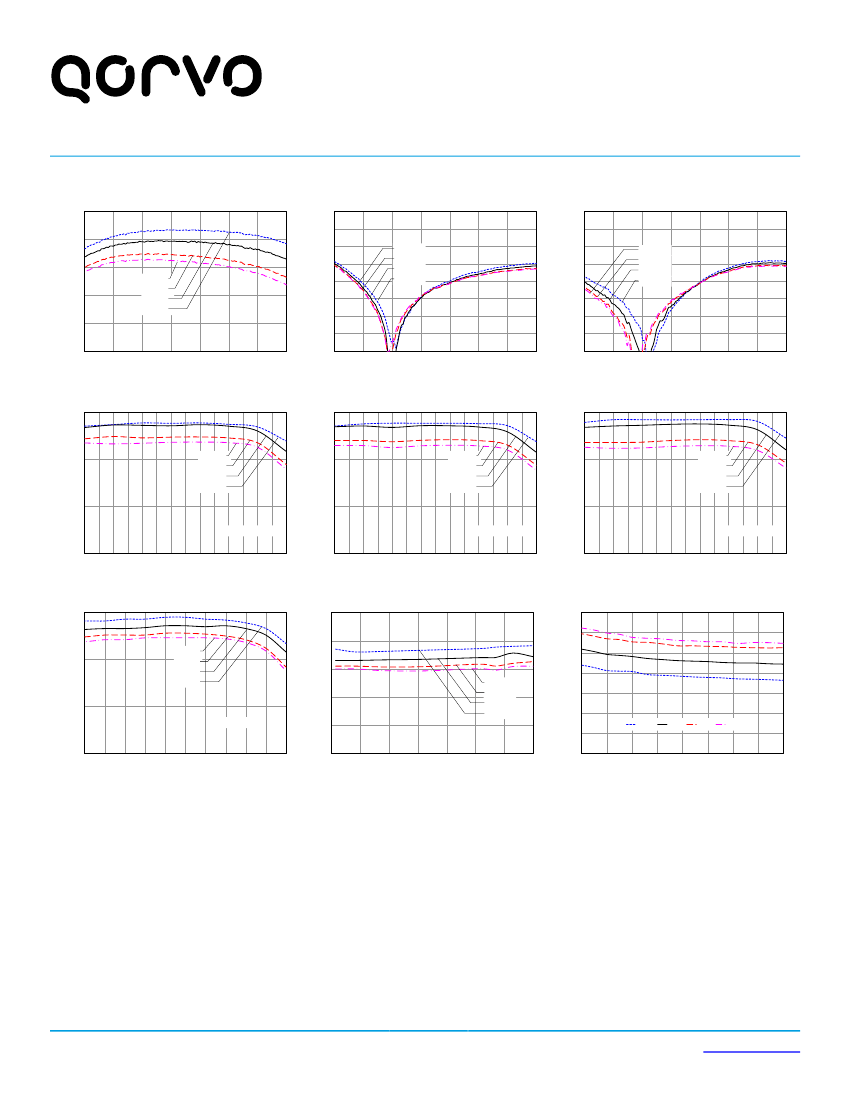

The QPA9805 provides 27.4 dBm P1dB with 20 dB gain
and +43.2 dBm OIP3 across a wide frequency range of
600-1000 MHz to cover the 3GPP Bands 5, 6, 8, 12, 13, 14,
17 and 71. The linear driver amplifier is targeted for use in
wireless infrastructure where high linearity, medium power
and high integration is required. The balanced amplifier
configuration provides very good input and output VSWR
and is especially ideal as the output stage in a macrocell
transceiver board that connects to the high power amplifier
(HPA) board through a long cable or microstrip trace. The
QPA9805 is packaged in a small 5 x 5 mm leadless
package that is internally matched to 50 Ω on all RF ports.
16 Pad 5 x 5 mm leadless SMT Package
Product Features
600 – 1000 MHz
Balanced Amplifier with integrated 3 dB hybrids
Internally Matched 50 Ω Input / Output
Shutdown Mode with 1.8V logic control
20 dB Gain
+43.2 dBm OIP3
+27.4 dBm P1dB
Good gain flatness across Bands 5, 6, 8, 12, 13, 14, 17,
and 71

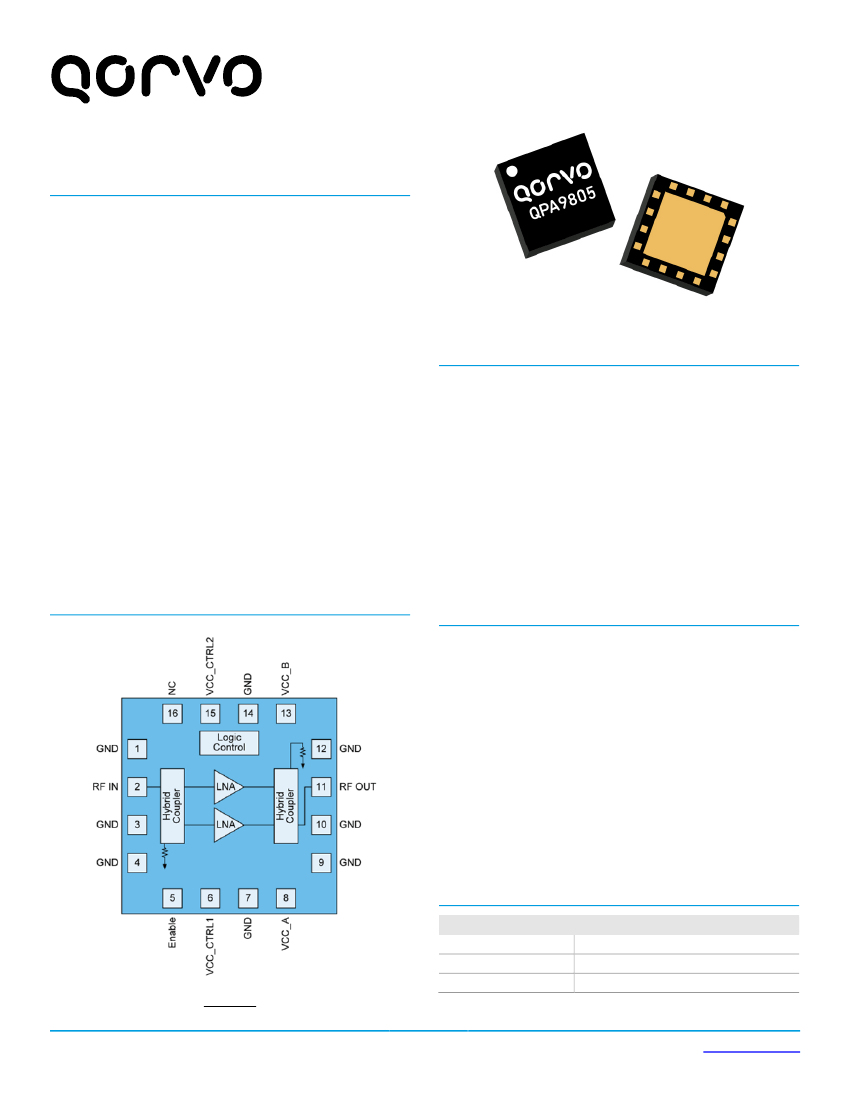

Functional Block Diagram
Applications
Wireless Infrastructure
Macro BTS Transceivers
Booster Amps, Repeaters
Ordering Information
Part No.
QPA9805TR13
QPA9805SR
QPA9805EVB-01
Top View
Description
2,500 pieces on a 13” reel (standard)
100 pieces on a 7” reel
600−1000 MHz Evaluation Board
Data Sheet May 24, 2017 | Subject to change without notice
-
1 of 11
-
www.qorvo.com
