MAX14699EVKIT# Overview

Power management IC development tool Evkit for MAX14699

MAX14699EVKIT# Parametric

Parameter Name	Attribute value
Maker	Maxim
Product Category	Power Management IC Development Tools
product	Evaluation Kits
type	Supervisory Circuits
Tools for assessment	MAX14699
Input voltage	2.1 V to 28 V
The output voltage	5 V
Factory packaging quantity	1

Preview

Download Datasheet

View All

MAX14699 Evaluation Kit

Evaluates: MAX14699

General Description

The MAX14699 evaluation kit (EV kit) is a fully assembled

and tested circuit board that demonstrates the MAX14699

high-accuracy, surge-protected overvoltage protector

device. The EV kit comes with the MAX14699EWC+

installed.

Quick Start

●

Required Equipment

MAX14699 EV kit

Multimeter

15V power supply

Features

Procedure

●

2.1V to 28V Operating Voltage Range

●

ACOK

LED Reading

●

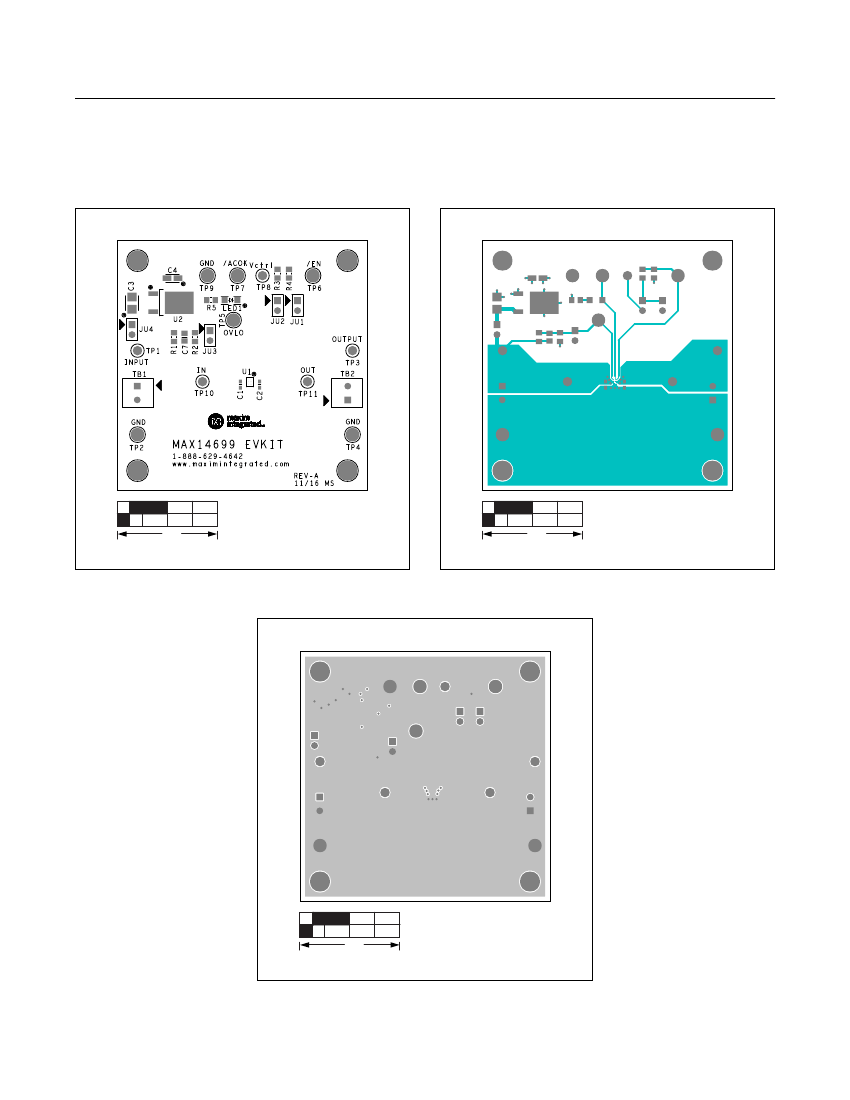

Proven PCB Layout

The EV kit is fully assembled and tested. Follow the steps

below to verify board operation:

Connect 5V on IN. Verify OUT is 5V and LED1 is on.

Install shunt on JU1. The OUT voltage goes down.

Remove shunt on JU1. OUT is 5V.

Increase IN voltage. Verify OUT voltage follows IN

voltage.

The switch turns off, OUT voltage goes down, and

LED1 turns off when IN voltage goes up to about

13.75V.

●

Fully Assembled and Tested

EV Kit Contents

●

EV Kit Board Containing a MAX14699

Ordering Information

appears at end of data sheet.

Detailed Description

The MAX14699 EV kit is a fully assembled and tested

circuit board demonstrating the MAX14699 high accuracy,

surge protected overvoltage protector device in a 12-bump

wafer-level package (WLP).

LED Indicator

Enable Pin

The EV kit features LED1 that indicates

ACOK

is asserted.

Use jumper JU1 and JU2 to set

pin connection.

(Table

OVLO

Use jumper JU3 to choose OVLO pin connection.

(Table

Digital Voltage

Use jumper JU4 to power digital voltage from V

(Table

19-8724; Rev 0; 11/16
