M5L13TGN02.500 datasheet, PDF - EEWORLD Datasheet

M5L13TGN02.500: DescriptionOscillator, 2.5MHz Min, 55MHz Max, 2.5MHz Nom; CategoryPassive components oscillator; File Size60KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M5L13TGN02.500 Overview

Oscillator, 2.5MHz Min, 55MHz Max, 2.5MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	DILCC4,.08,150
Reach Compliance Code	unknown
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	55 MHz
Minimum operating frequency	2.5 MHz
Nominal operating frequency	2.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.08,150
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	30 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

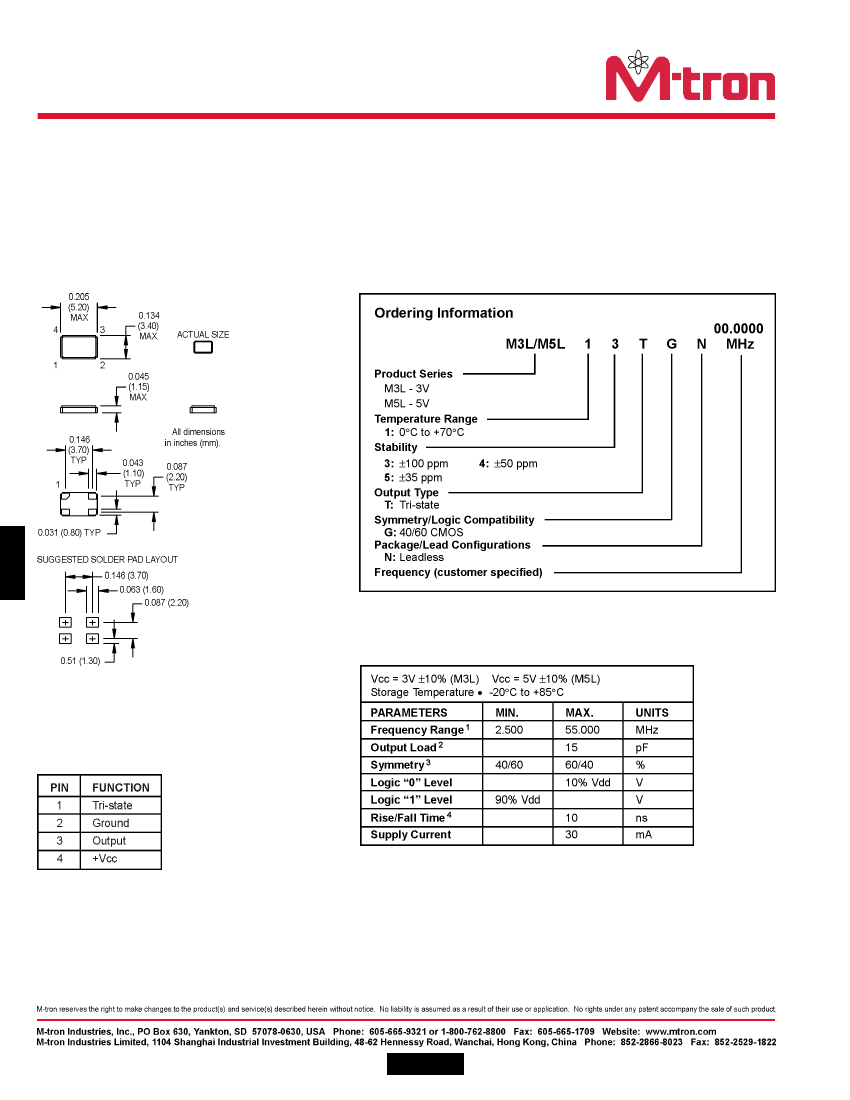

M3L/M5L Series 3.2 x 5.0 x 1.0 mm

HCMOS Compatible Surface Mount Oscillators

Features:

Ultra-miniature Size

Tri-state Output

Tape & Reel

Leadless Ceramic Package

Applications:

PCMCIA Cards

Laptop/Palmtop Computers

Wireless Handsets

Portable Instrumentation

Electrical Specifications

Pin Connections

Tri-state Control Logic

Pin 1 high or floating: clock signal output.

Pin 1 low: output disabled to high impedance.

Because this product is based on AT-strip technology, not all frequencies in the range stated are available.

Contact the factory for availability of specific frequencies.

CMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 50% Vdd.

Rise/Fall times are measured between 10% Vdd and 90% Vdd.
