101-506-91 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> Cover, box and shell products> 101-506-91

101-506-91: DescriptionCovers, boxes and shell products TGABS1608-9-toS, 162x82x85mm; Categoryaccessories Cover, box and shell products; File Size291KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

101-506-91 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	101-506-91	-	-	View	Buy Now

101-506-91 Overview

Covers, boxes and shell products TGABS1608-9-toS, 162x82x85mm

101-506-91 Parametric

Parameter Name	Attribute value
Maker	Altech
Product Category	Covers, boxes and shell products
Shipping restrictions	Mouser does not currently sell this product.
product	Enclosures
type	NEMA Rated Enclosure
Material	Acrylonitrile Butadiene Styrene (ABS)
color	Transparent
IP rating	IP67
NEMA Rating	4X
series	TG
Features	?with Standard Screws
Factory packaging quantity	1

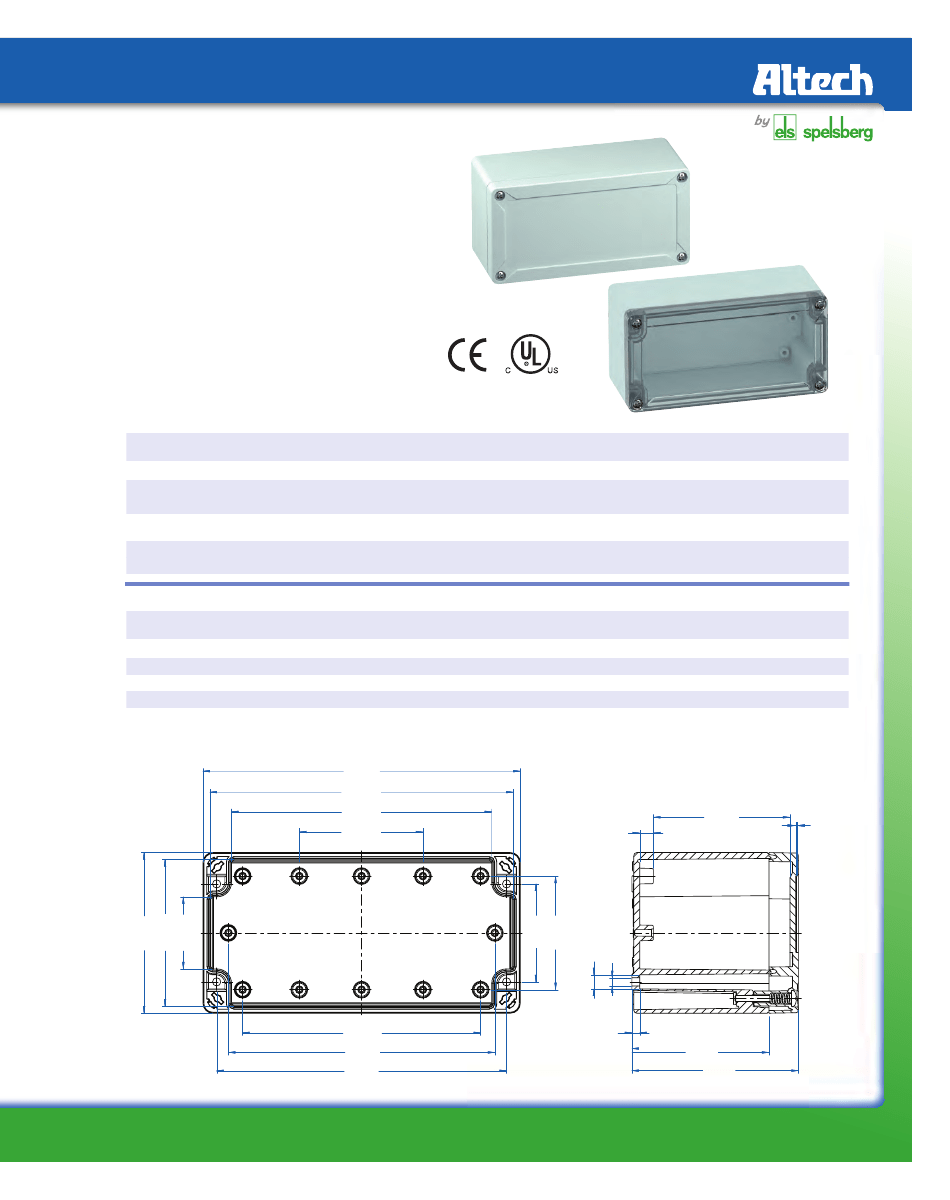

Preview

Download Datasheet

View All

TG1608-9 – ABS and Polycarbonate

– 162 x 82 x 85mm (6.38 x 3.23 x 3.35 in.)

Standard Features

•

Protection Level:

•

Technical:

IP67 (NEMA 4X)

Smooth Sidewalls

Gray or Transparent Cover

Standard or Quick Turn Screws

138 x 58 x 0.4 mm Recess in Cover

Integrated Cover Retainer

ABS or Polycarbonate

Polycarbonate

Polyurethane

Light Gray

ABS

-40˚C to 80˚C (-40˚F to 176˚F)

Polycarbonate

-40˚C to 120˚C (-40˚F to 248˚F)

See section below

Cat. No.

w/ Quick Turn Screws

•

UL Recognized

•

Enclosure Materials:

Transparent Cover

Material:

Gasket Material:

Color:

Material

Temperature Range:

E208470

Polycarbonate with

standard screws Only

•

Accessories:

Ordering

Information

ABS

Cat. No.

w/ Standard Screws

Type

Length

Dimensions mm (in)

Width

Height

Std.

Pk.

Gray cover

Transparent cover

Polycarbonate

100-906-91

101-506-91

100-906-01

101-506-01

TGABS1608-9-o

TGABS1608-9-to

162 mm (6.38 in.)

82 mm (3.23 in.)

85 mm (3.35 in.)

Gray cover

Transparent cover

200-906-91

201-506-91

200-906-01

201-506-01

TGPC1608-9-o

TGPC1608-9-to

162 mm (6.38 in.)

82 mm (3.23 in.)

85 mm (3.35 in.)

Accessories

Ordering

Information

Cat. No.

Type

Std.

Pk.

Mounting Plate (plastic)

186-006

TGMPI-1608

Mounting Plate (steel)

187-006

TGMPS-1608

DIN Rail – TS35-146

198-146

NS35-146

DIN Rail - TS15-146

197-146

TS15-146

Mounting Tab Kit

182-002

TGABL

Please refer to pages 149-152 additional accessories and detailed information

162 mm

(6.38 in)

154.8 mm

(6.09 in)

132.8 mm

(5.23 in)

60 mm

(2.36 in)

7 mm

(0.28 in)

69.7 mm

(2.74 in)

4 mm

(0.02 in)

74.8 mm

(2.94 in)

36.8 mm

(1.45 in)

82 mm

(3.23 in)

50 mm

(1.97 in)

58 mm

(2.28 in)

121.5 mm

(4.78 in)

136 mm

(5.35 in)

148 mm

(5.83 in)

Ø7.2 mm

(0.28 in)

Ø4.2 mm

(0.17 in)

4 mm

(0.16 in)

70 mm

(2.76 in)

85 mm

(3.35 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

101-506-91 Related Products

	101-506-91	100-906-01	200-906-01	101-506-01	100-906-91	201-506-01
Description	Covers, boxes and shell products TGABS1608-9-toS, 162x82x85mm	Enclosures, Boxes, & Cases TGABS1608-9-o, 162x82x85mm	Covers, boxes and shell products TGPC1608-9-o, 162x82x85mm	Covers, boxes and shell products TGABS1608-9-to, 162x82x85mm	Covers, boxes and shell products TGABS1608-9-o, 162x82x85mm	Covers, boxes and shell products TGPC1608-9-to, 162x82x85mm
Product Category	Covers, boxes and shell products	Enclosures, Boxes, & Cases	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products
Material	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)	Polycarbonate	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)	Polycarbonate
NEMA Rating	4X	4X	4X	4X	4X	4X
Features	?with Standard Screws	with Quick Turn Screws	with Quick Turn Screws	with Quick Turn Screws	?with Standard Screws	with Quick Turn Screws
Maker	Altech	-	Altech	Altech	Altech	Altech
Shipping restrictions	Mouser does not currently sell this product.	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	Enclosures	-	Enclosures	Enclosures	Enclosures	Enclosures
type	NEMA Rated Enclosure	-	NEMA Rated Enclosure	NEMA Rated Enclosure	NEMA Rated Enclosure	NEMA Rated Enclosure
color	Transparent	-	Gray	Transparent	Gray	Transparent
IP rating	IP67	-	IP67	IP67	IP67	IP67
series	TG	-	TG	TG	TG	TG
Factory packaging quantity	1	-	1	1	1	1
