ICE-DB-T7-i2-R10 datasheet, PDF

Datasheet> All Categories > Embedded solution> Module accessories> ICE-DB-T7-i2-R10

ICE-DB-T7-i2-R10: DescriptionModule accessories Baseboard for COM Express Type 7 Module COM.0 Rev. 2.1; CategoryEmbedded solution Module accessories; File Size684KB，2 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric View All

ICE-DB-T7-i2-R10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICE-DB-T7-i2-R10	-	-	View	Buy Now

ICE-DB-T7-i2-R10 Overview

Module accessories Baseboard for COM Express Type 7 Module COM.0 Rev. 2.1

ICE-DB-T7-i2-R10 Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	Module accessories
product	Baseboards
used for	COM Express Type 7 Module
Description/Function	Baseboard for COM Express Type 7 Module
size	304.8 mm x 243.8 mm
series	ICE-DB
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 40 C

Preview

Download Datasheet

View All

Single Board Computer

Computer on Modules

w w w.ieiworld.com

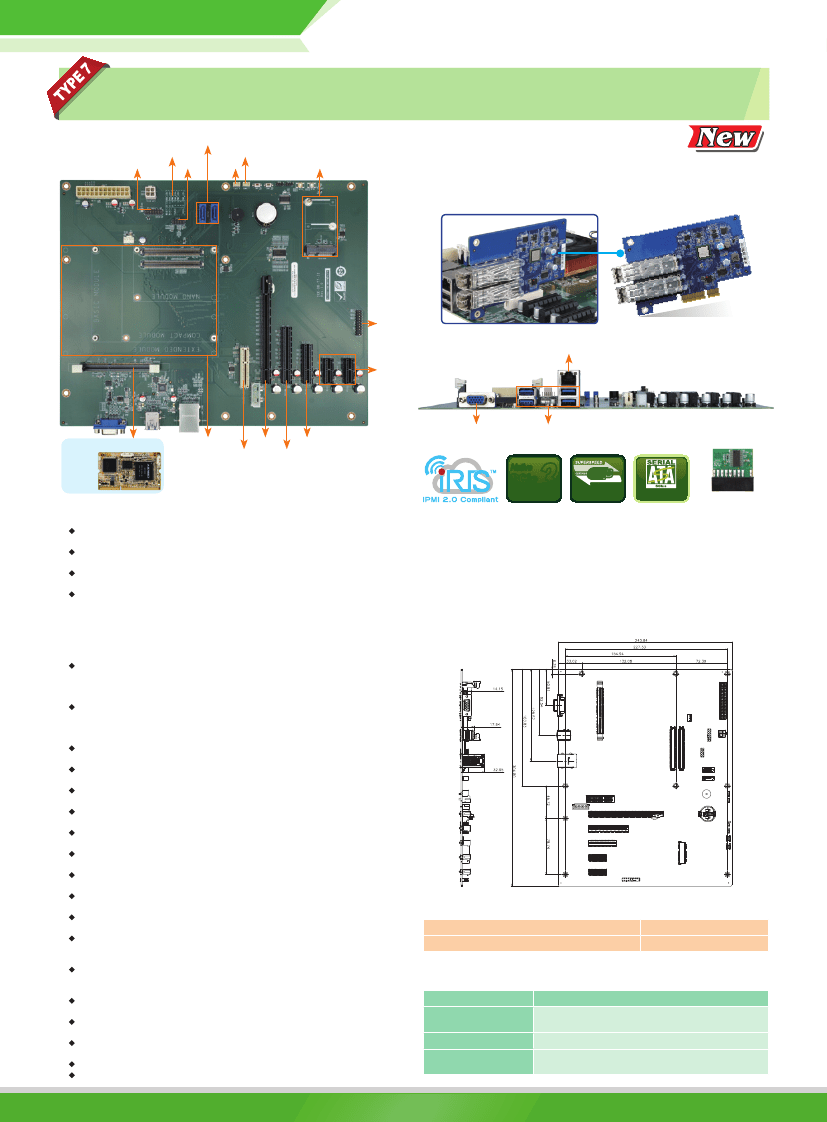

ICE-DB-T7-i2

4 x SATA 3Gb/s

SD card

SMBus

Front panel

DIO

I²C

2 x PCIe Mini

Base Board for COM Express Type 7 Module COM.0 Rev. 2.1

High-speed 10GbE Add-on Card Support

Integrated 10GbE LAN Interface

10GbE LAN card meets customer demond for high-speed internet

TPM

GbE

2 x PCIe x1

LAN-10G2SF-PHY-CS4227

VGA

Slot for iRIS-2400 module

(optional)

COM Express

Type 7

PCIe x16 PCIe x4

For Dual PCIe x8

10GbE card

4 x USB 3.0

Native

PCIe

Gen.

Specifications

Form Factor

ATX form factor baseboard

CPU

Supports COM Express Compact / Basic module using connector pinout Type 7

Display Interfaces

1 x VGA from iRIS-2400

Expansion

1 x PCIe x16 (x16 Gen 3 signal)

1 x PCIe x8 (x8 Gen 3 signal)

1 x PCIe x4 for 10GbE PHY card

1 x PCIe x4 (x4 Gen 2 signal)

1 x PCIe x4 (x1 Gen 2) (x4 signal option)

2 x PCIe x1 (x1 Gen 2)

Internal I/O Interface

2 x RS-232 from COM Express (only TX, RX, GND)

2 x RS-232 from SIO

2 x SATA port

Rear I/O Interface

4 x USB 3.0

1 x VGA

1 x RJ-45 connector

TPM

1 x TPM (2x10 pin header)

80 port

2 x 7 segment display

Front Panel

1 x Front_Panel (Power LED, HDD LED, Speaker (Buzzer), Power Button, Reset Button)

iRIS Remote Management Module

1 x iRIS-2400 slot

I²C

1 x I²C (1x4 pin wafer)

SMBus

1 x SMBus (1x4 pin wafer)

Internal Storage

EEPROM (support EAPI R1.0)

Watchdog Timer

Software programmable, supports 1~255 sec system reset

GPIO

8-bit GPIO

Power Supply

ATX / AT Power Supply

24+4 pin

Fan Connector

1 x 4-pin / 1x 3 pin CPU module fan connector

1 x 3-pin system fan connector by SIO

Temperature

-40°C ~ 85°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

304.8 mm x 243.8 mm (12" x 9.6")

Weight: GW:590g / NW:390g

CE/FCC compliant

USB

USB 3.0

SATA 6Gb/s

TPM 1.2 Support

Features

● ATX form factor baseboard for COM.0 Rev. 3.0, pinout Type 7

● Support 1 x PCIe x8 for 10GbE PHY card

● Support 32 PCIe lanes

● Support PICMG EAPI R1.0

● Support IPMI 2.0 via iRIS-2400 module

Dimensions

(Unit: mm)

Packing List

1 x COM Express Baseboard

1 x SATA cable (P/N: 32000-062800-RS)

1 x Mini jumper pack

1 x QIG

Ordering Information

Part No.

ICE-DB-T7-i2-R10

LAN-10G2SF-PHY-CS4227

iRIS-2400-R10

Description

Baseboard for COM Express Type 7 Module COM.0 Rev. 2.1,

support PICMG EAPI R1.0, iRIS-2400

10 GbE LAN card, dual port support, RoHS

IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-

DIMM socket interface

ICE-DB-T7-i2-2018-V11
