KINO-DH310-R10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> To calculate> Single board computer> KINO-DH310-R10

KINO-DH310-R10: DescriptionSingle board computer Mini-ITX SBC supports 14nm LGA1151 Intel 8th Generation Core i7/i5/i3, Celeron and Pentium processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS; CategoryEmbedded solution To calculate Single board computer; File Size606KB，2 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric View All

KINO-DH310-R10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KINO-DH310-R10	-	-	View	Buy Now

KINO-DH310-R10 Overview

Single board computer Mini-ITX SBC supports 14nm LGA1151 Intel 8th Generation Core i7/i5/i3, Celeron and Pentium processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

KINO-DH310-R10 Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	single board computer
series	KINO-DH310
physical dimension	Mini-ITX
Processor brand	Intel
Processor type	Intel Core i7/i5/i3, Celeron, Pentium
storage	64 GB
Working power voltage	12 VDC
Interface Type	Audio, Ethernet, I2C, KB/MS, RS-232, RS-422/485
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	170 mm x 170 mm
Description/Function	14 nm LGA1151 Intel 8th Generation Core Processor
storage type	DDR4 SDRAM
Battery backup switch	No Backup Battery
chipset	H310
core	Intel Core i7/i5/i3, Celeron, Pentium

Preview

Download Datasheet

View All

Single Board Computer

Industrial Motherboard

w w w.ieiworld.com

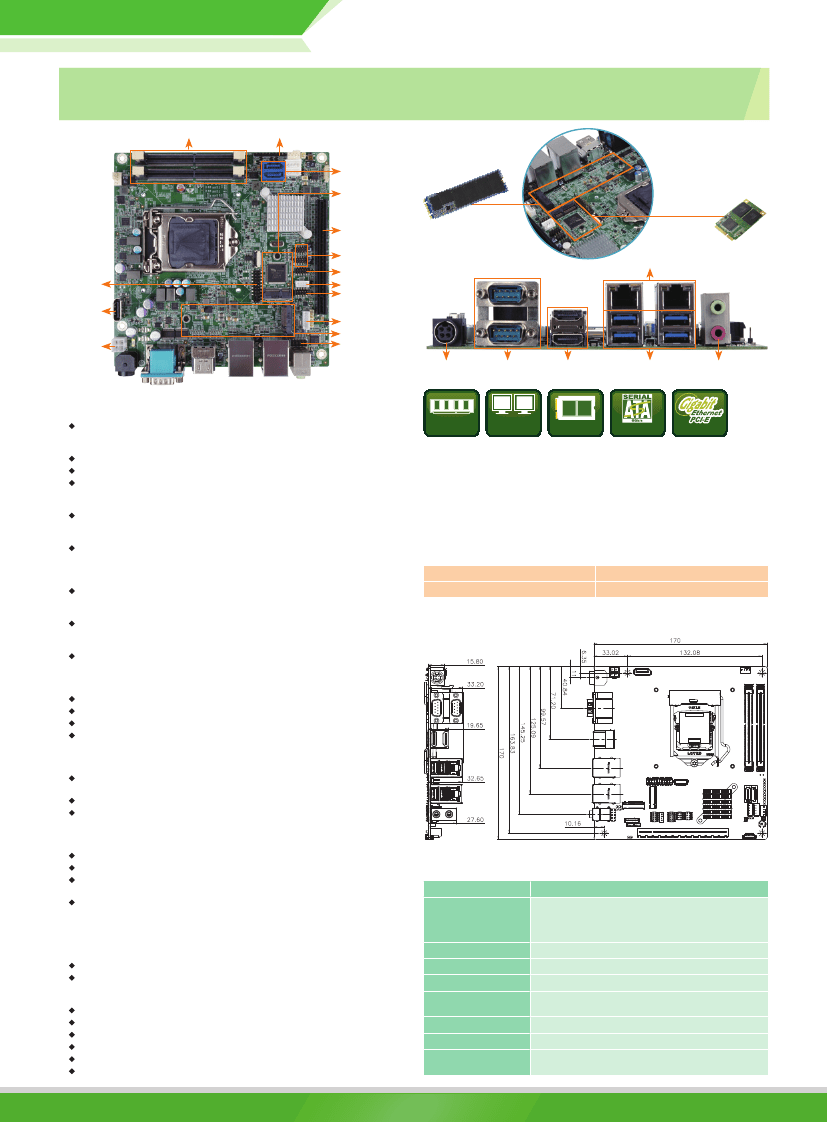

KINO-DH310

Dual-channel DDR4 2666MHz

Front Panel

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th Generation Core™ i7/i5/i3,

Celeron® and Pentium® processor, DDR4, dual independent displays, dual

GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

2 x SATA 6Gb/s

M.2 A Key

M.2 M key

PCIe x16

4 x USB 2.0

DIO

TPM

Displayport

(optional)

12V Power

input

RS-422/485

RS-232

KB/MS

M.2 M Key

Front Audio

12V Power

input

2 x RS-232

2 x HDMI

M.2 A Key

Dual LAN

4 x USB 3.0

Audio

Specifications

CPU

LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®

processor (35W/65W)

Chipset: Intel® H310

BIOS: AMI UEFI BIOS

Memory

Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots

supported up to 64GB

Graphics Engine

Intel® HD Graphics Gen9 Engines with Low power 16 execution unit, supports

DX11.3/12, OpenGL 4.3/4.4/4.5and OpenCL1.2/2.0/2.1

Display Output

Dual independent display

2 x HDMI (up to 1920x1080@60Hz)

1 x internal Displayport (up to 4096x2304@60Hz) (optional)

Ethernet

LAN1: Realtek RTL8111H PCIe GbE controller

LAN2: Realtek RTL8111H PCIe GbE controller

External I/O Interface

4 x USB 3.0

2 x RS-232

Internal I/O Interface

1 x KB/MS (1x6 pin)

4 x USB 2.0 (2x4 pin, P=2.0)

1 x RS-422/485 (1x4 pin, P=2.0)

1 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6G/s with 5/12V SATA power connector (No RAID)

I²C: 1 x I²C (1x4 pin)

TPM: 1 x TPM (2x10 pin)

SMBus: 1 x SMBus (1x4 pin)

Audio

Realtek ALC662 HD codec

2 x Audio Jack (Lin-out, Mic-in)

1 x Front audio (2x5 pin)

Front Panel

1 x Front Panel (1x10 pin, Power LED, HDD LED, Power Button, Reset Button)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion

1 x PCIe x16

1 x M.2 M key (2280, Gen2 PCIe x2 only)

1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

FAN Connector: 2 x Smart fan connector (1x4 pin)

Chassis Open

1 x Chassis intrusion (1x2 pin)

Power supply

DC 12V input

1 x External DC jack (4-pin DIN)

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

ErP/EuP Compliant

Watchdog Timer: Software Programmable support 1~255 sec. System reset

Power Consumption

12V@11.32A (Intel® Core™ i7-8700 up to 4.60 GHz CPU with two 8GB 2666MHz

DDR4 memory)

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimension: 170mm x 170mm

Weight: GW:900g / NW:400g

CE/FCC compliant

DDR4

2400

Dual

Display

M.2

SATA 6Gb/s

PCIe GbE

Features

● LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor

● Dual-channel DDR4 2666MHz

● Support eDP & Dual HDMI

● Support M.2 A Key for WLAN expansion & M key for storage

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x KINO-DH130 single board computer

1 x I/O Shielding

1 x SATA cable

1 x QIG

Dimensions

(Unit: mm)

Ordering Information

Part No.

Description

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th Generation

Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4,

dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s,

HD Audio and RoHS

PS/2 KB/MS cable, 135mm, P=2.0

Dual port USB cable, 210mm, P=2.0

RS-232 cable, 200mm, P=2.0

High-performance LGA1155/1156 cooler kit, 1U chassis

compatible 73W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W

LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

20-pin Infineon TPM 2.0 module, software management tool,

firmware v5.5

KINO-DH310-R10

32000-02300-RS

32000-070301-RS

32205-002700-100-RS

CF-1156A-RS-R11

CF-1156C-RS

CF-1156D-RS

TPM-IN02-R20

KINO-DH310-2018-V10
