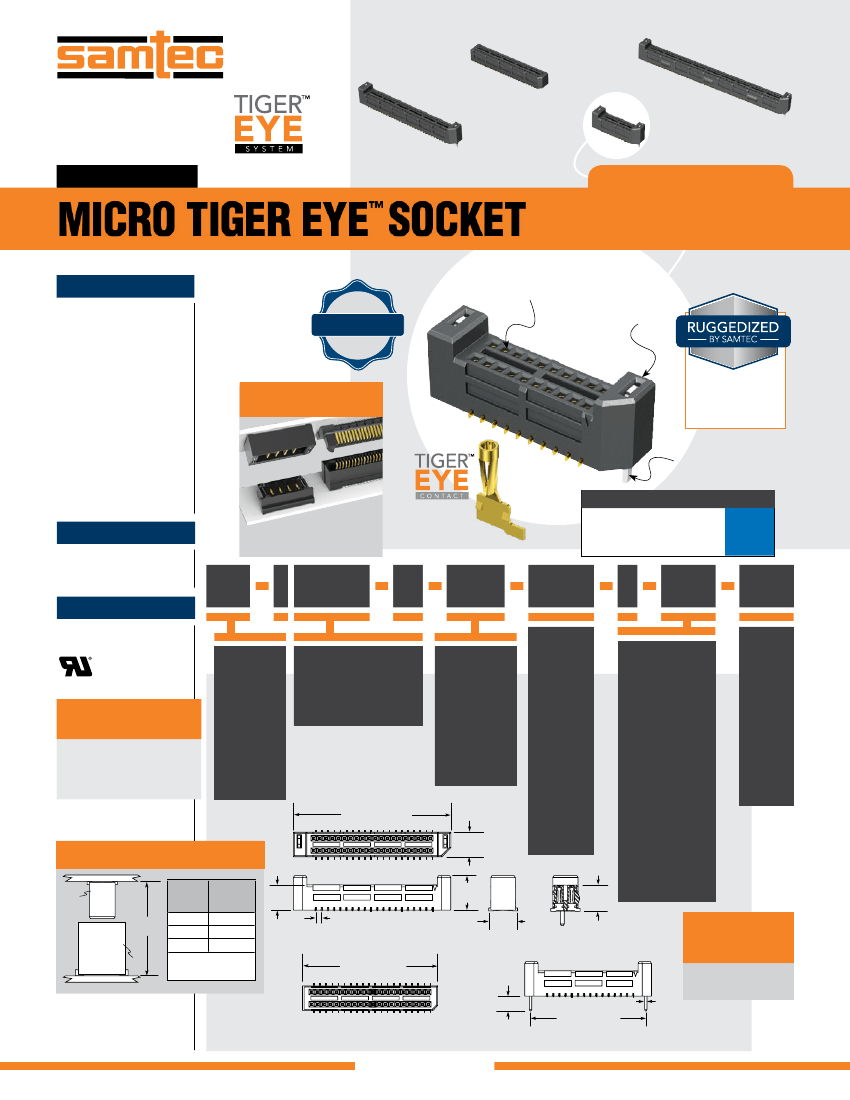

F-219 (Rev 23JAN19)
SEMS–125–02–03.0–H–D
SEML–145–02–03.0–H–D–WT
SEM–130–02–03.0–H–D–WT
SEM–110–02–03.0–H–D–WT
(0.80 mm) .0315"
SEM, SEMS, SEML SERIES
MICRO TIGER EYE SOCKET
™
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SEM,
www.samtec.com?SEMS or
www.samtec.com?SEML
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
BeCu
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C
Current Rating (SEM/TEM):
2.6 A per pin
(2 pins powered)
Voltage Rating:
235 VAC/330 VDC
RoHS Compliant:
Yes
SEM, SEML Mates with:
TEM
SEMS Mates with:
TEMS
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
10 YEAR MFG
WITH 30 µ" GOLD
High-reliability
Tiger Eye
™
contacts
Choice of
mated heights
POWER/SIGNAL
APPLICATION
• Passes
10 year MFG
• Locking clip option
• Weld tab option
Weld
tab
HIGH-SPEED CHANNEL PERFORMANCE
Compatible with
UMPT/UMPS for flexible
two-piece power/signal solutions
Rating based on Samtec reference
channel. For full SI performance data
visit Samtec.com or contact
SIG@samtec.com
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max
G b p s
8
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
TYPE
STRIP
1
NO. PINS
PER ROW
02
STACK
HEIGHT
PLATING
OPTION
D
OPTION
OTHER
OPTION
= Tiger Eye
™
Strip
SEM
05, 10, 15, 20, 25
30, 35, 40, 45, 50
(SEM/SEML only)
(Standard sizes)
OTHER
SOLUTIONS
• Board Stacking:
See SFM, TFM Series
• Cable Assemblies:
See SFSD, TFSD Series
= Tiger Eye
™
Slim Strip
SEMS
SEML
= Tiger Eye
™
Friction Lock
= 6 mm, 7 mm
or 10 mm
Stack Height
when mated with
TEM/TEMS
Series
(SEML only
available with
6 mm Stack
Height)
–03.0
= Gold Flash
–FG
–G
Leave blank
for SEMS
= 10 µ"
(0.25 µm)
Gold on
contact,
Gold Flash
on tail
= Alignment Pin
(Not available
with –LC or –WT)
–A
= (3.50 mm)
.138" DIA
Polyimide
film Pick &
Place Pad
(Required
for SEMS)
–K
(No. of Positions x (0.80) .0315)
+ (4.50) .177
02
MATED HEIGHT
TEM
MATED
LEAD HEIGHT*
STYLE
6 mm
–03.0
7 mm
–04.0
10 mm
–07.0
*Processing
conditions will
affect mated height.
(3.20)
.126
01
= 30 µ"
(0.76 µm)
Gold on
contact,
Gold Flash
on tail
–H
= Locking Clip
(Not available
with –A or –WT)
(Manual placement
required)
–LC
= Tape &
Reel
(Required
for SEMS)
–TR
SEM
MATED
HEIGHT
(3.30)
.130
(0.80) .0315
SEM
(No. of Positions
x (0.80) .0315)
+ (1.60) .063
(4.50)
.177
(3.75)
.148
(3.50)
.138
= Weld Tab
(Not available
with –A or –LC)
(Required callout
for SEML)
–WT
SEML
ALSO
AVAILABLE
(MOQ Required)
• Other sizes
• Other platings
TEM
(1.89)
.074
(No. of Positions
x (0.80) .0315)
+ (3.00) .118
(0.30)
.012
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
SEMS
–WT OPTION
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
