1311097-1

Description
CABLE TERMINATED, FEMALE, SMB CONNECTOR, CRIMP, SOCKET
CategoryThe connector    The connector
File Size230KB，7 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1311097-1 Overview

CABLE TERMINATED, FEMALE, SMB CONNECTOR, CRIMP, SOCKET

1311097-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Other featuresAPPLICABLE CABLE: RG179B/U
Body/casing typeSOCKET
Characteristic impedance75 Ω
Connector typeRF SMB CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial number1311097
Installation methodSTRAIGHT
Installation typeCABLE
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
Base Number Matches1

Preview

Download Datasheet
Catalog 1307191
Revised 10-00

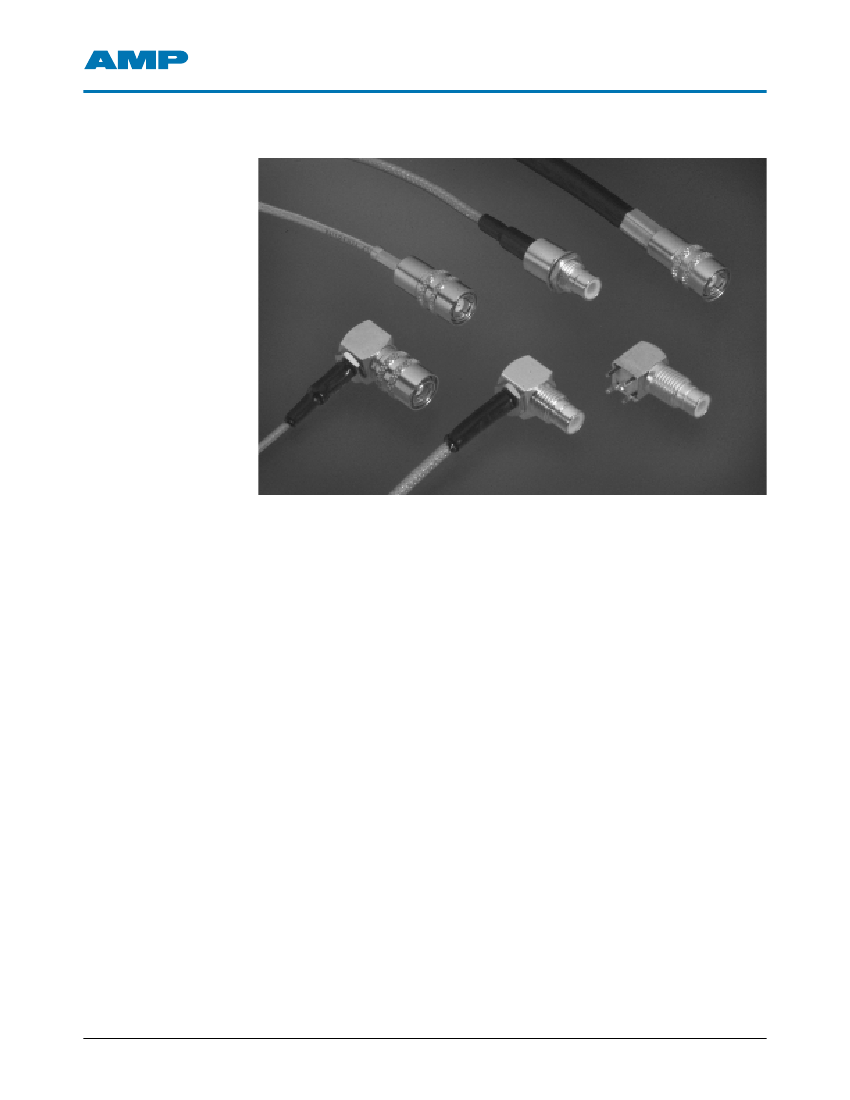

RF Coax Connectors
SMB Connectors, 75 Ohm BT 43
Features
s
Widely used in data
transmission and telecom-
munication applications
BT 43 connector developed
from the SMB range and
feature snap-on and latch-
ing variant
Most BT 43 connectors are
available as fully crimped
connectors.
BT 43 and 75
Ω
connectors
available in solder and
crimp versions
s
s
s
The AMP range of 75 ohm
SMB (SMZ) connectors are
designed to meet the
increasing demands of the
Telecommunications
market, and are designed
in accordance with BS9210
F0022.
Specifications
Max working voltage (dc)
— 500 V
Max proof voltage (dc)
— 1.5 kV
Contact resistance (inner)
—
5 milliohm
Contact resistance (outer)
—
1 milliohm
Bodies and other parts
— Brass
Female center contacts
—
Copper Alloy
Male center contacts
—
Copper Alloy
Outer contacts
— BeCu
Plating
—
Contacts and critical surfaces — Gold
Other parts — Nickel
Insulators
— P.T.F.E.
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
189
