TLE-104-01-G-DV-A-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> TLE-104-01-G-DV-A-K-TR

TLE-104-01-G-DV-A-K-TR: DescriptionHeaders and Wire Housings 2.00 mm Tiger Beam Cost-effective Single Beam Socket Strip; CategoryThe connector The connector; File Size697KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TLE-104-01-G-DV-A-K-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TLE-104-01-G-DV-A-K-TR	-	-	View	Buy Now

TLE-104-01-G-DV-A-K-TR Overview

Headers and Wire Housings 2.00 mm Tiger Beam Cost-effective Single Beam Socket Strip

TLE-104-01-G-DV-A-K-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	8 Position, Dual-Row, 2.00 mm Tiger Beam™ Cost-effective Single Beam Socket Strip
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

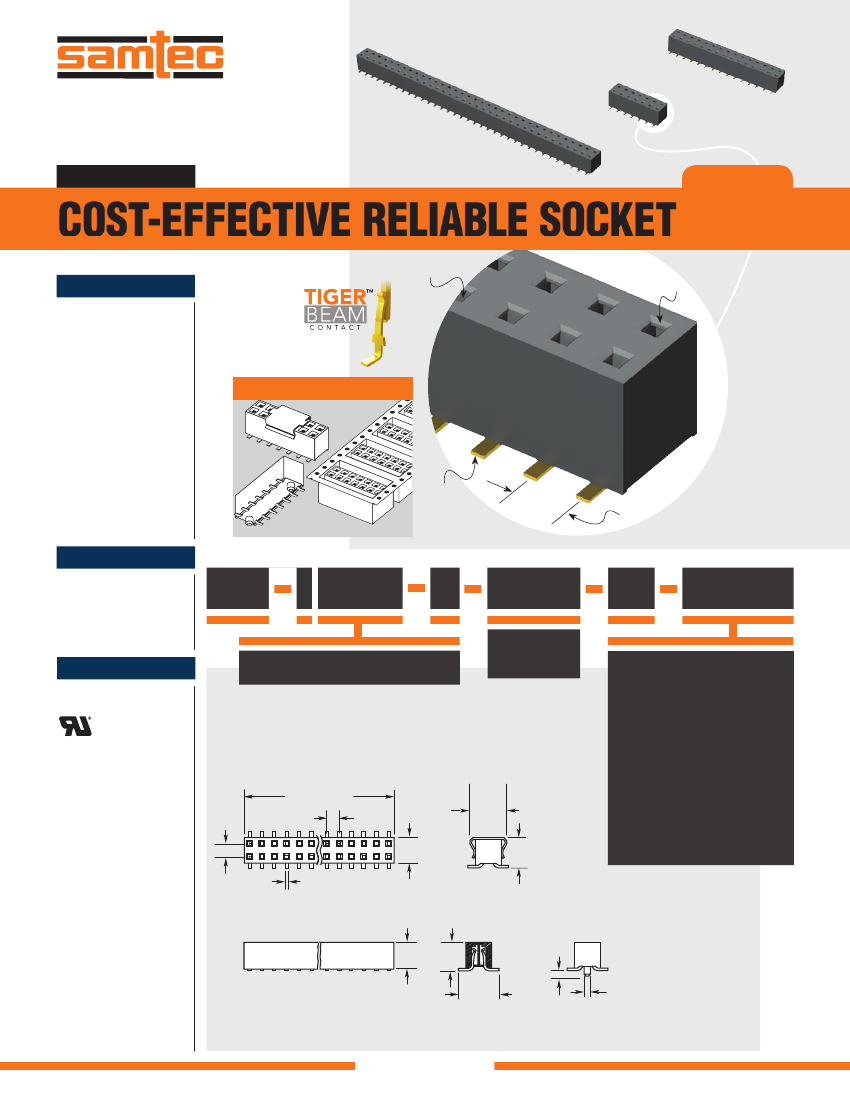

F-219

TLE–107–01–G–DV

TLE–115–01–G–DV

TLE–135–01–G–DV

(2.00 mm) .0787"

TLE SERIES

COST-EFFECTIVE RELIABLE SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?TLE

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating (TLE/TMMH):

3.2 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(2.08 mm) .082" to

(4.37 mm) .172" with

(0.38 mm) .015" wipe,

pass-through, or

(3.35 mm) .132" min

for bottom entry

RoHS Compliant:

Yes

Mates with:

TMMH, TMM,

MTMM, MMT,

TW, LTMM,

ZLTMM, TCMD,

TSH

Tiger Beam

contacts

Ideal for

pass-through

applications

OPTIONS

–P OPTION

Available

with optional

pick & place pads

Surface

mount

–A OPTION

–TR OPTION

(2.00 mm) .0787"

micro pitch

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (02-26)

(0.15 mm) .006" max (27-50)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

TLE

NO. PINS

PER ROW

PLATING

OPTION

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

02 thru 50

= 10 µ" (0.25 µm)

Gold

–G

= Alignment Pin

(3 positions minimum)

–A

–K

–P

= (5.00 mm) .197" DIA

Polyimide Film Pick & Place Pad

(3 positions minimum)

(2.00)

.0787

No. of positions x

(2.00) .0787

(2.00)

.0787

(4.00)

.157

(5.08)

.200

(5.71)

.225

(4.70)

.185

–P Option

= Metal Pick & Place Pad

(4 positions minimum)

= Tape & Reel Packaging

(2-37 positions only)

–TR

(0.56)

.022

(4.32)

.170

(4.50)

.177

(5.51)

.217

(0.76)

.030

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(0.64)

.025

DIA

–A Option

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
