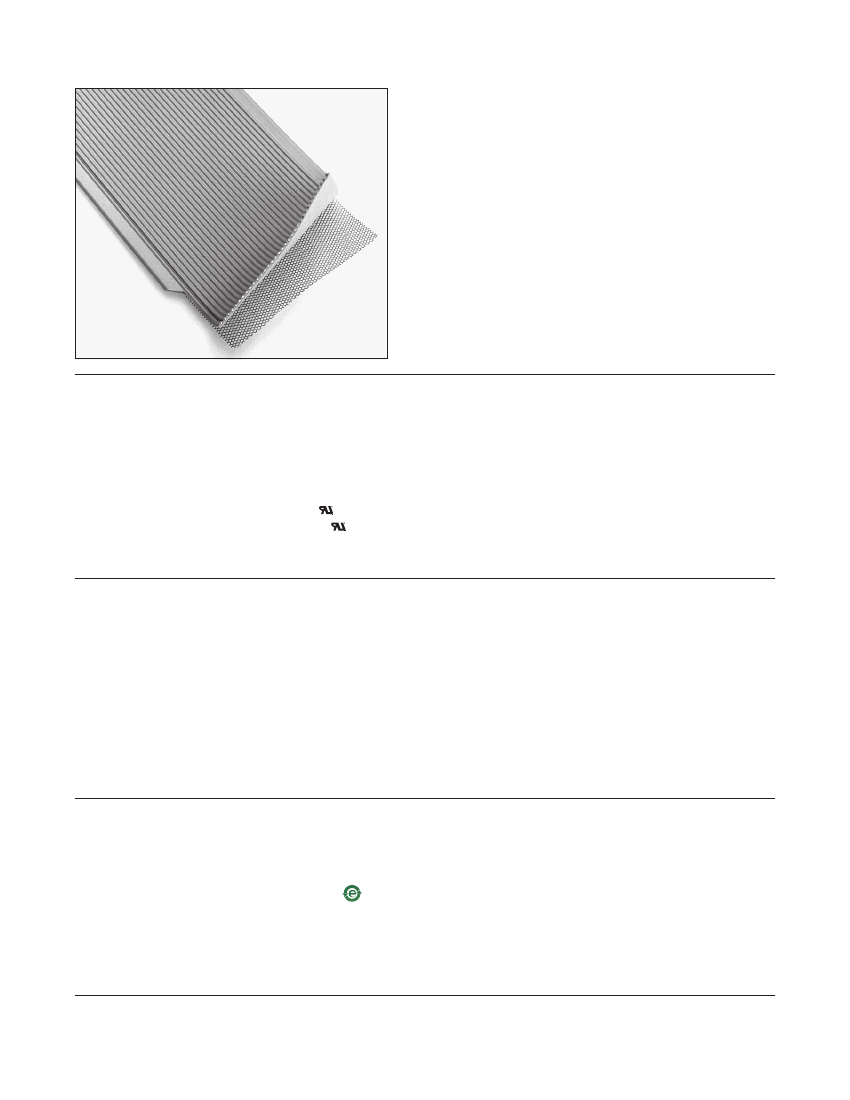

• 28 AWG wire on .050 inch wire spacing permits mass
termination to a broad line of IDC connectors
• Ground plane construction for increased signal
density or improved transmission properties
• Stranded wire provides flexibility and extended
product life
• Ground plane can be stripped by hand for easy
termination
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section
of www.3M.com/Interconnects for compliance
information (RIA E1 & C1 apply)
Date Modified: September 3, 2009
17
TS-0077-C
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray
Marking:
C
Note: Unbalanced is measured between ground-signal-ground conductors, with the ground plane grounded.
Environmental
Temperature Rating:
-20°C to +105°C
Flammability Rating:
USA:VW-1 Canada:FT1
Regulatory Classification:
EU: Compliant, see RIA note E1
, see RIA note C1
CN:
Regulatory Information Appendix (RIA) attached
UL File No.: E42769, Style No: 2682
D
IS
Voltage Rating:
Insulation Resistance:
Characteristic Impedance:
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
T
Electrical
USA: 300V
Canada: 150V
>1 x 10
10
Ω
/10 ft [3 m]
Unbalanced:
65
Ω
Unbalanced:
25.1 pF/ft (82.3 pF/m)
Unbalanced:
0.11 μH/ft (0.36 μH/m)
Unbalanced:
1.64 ns/ft (5.38 ns/m)
Unbalanced:
62%
IN
Standard: None
Canadian Option:
AWM 2682 105C 300V VW1 3M NU
C
AWM IA 105C 150V FT1 EU <50V
Conductors:
28 AWG 7 x 36 [ 7 x 0.127 ] Tinned Stranded Copper
C
U
E
C
O
N
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
D
EU: <50V
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
7/
3M
™
Ground Plane Cable
.050" 28 AWG Stranded, No Drain, PVC
Number of
Conductors
10
14
15
16
20
25
C
3469 Series
3M Part
Number
3469/10
3469/14
3469/15
3469/16
3469/20
3469/25
3469/26
3469/34
3469/37
3469/40
3469/50
3469/60
3469/64
Dimension A
0.750 ± .015 [ 19.05 ]
0.950 ± .015 [ 24.13 ]
1.000 ± .015 [ 25.40 ]
1.050 ± .015 [ 26.67 ]
1.250 ± .015 [ 31.75 ]
1.500 ± .015 [ 38.10 ]
1.550 ± .015 [ 39.37 ]
1.950 ± .015 [ 49.53 ]
2.100 ± .015 [ 53.34 ]
2.250 ± .015 [ 57.15 ]
2.750 ± .015 [ 69.85 ]
3.250 ± .015 [ 82.55 ]
3.450 ± .015 [ 87.63 ]
Dimension B
0.450 ± .010 [ 11.43 ]
0.650 ± .010 [ 16.51 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
0.950 ± .010 [ 24.13 ]
1.200 ± .010 [ 30.48 ]
1.250 ± .010 [ 31.75 ]
1.650 ± .010 [ 41.91 ]
1.800 ± .010 [ 45.72 ]
1.950 ± .010 [ 49.53 ]
C
(Optional)
26
34
37
40
50
60
64
.150 ± .010
[ 3.81 ]
N
.047 ± .003
[ 1.19 ]
Red line designates
wire #1.
T
IN
.050 ± .002 Typ
[ 1.27 ]
U
E
A
B
28 AWG 7 X 36 [ 7 X 0.127 ] Tinned
Stranded Copper Conductors
.005 [ 0.13 ] Expanded
Copper Ground Plane
C
PVC Insulation
O
D
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
IS
Ordering Information
D
3469/XX
Blank = Standard
C = Canadian Certified
Version
Number of Conductors
(See Table)
TS-0077-C
Sheet 2 of 2
Note: Standard length is 100 ft/roll.
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
7/
17
2.450 ± .010 [ 62.23 ]
2.950 ± .010 [ 74.93 ]
3.150 ± .010 [ 80.01 ]
[ ] Dimensions for Reference Only
