59S2UQ-40MT5-G_1 datasheet, PDF

Datasheet> All Categories > The connector> Rf interconnection> RF connector/coaxial connector> 59S2UQ-40MT5-G_1

59S2UQ-40MT5-G_1: DescriptionRF Connector/Coaxial Connector Plug PC-Board SMD Right Angle G Gray; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size248KB，4 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S2UQ-40MT5-G_1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S2UQ-40MT5-G_1	-	-	View	Buy Now

59S2UQ-40MT5-G_1 Overview

RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle G Gray

59S2UQ-40MT5-G_1 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Product Category	RF Connector/Coaxial Connector
Shipping restrictions	Mouser does not currently sell this product.
product	PCB Connectors
RF series	FAKRA
Type	Plug
impedance	50 Ohms
minimum frequency	-
maximum frequency	6 GHz
Termination type	PCB - Through Hole
direction	Right Angle
Installation type	PCB Mount
Subject type	Right Angle
Contact plating	Gold
Contact termination	-
Contact type	Pin (Male)
insulation	Non-Isolated
series	FAKRA
Voltage rating	335 V
Contact material	Brass
Insulation resistance	1000 MOhms
Operation cycle	25
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	430

Preview

Download Datasheet

View All

Technical Data Sheet

FAKRA-HF

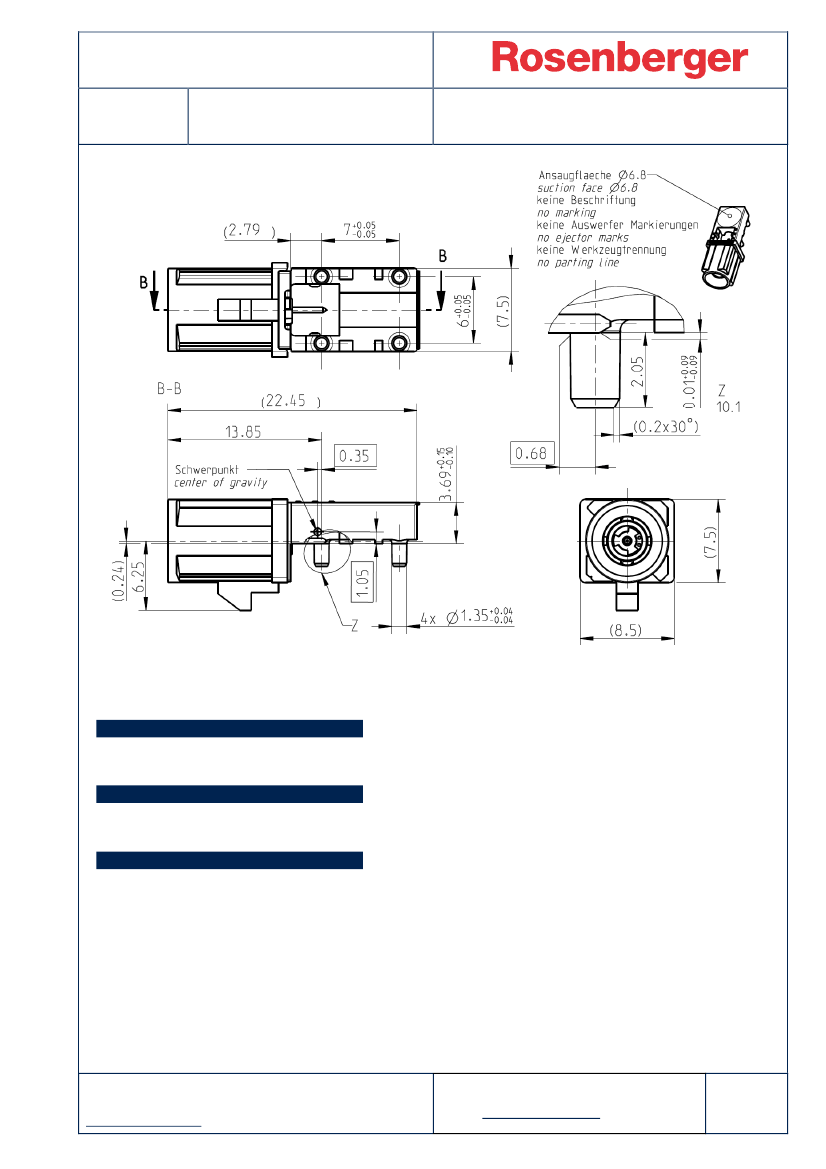

RIGHT ANGLE PLUG

PCB WITH HOUSING

59S2UQ-40MT5-Y_1
