Push-on Lock Coaxial Connectors for Digital Broadcasting
Applications
PL71 Series
75Ω Up to 3 GHz
■
Features
1. 20% downsized compared with
conventional 75 ohm BNC connectors.
2. Superior locking mechanism
Our exclusive locking method keeps the
mating part in constant contact with the
electr ic reference plane (Top Touch),
ensuring high contact stability and reliability.
The construction is protected by the outer
shell.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Stable, stationary center contact structure
The stationary design protects the extremely
thin center conductor of this 75 ohm coaxial
cable from potential damage. Damage can
be caused by rotational forces during mating
and unmating.
4. Reliable at high frequencies
The high-frequency performance of the PL71
S e r i e s i s ve r y r e l i a bl e, w i t h V. S. W. R .
characteristics of a maximum of 1.3 at DC,
and up to 3 GHz, which is suitable for
3G-SDI broadcasting equipment.
■

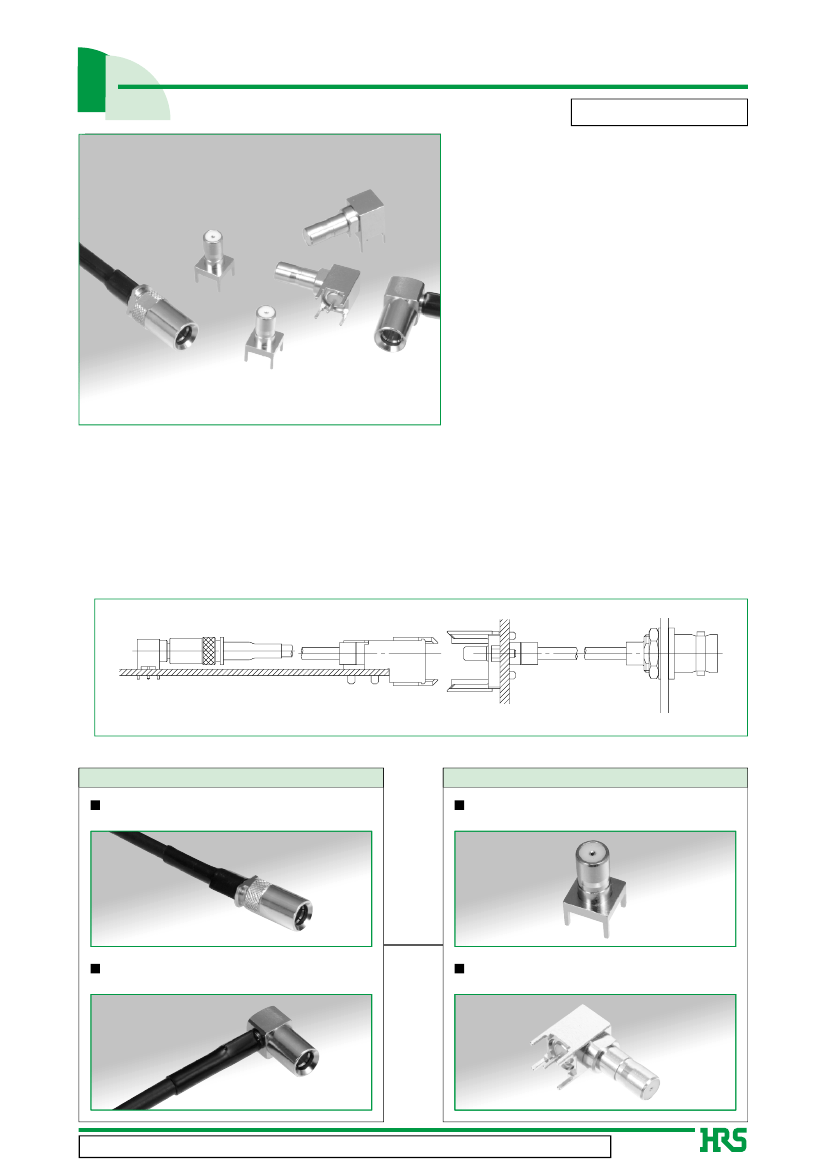

Applications
The PL71 Series is well suited for use in the digital cable television broadcasting industry. This 75
ohm
coaxial series can work together with BNC(75)Series and PO82M Series to configure a wide range of
functions, including interface connections, plug-in mounting, and wiring within devices.
Inner Wiring PL71 Series
Plug-in mounting PO82M Series
Interface→BNC(75)Series
Housing is compliant with IEC61076-4-101
PO21M Series
■
Mating Chart

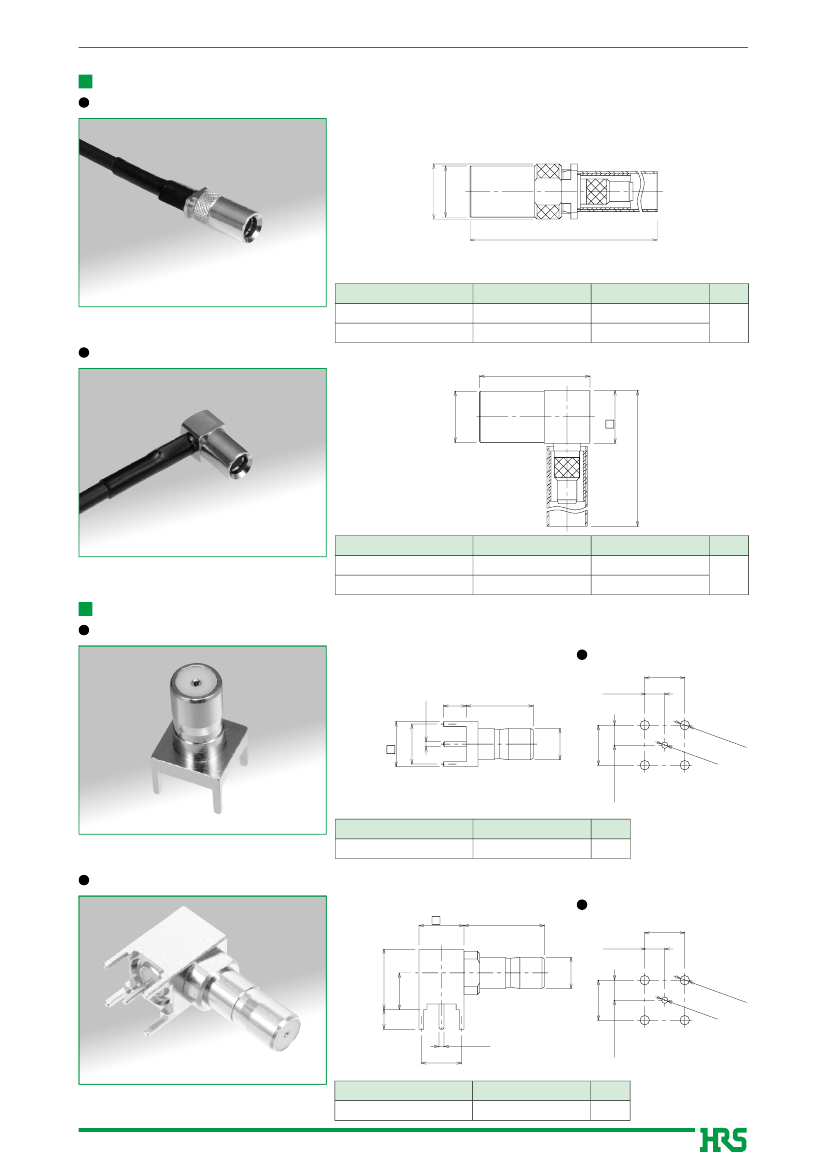

Plugs
Straight
PL71-P-πππ
Straight
PL71-R-PC
Receptacles
Right-angle
PL71-LP-πππ
Right-angle
PL71-LR-PC
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2014.11w
1
PL71 Series●Push-on Lock Coaxial Connectors for Digital Broadcasting Applications
Specifications
Ratings
Item
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. V.S.W.R.
5. Center contact
6. Insertion and
withdrawal forces
7. Durability(mating/
unmating with
corresponding plug)
8. Vibration
Nominal characteristic impedance
Frequency range : DC to 3 GHz
Specification
6 mø max.
1,000 Mø min.
No flashover of insulation breakdown
1.3max.
0.5N min.
9.8 N min.
Contact resistance 6 mø max.
No electrical discontinuity of 1μs or longer
No damage, cracks, or parts dislocation
No electrical discontinuity of 1μs or longer
No damage, cracks, or parts dislocation
Insulation resistance: 100 Mø min. (high humidity)
Insulation resistance: 1,000 Mø min. (dry)
No damage, cracks, or parts dislocation
No damage, crack, or part dislocation
No corrosion
: 75ø
Operating temperature range :-30°C to +85°C
Operating humidity
: RH 95% max.
Conditions
100 mA max.
500 V DC
500 V AC / 1 minute
DC to 3 GHz
Measured with 0.49mm diameter pin gauge
Measured with the applicable mating pair
500 mating cycles
Frequency: 10 to 500 Hz, single amplitude of
2
0.75 mm, acceleration of 98m/s , 10 cycles in
each of the 3 axial directions
2
Acceleration of 490m/s , for a duration of 11
ms, sine half-wave waveform, 3cycles in each
of the 3 axial directions
240 hours at +25ç to +65ç and humidity of
80% to 96%
Temperature:-55ç
➝
+5ç to +35ç
➝
+85ç
➝
+5ç to +35ç
Time: 30 min.
➝
5 min.max.
➝
30 min.➝ 5 min.max.
5 cycles
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
9. Shock resistance
10. Moisture resistance
11. Temperature cycle
12. Salt spray
5% salt water solution, 48 hours
Note: Some products may have different specifications from those shown above. Please confirm requirements before ordering.
Materials
Materials
Finish
Remarks
Shell
Brass
Nickel plated
–––
Male center contact
Brass
Gold plated
–––
Female center contact Beryllium copper Gold plated
–––
Insulator
PTFE
–––
Flame retardant
Part
: PL71
q
Series name
w
Connector type
P
: Straight plug
LP
: Right-angle plug
R
: Straight receptacle
LR
: Right-angle receptacle
e
Applicable cable(plug) or board
1.5C
: 1.5C-QEV.CW
1.5CW
: 1.5C-QEW.CW
PC
: DIP mounting
Ordering information
PL71
-
q
w
-
e
2
PL71 Series●Push-on Lock Coaxial Connectors for Digital Broadcasting Applications
Plugs
Straight
Ø7
Ø6.5
20.7
All dimensions:mm
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
PL71-P-1.5CW(40)
PL71-P-1.5CV-1(40)
HRS No.
334-0001-5 40
334-0069-9 40
14
Applicable cable
1.5C-QEW.CW
1.5C-QEV.CW
RoHS
Yes
Right angle
Ø6.5
6.7
14.4
All dimensions:mm
Part No.
PL71-LP-1.5CW(40)
PL71-LP-1.5C(40)
HRS No.
334-0006-9 40
334-0007-1 40
Applicable cable
1.5C-QEW.CW
1.5C-QEV.CW
RoHS
Yes
Receptacles
Straight
PCB mounting pattern
5.08±0.05
2.54±0.05
Ø0.7
2.9
8.5
5.08±0.05
5.7
Ø3.95
4∞Ø
0
5.08
1.2±
Ø0.8
+0
.1
2.54±0.05
0.1
All dimensions:mm
Part No.
PL71-R-PC(40)
HRS No.
334-0011-9 40
RoHS
Yes
Right angle
PCB mounting pattern
5.7
10.2
2.54±0.05
7.65
Ø3.95
5.08±0.05
5.08±0.05
4.65
4∞Ø
0
1.2±
Ø0.8
+0
.1
2.54±0.05
0.1
2.5
Ø0.7
5.08
All dimensions:mm
Part No.
PL71-LR-PC(40)
HRS No.
334-0016-2 40
RoHS
Yes
3
PL71 Series●Push-on Lock Coaxial Connectors for Digital Broadcasting Applications

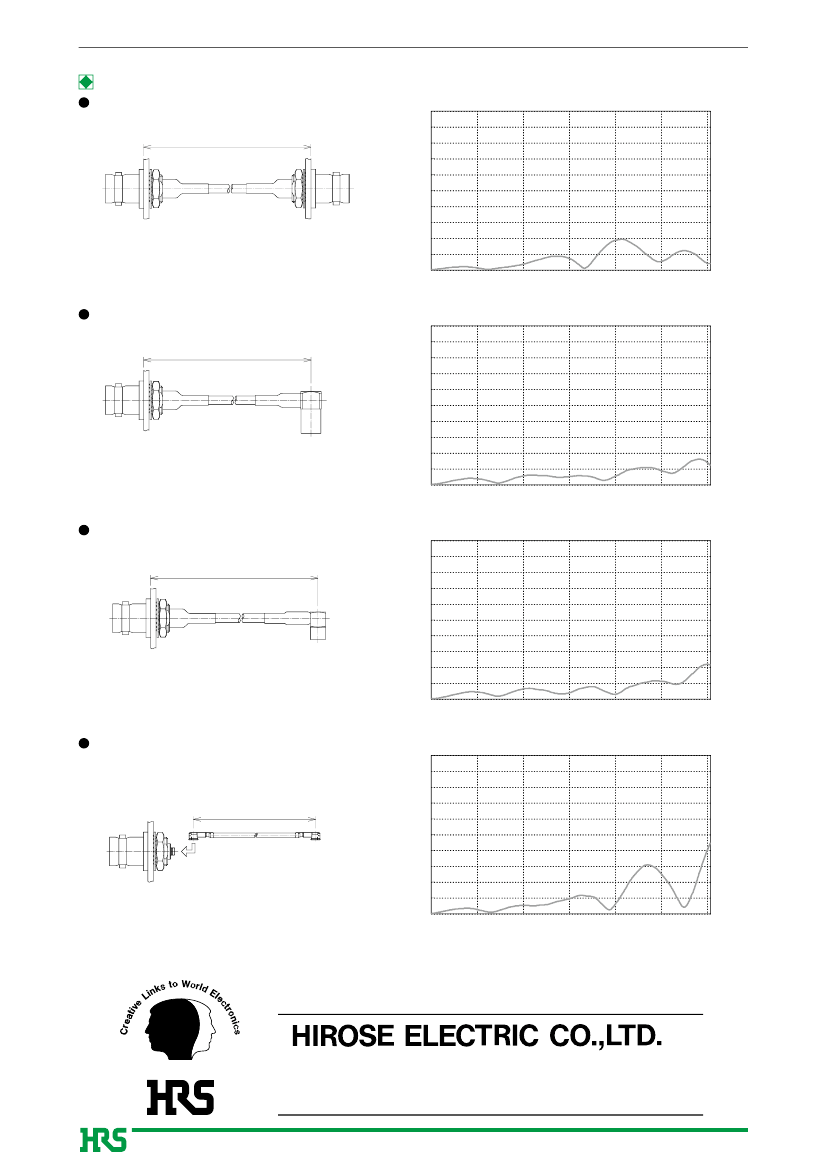

High Frequency Characteristics of 75Ω Hirose product series
BNC(75) Series
100
2
1.9
1.8
1.7
V.S.W.R.
BNC(75)-BPJ-1.5CV-π
BNC(75)-BPJ-1.5CV-π
1.6
1.5
1.4
1.3
1.2
1.1
1
0
0.5
1
1.5
2
2.5
3
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Frequency[GHz]
PL71 Series
100
2
1.9
1.8
1.7
V.S.W.R.
BNC(75)-BPJ-1.5CV-π
PL71-LP-1.5C(40)
1.6
1.5
1.4
1.3
1.2
1.1
1
0
0.5
1
1.5
2
2.5
3
Frequency[GHz]
PL75 Series
100
2
1.9
1.8
1.7
V.S.W.R.
BNC(75)-BPJ-1.5CV-π
PL75-LP-1.5CV
1.6
1.5
1.4
1.3
1.2
1.1
1
0
0.5
1
1.5
2
2.5
3
Frequency[GHz]
H.FL75 Series
2
1.9
1.8
1.7
V.S.W.R.
100
1.6
1.5
1.4
1.3
1.2
H.FL75-2LPG-084Nπ-L
BNC(75)J-H.FLJ-BPA(40)
1.1
1
0
0.5
1
1.5
2
2.5
3
Frequency[GHz]
®
