Wzzard™ Energy Monitoring Kit
Model BB-WSK-NRG-1
www.advantech-bb.com
+
Monitor current consumption to reduce energy costs
+
Non-disruptive, snap & go setup - no downtime
+
Easily scalable at any time - to thousands of sensors
+
Built-in Node-RED™ software tool for easy deployment
+
IP66 indoor/outdoor rated (Wzzard node)
LOWER ENERGY COSTS THROUGH DATA-DRIVEN
PROCESS OPTIMIZATION
Scalable
Monitor Energy Use of Machines, Circuits & Processes
•
Grow from monitoring one machine or circuit to many simply by adding
sensor nodes and making simple dashboard edits
•
Or expand into a multi-site system integrated into your preferred
software platform. The popular MQTT protocol and JSON data format
makes it easy to integrate into third party software applications.
•
Use the built-in Node-RED to create and customize your own
applications without any advanced programming skills.
Today’s leading manufacturers and facilities managers have energy
reduction programs in place to reduce input costs and improve their
environmental footprint. But often they’re managing those programs with
nothing more than a monthly utility bill and no insight into energy use
or trends of their individual equipment, processes or circuits. Installing
individual energy meters into existing equipment carries a high cost of
installation and is disruptive to ongoing operations.
The Wzzard Energy Monitoring Starter Kit provides a non-intrusive, easily
installed solution for monitoring current consumption of your equipment,
processes or panels without disrupting your existing operations.
•
Includes everything you need to monitor current consumption of up to
three inputs - one three-phase load or three unique loads.
•
No equipment downtime, simply snap on the current clamps connected
to the wireless Wzzard node and provide an Ethernet connection to the
gateway.
•

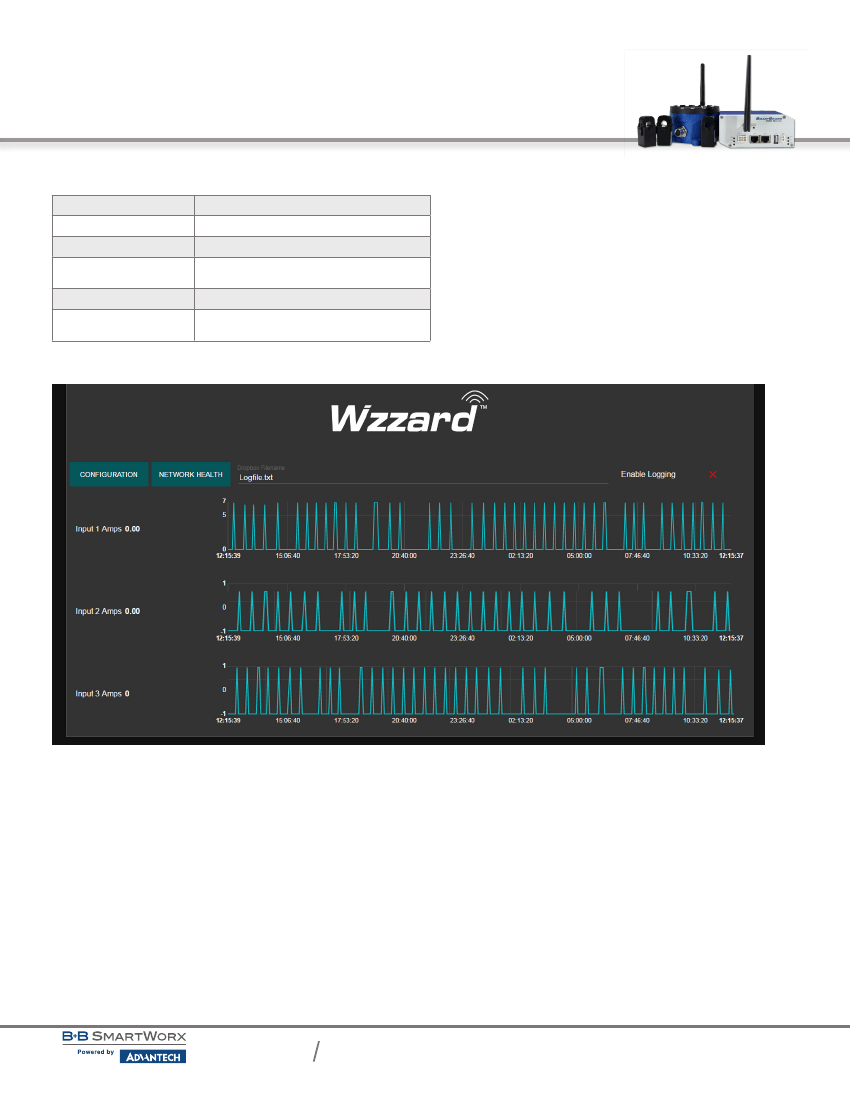

Dashboard, data trendlines, email/SMS alerts and data logging capability.
•
Easily expand the Starter Kit system by simply adding additional Wzzard
nodes and sensors to your existing gateway.
•
Fast deployment of Proof of Concept and Pilots. Easy to scale to
hundreds or thousands of inputs from one location or multiple locations.
Rugged & Reliable
•
Wzzard node is IP66, -40 to 80°C, rated for indoor and outdoor use, no
external enclosure required.
•
Advanced Smartmesh IP wireless mesh protocol provides excellent
point-to-point wireless reliability and becomes more resilient as more
nodes are added to the system.
ORDERING INFORMATION
MODEL NUMBER
BB-WSK-NRG-1
DESCRIPTION

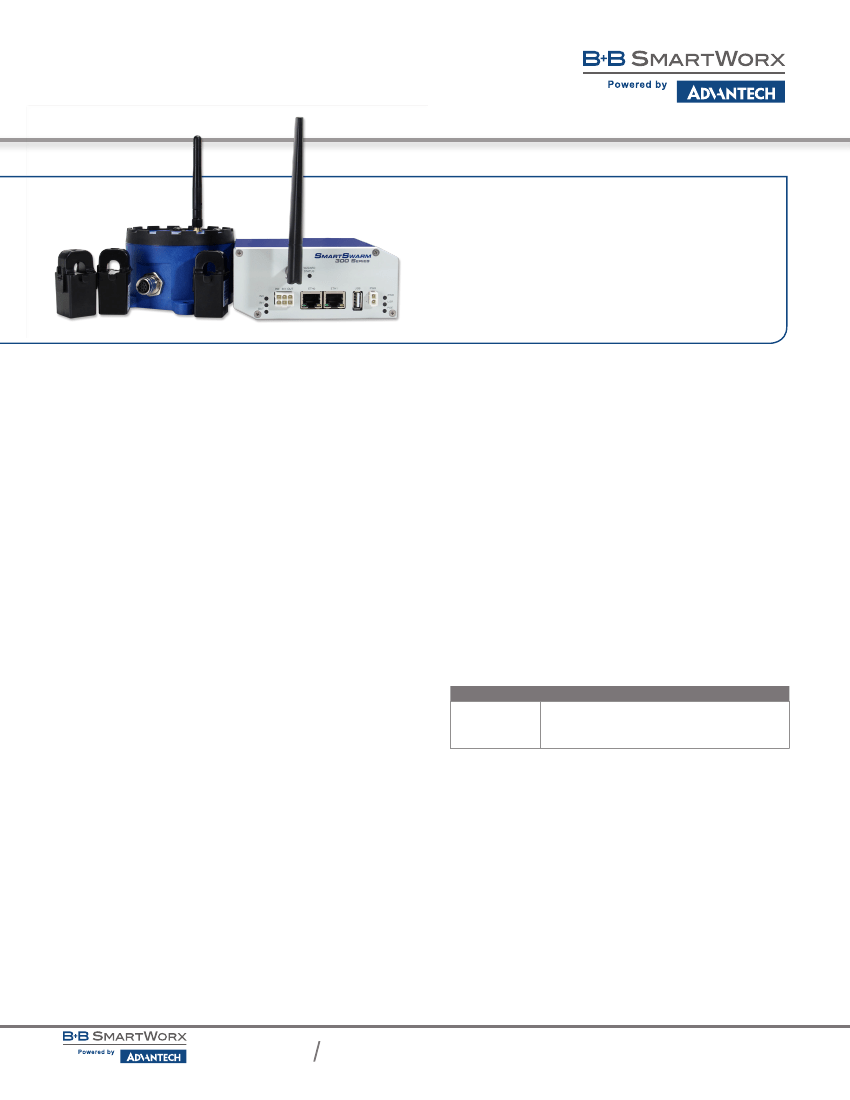

Energy Monitoring Starter Kit (1 Wzzard Industrial Node
with M12 connector, 3 Current Transformers, 1 M12 Cable,
1 SmartSwarm 341 Gateway).
Included Hardware
(1) Model WSD2MA3 Industrial Node - 3 analog-in unit with M12 connector and
external antenna. (Supports up to 3 attached sensors.)
(3) Model JC10F50-V 50A - clamp-on current sensor.
(1) Model 520-10256-00 - M12 cable.
(1) Model SmartSwarm 341 Gateway - Ethernet network gateway with Wzzard
board. (One gateway supports up to 32 wireless sensor nodes and up to 96
attached sensors.)
Included Software
Cloud license for SmartWorx Hub device management and configuration tool.
Node Red flow with Web server for:
•
Real time data display.
•
Historian trending.
•
Visual and email/SMS alerts.
•
External data source integration (weather, Twitter feeds, and more).
All product specifications are subject to change without notice.
BB-WSK-NRG-1_EnergyStarterKit_0417ds
Easy to Deploy
•
The Wzzard Wireless Sensing node is battery powered and can be easily
deployed without any special wiring. No need to install expensive or
intrusive wiring.
•
Clamp-on current transducers are easy to install without disrupting
equipment. Simply clamp them over the hot power lead supplying
equipment or a panel.
•
Wzzard’s 2.4GHz wireless mesh technology continuously optimizes its
channel selection to eliminate multipath interference, providing best-in-
class reliability in difficult RF environments.
•
Simple, cloud-based configuration of the gateway makes it easy to deploy
and manage one device or many.
