V12PM10
www.vishay.com
Vishay General Semiconductor
High Current Density Surface Mount
Trench MOS Barrier Schottky Rectifier
Ultra Low V
F
= 0.50 V at I
F
= 6 A
TMBS
®
eSMP
®
Series
K
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Trench MOS Schottky technology
• Low forward voltage drop, low power losses
Available
1
2
• High efficiency operation
• Meets MSL level 1, per
LF maximum peak of 260 °C
J-STD-020,
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
• AEC-Q101 qualified available
- Automotive ordering code; base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 15 A (125 °C)
T
J
max.
Package
Diode variations
12 A
100 V
200 A
0.61 V
150 °C
TO-277A (SMPC)
Single die
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant and
AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 and HM3 suffix meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum DC forward current
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range
Notes
(1)
Mounted on 30 mm x 30 mm pad areas aluminum PCB
(2)
Free air, mounted on recommended pad area
V
RRM
I
F(AV) (1)
I
F(AV) (2)
I
FSM
T
J
, T
STG
SYMBOL
V12PM10
12M10
100
12
3.8
200
-40 to +150
V
A
A
°C
UNIT
Revision: 03-Jul-15
Document Number: 87629
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V12PM10
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
I
F
= 6 A
Instantaneous forward voltage
I
F
= 12 A
I
F
= 6 A
I
F
= 12 A
V
R
= 70 V
Reverse current
V
R
= 100 V
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
≤
40 ms
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
SYMBOL
TYP.
0.57
0.69
0.50
0.61
0.02
2.5
-
5
MAX.
-
0.75
-
0.66
-
-
0.20
16
mA
V
UNIT
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise specified)
PARAMETER
Typical thermal resistance
SYMBOL
R
θJA
(1)
V12PM10
75
4
UNIT
°C/W
R
θJM
(2)
Notes
(1)
Free air, mounted on recommended copper pad area; thermal resistance R
θJA
- junction to ambient
(2)
Mounted on 30 mm x 30 mm pad areas aluminum PCB, thermal resistance R
θJM
- junction to mount
ORDERING INFORMATION
(Example)
PREFERRED P/N
V12PM10-M3/H
V12PM10-M3/I
V12PM10HM3/H
(1)
V12PM10HM3/I
(1)
(1)
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
PACKAGE CODE
H
I
H
I
BASE QUANTITY
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
AEC-Q101 qualified
Revision: 03-Jul-15
Document Number: 87629
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V12PM10
www.vishay.com
Vishay General Semiconductor

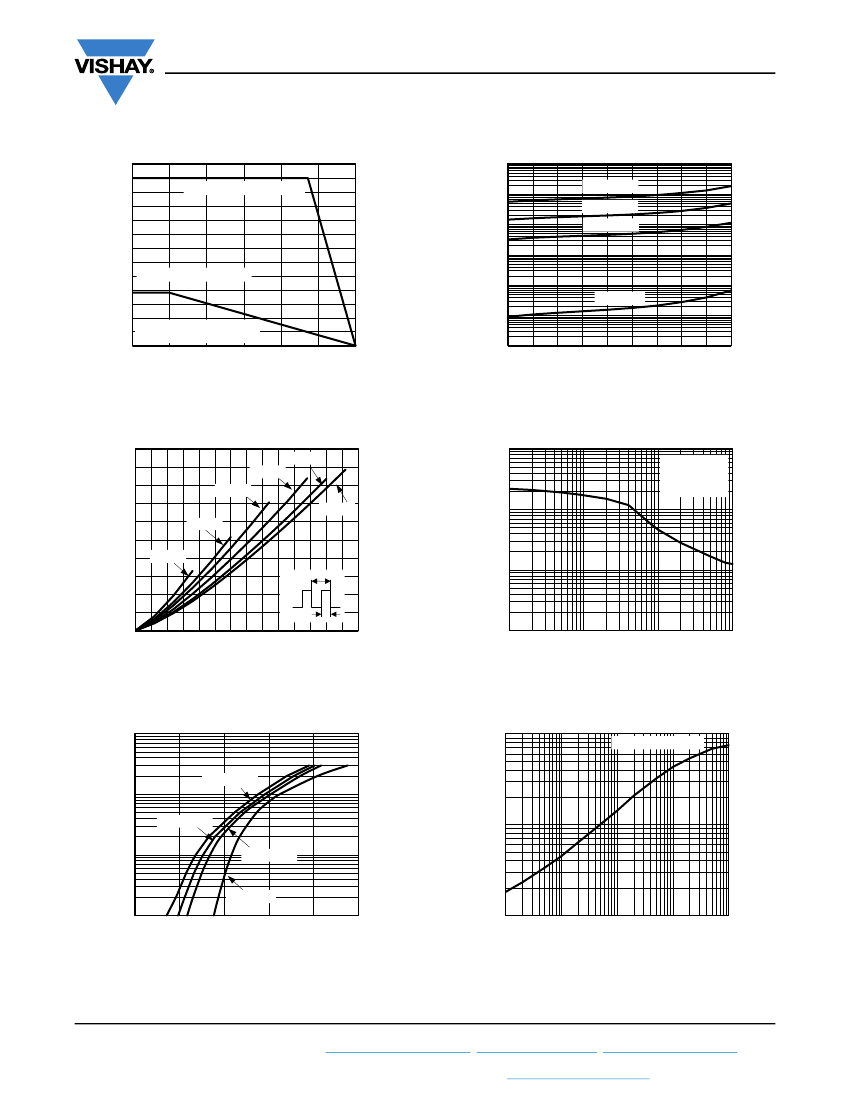

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise specified)
Average Forward Rectified Current (A)
13.0
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
0
100
10
1
0.1
0.01
T
A
= 25 °C
0.001
0.0001
10
20
30
40
50
60
70
80
90
100
T
A
= 150 °C
T
A
= 125 °C
T
A
= 100 °C
T
JM
= 118°C, R
thJM
= 4 °C/W
T
A
= 25 °C, R
thJA
= 75 °C/W
T
M
measured at cathode
termnal mount typical values
25
50
75
100
125
150
Mount Temperature (°C)
Fig. 1 - Maximum Forward Current Derating Curve
Instantaneous Reverse Current (mA)
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Characteristics
10.0
9.0
D = 0.8
D = 0.5
D = 0.3
D = 1.0
D = 0.2
D = 0.1
T
10 000
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
1000
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
0
1
2
3
4
Junction Capacitance (pF)
Average Power Loss (W)
100
D = t
p
/T
t
p
10
5
6
7
8
9 10 11 12 13 14
0.1
1
10
100
Average Forward Current (A)
Fig. 2 - Forward Power Loss Characteristics
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance
Transient Thermal Impedance (°C/W)
100
100
Junction to Ambient
Instantaneous Forward Current (A)
T
A
= 150 °C
10
T
A
= 125 °C
1
T
A
= 100 °C
10
T
A
= 25 °C
0.1
0
0.2
0.4
0.6
0.8
1.0
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
t - Pulse Duration (s)
Fig. 6 - Typical Transient Thermal Impedance
Revision: 03-Jul-15
Document Number: 87629
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V12PM10
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 03-Jul-15
Document Number: 87629
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
